Setup Center 5.1 - XML Import

9 of 22

Manufacturer="Manufacturer02" ManufactureDate="2004-01-01T14:44:56+01:00"

ExpiryDate="2010-12-31T14:44:56+01:00" Supplier="Supplier02" BatchId="Batch02"

DeliveryNote="Serial01" MsdLevel="1" MsdOpenDate="1900-01-01T00:00:00+01:00"

Extra1="Extra01" Extra2="Extra02" Extra3="Extra03" Comment="This is a comment" />

<Packaging IdPackaging="X0000018" ComponentName="Component06"

ComponentBarcode="Component06" OriginalQuantity="600" Quantity="600"

Manufacturer="Manufacturer02" ManufactureDate="2004-01-01T14:44:56+01:00"

ExpiryDate="2010-12-31T14:44:56+01:00" Supplier="Supplier03" BatchId="Batch03"

DeliveryNote="Serial01" MsdLevel="1" MsdOpenDate="1900-01-01T00:00:00+01:00"

Extra1="Extra01" Extra2="Extra02" Extra3="Extra03" Comment="This is a comment" />

</PackagingList>

After processing the file Setup Center will delete the XML file. XML files which have been

completely and successfully processed will be copied to the \Import\XML-OK folder. Faulty or

partially processed files will be copied to the \Import\XML-NotOK folder and an additional text file

with the name of the XML file and the postfix ".error.txt" will be created. This text file contains the

detailed error messages. 4

Setup Center 5.1 - XML Import

10 of 22

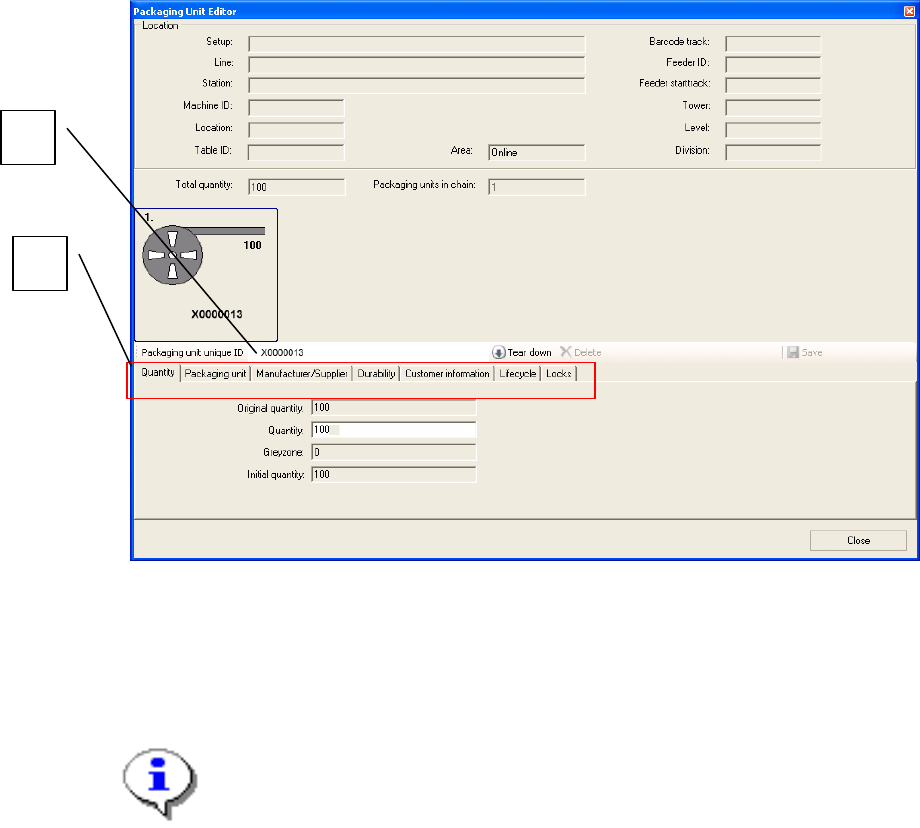

To test whether the import function performs, open the packaging unit editor via the menu

“Options/Edit packaging unit…”.

 (1) Enter one of the imported packaging IDs in the field “Packaging unit unique ID”,

for example “X0000013”.

 (2) To display all details open the respective tab.

Note:

The error file “.error.txt” contains information corresponding to the line number of

the import file. Therefore it is recommended to create import files which have for

each packaging unit a new line.

Setup Center 5.1 - XML Import

11 of 22

3 XML Import files

3.1 Schema of XML import files

The following XSD file shows the structure of the XML files, which will be accepted by the XML

Import:

<?xml version="1.0" encoding="utf-8"?>

<xs:schema id="SiplaceSetupCenterXmlImport"

targetNamespace="http://www.siplace.com/SiplaceSetupCenterXmlImport.xsd"

elementFormDefault="qualified"

xmlns="http://www.siplace.com/SiplaceSetupCenterXmlImport.xsd"

xmlns:mstns="http://www.siplace.com/SiplaceSetupCenterXmlImport.xsd"

xmlns:xs="http://www.w3.org/2001/XMLSchema">

<xs:complexType name="PackagingType">

<xs:attribute name="IdPackaging" type="xs:string" use="required" />

<xs:attribute name="OriginalQuantity" type="xs:integer" use="optional" />

<xs:attribute name="Quantity" type="xs:integer" use="optional" />

<xs:attribute name="ManufactureDate" type="xs:dateTime" use="optional" />

<xs:attribute name="ExpiryDate" type="xs:dateTime" use="optional" />

<xs:attribute name="MsdOpenDate" type="xs:dateTime" use="optional" />

<xs:attribute name="MsdLevel" type="xs:string" use="optional" />

<xs:attribute name="BatchId" type="xs:string" use="optional" />

<xs:attribute name="Comment" type="xs:string" use="optional" />

<xs:attribute name="ComponentBarcode" type="xs:string" use="required" />

<xs:attribute name="ComponentName" type="xs:string" use="required" />

<xs:attribute name="Extra1" type="xs:string" use="optional" />

<xs:attribute name="Extra2" type="xs:string" use="optional" />

<xs:attribute name="Extra3" type="xs:string" use="optional" />

<xs:attribute name="Supplier" type="xs:string" use="optional" />

<xs:attribute name="Manufacturer" type="xs:string" use="optional" />

<xs:attribute name="DeliveryNote" type="xs:string" use="optional" />

<xs:attribute name="PackageId" type="xs:string" use="optional" />

<xs:attribute name="ManufacturerPartNumber" type="xs:string" use="optional" />

<xs:attribute name="OrderingCode" type="xs:string" use="optional" />

<xs:attribute name="ManufacturerLocation" type="xs:string" use="optional" />

<xs:attribute name="RevisionLevel" type="xs:string" use="optional" />

<xs:attribute name="AdditionalPartInformation" type="xs:string" use="optional" />

<xs:attribute name="RoHS" type="xs:string" use="optional" />

<xs:attribute name="PurchaseOrderNumber" type="xs:string" use="optional" />

<xs:attribute name="ShippingNoteNumber" type="xs:string" use="optional" />

<xs:attribute name="DeliveryNote" type="xs:string" use="optional" />

<xs:attribute name="Batch2" type="xs:string" use="optional" />

<xs:attribute name="SupplierData" type="xs:string" use="optional" />

<xs:attribute name="BrightnessClass" type="xs:string" use="optional" />

</xs:complexType>

<xs:complexType name="PackagingListType">

<xs:choice minOccurs="1" maxOccurs="unbounded">

<xs:element name="Packaging" type="PackagingType" />

<xs:element name="PackagingChain" type="PackagingChainType" />

</xs:choice>

<xs:attribute name="ImportVersion" type="xs:string" use="optional" />

</xs:complexType>

<xs:complexType name="PackagingChainType">

<xs:sequence>

<xs:element name="Packaging" type="PackagingType" maxOccurs="3" minOccurs="1" />

</xs:sequence>

</xs:complexType>

<xs:element name="PackagingList" type="PackagingListType" />

</xs:schema>
