Contents
4
Hook Section
Hand / Air / Motor / Sensor / Guide-Pallet ............4-1
5
System Parts Section
System Parts ........................................................5-1
1 Cover Section
Cover ....................................................................1-1
2 Pallet Section
Pallet .....................................................................2-1
3
Rack Section
Rack .....................................................................3-1
KKL-0905
KKL-0905
14
1
28
18
18
11
12
32
28
19
18
26
35
38
5
25
24
21
34
22
23
32
29
32
31
31
6
29
28
28
28
28
28
2
28
28
28
15
36
20
28
28
3
18
17
37
16
18
9
10
4
13
7
18
30
33
27
8
27
1
1
Cover
Cover

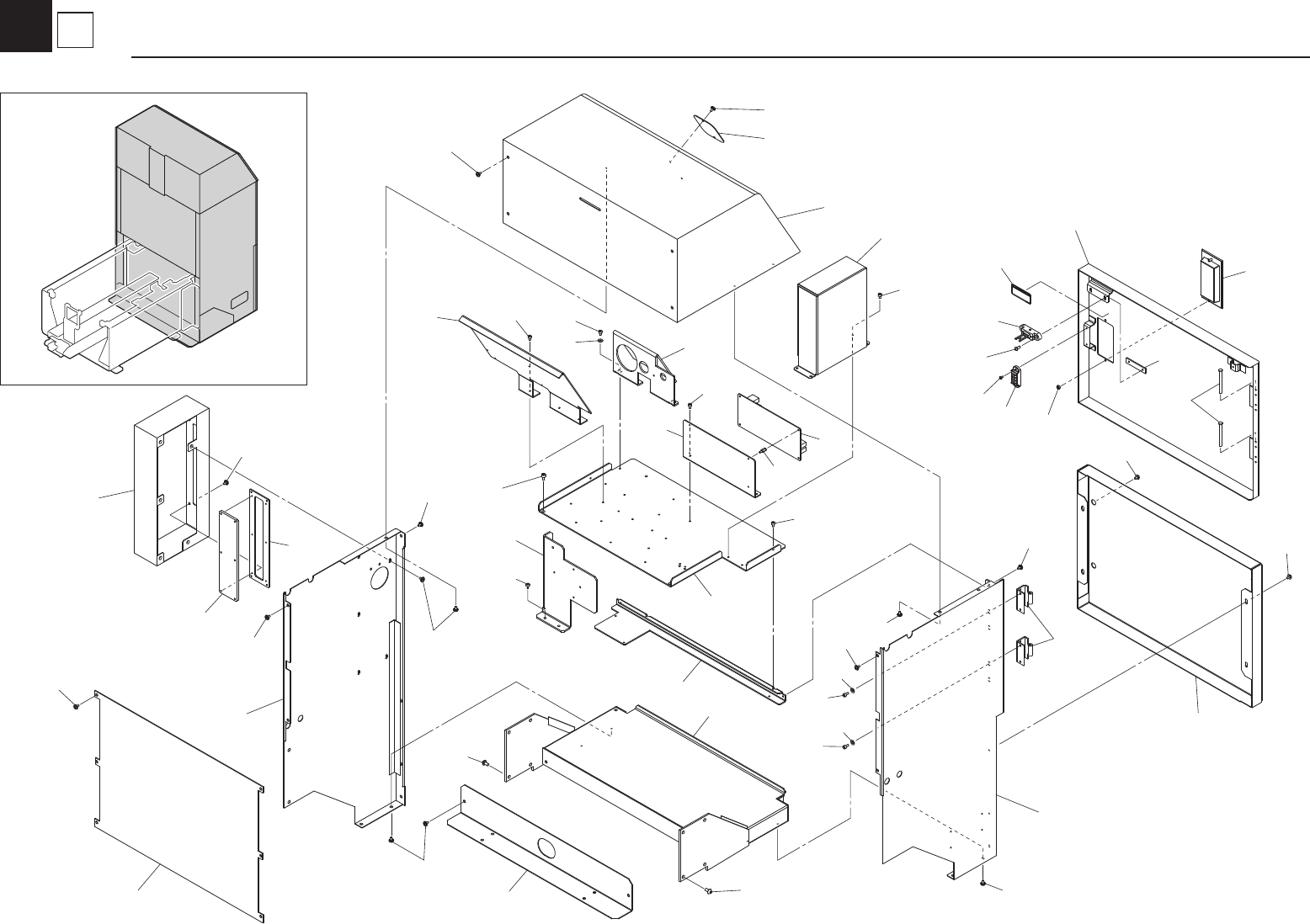

KKL-0905
No. Part No. Part Name Q'ty Remarks Rank Level No. Part No. Part Name Q'ty Remarks Rank Level
1 KKL-M1301-01 COVER 1 1 /
38
KW7-M5127-00
SAFETY SWITCH KEY 1 /
Í
2 KW4-M1302-00 COVER 2 1 /
Í
39
3 KKL-M1303-00 COVER 3 1 /
Í
40
4 KKL-M1304-00 COVER 4 1 /
Í
41
5 KKL-M1305-00 DOOR 1 /
42
6 KKL-M1306-00 COVER 6 1 /
Í
43
7 KW4-M1307-01 BOTTOM STAY 1 /
Í
44
8 KKL-M1309-00 COVER 9 1 /
Í
45
9 KKL-M1310-00 BRACKET E/L 1 1 /
Í
46
10 KKL-M1311-00 BRACKET E/L 2 1 /
Í
47
11 KKL-M1312-00 BRACKET E/L 3 1 /
Í
48
12 KKL-M1313-00 BRACKET E/L 4 1 /
Í
49
13 KKL-M1314-00 BRACKET E/L 5 1 /
Í
50
14 KV4-M1315-00 SW COVER 6 1 /
Í
51
15 KKL-M1319-00 PLATE, BOARD 1 /
Í
52
16 KKL-M1321-00 PLATE, CTRL BOARD 1 /
Í
53
17 90563-03J100 SPACER BOLT 4
54
18 91312-04006 BOLT HEX. SOCKET HEAD 15
55
19 KKL-M1322-00 COVER, CABLE GUIDE 1 /
Í
56
20 KKL-M1351-00 COVER, INDICATOR 1 /
Í
57
21 K44-M1354-00 MG. CATCH (TL-152-2) 1 /
58
22 KGS-M1360-00 BOLT 2 /
Í
59
23 KG2-M1372-00 PIECE B HINGE 2 /
60
24 K46-M1373-00 SHAFT HINGE 2 /
61
25 KL0-M1374-00 PLATE 1 SCHMEASAL 1 /
Í
62
26 KL4-M1309-10 HANDLE 1 /
63
27 90990-11J003 SCREW, PAN HEAD W/W 4
64
28 90990-12J001 SCREW BIN. HEAD W/W 40 65
29 91312-04008 BOLT HEX. SOCKET HEAD 4 66
30 91312-05008 BOLT HEX. SOCKET HEAD 2 67
31 91317-06010 BOLT HEX. SOCKET HEAD 8
68
32 92902-04200 WASHER PLAIN 6
69
33 95302-04600 NUT HEXAGON 2 70
34 98902-03006 SCREW BINDING HEAD 2 71
35 90K41-000490 LABEL, ALERT 1 72
36
KGW-M4578-01 INDICATOR BOARD ASSY 1 Red only /
Í
73
KGW-M4578-12 INDICATOR BOARD ASSY 1
Red/ Green/ Yellow
/
Í
74
37 KGS-M4574-01 INDI CTRL BOARD ASSY 1 /
Í
75
1
1
