Machine System >> Basic Operation
4-2
SYS-CP842-1.0E
4.1.1 Getting Started
Starting the Machine and Displaying the [Main] Screen
Although most of the explanations in this chapter start from the [Main] screen, this is
not the first screen that displays when the machine is started. Carry out the following
procedure to start the machine and display the [Main] screen.
Procedure
1 Start the host system connected to the machine.
2 Set the circuit breaker on the machine to the ON position.
3 Open the transformer box cover and turn on the UPS (Uninterrupted Power-
Supply) switch. The POWER ON lamp lights.
4 Press the EMERGENCY STOP button.
Caution:For safety reasons, the EMERGENCY STOP button should always be pressed
before turning on the power to the machine.
5 Push the SYSTEM ON button to start the machine.
6 The machine boots up and the red [Error] screen displays, release the EMER-
GENCY STOP button which was pushed in.

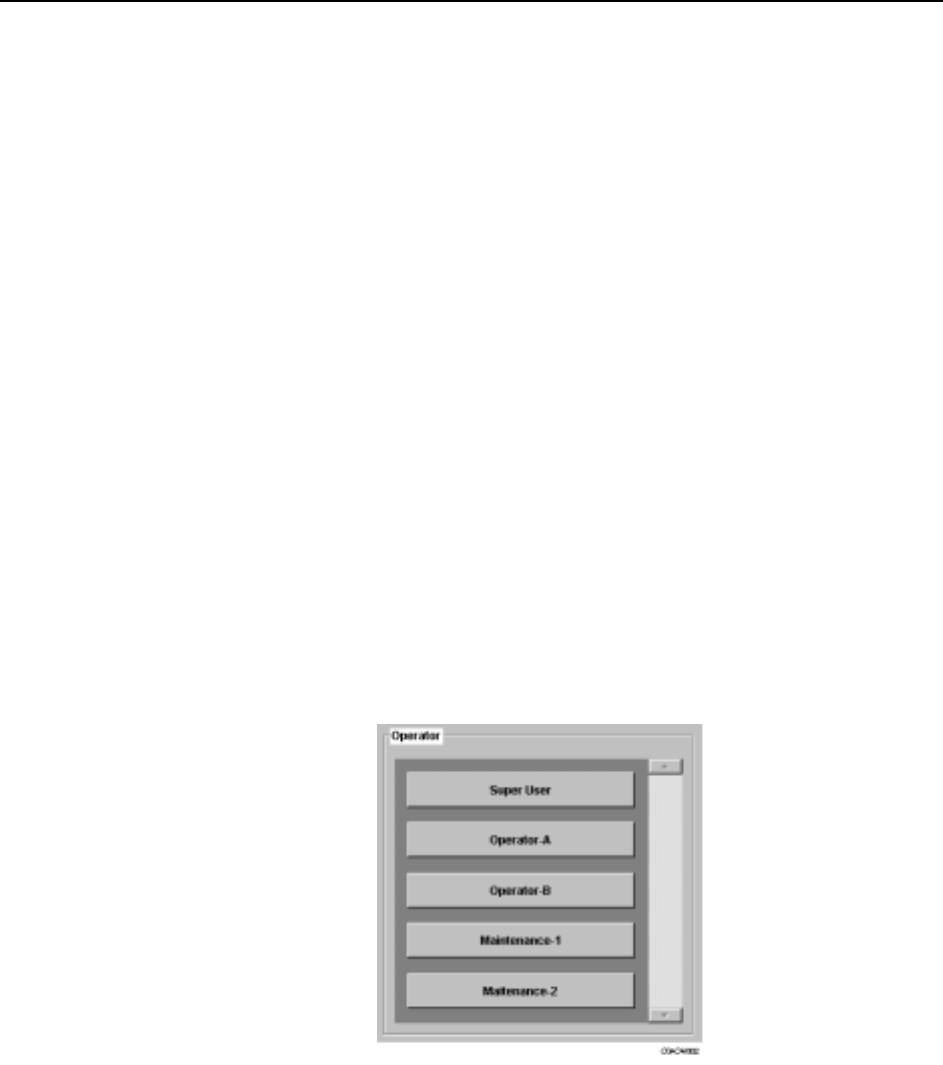

7 Push the READY ON button and select your user name from the list which dis-
plays. You will be requested to enter your password using the virtual keyboard
which displays. After entering your password, press [Enter] to log on.
8 The [Main] screen displays.
Machine System >> Basic Operation
SYS-CP842-1.0E 4-3
Shutting Down
Carry out the following procedure to turn off the machine after production.
Procedure
1 Push the EMERGENCY STOP button to shut off the 200V power supply to the
servo system.
2 Push the [Power Off] on the display to turn off the main power supply, and press
[OK] at the confirmation message.
3 Windows is shutdown automatically using a timer.
Note: Do not press the SYSTEM ON button on the machine or the [Restart] command on
the display, while the timer is active.
That completes the normal shutdown procedure. The power light is still on, but it is
not necessary to turn off the power at the breaker unless maintenance work is
required, or when the machine is to be left idle for an extended period. In these cases,
the UPS should be deactivated, and the power should then be turned off at the
breaker.
4 Open the transformer box cover and turn off the UPS switch.
The power light turns off.
5 Turn off the power to the machine at the breaker.
Stopping the Machine in an Emergency
• Push any of the EMERGENCY STOP buttons on the machine.
When an EMERGENCY STOP button is pushed the 200V power supply to the
servo system is cut, and the machine stops immediately. When pushed, the but-
ton locks in position and must be turned clockwise to release it.
• To resume operation, release the EMERGENCY STOP button, and then push
READY ON and START.
Machine System >> Basic Operation
4-4
SYS-CP842-1.0E
Clearing an Error
There are two levels of error which can occur at the machine, emergency stop errors
and cycle stop errors.
Emergency Stop
If an emergency stop occurs, the 200V power supply to the servo system is cut, and the
machine stops immediately. Emergency stop errors are caused by actions such as
opening the safety doors (front or rear), tape leaf errors and pushing the EMER-
GENCY STOP button.
Cycle Stop
If a cycle stop occurs, the machine stops when the current cycle of the cam is complete
(power to the servo system is not cut). Cycle stop errors are caused by actions such as
vision related errors, air pressure errors and carrier loader system errors.
Procedure
1 If an error occurs, the following error screen displays, and the Ready ON button
is enabled.
2 Correct the problem which caused the error. There is a button for each error
which indicates the type of error. To display the details of the error, press the
error message button.
3 Press the READY ON to indicate that the cause of the error has been corrected.
4 If the cause of the error has been properly corrected, the START button is
enabled.
5 Press the START button to restart production.
