Machine System >> Basic Operation

SYS-CP842-1.0E 4-3

Shutting Down

Carry out the following procedure to turn off the machine after production.

Procedure

1 Push the EMERGENCY STOP button to shut off the 200V power supply to the

servo system.

2 Push the [Power Off] on the display to turn off the main power supply, and press

[OK] at the confirmation message.

3 Windows is shutdown automatically using a timer.

Note: Do not press the SYSTEM ON button on the machine or the [Restart] command on

the display, while the timer is active.

That completes the normal shutdown procedure. The power light is still on, but it is

not necessary to turn off the power at the breaker unless maintenance work is

required, or when the machine is to be left idle for an extended period. In these cases,

the UPS should be deactivated, and the power should then be turned off at the

breaker.

4 Open the transformer box cover and turn off the UPS switch.

The power light turns off.

5 Turn off the power to the machine at the breaker.

Stopping the Machine in an Emergency

• Push any of the EMERGENCY STOP buttons on the machine.

When an EMERGENCY STOP button is pushed the 200V power supply to the

servo system is cut, and the machine stops immediately. When pushed, the but-

ton locks in position and must be turned clockwise to release it.

• To resume operation, release the EMERGENCY STOP button, and then push

READY ON and START.

Machine System >> Basic Operation

4-4

SYS-CP842-1.0E

Clearing an Error

There are two levels of error which can occur at the machine, emergency stop errors

and cycle stop errors.

Emergency Stop

If an emergency stop occurs, the 200V power supply to the servo system is cut, and the

machine stops immediately. Emergency stop errors are caused by actions such as

opening the safety doors (front or rear), tape leaf errors and pushing the EMER-

GENCY STOP button.

Cycle Stop

If a cycle stop occurs, the machine stops when the current cycle of the cam is complete

(power to the servo system is not cut). Cycle stop errors are caused by actions such as

vision related errors, air pressure errors and carrier loader system errors.

Procedure

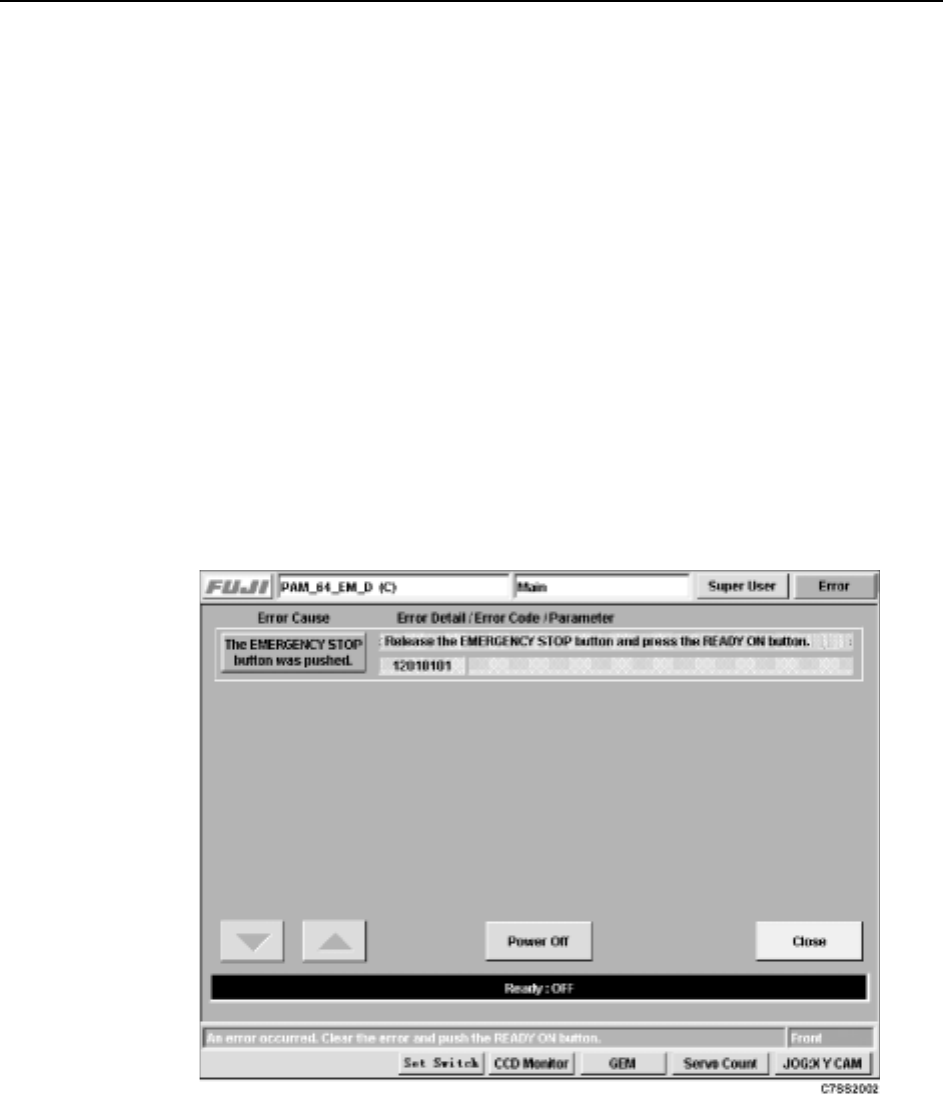

1 If an error occurs, the following error screen displays, and the Ready ON button

is enabled.

2 Correct the problem which caused the error. There is a button for each error

which indicates the type of error. To display the details of the error, press the

error message button.

3 Press the READY ON to indicate that the cause of the error has been corrected.

4 If the cause of the error has been properly corrected, the START button is

enabled.

5 Press the START button to restart production.

Machine System >> Basic Operation

SYS-CP842-1.0E 4-5

4.1.2 Selecting a Production Program

Production programs are held in the machine background, or at the host. A program

must be in the foreground to be used for assembly. The production program at Cur-

rent Program is in the foreground, other programs held at the machine list under

Background Programs are in the background. You can select the production program

to be used in production by carrying out the following procedure or transmit straight

from the host to the machine foreground (refer to your host system documentation for

details of this procedure).

Procedure

1 With the machine booted up and the desired program already transmitted to the

machine, press [Program] at the [Main] screen.

The [Program] screen displays, showing a list of the all the programs currently

held at the machine.

Note: The production programs are held in the machines hard drive. The number of programs

which can be stored is limited only by the amount of hard disk space available. Scroll down

to view the full list of programs.
