KHJ_SSfdr_PartsList_202101-Revised_OK - 第33页

No. Part No. Part Name Q'ty Remarks Change Compati. 1 2 KHJ-MC532-00 SPROCKET 1 3 KHJ-MC53E-00 BOL T HEX.S/H LOW 1 3-1 90990-01J075 BOL T ,HEXAGON S/H 1 (2012/6/1 1) OK 4 KHJ-MC941-00 T APE GUIDE ASSY . 1 5 KHJ-MC24…

100%1 / 36
23
22
7
29
16
21
19
6
5
13
25
34
15
8
14
20
32
4
30
35
35
4
26
24
2
32
33
36
18
1
9
10
17
31
11
36
3
12
28
28
28
28
28
28
28
4
37
27
No. Part No. Part Name Q'ty Remarks Change
Compati.
1
KHJ-MC502-00 COVER,FEEDER 1
2
KHJ-MC106-00 PLATE,UNDER 1
3
KHJ-MC206-00 PLATE,UNDER 1
4
KHJ-MC90C-S0 SEAL,MAIN LABEL 1 *Attention (2014/7/24)
5
KHJ-MC90K-00 SPACER,88A 1
6
KHJ-MC90L-00 SPACER,88B 1
7
KHJ-MC510-00 MOTOR, FEED 1
7-1
KHJ-MC510-01 MOTOR, FEED 1 CN change (2011/4/13) NG
8
KHJ-MC532-00 SPROCKET 1
9
KHJ-MC534-01 GEAR,IDLE F1 1
10
KHJ-MC535-00 GEAR,IDLE F2 1
11
KHJ-MC536-00 GEAR,IDLE F3 1
12
KHJ-MC53T-00 GEAR,IDLE F4 ASSY 1
13
KHJ-MC938-00 GEAR,DRIVEN 1
14
KHJ-MC13D-00 SPRING,PUSHER PLATE 3
15
KHJ-MC53E-00 BOLT HEX.S/H LOW 1
15-1
90990-01J075 BOLT,HEXAGON S/H 1 (2012/6/11) OK
16
90990-08J021 SCREW,STAD 2
17
KHJ-MC53L-00 COVER,FEED GEAR 1
18
KHJ-MC53M-00 SUB-BUSH,SPROCKET
1
18-1
KHJ-MC53M-01 SUB-BUSH,SPROCKET 1 (2009/3/10) OK
19
KHJ-MC561-00 BOX,TOP TAPE 1
20
KHJ-MC562-00 COVER,TOP TAPE BOX 1
not for sale
21
KHJ-MC165-00 MAGNET,TAIL 1
22
KHJ-MC966-00 BLOCK,P/O TOOTH 1 1
23
KHJ-MC46T-00 BOLT HEX.S/H LOW 2
24
KHJ-MC96R-00 SPACER,88C 1
25
KHJ-MC96S-00 SPACER,88D 1
26
KHJ-MC963-00 COVER,TAIL 1
not for sale
27
KHJ-MC975-00 PIN,TAIL COVER 1
28
KHJ-MC60J-00 PIN,PARALLEL 16
29
90166-02JA03 SCREW,PAN HEAD 1
30
KHJ-MC9B5-00 BOLT,HEX.SOCKET HEAD 1
M3*L85 / Black
31
90115-2AJ008 BOLT HEX.SOCKET HEAD 3
32
KHJ-MC9B1-00 BOLT,HEX.SOCKET HEAD 2 M3*L67
33
KHJ-MC9B2-00 BOLT,HEX.SOCKET HEAD 5 M3*L77
34
KHJ-MC9B3-00 BOLT,HEX.SOCKET HEAD 1 M3*L85
35
KHJ-MC9B4-00 BOLT,HEX.SOCKET HEAD 6
M3*L80 / Black
36
98707-03006 SCREW,FLAT HEAD 4
37
KHJ-MC96Y-S0 PARTS,TOP TAPE BOX 1 *Attention (2014/7/28)
*Attention: <Service exclusive> Please state the serial number of the feeder when ordering.
*Attention: <
サービス専用
>
注文時には、フィーダーのシリアル No. を記載してください。
KHJ-1909
8
1

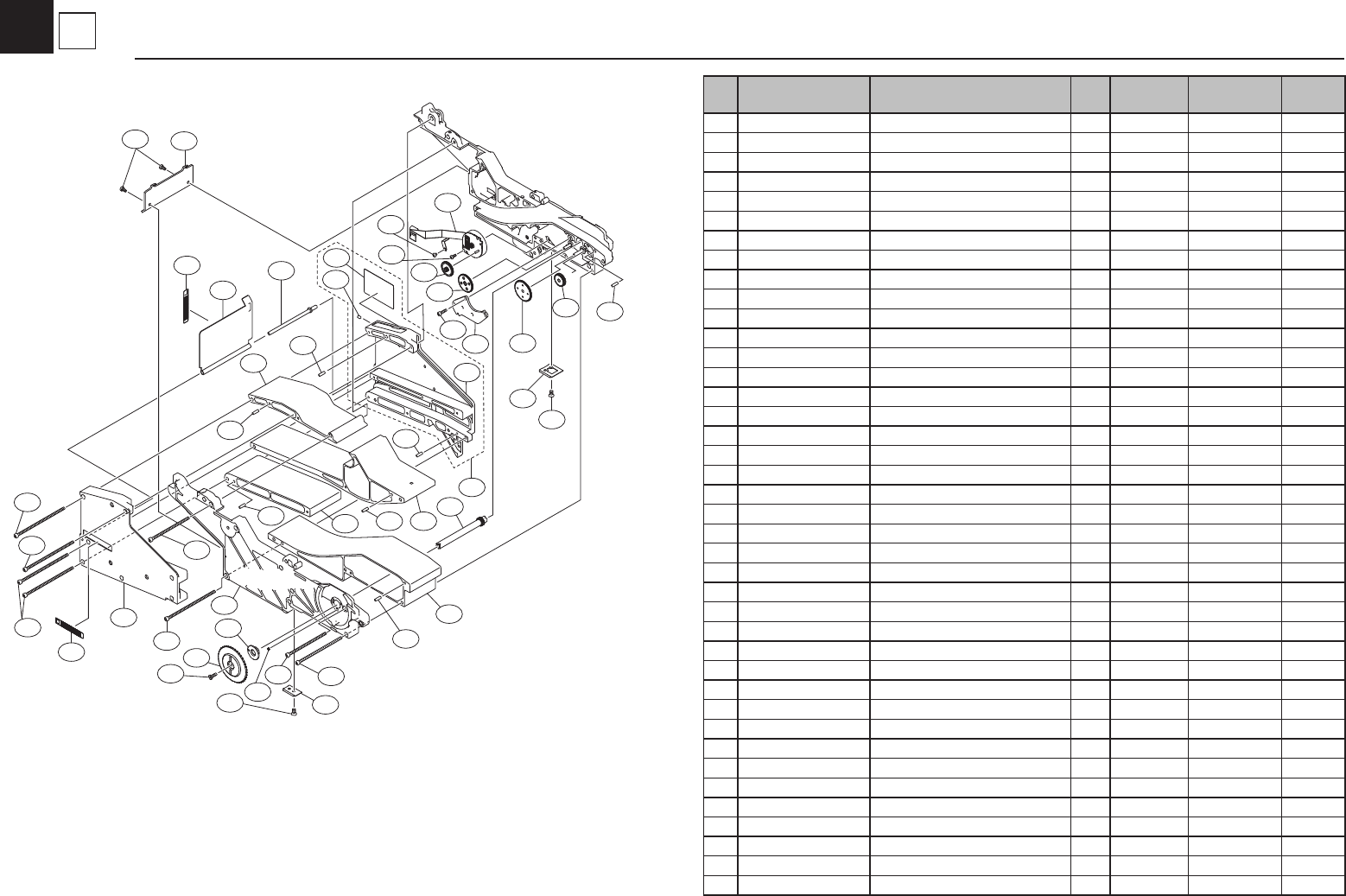

FEED & BODY 88mm
No. Part No. Part Name Q'ty Remarks Change
Compati.
1
2
KHJ-MC532-00 SPROCKET
1
3
KHJ-MC53E-00 BOLT HEX.S/H LOW
1
3-1
90990-01J075 BOLT,HEXAGON S/H
1
(2012/6/11) OK
4
KHJ-MC941-00 TAPE GUIDE ASSY.
1
5
KHJ-MC244-00 LEVER,TAPE GUIDE R
1
6
KHJ-MC945-00 LEVER,TAPE GUIDE F
1
7
KHJ-MC146-02 SPRING,TAPE GUIDE R
1
8
KHJ-MC247-01 SPRING,TAPE GUIDE F
1
9
KHJ-MC94A-00 SHAFT,LEVER
1
10
KHJ-MC94E-00 SHAFT,LEVER
1
11
KHJ-MC94F-00 BASE,LEVER R
2
12
KHJ-MC167-00 COVER,MENBRANE
1
13
90990-09J008 SCREW,FLAT HEAD
2
14
KHJ-MC26K-00 COVER,MENBRANE 2
1
15
KLJ-MC1A5-00 DUMMY SPLICE SENS.
1
*Note-1
16
KHJ-MC2A5-10 SPLICE SENS. LARGE
1
*Note-2
17
KHJ-MC1AA-00 SWITCH,OPERATION
1
18
90990-54J003 SCREW,PAN HEAD TAP.
2
18-1
90990-54J007 SCREW,PAN HEAD TAP.
2
(2009/3/6) OK
19
92A08-03303 SCREW, SET
2
M3*L3
20
KHJ-MC94R-00 COLLAR,TAPE GUIDE 1
1
21
KHJ-MC94S-00 COLLAR,TAPE GUIDE 2
1
4
5
7
9
12
18
13
17
3
2
10
6
8
19
15
19
11
14
20
21
16
18
*Note-1: In "KHJ-MC900-00", this dummy is adopted.
*Note-1:
「
KHJ-MC900-00
」では、
ダミーを用います。
*Note-2: In "KHJ-MC900-10", this sensor is adopted.
*Note-2:
「
KHJ-MC900-10
」では、
センサーを用います。
KHJ-1909
8
2

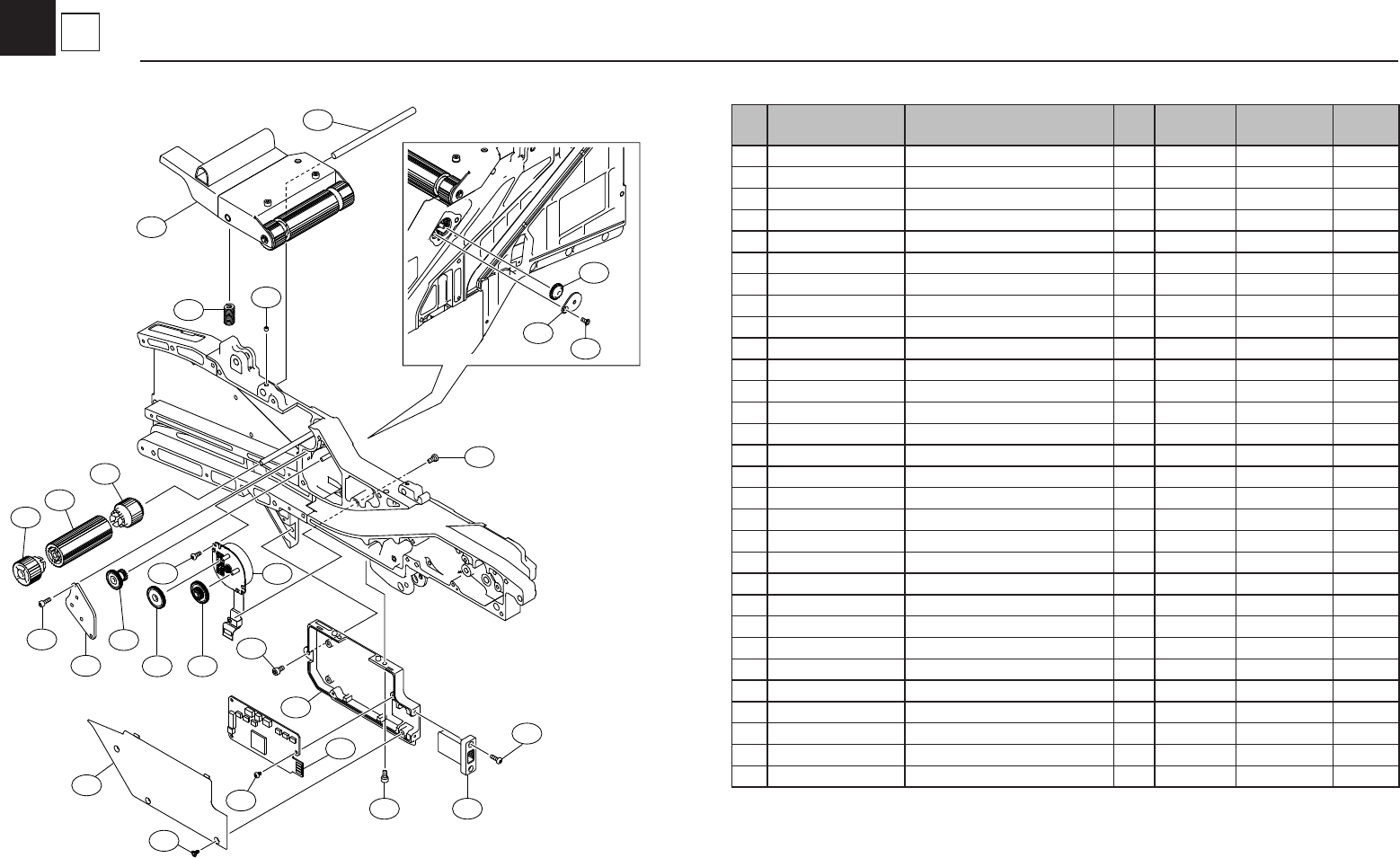

GUIDE,SPROCKET & E/L 88mm
16
7
10
1
15
13
26
22
8
11
24
12
25
17
25
19
18
20
23
5 4
2
3
6
9
14
21
No. Part No. Part Name Q’ty Remarks Change
Compati.
1
KHJ-MC10E-00 SCREW,FLAT HEXLOBE
1
2
KHJ-MC210-10 MOTOR, PEEL
1
2-1
KHJ-MC210-11 MOTOR, PEEL
1
CN change (2011/4/13) NG
3
90990-08J021 SCREW,STAD
2
4
KHJ-MC251-00 GEAR,IDLE P1
1
5
KHJ-MC252-00 GEAR,IDLE P2
1
6
KHJ-MC253-00 GEAR,IDLE P3
1
7
KHJ-MC254-00 GEAR,IDLE P4
1
8
KHJ-MC756-00 ROLLER,PEEL OFF 1
1
9
KHJ-MC769-00 ROLLER,P/O 2
1
10
KHJ-MC258-00 COVER,IDLE GEAR 1
1
10-1
KHJ-MC258-01 COVER,IDLE GEAR 1
1
SUS (2008/8/8) OK
11
KHJ-MC95A-00 SUB-ROLLER 1
1
12
KHJ-MC25E-00 COVER,IDLE GEAR 3
1
13
KHJ-MC26E-00 SPRING,P/O LEVER
1
14
90990-54J004 SCREW,PAN HEAD TAP.
3
15
KHJ-MC96V-00 P/O LEVER ASSY.
1
16
KHJ-MC96B-00 SHAFT,P/O LEVER 2
1
17
KHJ-MC1A1-00 BOX,EL
1
18
KHJ-MC1A2-00 COVER,BOX EL
1
19
KHJ-MC1A6-00 SCREW,FLAT HEXLOBE T
3
20
KHJ-MC1A9-00 CONNECTOR,BOARD
1
21
KHJ-M4488-A0 PARTS,FEEDER BOARD
1
*Attention
21-1
KHJ-M4488-B0 PARTS,FEEDER BOARD
1
*Attention (2011/4/13) NG
22
90166-02JA03 SCREW,PAN HEAD
1
M2.5*L3
23
90166-02JA06 SCREW PAN HEAD
2
M2.5*L6
24
90115-2AJ008 BOLT HEX.SOCKET HEAD
2
25
91317-03006 BOLT HEX.SOCKET HEAD
3
25-1
KHJ-MC11T-00 BOLT,LOCK S/H
3
Pre-coated (2011/4/22) OK
26
92A08-03303 SCREW
, SET
1
M3*L3
*Attention: <Service exclusive> <Connector non-compatible> Please state the serial number of the feeder when ordering.
*Attention: <
サービス専用
> <
コネクタ非互換
>
注文時には、フィーダーのシリアル No. を記載してください。
KHJ-1909
8
3

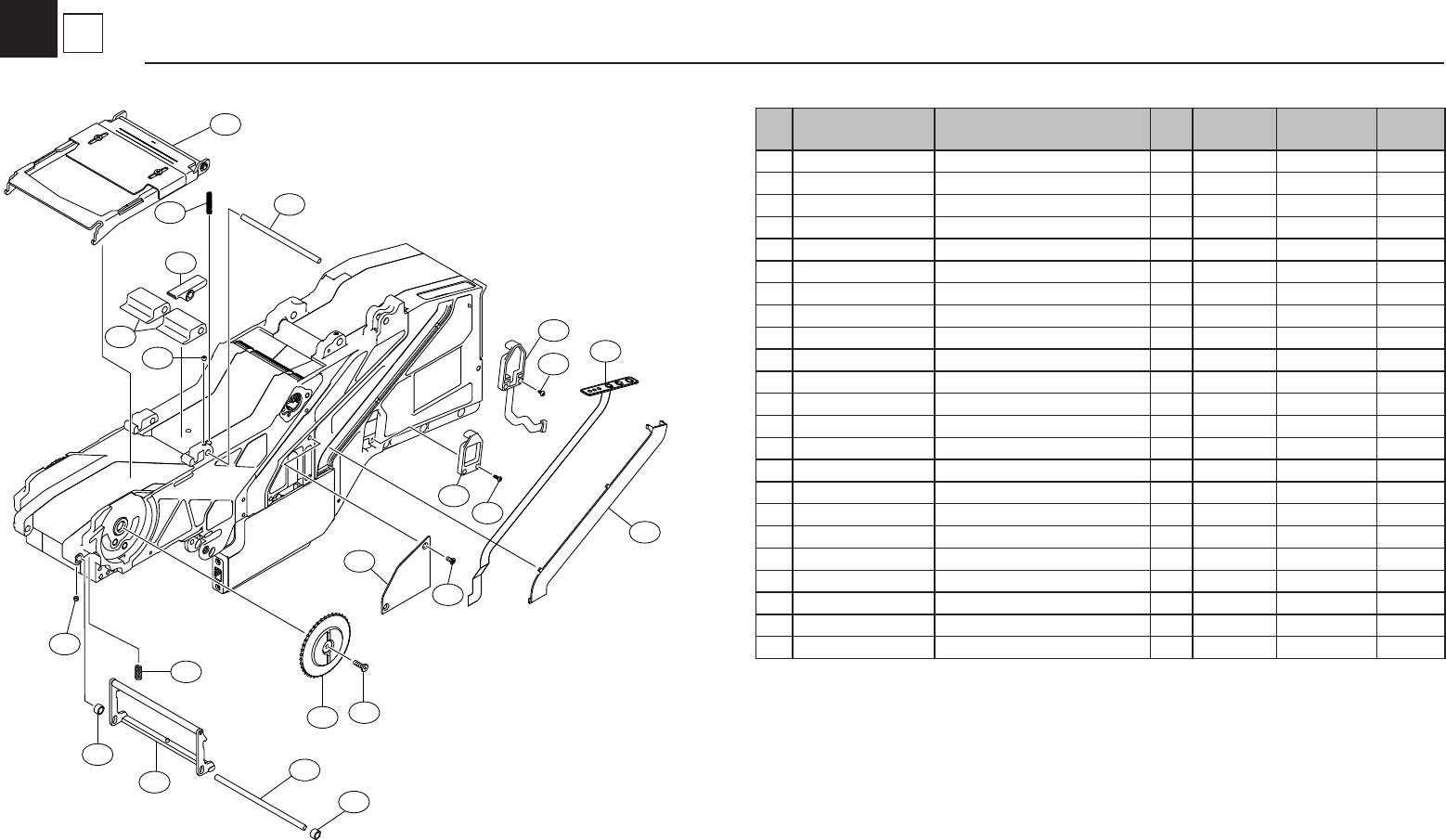

PEEL & E/L BOX 88mm
