Major Maintenance
Maintenance Tasks for CPP Head Performing Maintenance Tasks
102 Maintenance Manual SIPLACE X Series

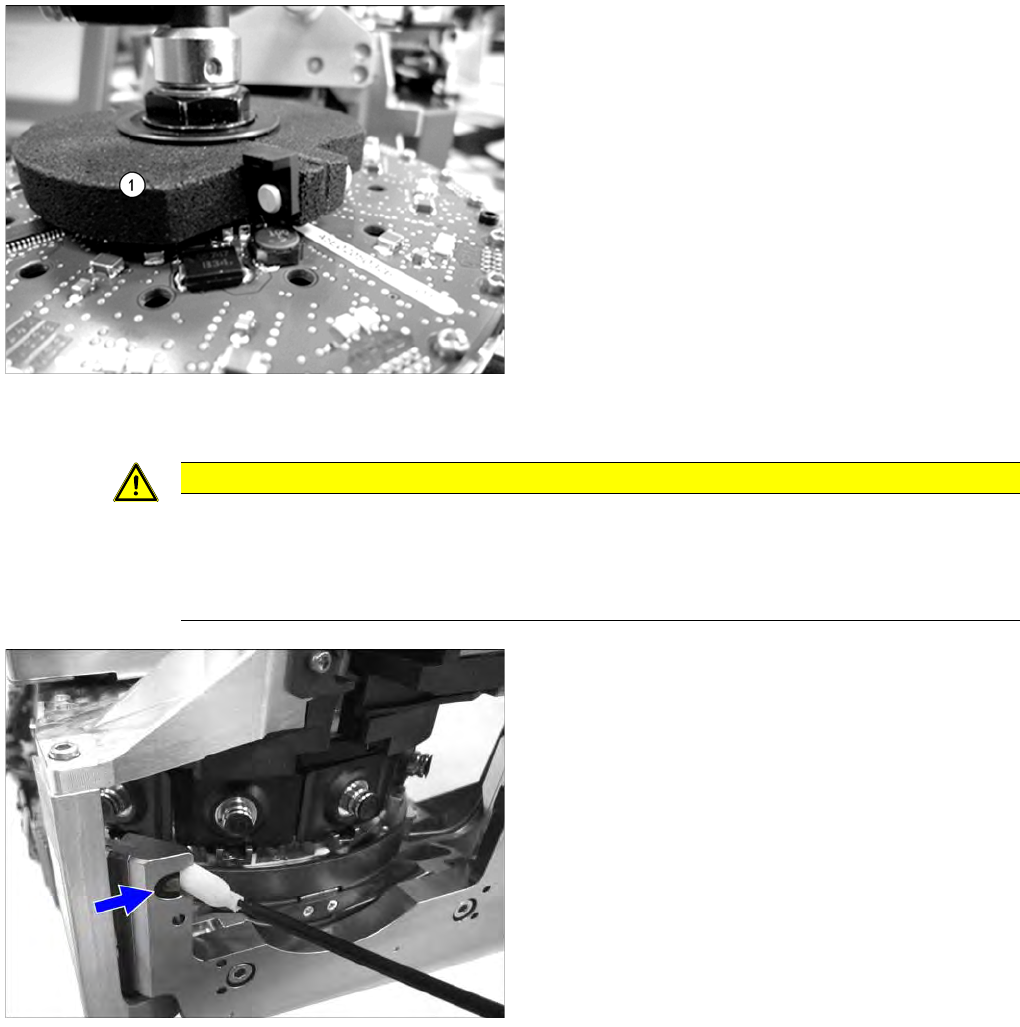

Checking the silencer
Cleaning the Com ponent Se nsor
5.6.4.7 Cleaning the Component Sensor
► Check the silencer for dirt and replace, if necessary.
► For removal and installation details, read the service
manual for the respective machine.
CAUTION
Prism, cottonwool buds
► Take care not to damage the component sensor prisms.
► Make sure that you do not use the cottonwool buds soaked in oil from cleaning the sleeves.
Always use a new cottonwool bud!
► Remove the protective cap from the component
sensor.
► Clean the prisms of the component sensor with a
cottonwool bud soaked in ethanol.
► Fit the protective cap onto the component sensor.
Major Maintenance
Final Work Maintenance Tasks for CPP Head
Maintenance Manual SIPLACE X Series 103
Final Work
5.6.5 Final Work
Attaching the maintenance label
Fitting the front plate
► Fit the front plate of the CPP head. Read the service manual for the respective machine first.
Fitting the placement head
► Fit the placement head back onto the gantry. Read the service manual for the respective machine
first.
► Remove the protective cap from the component sensor.
► Switch the placement machine on at the main switch.
► Perform a reference run.
► If you have replaced the vacuum hoses on the DP drive, perform a vacuum check. If irregularities
are determined during the check, contact your Siemens Service team and have them check the hold
circuit.
► Calibrate the placement head, preferably using the FHE function. Read the service manual for the
respective machine first.
► For SW703.02 and higher only: Reset the maintenance cycle counter for the corresponding
assemblies.

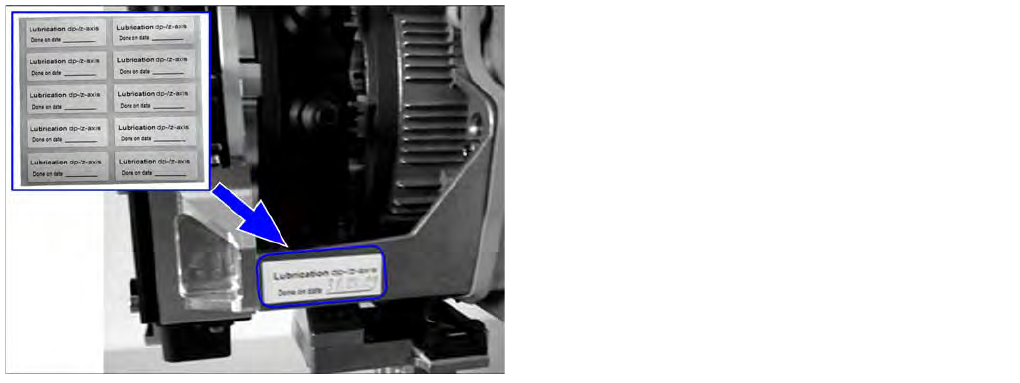

► Remove any label which may still be present from the
placement head.
► Remove any adhesive residues and clean the area.
► Attach the label and enter the date and, if required,
the meter count, depending on how you determine
your maintenance intervals.
Major Maintenance
Maintenance Tasks for C&P6/12 Head Consumables, Spare and Wear Parts, Tools
104 Maintenance Manual SIPLACE X Series
Maintenance Tasks for C&P6/12 Head
5.7 Maintenance Tasks for C&P6/12 Head
Consumables, Spare and Wear Parts, Tools
5.7.1 Consumables, Spare and Wear Parts, Tools
Consumables
▪ Interflon Fin Super (Teflon oil) [03017760-xx]
▪ Protective latex gloves [00372972-xx]
▪ Cotton gloves virgin, size 8 [00359087-xx]
▪ Lint-free cloth, KM wipe [034082092-xx]
▪ Microfiber cloth for cleaning optical assemblies
▪ Ethanol
▪ SIPLACE cotton wool buds, lint-free [00352931-xx]
▪ Distilled water
▪ Compressed air
▪ Microtips medium precision applicators (cottonwool buds) [03020860Sxx]
▪ ISOFLEX TOPAS, NCA 52 tin 1 kg/tube 50 g [00330850-xx]
▪ UNISILKON L250L grease [00310259Sxx]
▪ Lint-free cloths [03082092-xx]
Wear parts
▪ Silencer for C&P head [03003134Sxx]
▪ Valve plunger C&P12 (6 in one pack) [00351500-xx]
▪ Valve plunger C&P12 (6 in one pack) [00351498-xx]
▪ O-ring for valve plunger [00359382-xx]
▪ O-ring for distributor 8*1 NBR 70 B [00201179Sxx]
▪ O-ring vacuum distributor 3*1,2 NBR 70 B [00320057Sxx]
▪ O-ring vacuum generator 10*1,5 NBR 70 B [00320047Sxx]
▪ O-ring vacuum generator 14*1,5 NBR 70 B [00320048Sxx]
▪ O-ring vacuum generator 8*1 Viton 75 [00350661Sxx]
▪ O-ring vacuum generator 10*1 Viton 75 [00350662Sxx]
▪ O-ring vacuum generator 30*1 (vacuum pump operation) [00343022Sxx]
▪ Synchroflex toothed belt 2.5 T2/90 (turning station) [00320041Sxx]
▪ O-ring turning station 16*2 E70B [00320043Sxx]
▪ Toothed belt T2/DLM1 (Z axis DLM) [00334936Sxx]
▪ Vacuum nozzle diam. 1,5 [00319420Sxx]
▪ Vacuum nozzle diam. 1,0 [00319423Sxx]
▪ Suction plate assembly DLM / R light beige [03037984Sxx]
