Major Maintenance
Maintenance Tasks for C&P6/12 Head Consumables, Spare and Wear Parts, Tools
104 Maintenance Manual SIPLACE X Series
Maintenance Tasks for C&P6/12 Head
5.7 Maintenance Tasks for C&P6/12 Head
Consumables, Spare and Wear Parts, Tools
5.7.1 Consumables, Spare and Wear Parts, Tools
Consumables
▪ Interflon Fin Super (Teflon oil) [03017760-xx]
▪ Protective latex gloves [00372972-xx]
▪ Cotton gloves virgin, size 8 [00359087-xx]
▪ Lint-free cloth, KM wipe [034082092-xx]
▪ Microfiber cloth for cleaning optical assemblies
▪ Ethanol
▪ SIPLACE cotton wool buds, lint-free [00352931-xx]
▪ Distilled water
▪ Compressed air
▪ Microtips medium precision applicators (cottonwool buds) [03020860Sxx]
▪ ISOFLEX TOPAS, NCA 52 tin 1 kg/tube 50 g [00330850-xx]
▪ UNISILKON L250L grease [00310259Sxx]
▪ Lint-free cloths [03082092-xx]
Wear parts
▪ Silencer for C&P head [03003134Sxx]
▪ Valve plunger C&P12 (6 in one pack) [00351500-xx]
▪ Valve plunger C&P12 (6 in one pack) [00351498-xx]
▪ O-ring for valve plunger [00359382-xx]
▪ O-ring for distributor 8*1 NBR 70 B [00201179Sxx]
▪ O-ring vacuum distributor 3*1,2 NBR 70 B [00320057Sxx]
▪ O-ring vacuum generator 10*1,5 NBR 70 B [00320047Sxx]
▪ O-ring vacuum generator 14*1,5 NBR 70 B [00320048Sxx]
▪ O-ring vacuum generator 8*1 Viton 75 [00350661Sxx]
▪ O-ring vacuum generator 10*1 Viton 75 [00350662Sxx]
▪ O-ring vacuum generator 30*1 (vacuum pump operation) [00343022Sxx]
▪ Synchroflex toothed belt 2.5 T2/90 (turning station) [00320041Sxx]
▪ O-ring turning station 16*2 E70B [00320043Sxx]
▪ Toothed belt T2/DLM1 (Z axis DLM) [00334936Sxx]
▪ Vacuum nozzle diam. 1,5 [00319420Sxx]
▪ Vacuum nozzle diam. 1,0 [00319423Sxx]
▪ Suction plate assembly DLM / R light beige [03037984Sxx]
Major Maintenance
Consumables, Spare and Wear Parts, Tools Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 105
Recommended spare parts
▪ Star brake assembly DLM/RVC [03001653Sxx]
▪ PAS-LX-12 distributor plate, complete [00368211Sxx]
▪ Set of sleeves for 12 seg. head [00116113Sxx]
▪ Set of sleeves for 12 seg. head [00116114Sxx]
▪ Individual sleeves for 6 seg. head [00350588Sxx]
▪ Individual sleeves for 6 seg. head [00352957Sxx]
▪ Vacuum generator assembly [03003236Sxx]
▪ Distributor piece [00319827Sxx]
▪ Nozzle magazine 7/9xx
Tools
▪ ESD wriststrap TYP.OK/WRS [00320279-xx]
▪ Universal head stand [00363290-xx]
▪ Antistatic tweezers, type Bernstein 5
-
192 [00377393
-
xx]
▪ Antistatic tweezers, type Bernstein 5
-
195 [00377394
-
xx]
▪ TorqueVario-S screwdriver (100-500 cNm) (100-500 cNm) [03078400-xx]
▪ Bit holder for TorqueVario screwdriver [03078706-xx]
▪ Extension/straight TX20 [03073256-xx]
▪ Hexagon socket head cap screw driver 0.7-2 [00320265-xx]
▪ Torx Allen screwdriver TX8 [03080081-xx]
▪ Calibration tool version SST23 [03034148-xx]
▪ Set of Allen wrenchesl [00376492-xx]
▪ Set of Phillips screwdrivers [00319064-xx]
▪ Brush [00378523-xx]
▪ Angled tweezers [00096487-xx]
▪ SPIRAL drill cylinder R.1,4 D DIN 338 [00092026-xx]
▪ SPIRAL drill cylinder R.1,1 D DIN 338 [00092020-xx]
▪ Oil dispenser Z axis with STRUCTVIS GHD 7 ml [00367071-xx]
▪ Plunger maintenance tool [03049689Sxx]
▪ Cleaning tools for encoder disk [03049704-xx]
▪ Sleeve cleaning device [00377260-xx]
▪ Pliers for fitting plastic hose 2MS-PK-3/4 [00346929-xx]
▪ MM greasing of valve plunger with tool [00195066-xx]
▪ Cleaning box 9xx [03003183Sxx]
▪ Guiding plate short [03029178-xx]
▪ Plastic brush Dm 8 [00325866-xx]
▪ Calibration tool version 3 [03010565-xx]
Major Maintenance
Maintenance Tasks for C&P6/12 Head Preparatory Steps
106 Maintenance Manual SIPLACE X Series
Preparatory Steps
5.7.2 Preparatory Steps
Assembling the head mount
► Assemble the head mount.
Read the head mount manual (German and English: [00196371-xx]).
► Connect the assembly mount ESD connection to an ESD connection at the workplace.
Dismantle the placement head
► Set the nozzles down in the nozzle changer.
► Switch the placement machine off at the main switch.
► Dismantle the head cover.
► Dismantle the placement head and remove it from the placement machine. For removal and
installation details, read the service manual for the respective machine.
CAUTION
ESD regulations!
► Always observe the ESD regulations described in the user manual.
NOTICE! The component sensor is optional.

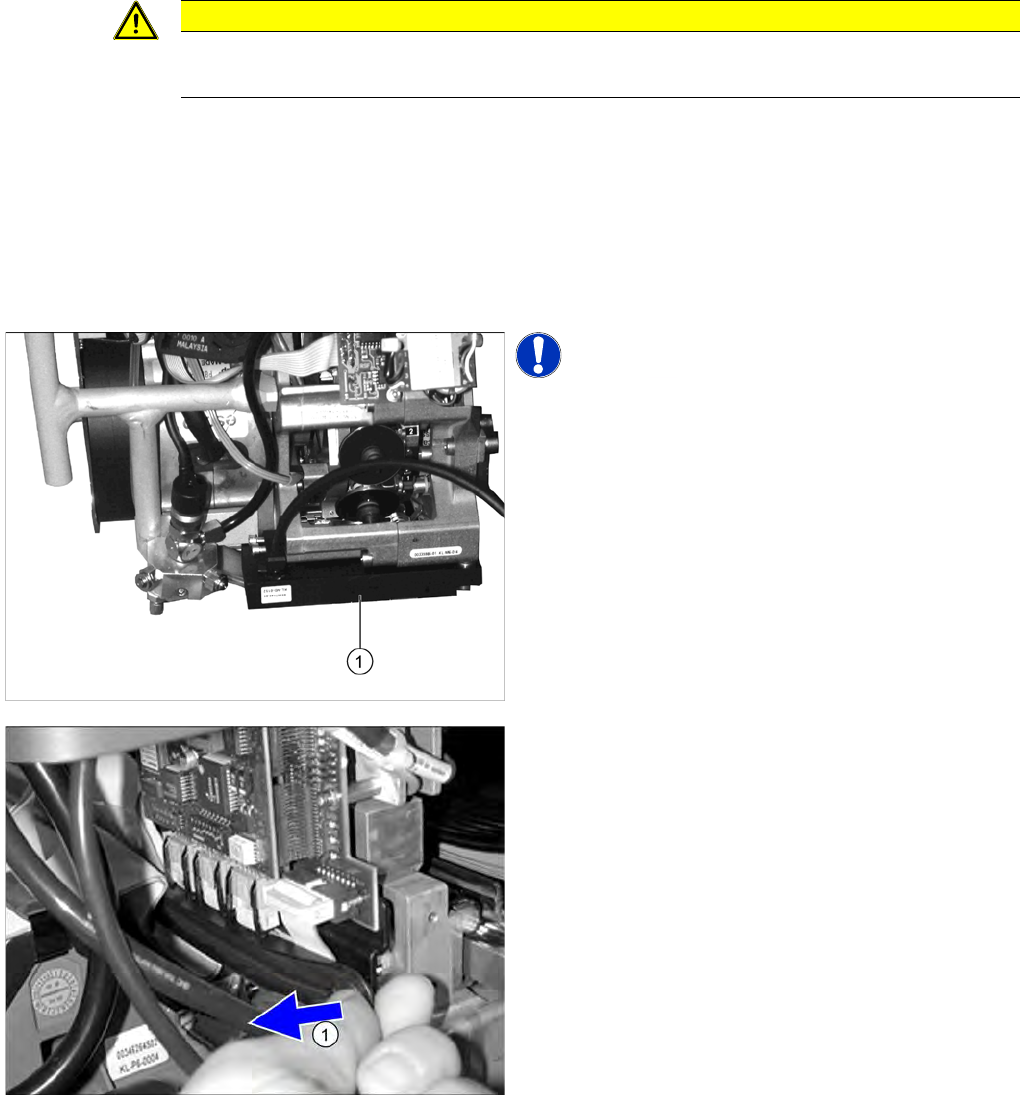

If a component sensor (1) is available, loosen the two
fastening screws and remove the head.
The DLM4 head does not support the BE-Sensor and is
missing accordingly.
► Cover the feeder area to protect the feeder modules
and front part of the head.
► (1) Open the strain relief.
