Major Maintenance
Performing Maintenance Tasks Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 107
Performing Maintenance Tasks
5.7.3 Performing Maintenance Tasks
Cleaning the Tur ning Stati on Read Unit
5.7.3.1 Cleaning the Turning Station Read Unit

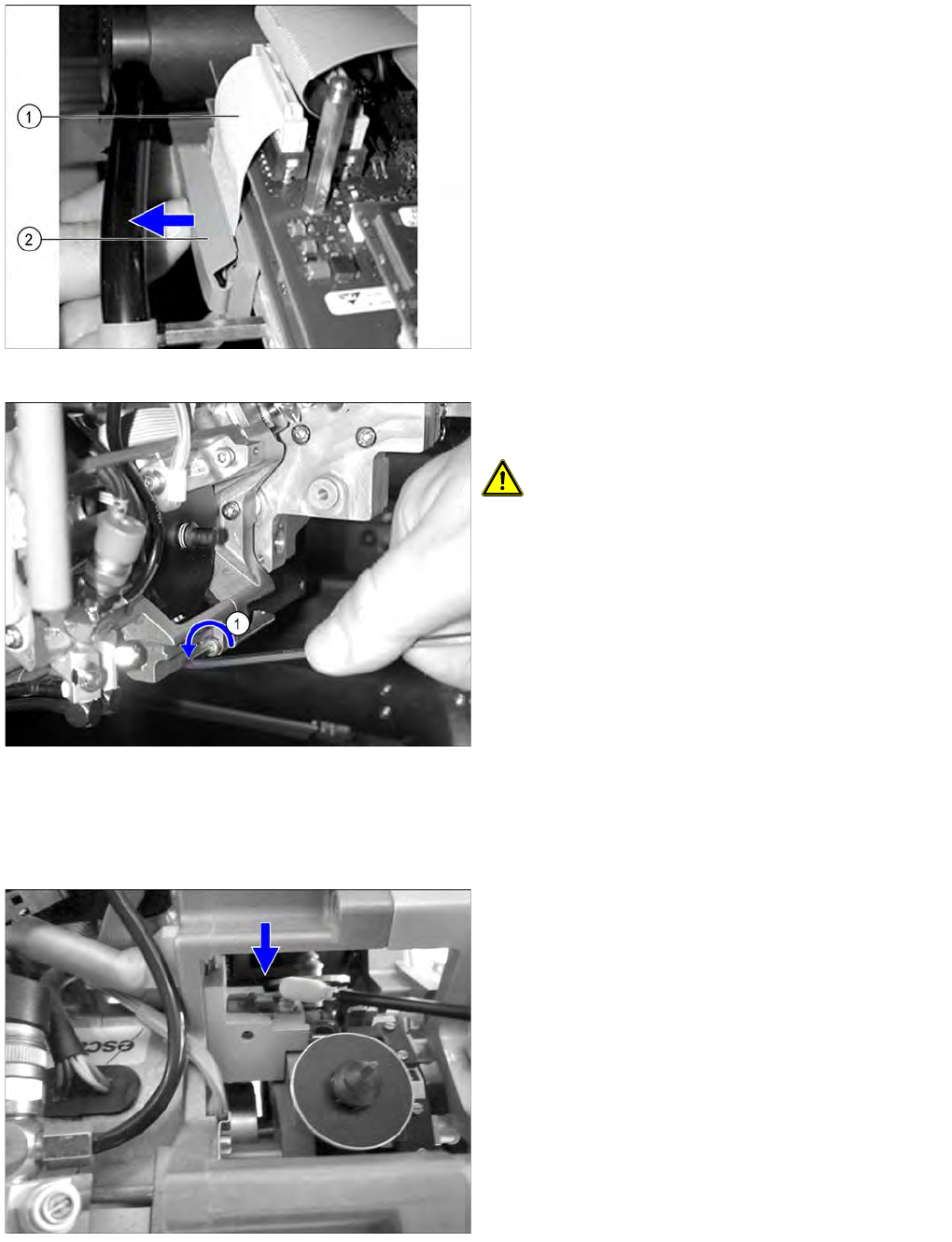

Ribbon cable (Example of X series)
► Open the clamp (2) above the two flat ribbon cables
(1) and remove the flat ribbon cables.
► (1) Loosen the 4 screws (Inbus 3 mm) fastening the
front section of the head and remove it.
CAUTION! Hold the front part of head firmly as
you remove the screws.
► Turn the star half a revolution to avoid damaging the
valve plunger drive with the valve plunger.
► Fit the placement head onto the head mount.
► Remove the sleeves and place them in the vessels
provided.
► Remove one sleeve.
► Clean the read unit lens with a cottonwool bud
moistened with ethanol.
► Fit the sleeve back into place.
Major Maintenance
Maintenance Tasks for C&P6/12 Head Performing Maintenance Tasks
108 Maintenance Manual SIPLACE X Series
Z Axis
5.7.3.2 Z Axis
► Use a brush or cottonwool bud to clean the Z axis
toothed belt (1).
► Clean the rollers and toothed wheels with a
cottonwool bud or a lint-free cloth.
► Check the toothed belt for wear or damage.
► If the toothed belt is worn or damaged, replace it. For
removal and installation details, read the service
manual for the respective machine.
► Grease the new toothed belt slightly with "ISOFLEX
TOPAS NCA 52". Then remove excess grease with a
lint-free cloth.
► (2) Check that the Z axis linear guide runs easily and
without play. Please contact your SIEMENS Service
team if you have any problems with this.
► Check the jaws and the raceway for damage. Please
contact your SIEMENS Service team if you have any
problems with this.
► Move the Z axis into its bottom position.
► Clean the grooves in the miniature roller table at the
front (1) and back (2) using cottonwool buds dipped
in ethanol.
► Wipe the needle of the oil dispenser clean
[00367071-xx].
CAUTION! Do not force oil out of the oil
dispenser. A visible drop would be too much oil.
► (3) Simply place the needle immediately beside the
ball cage/bearing on the grooves of the guide rail.
The action will cause sufficient oil to reach the
grooves (capillary effect).
► Move the Z axis up and down several times to
distribute the oil.
Major Maintenance
Performing Maintenance Tasks Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 109
Star
5.7.3.3 Star
NOTICE
You will need to dismantle the front section of the head for this maintenance work.
CAUTION! Make sure that no dirt or grease gets
into the vacuum channels.
► Wipe the star using a lint-free cloth.
► Moisten a lint-free cloth with ISOFLEX TOPAS NCA
52. Use this to grease the running surface (1) of the
star brake, so that a thin film of grease is present.
Remove any excess grease visible with a lint-free
cloth.
CAUTION! Take care not to damage the sleeve
retaining springs in the segments.
Do not push the cottonwool bud into the segment as far
as the retaining spring otherwise the retaining springs
may be pulled out.
► (1) Carefully clean the segments using a cottonwool
bud moistened with ethanol.
► (2) Remove any visible dirt around the segments.
► Remove the valve plungers.
► Clean the valve casing using a cottonwool bud
moistened with ethanol.
► Then clean all around the valve casings.
