Minor Maintenance

Performing Maintenance Tasks Maintenance Tasks for Base Machine

Maintenance Manual SIPLACE X Series 35

Checking the Fan on the Covers and on the Machine Ru cksack

4.2.3.7 Checking the Fan on the Covers and on the Machine Rucksack

The machine needs to be switched on for this check.

► Close the protective covers and press the Start button.

Cover fan

Fan on the axis unit

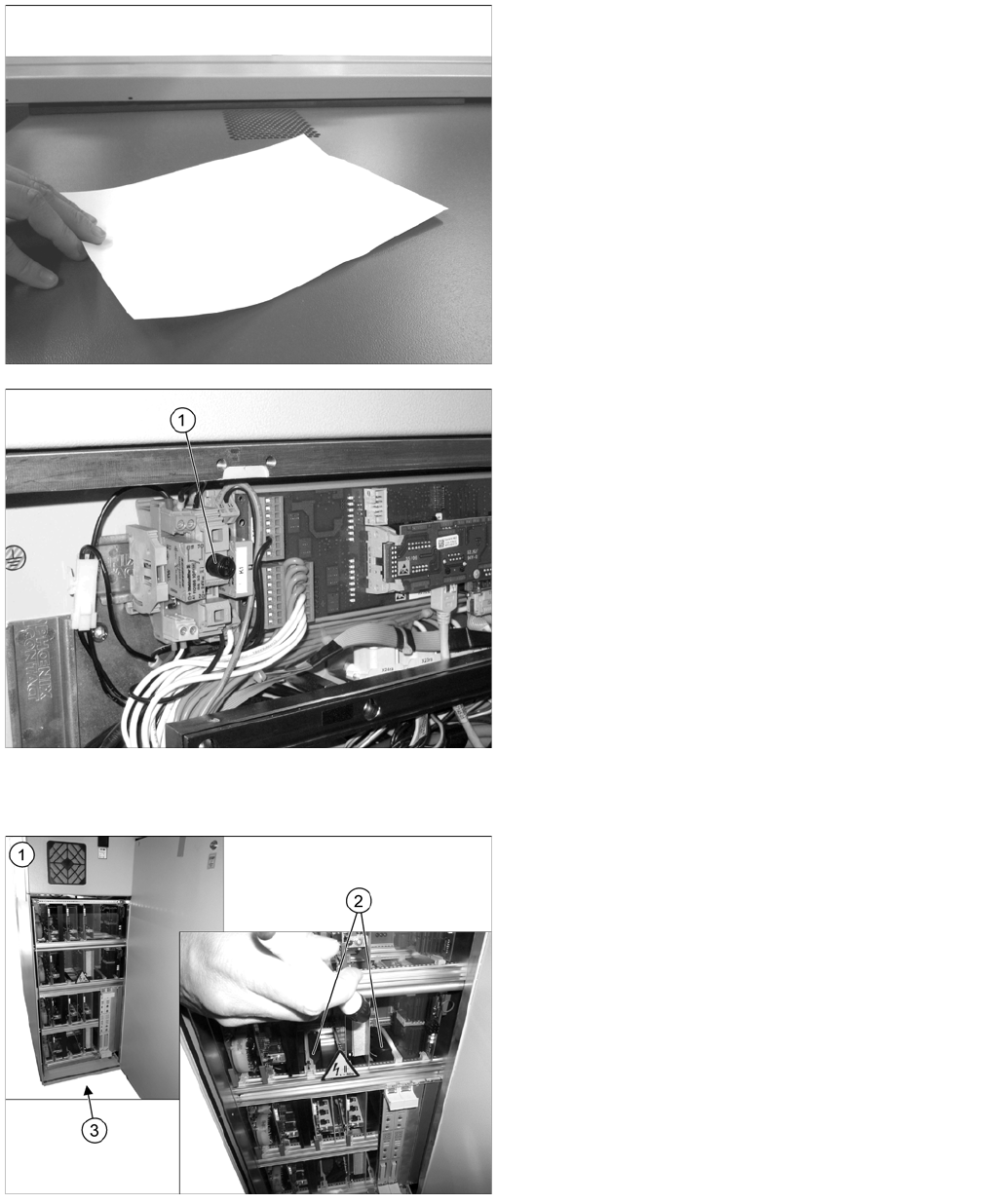

► Place a sheet of paper on the fan openings. This

sheet of paper should be noticeably held in place by

suction.

► If the sheet of paper is not held in place, check the

fuse F1 (1) for the voltage supply in the distributor at

location 4 and replace this if necessary. Check all

cover fans again.

If the fuse is OK, replace the defective fan

[03056479

xx].

► Repeat this check for all cover fans.

► Open the cover above the axis unit (1).

► Check the fan function (2) in the center of the axis

unit. Also check whether this still moves. Use a

flashlight to help you if necessary. If the fan is defect,

replace it.

► Check the function of the fan on the underside of the

axis unit (3) by holding your hand in front of the fan.

You should be able to feel a noticeable flow of air. If

the fan is defect, replace it..

► Now close the cover again.

► Repeat these steps for all axis units.

Minor Maintenance

Maintenance Tasks for Base Machine Performing Maintenance Tasks

36 Maintenance Manual SIPLACE X Series

Fan on the computer unit

Cleaning the Protective C overs

4.2.3.8 Cleaning the Protective Covers

NOTICE! Machines with BoxPC

In BoxPCs, the fan is located in the computer and is

monitored by this.

► Open the cover above the computer unit.

► Check the fan function (1) in the center of the

computer unit. You should be able to hear the flow of

air. If the fan is defect, replace it.

► Now close the cover again.

► Check the protective covers for dirt.

► Clean them with a dry, lint-free cloth, if required.

► If the covers are very dirty, use a lint-free cloth and a

small amount of a neutral or weak alkaline cleaning

agent.

Clean the protective covers with light pressure and

take care not to damage the ESD coating!

CAUTION! Selecting the right cleaning agent

The choice of cleaning agent for the protective covers

must be made with particular care so as not to damage

the ESD coating on the protective covers!

Do not use any chemical cleaning agents. Never use acid

or strong alkaline agents and avoid all ketones, esters,

aromatics, halogenated hydrocarbons, etheric oils or

similar.

Minor Maintenance

Consumables, Spare and Wear Parts, Tools Maintenance Tasks for the Component Feed Device

Maintenance Manual SIPLACE X Series 37

Maintenance Tasks for the Component Feed Device

4.3 Maintenance Tasks for the Component Feed Device

Consumables, Spare and Wear Parts, Tools

4.3.1 Consumables, Spare and Wear Parts, Tools

▪ SIPLACE cleansing tissue [00315253-xx]

▪ Protective latex gloves [00372972-xx]

▪ ESD wristband [00320279-xx]

▪ Oil stone / Elasto abrasive cleaning agent

▪ UNISILKON L250L [00310259-xx]

▪ Rust prevention spray WD40, 400 ml [00325833-xx]

▪ Brush [00378523-xx]

Preparatory Steps

4.3.2 Preparatory Steps

► Move the changeover tables out of the machine.
