Minor Maintenance Consumables, Spare and Wear Parts , Tools Maintenance Tasks for Optical Systems Maintenance Manual SIPLACE X Series 45 Maintenance Tasks for Optical Sy stems 4.6 Maintenance Tasks for Optical Systems Co…
Minor Maintenance
Maintenance Work on the Gantry Performing Maintenance Tasks
44 Maintenance Manual SIPLACE X Series

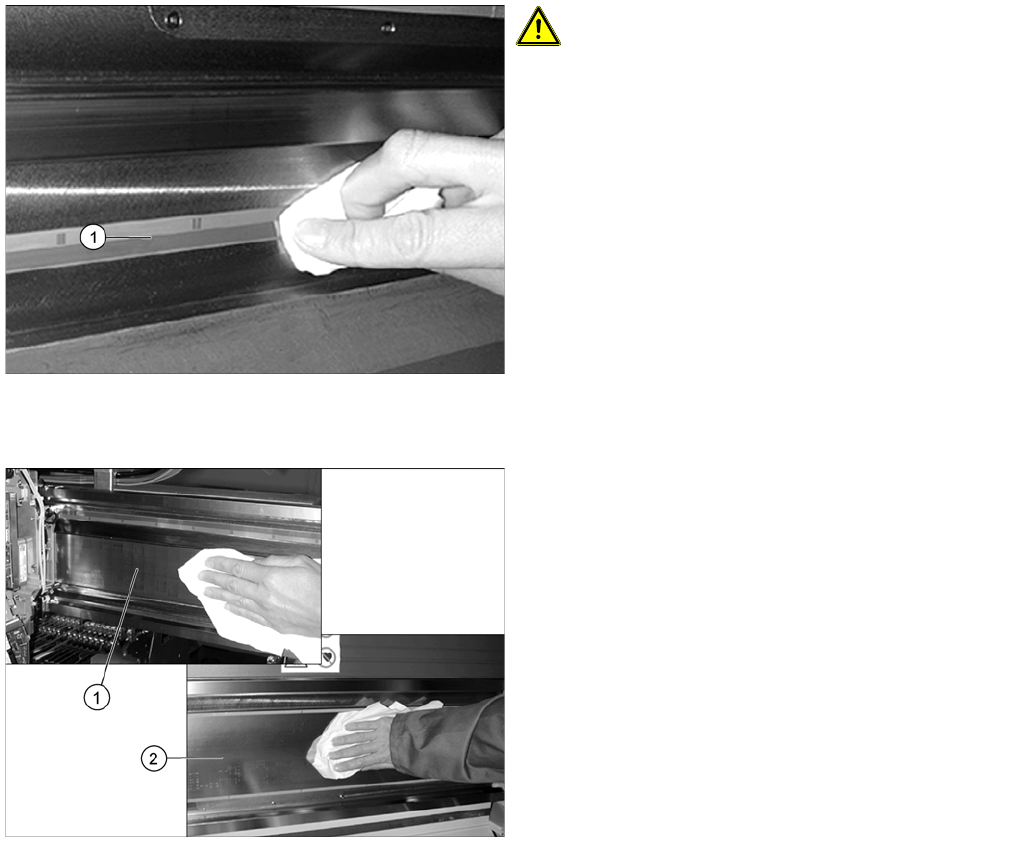

Cleaning the Y Ax is Scale
4.5.3.2 Cleaning the Y Axis Scale
Checkin g and Cl eaning th e Magnet ic Surfaces of th e X and Y Axes
4.5.3.3 Checking and Cleaning the Magnetic Surfaces of the X and Y Axes
CAUTION! Always use soft cloths and minimal
pressure to clean the scales.
Dirty scales can lead to counting errors and, as a
consequence, to machine stoppages.
► Clean the incremental scales (1) of the Y axes with a
lint-free cloth soaked in ethanol.
► Clean the magnetic surfaces of the X
-
(1) and Y
axis (2) thoroughly over their entire length. Use a lint-
free cloth to remove any dirt from the magnetic
surfaces. Where necessary, remove components
with a non-magnetic tool.Where necessary, remove
components with a non-magnetic tool.
► In the event of damage or other problems, please
contact your SIPLACE Service team in Munich.
Minor Maintenance
Consumables, Spare and Wear Parts, Tools Maintenance Tasks for Optical Systems
Maintenance Manual SIPLACE X Series 45
Maintenance Tasks for Optical Systems
4.6 Maintenance Tasks for Optical Systems
Consumables, Spare and Wear Parts, Tools
4.6.1 Consumables, Spare and Wear Parts, Tools
▪ Microfiber cloth for cleaning optical assemblies
▪ ESD wristband [00320279-xx]
▪ Cotton gloves [00359087-xx]
Preparatory Steps
4.6.2 Preparatory Steps
► Switch off the machine, disconnect it from the power supply and secure it to prevent unauthorized
reactivation. Observe the instructions in section "1.2 Preparatory Work..." [ ➙ 11].
Performing Maintenance Tasks
4.6.3 Performing Maintenance Tasks

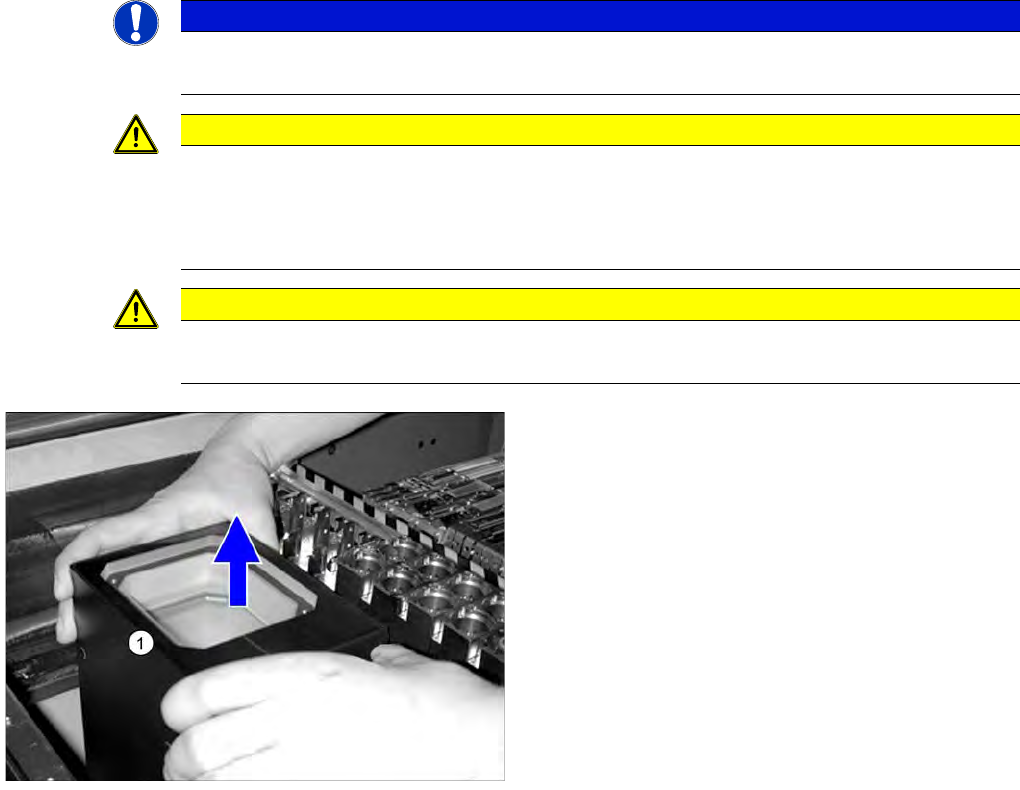

Cleaning the IC and FC ca meras
4.6.3.1 Cleaning the IC and FC cameras
NOTICE
IC- and FC camera
This cleaning procedure is the same for IC and FC cameras, as well as for types 25 and 33.
CAUTION
Risk of cutting
There is a risk of cutting your fingers along the edges of the mirror.
► Wear cotton gloves as protection and avoid touching the edges. The cotton gloves are also
required for effective cleaning (to avoid fingerprints!).
CAUTION
Voltages
Make sure that the electrical components are not live!
► Carefully lift the upper section (1) of the IC camera up
and off.
Minor Maintenance
Maintenance Tasks for Optical Systems Performing Maintenance Tasks
46 Maintenance Manual SIPLACE X Series
► Repeat these steps for all IC and FC cameras.

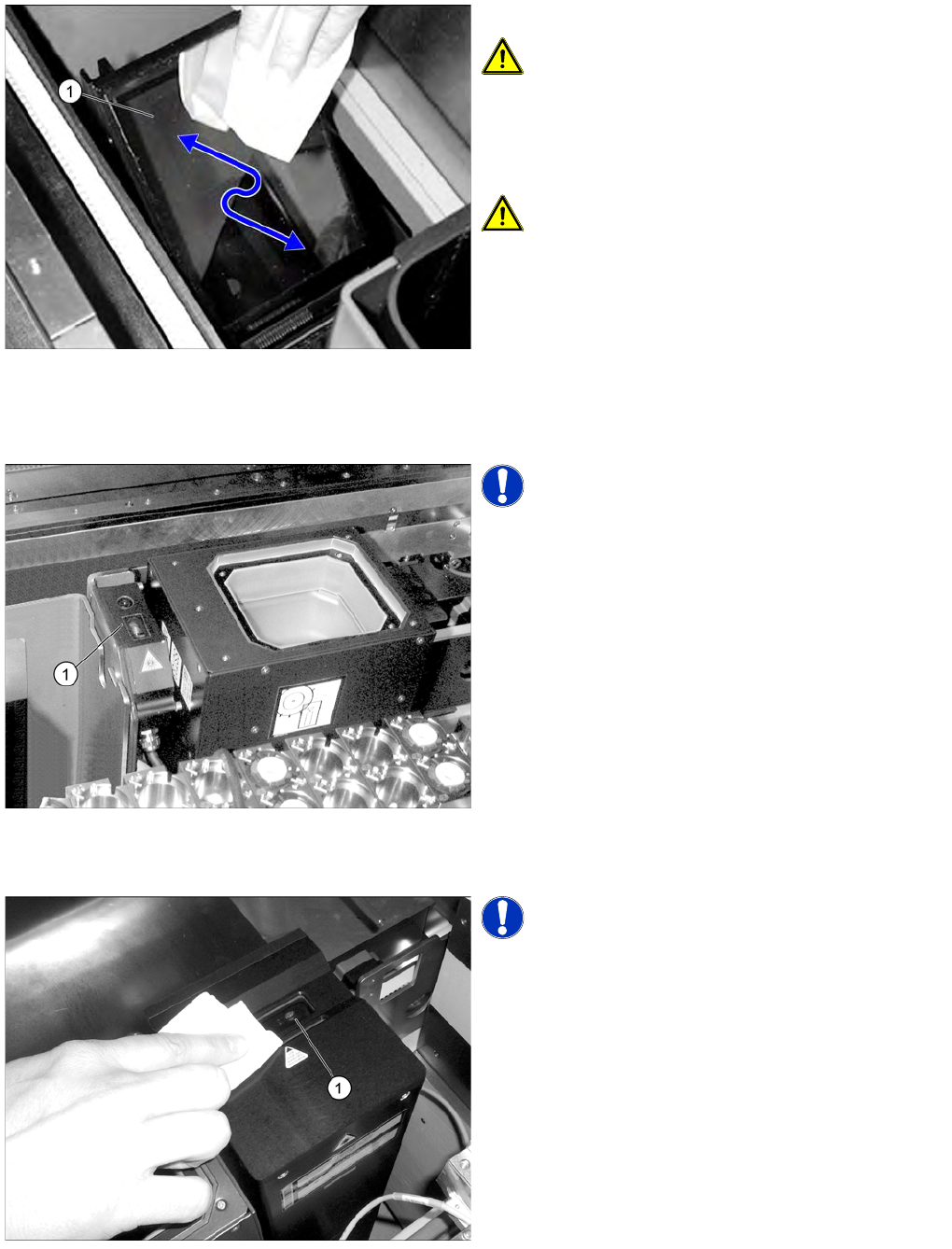

Cleaning the Cop lanarity M odule
4.6.3.2 Cleaning the Coplanarity Module
Clean the stationary 3D se nsor module
4.6.3.3 Clean the stationary 3D sensor module
► Clean the slanted glass (1) with a microfiber cloth.
CAUTION! Do not use any cleaning agents!
► Refit the upper section of the camera.
When inserting the upper section of the camera,
make sure that it is evenly seated on the bottom
section and that it cannot move.
CAUTION! Take care not to damage the glass
when fitting it.
NOTICE! The coplanarity module is optional.
► Clean the lenses (1) of the coplanarity module with a
microfiber cloth.
NOTICE! The 3D sensor module is optional.
► Clean the 3D sensor module lens (1) with a microfiber
cloth.
