Minor Maintenance
Performing Maintenance Tasks Maintenance Tasks for Optical Systems
Maintenance Manual SIPLACE X Series 47
Clean the PCB barcode sc anner

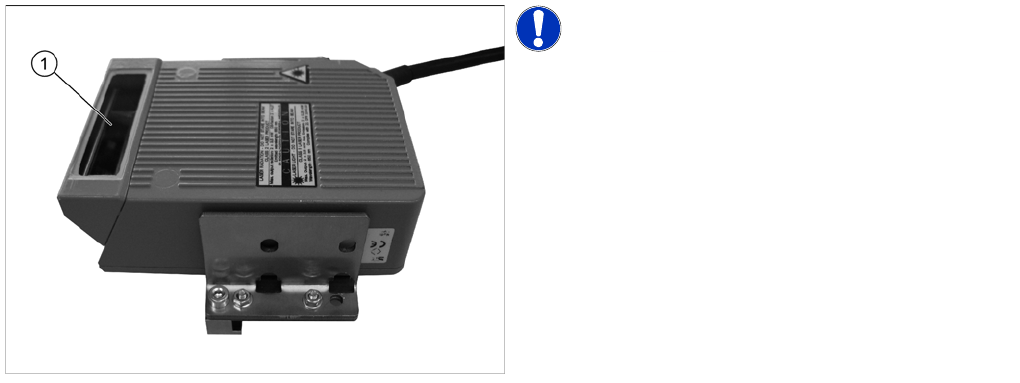

4.6.3.4 Clean the PCB barcode scanner
NOTICE! The PCB barcode scanner is optional.
► Clean the lens (1) of the PCB barcode scanner with a
microfiber cloth.
Minor Maintenance
Maintenance Tasks for Nozzles Consumables, Spare and Wear Parts, Tools
48 Maintenance Manual SIPLACE X Series
Maintenance Tasks for Nozzles
4.7 Maintenance Tasks for Nozzles
Consumables, Spare and Wear Parts, Tools
4.7.1 Consumables, Spare and Wear Parts, Tools
▪ Distilled water
▪ Compressed air
▪ Nozzles 20xx, 28xx, 10xx or 12xx (depending on configuration)
▪ Ceramic nozzles 10xx, 12xx, 20xx or 28xx (depending on configuration)
▪ Nozzle magazine type 20xx, if required [03066107-xx] (depending on configuration)
▪ Magazine assembly C&P20, if required [03016831-xx] (depending on configuration)
▪ ESD wristband [00320279-xx]
▪ Ultrasound bath
▪ Guiding plate long for 10xx/20xx long [03066508-02] (for C&P20A and CPP) or
Guiding plate short [03029178-xx] (for DLM)
▪ Cleaning box for ceramic nozzles type 20xx/long [03076627-xx] (for CPP) or
Cleaning box for ceramic nozzles type 10xx/long [03055736-xx] (for C&P20A) or
Cleaning box for ceramic nozzles type 9xx [03003183-xx] (for DLM)
▪ Cartridge rack 10xx [03071700-xx] (for C&P20A und CPP), if required
▪ Plastic brush Dm 8 [00325866-xx]
Nozzle Magazines - Overview

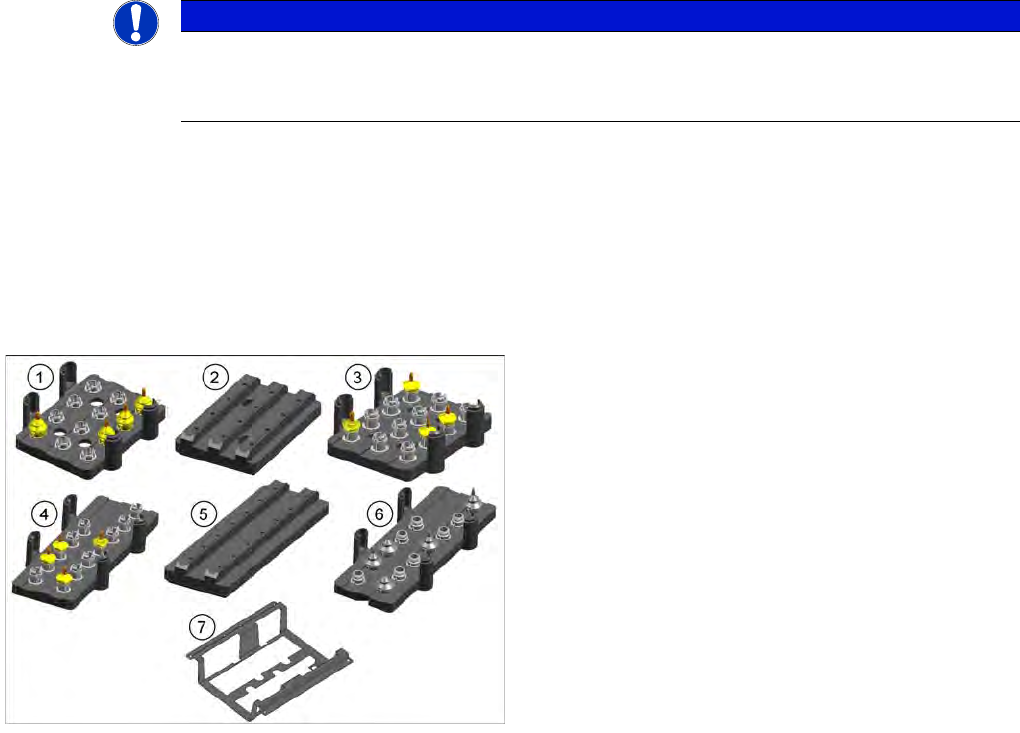

4.7.2 Nozzle Magazines - Overview
NOTICE
ceramic nozzles
When using ceramic nozzles for the CPP, you require the "guiding plate 10xx/20xx long"
[03066508] with function state 02.
1. Cleaning box 9xx [03003183
-
02]
2. Guiding plate for cleaning box DLM [03029178
-
02]
3. Cleaning box 10xx [03038368
-
01]
4. Cleaning box 10xx long [03055736
-
01]
5. Guiding plate 10xx/20xx long [03066508
-
02]
6. Cleaning box 20xx long [03076627
-
01]
7. Cartridge rack 10xx [03071700-xx]
Minor Maintenance
Preparatory Steps Maintenance Tasks for Nozzles
Maintenance Manual SIPLACE X Series 49
Preparatory Steps
4.7.3 Preparatory Steps
► Set the nozzles down in the nozzle changer.
Performing Maintenance Tasks
4.7.4 Performing Maintenance Tasks
Cleaning /Replacing the Ce ramic Nozzles
4.7.4.1 Cleaning/Replacing the Ceramic Nozzles
CAUTION
Do not clean the nozzles in bulk!
Cleaning the nozzles in bulk can damage the ceramic tips (through impact with one another or
with the cleaning vessel), and/or the plastic shaft (through contact with the cleaning fluid).
► Always use the the cleaning box described here!
NOTICE
These maintenance tasks are described using the example of a nozzle magazine for DLM
heads.
The procedure is the same for other nozzle magazines.

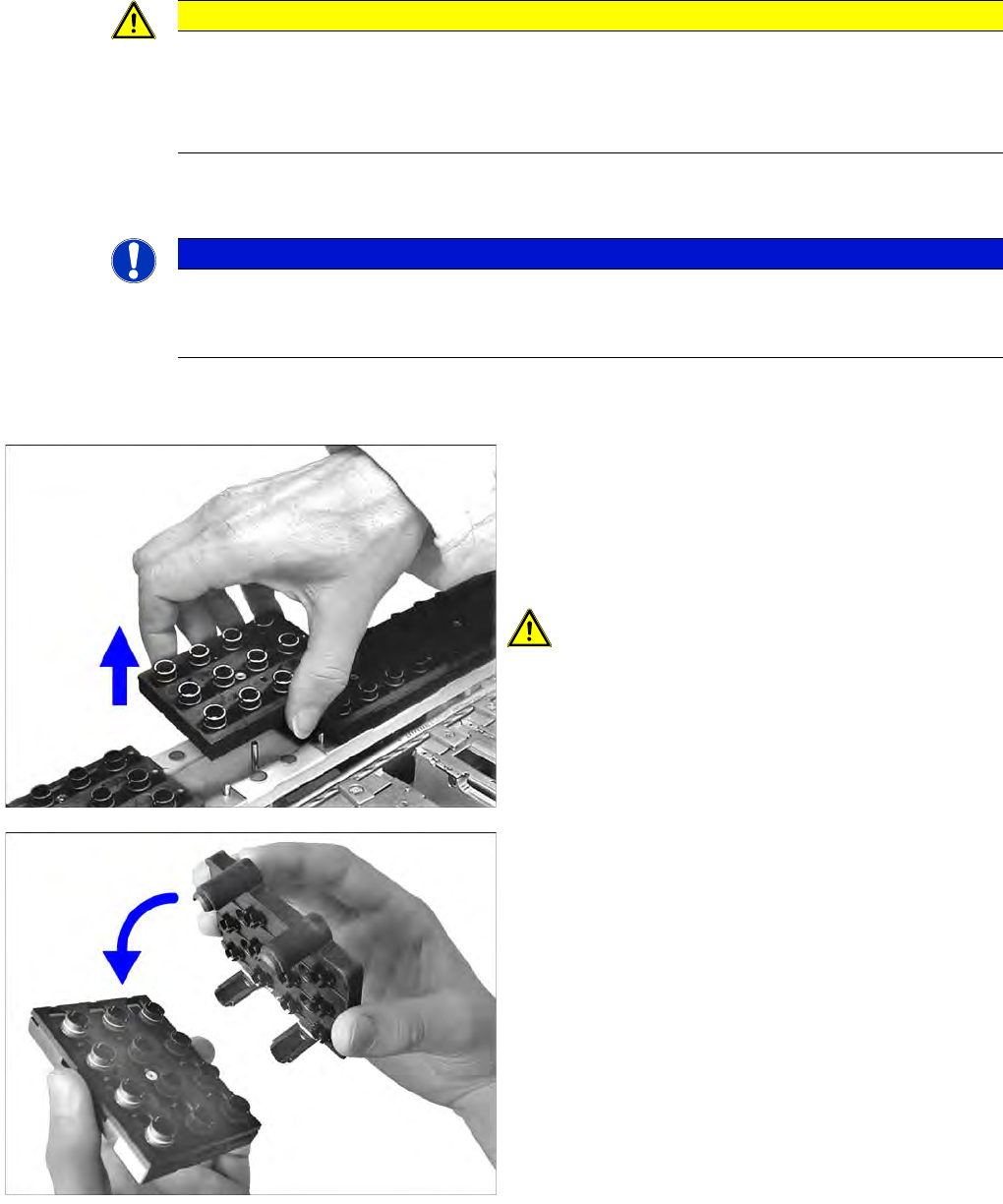

► Remove a full nozzle magazine from the nozzle
changer. When handling a nozzle magazine which is
not full, pay attention to the orientation in the nozzle
changer. At the end of the cleaning procedure, make
sure that the nozzle magazine is reinserted into the
nozzle changer with the same orientation.
CAUTION! If you are using both plastic and
ceramic nozzles in the same magazine, remove the
plastic nozzles. Plastic nozzles can not be cleaned with
the ultrasonic bath.
► Press the cleaning box onto the nozzle magazine.
