Minor Maintenance Maintenance Tasks for Nozzles Performing Maintenance Tasks 52 Maintenance Manual SIPLACE X Series Replacin g Nozzle s 4.7.4.2 Replacing Nozzles ► Apply slight pressure and move th e brush back and forth…
Minor Maintenance
Performing Maintenance Tasks Maintenance Tasks for Nozzles
Maintenance Manual SIPLACE X Series 51

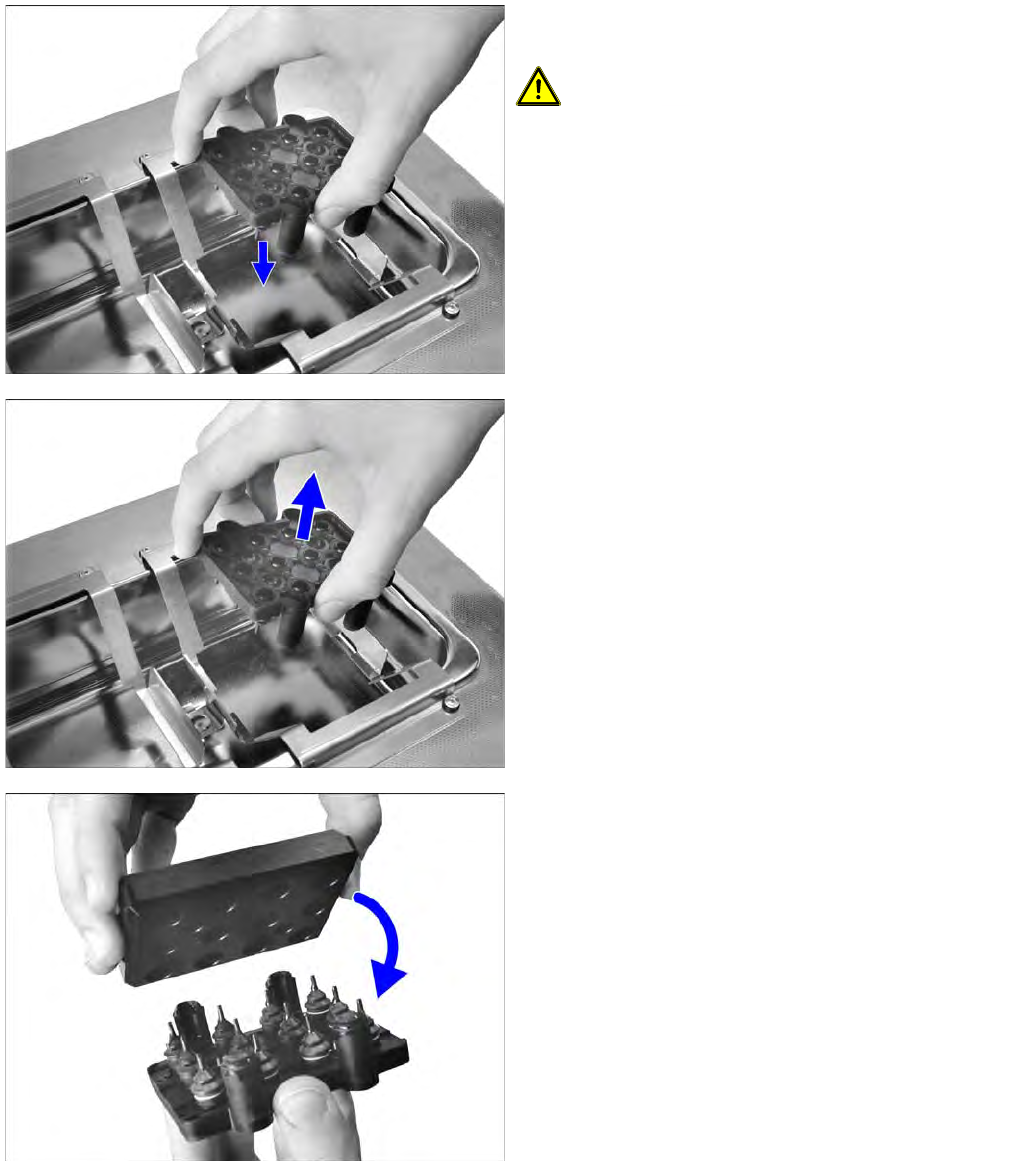

► Place the cleaning box with the nozzle tips facing
downwards into the ultrasonic bath.
CAUTION! The nozzle magazines may not be
placed into the water.
The recommended cleaning time for nozzles with normal
levels of dirt is 15 min.
The time needed depends on the degree of dirt.
► At the end of the cleaning time, take the cleaning box
out of the ultrasonic bath.
► Turn the cleaning box so that the nozzle tips face
upwards.
► Place the guidance for the plastic brush into the
cleaning box.
Minor Maintenance
Maintenance Tasks for Nozzles Performing Maintenance Tasks
52 Maintenance Manual SIPLACE X Series
Replacin g Nozzle s
4.7.4.2 Replacing Nozzles

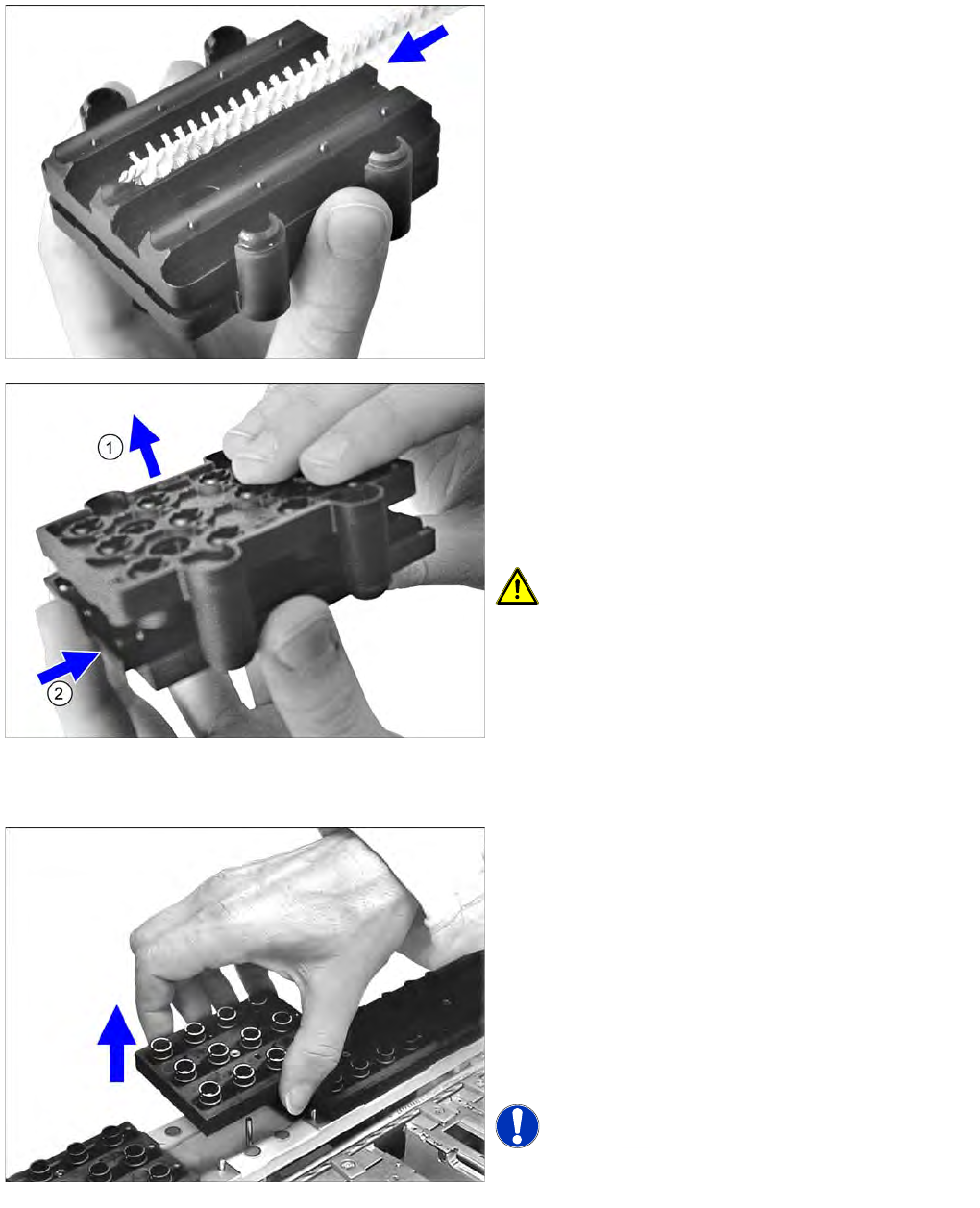

► Apply slight pressure and move the brush back and
forth to remove the partially dissolved dirt and
residues.
► Blow through the nozzles with compressed air.
► (1) Remove the brush guidance.
► Place the nozzles in the nozzle magazine and close
the slide (2).
► Dry the nozzles with compressed air.
► Place the nozzle magazine back in the nozzle
changer.
CAUTION! Reinsert the nozzle magazine into
the nozzle changer with the same orientation as before
(when it was removed before cleaning).
► Remove a full nozzle magazine from the nozzle
changer. When handling a nozzle magazine which is
not full, make a note of the orientation in the nozzle
changer, to ensure correct reinsertion later on.
► Check the nozzles and replace any dirty or damaged
ones.
► Place the nozzle magazine back in the nozzle
changer. When handling a nozzle magazine which is
not full, pay attention to correct orientation in the
nozzle changer.
NOTICE! Prepare additional nozzle magazines
according to the current nozzle configuration and replace
the complete magazine.
Minor Maintenance
Consumables, Spare and Wear Parts, Tools Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 53
Maintenance Tasks for C&P6/12 Head
4.8 Maintenance Tasks for C&P6/12 Head
Consumables, Spare and Wear Parts, Tools
4.8.1 Consumables, Spare and Wear Parts, Tools
Consumable materials
▪ Interflon Fin Super (Teflon oil) [03017760-xx]
▪ Protective latex gloves [00372972-xx]
▪ Cotton gloves virgin, size 8 [00359087-xx]
▪ Microfiber cloth for cleaning optical assemblies
▪ Ethanol
▪ Distilled water
▪ Compressed air
▪ Microtips medium precision applicators (cottonwool buds) [03020860Sxx]
▪ ISOFLEX TOPAS, NCA 52 tin 1 kg/tube 50 g [00330850-xx]
▪ UNISILKON L250L grease [00310259Sxx]
▪ Lint-free cloths [03082092-xx]
▪ Cotton wool buds [00352931-xx]
Wear parts
▪ Valve plunger C&P6 (6 in each pack) [00351500-xx] or valve plunger C&P12 (6 in each pack)
[00351498-xx]
▪ O-ring for valve plunger [00359382-xx]
▪ Suction plate assembly DLM/R- light beige [03037984Sxx]
Recommended spare parts
▪ Set of sleeves 12 segment head [00116113Sxx] or
Set of sleeves 6 segment head [00116114Sxx]
▪ Individual sleeves 12 segement head [00350588Sxx] or
individual sleeves 6 segment head [00352957Sxx]
▪ Nozzle magazine 7/9xx [00323044-xx]
Tools
▪ ESD wriststrap TYP.OK/WRS [00320279-xx]
▪ Antistatic tweezers, type Bernstein 5
-
192 [00377393
-
xx]
▪ Antistatic tweezers, type Bernstein 5
-
195 [00377394
-
xx]
▪ Brush [00378523-xx]
▪ Angled tweezers [00096487-xx]
▪ SPIRAL drill cylinder R.1,4 D DIN 338 [00092026-xx]
▪ SPIRAL drill cylinder R.1,1 D DIN 338 [00092020-xx]
▪ Plunger maintenance tool [03049689Sxx]
▪ Cleaning tools for encoder disk [03049704-xx]
▪ Sleeve cleaning device [00377260-xx]
▪ Cleaning box 9xx [03003183Sxx]
▪ Guiding plate short [03029178-xx]
▪ Plastic brush Dm 8 [00325866-xx]
▪ For DLM4 at DX Series: Nozzle magazine 30xx [03081446-xx]
