Minor Maintenance
Maintenance Tasks for C&P6/12 Head Performing Maintenance Tasks
56 Maintenance Manual SIPLACE X Series
Greasing the Valve Plunger with the Tool
Tools available for order
▪ Head maintenance efficiency kit 220V [00383601-xx] or
Head maintenance efficiency kit 110V [00385449-xx]
▪ Plunger maintenance tool [03049689-xx]
▪ Cleaning tools for encoder disk [03049704-xx]
▪ Nozzle cleaner 24P [03042652-xx]
▪ Sleeve cleaning device [00377260-xx]
Tool parts
Tool assembly
1. Spring
2. Pistons
3. Cylinder
► Insert the piston into the cylinder.
► Insert the spring into the cylinder.
Minor Maintenance
Performing Maintenance Tasks Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 57
► Fill the cylinder with ISOFLEX TOPAS NCA 52, using
the adapter (1) provided with the TOPAS.
This tool works best without air in the cylinder.
If possible, make sure that no air gets into the cylinder.
If air and ISOFLEX TOPAS NCA 52 gets into the cylinder,
this could impair the quality of the lubrication.
1. ISOFLEX TOPAS, NCA 52
State after filling the cylinder with ISOFLEX TOPAS NCA
52.
► Take the adapter off the TOPAS tube, press the air
out of the TOPAS tube and attach the cylinder with a
rotary movement.
Minor Maintenance
Maintenance Tasks for C&P6/12 Head Performing Maintenance Tasks
58 Maintenance Manual SIPLACE X Series
Application

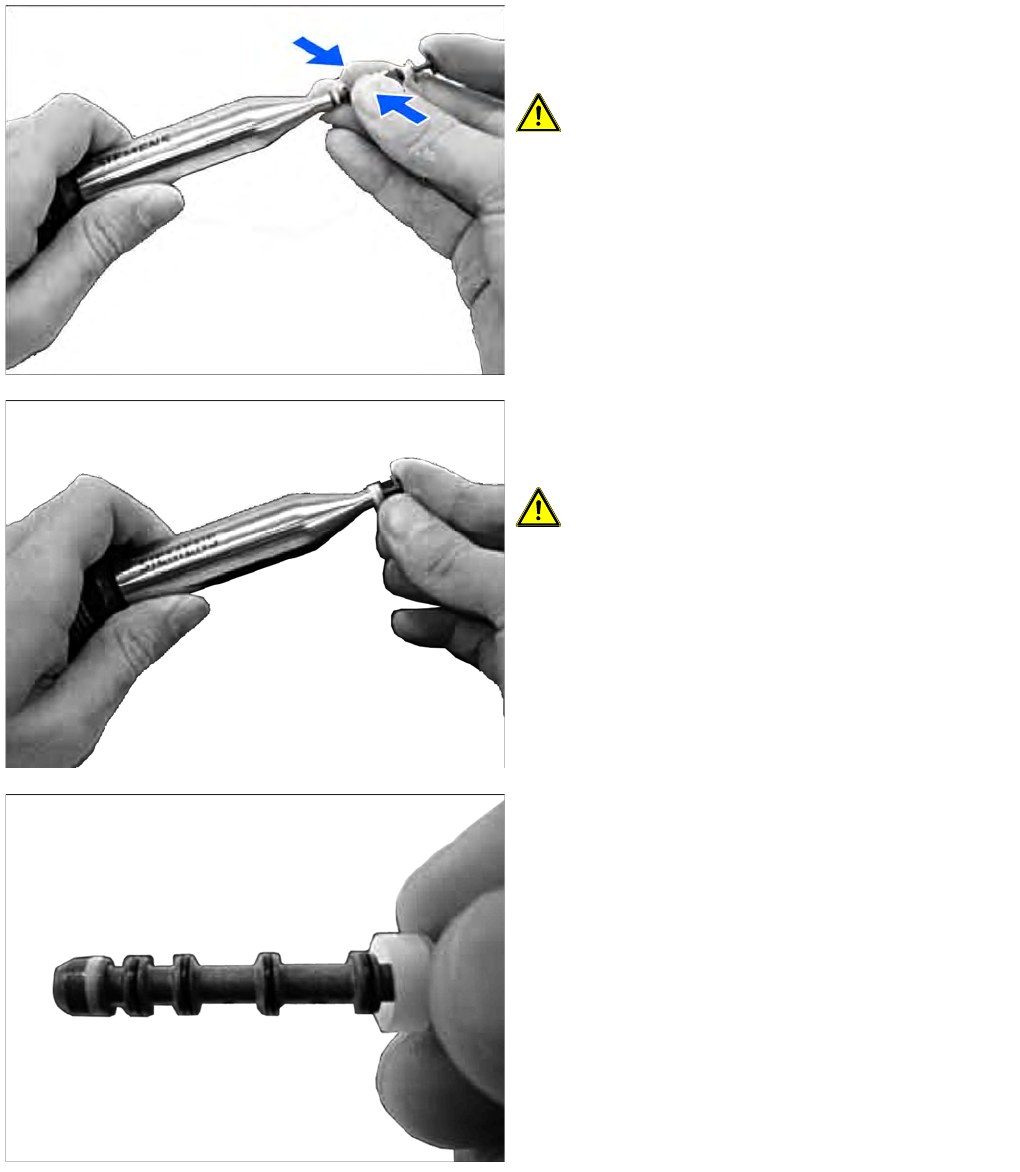

► After cleaning the valve plunger, hold it tight with your
fingers and insert it into the cylinder, making sure that
you hold it straight during insertion.
CAUTION! When you insert the valve plunger,
you will feel the resistance of the tool spring. Hold the
valve plunger on the sides with your fingers to support it.
If you do not support the valve plunger on the sides, this
could be bent and might break!
► Push the valve plunger once up to the end of the
cylinder (full stroke) and then push it 4 or 5 times in
and out (10
-
15 mm stroke).
CAUTION! Make sure that there is enough
grease on the tool!
► Take out the valve plunger and check the result on
the outside of the O-ring surface. If the surface of the
O-ring shines with TOPAS, the valve plunger has
been properly greased.
