Minor Maintenance
Performing Maintenance Tasks Maintenance Tasks for C&P6/12 Head
Maintenance Manual SIPLACE X Series 61
► Wear laboratory gloves for this step.
► (1) Check the suction plate for damage. If it is
damaged, replace it.
► (2) Clean the sleeve suction plate using a dry, lint-
free cloth.
► Clean the edge (1) of the sleeve with a lint-free cloth,
moistened with ethanol.
► Clean the incremental disk (2) of the sleeve with a
lint-free cloth, moistened with ethanol.
► Clean the sleeve shaft (1) with a lint-free cloth,
moistened with ethanol.
► Carefully clean the circumference (2) of the ball catch
with a cottonwool bud moistened with ethanol.
Minor Maintenance
Maintenance Tasks for TwinHead Consumables, Spare and Wear Parts, Tools
62 Maintenance Manual SIPLACE X Series
Maintenance Tasks for TwinHead
4.9 Maintenance Tasks for TwinHead
Consumables, Spare and Wear Parts, Tools
4.9.1 Consumables, Spare and Wear Parts, Tools
▪ Interflon Fin Super (Teflon oil) [03017760-xx]
▪ Lint-free cloths [03082092-xx]
▪ Replacement filter FE 50 [03047489-xx]
▪ ESD wristband [00320279-xx]
▪ Long-nosed pliers
Preparatory Steps
4.9.2 Preparatory Steps
► Switch off the machine and secure it to prevent unauthorized reactivation. Observe the instructions
in section "1.2 Preparatory Work..." [ ➙ 11].
► Set the nozzles down in the nozzle changer.
Performing Maintenance Tasks
4.9.3 Performing Maintenance Tasks
Cleaning the Sleeve and Nozzle Sea t
4.9.3.1 Cleaning the Sleeve and Nozzle Seat
Cleaning /Replacin g the Additional V olume Fi lter
4.9.3.2 Cleaning/Replacing the Additional Volume Filter

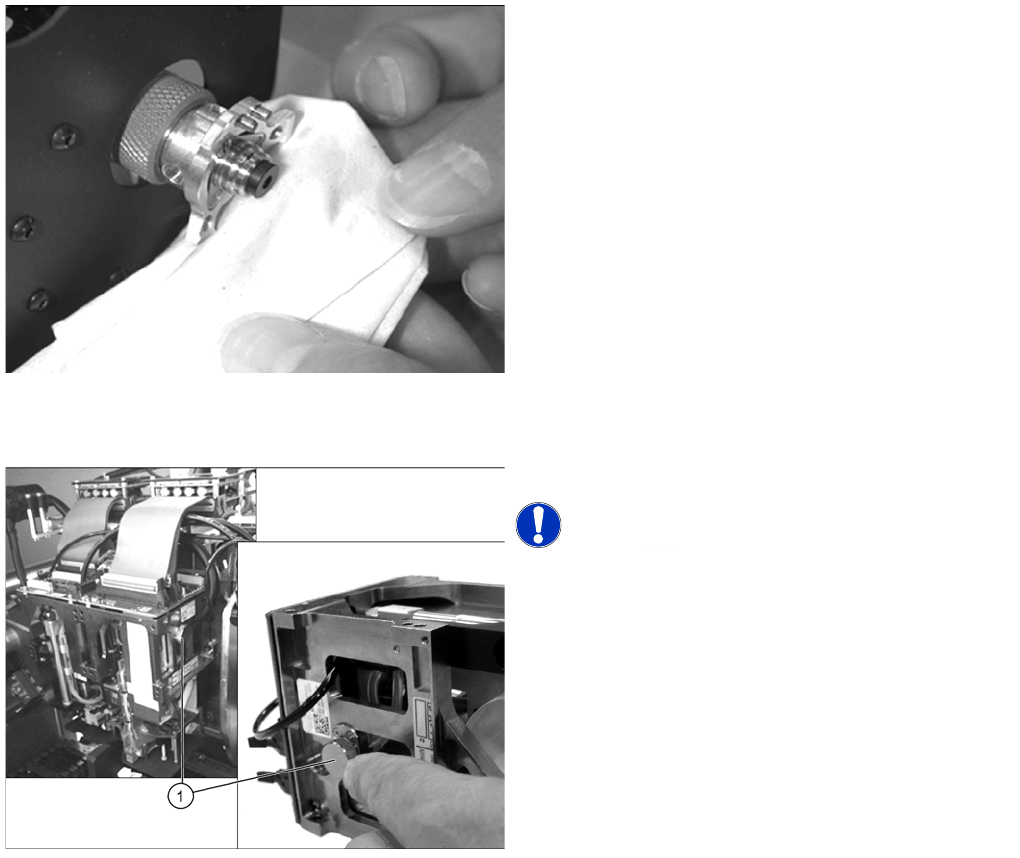

► Spray a small amount of Teflon oil on a lint-free cloth
and clean the sleeve and nozzle seat.
Alternatively you can also use a SIPLACE cleansing
tissue.
► Carefully blow through the nozzle.
► Repeat these steps on the second TwinHead
module.
► Unscrew the filter (1).
NOTICE! If the filter is difficult to access, use the
long-nosed pliers to help you. You do not need to remove
the head.
► Clean the filter by carefully blowing compressed air
through it.
► Check the filter for damage.
► If it is damaged replace it with a new one.
► Screw the filter tight again.
► Repeat these steps on the second TwinHead
module.
Major Maintenance
Maintenance Intervals for Major Maintenance
Maintenance Manual SIPLACE X Series 63
Major Maintenance
5 Major Maintenance
Maintenance Intervals for Major Maintenance
5.1 Maintenance Intervals for Major Maintenance
Basic machine
Component feed-in
Gantry
CAUTION
Trained personnel
These maintenance tasks may only be carried out by appropriately trained and qualified
personnel.
Maintenance task Duration
[min]
Each
week
Every 3
months
Every 6
months
Every 12
months
Cleaning the Gas Pressure Shock Absorbers
on the Protective Covers
2 X
Checking/Replacing the Gas Pressure
Shock Absorbers on the Protective Covers
2 X
Check the protective devices 2 X
Maintenance task Duration
[min]
Each
week
Every 3
months
Every 6
months
Every 12
months
Function Test of Used Tape Cutter 2 X
Maintenance task Duration
[min]
Each
week
Every 3
months
Every 6
months
Every 12
months
Grease and clean the X axis guide bearing 2 X
Grease and clean the Y axis guide bearing 2 X
Clean the X axis linear guide 2 X
Clean the Y axis linear guide 2 X
Checking the Cooling Air Hoses for the Y
Axis
2 X
