Major Maintenance
Maintenance Work on the Gantry Performing Maintenance Tasks
74 Maintenance Manual SIPLACE X Series

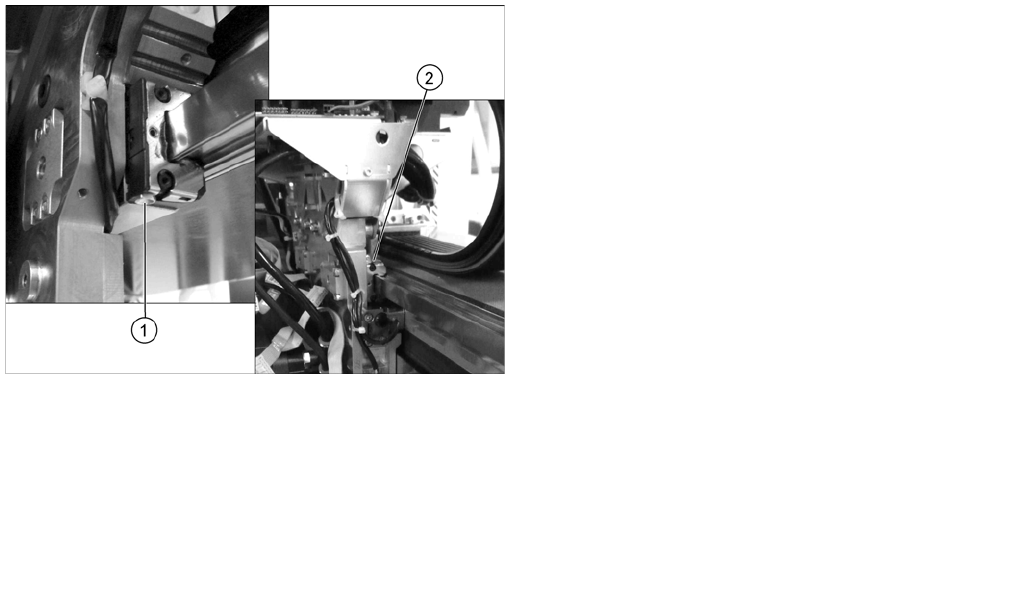

► Position the hose of the grease gun straight onto the
lubrication nipple (1).
► Apply one squeeze of the grease gun (approx. 0.13
cm
3
per squeeze).
► If the grease emerges from the grease nipple, then
either the bearing is already full or the grease nipple
is not sealed correctly. In the latter case, use a new
grease nipple.
► Move the X-axis head plate approx. 30 cm. This
distributes the grease.
► Repeat the pressing and moving process two more
times. The correct amount of grease has then been
applied.
The total amount of grease (3 x 0.13 cm
3
[g] in all
bearings!
► Use a lint-free cloth to remove any excess grease
from on and around the grease nipple.
► Repeat these steps for the other lubrication nipples
(2) of the X axis. (4 per gantry)
► Repeat these steps for all gantries.
Major Maintenance
Performing Maintenance Tasks Maintenance Work on the Gantry
Maintenance Manual SIPLACE X Series 75
Greasing and Cleaning the Y A xis
5.4.3.2 Greasing and Cleaning the Y Axis
► Fill the "Y axis" grease gun with Klüberplex BEM 34-132 grease.
Cleaning the Linear Guides of the X Axis
5.4.3.3 Cleaning the Linear Guides of the X Axis
CAUTION
Grease all grease nipples
► Remember to grease each visible grease nipple on the Y axis! There are 4 lubrication
nipples for each Y axis, one on each bearing.
► Use the amounts of grease specified. Too much or too little grease can damage the
bearing.
► Position the grease gun straight onto the lubrication
nipple (1).
► Apply one squeeze of the grease gun (0.4 cm³ per
squeeze).
► If the grease emerges from the grease nipple, then
either the bearing is already full or the grease nipple
is not sealed correctly. In the latter case, use a new
grease nipple.
► Move the gantry by approx. 30 cm. This distributes
the grease.
► Repeat the pressing and moving process two more
times. The correct amount of grease has then been
applied.
The total amount of grease is (3 x 0.4 cm3 [g] for
each bearing!
► Use a cloth to remove any excess grease from on
and around the grease nipple.
► Follow the same procedure for the Y axis lubrication
nipple (2) facing towards the inside of the machine.
► Repeat the greasing process on all linear guides (2
lubrication nipples per gantry).
CAUTION! Do not use any chemical cleaning
agents!
Do not use additional lubricants. This may reduce the
service life of the bearings.The guide rails are greased
sufficiently by the guide carriage.
► Clean the linear guides for the X axis thoroughly over
their entire length using lint-free cloths.
► Repeat this step for all linear guides.
Major Maintenance
Maintenance Work on the Gantry Performing Maintenance Tasks
76 Maintenance Manual SIPLACE X Series

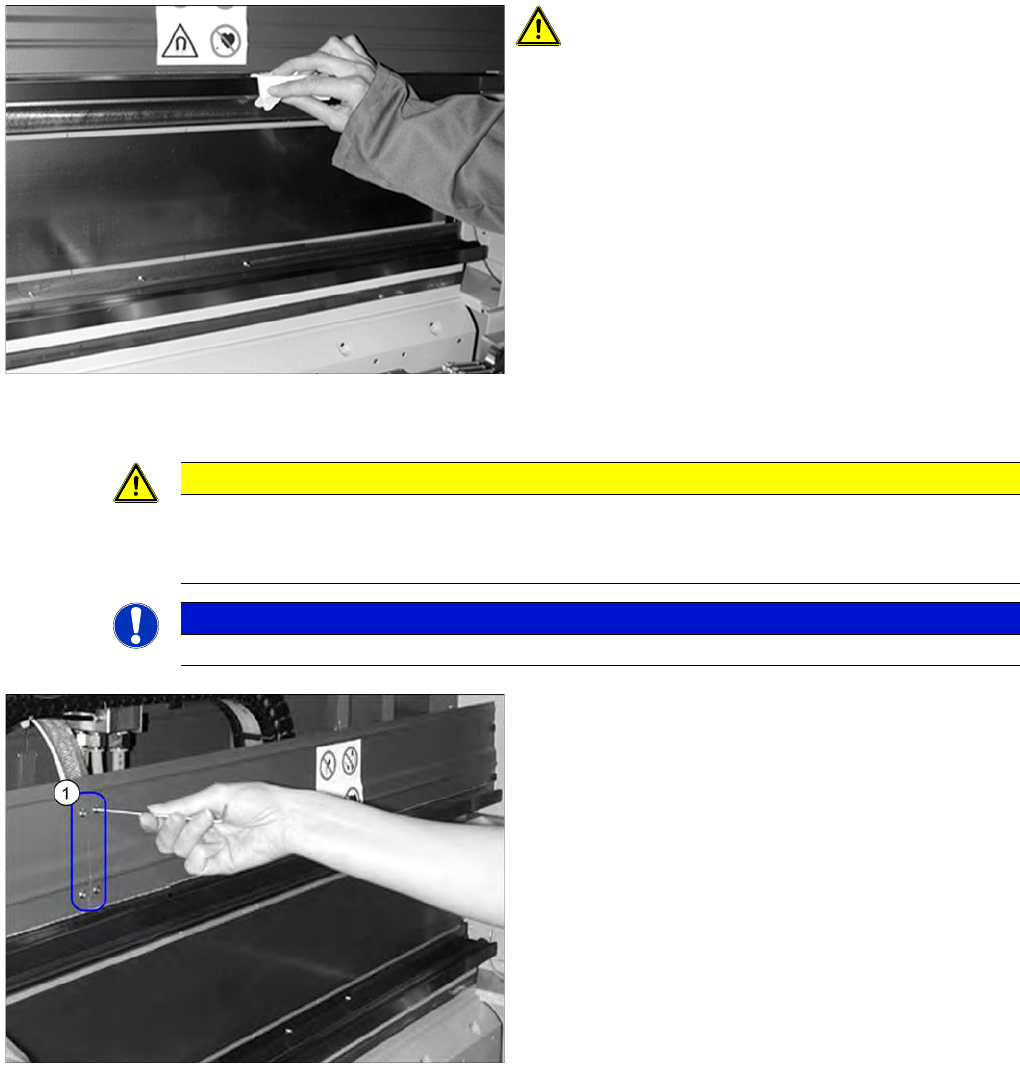

Cleaning the Linear Guides of the Y Axis
5.4.3.4 Cleaning the Linear Guides of the Y Axis
Checking the Cooling Air Ho ses for the Y Axis
5.4.3.5 Checking the Cooling Air Hoses for the Y Axis
CAUTION! Do not use any chemical cleaning
agents!
Do not use additional lubricants. This may reduce the
service life of the bearings.The guide rails are greased
sufficiently by the guide carriage.
► Clean the linear guides for the Y axis thoroughly over
their entire length using lint-free cloths.
► Repeat this step for all linear guides.
CAUTION
Broken cooling air hoses
If the cooling air hoses are defective, the Y motor could overheat and cut out. Guide carriages
and guides may be damaged as a result.
NOTICE
This maintenance task is only required up to serial number B078.
► Loose the screw (1) fastening the cover plates above
the magnetic strip, which is in front of the trailing
cable.
► Remove the cover plates.
