Major Maintenance
Maintenance Tasks for C&P20A Head Difference Between C&P20 and C&P20A
78 Maintenance Manual SIPLACE X Series
Mainten ance Task s for C&P20A Hea d
5.5 Maintenance Tasks for C&P20A Head
Difference Between C&P20 and C&P20A
5.5.1 Difference Between C&P20 and C&P20A
Application
Only C&P20A heads are used in SIPLACE SX/DX machines.
X series machines can use both C&P20 and C&P20A heads.
Differentiation criteria
CAUTION
Do not mistake the C&P20A head with the C&P20 head, as this requires different maintenance!
NOTICE
C&P20, C&P20A
Unless otherwise specified, all references made apply equally to the C&P20A head and to the
C&P20 head.
SX/DX-Series X Series
C&P20 No YES
C&P20A YES YES
Type

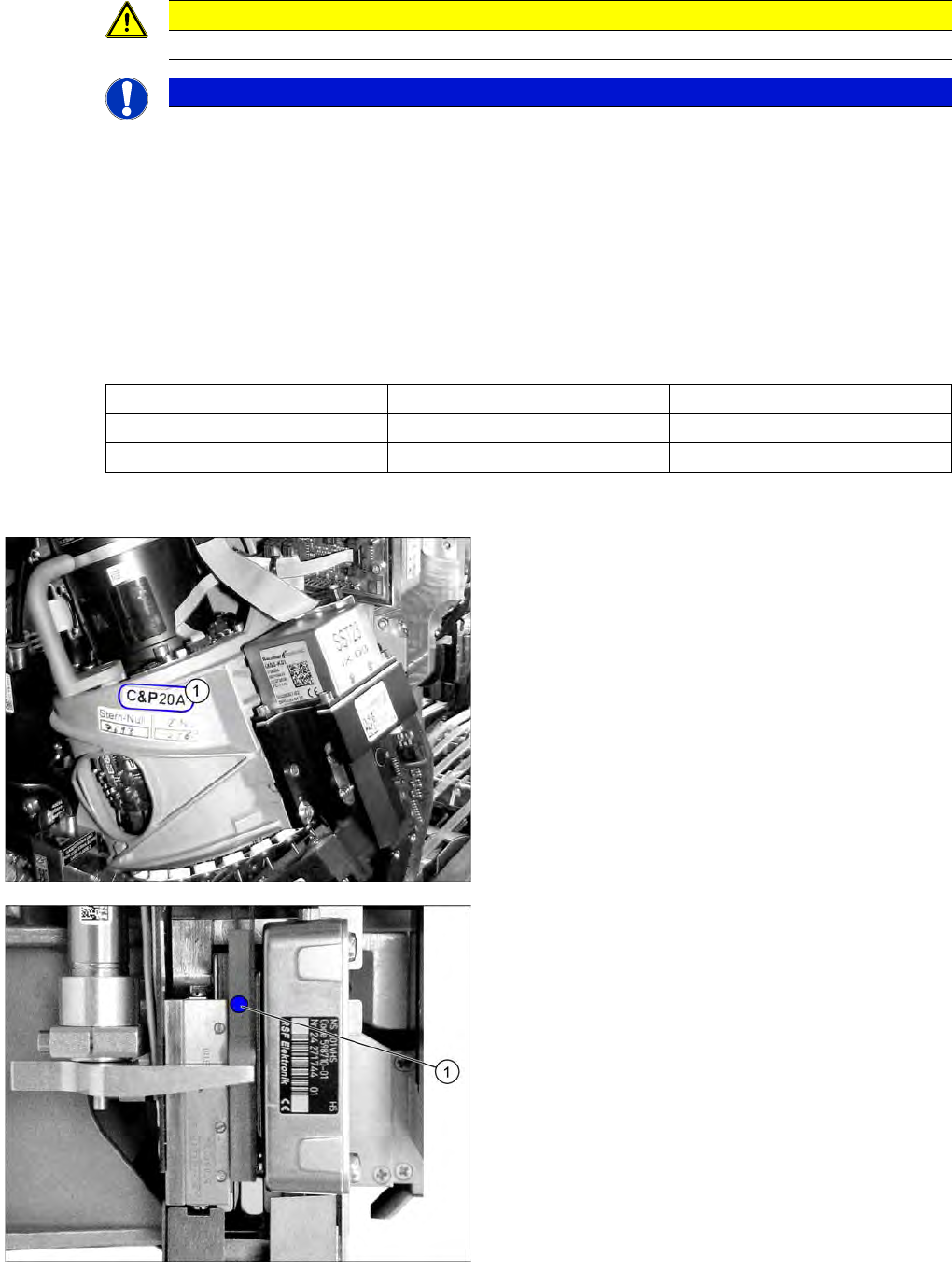

The C&P20A head housing has a label with the head type
on it (1).
The C&P20 does not have this label.
Linear guidance Z axis
The C&P20A head has a blue dot on the Z axis rotor (1).
▪ Z drive assembly for C&P20 [03005155-xx]
▪ Z drive assembly for C&P20A [03058631-xx]
Major Maintenance
Consumables, Spare and Wear Parts, Tools Maintenance Tasks for C&P20A Head
Maintenance Manual SIPLACE X Series 79
Consumables, Spare and Wear Parts, Tools
5.5.2 Consumables, Spare and Wear Parts, Tools
▪ "Starter kit for maintenance CPx and TwinHead" [03071171-03].
▪ Universal placement head mounting rack [03056231-xx]
▪ Set of Allen wrenches
▪ Open-jawed spanner, 10 mm
▪ Brush (free of grease and solvent)
▪ Lint-free cloths [03082092-xx]
▪ Optics cloth/lens cloth
▪ Hold circuit assembly, if required [03005123-xx]
▪ Silencer for C&P20, if required [03043707-xx]
▪ Second multipette, if required [00386154-xx]
▪ Cotton wool buds [00352931-xx]
▪ Service manual for your maschine:
SX1/SX2/DX1/DX2: [00196496-xx] (German), [00196497-xx] (English) or
SX4/DX4: [00196712-xx] (German), [00196713-xx] (English) or
X-Serie: [00194439-xx] (German), [00194440-xx] (English)
▪ User manual "insertion and extraction tool for filter disks, C&P20A" (item no.: 00195378-xx).
You will find all key tools and consumable materials for maintenance work on the TwinHead, CPP and
C&P20(A) heads in the "Starter kit for maintenance CPx and TwinHead" [03071171-03].
Segment guide

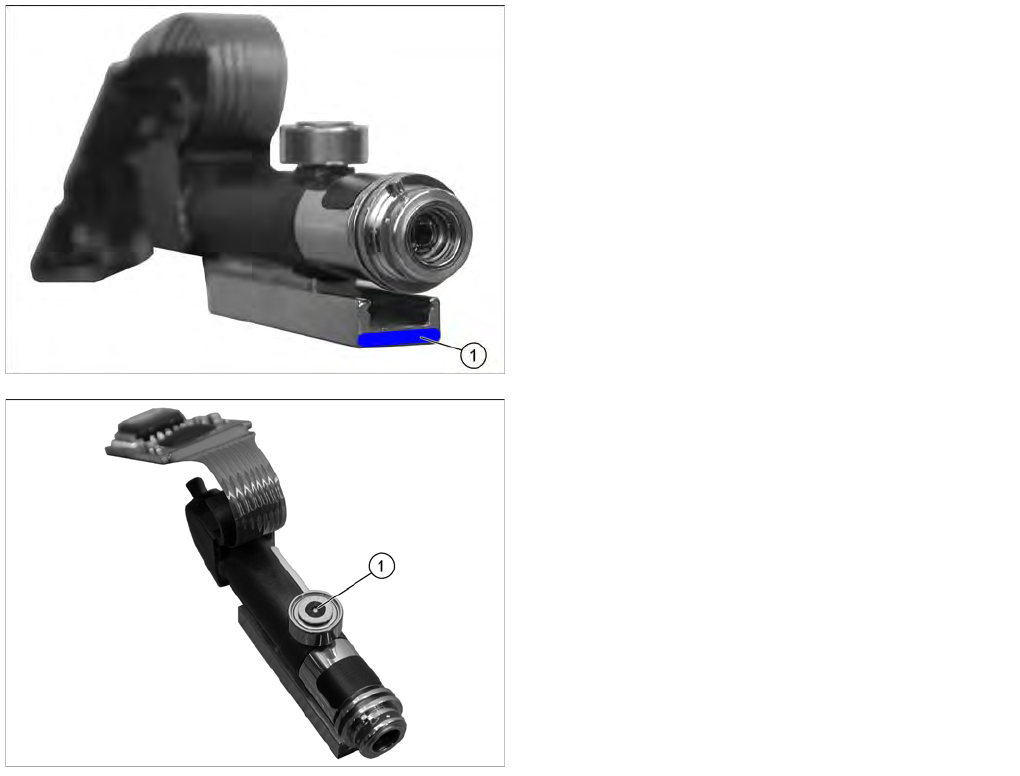

The C&P20A head has a blue line on the segment
guide (1).
▪ Segment guide on DP drive for C&P20 [03005109-xx]
▪ Segment guide on DP drive for C&P20A [03058627-
xx]
Driver bearing
The driver bearings (1) have different item numbers:
▪ DP drive driver bearing for C&P20 [03005109-xx]
▪ DP drive driver bearing for C&P20A from version 02
[03058627-xx]
Major Maintenance
Maintenance Tasks for C&P20A Head Preparatory Steps
80 Maintenance Manual SIPLACE X Series
Preparatory Steps
5.5.3 Preparatory Steps
Assembling the head mount
► Assemble the head mount. Read the head mount manual (German and English: [00196371-xx]).
► Connect the assembly mount ESD connection to an ESD connection at the workplace.
Vacuum test
► Set the nozzles for the current nozzle configuration down in the nozzle changer.
► Before you begin maintenance work, perform a vacuum test. Use the calibration nozzles 2057 for
this. If vacuum value irregularities occur at certain segments, take a closer look at these during
maintenance work. Note down the numbers of the problematic segments for later reference.
Removing the placement head
► Dismantle the placement head and remove it from the placement machine. Read the service manual
for the respective machine first.
► Fit the placement head onto the head mount.
Multipette
► Prepare the multipette. (See below)
CAUTION
ESD regulations!
► Always observe the ESD regulations described in the user manual.

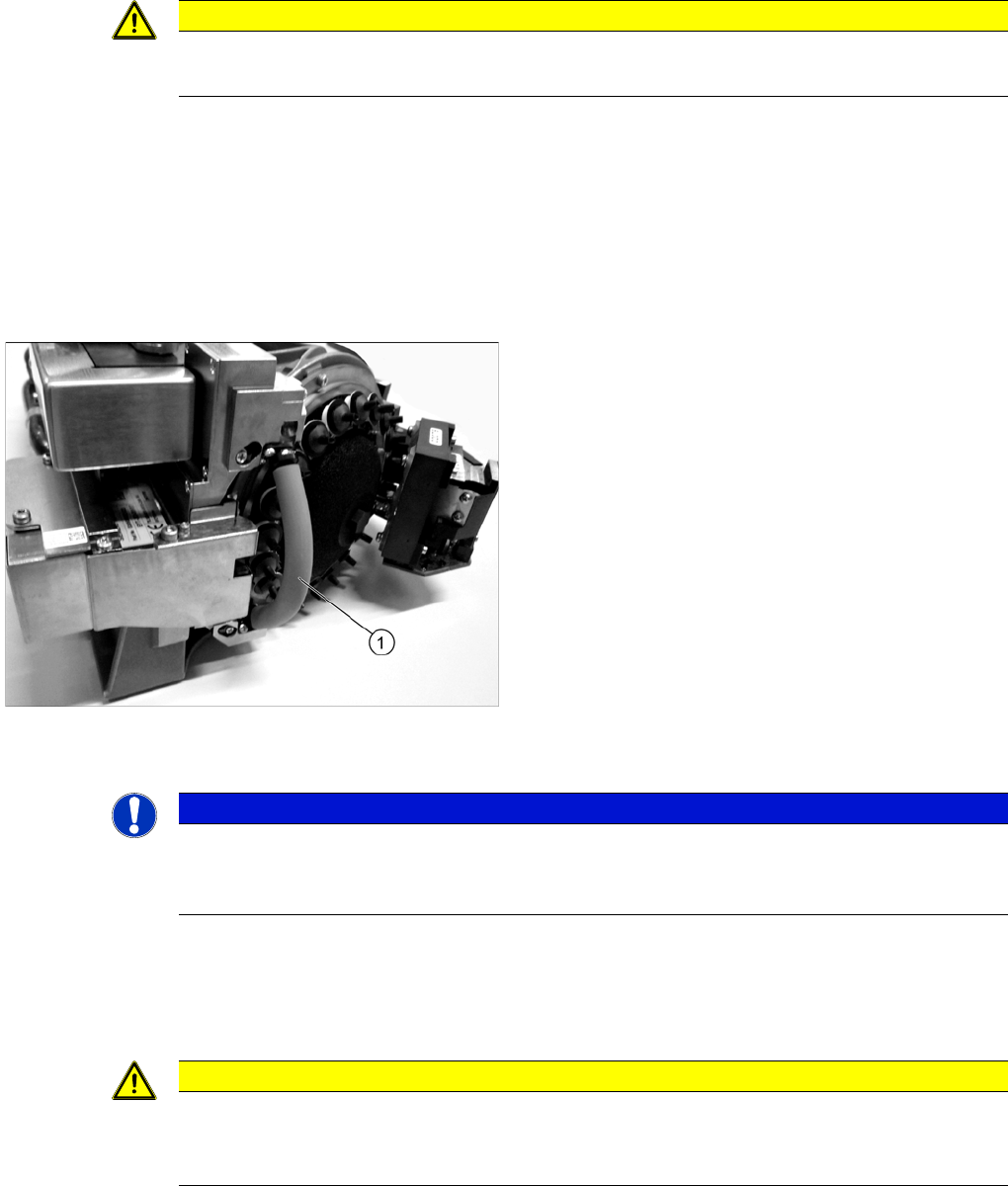

► Fit the protective hose (1) onto the component
sensor.
NOTICE
Fast Head Exchange
► If possible, use the FHE function. This enables you to perform a brief calibration during the
subsequent installation.
CAUTION
Do not combine!
Only use the combitip specifically marked for each lubricant, to avoid combining the lubricants.
Contamination (combination) of lubricants can affect the service life of the bearings!
