Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10 0306-001 149 JE-5 404 630 096 8262 COVER 1 809JE-010-404 405 630 096 8279 COVER 1 809JE-010-405 407 630 096 8286 COVER 1 809JE-010-407 408 630 000 7527 BOL…
MODEL TCM-X110
0306-001
148
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

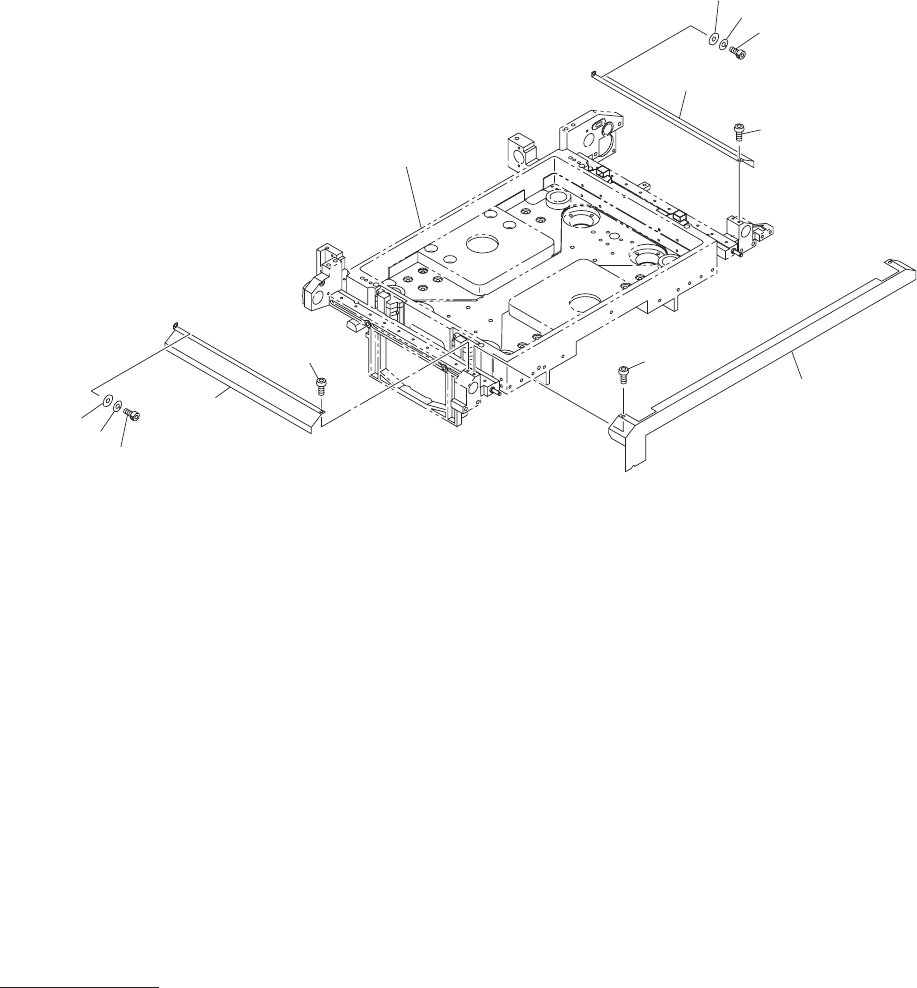

Fig. JE-5 XY
シュートカバー
XY Chute Cover
407
See Fig.JC-1
Key No.4
410
409
408
404
413
413
410
409
408
405
413
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
149
JE-5
404 630 096 8262 COVER 1 809JE-010-404
405 630 096 8279 COVER 1 809JE-010-405
407 630 096 8286 COVER 1 809JE-010-407
408 630 000 7527 BOLT,HEX-SCT 2 809JE-010-408
409 411 141 2806 WASHER SPR 3 2 809JE-010-409
410 411 141 3902 WASHER V 3X7X0.5 2 809JE-010-410
413 630 047 4596 BOLT,HEX-SCT(BUTTON HEAD) 4 809JE-010-413
MODEL TCM-X110
0306-001
150
XY
テーブル配管、配線
XY TABLE PIPING,WIRING

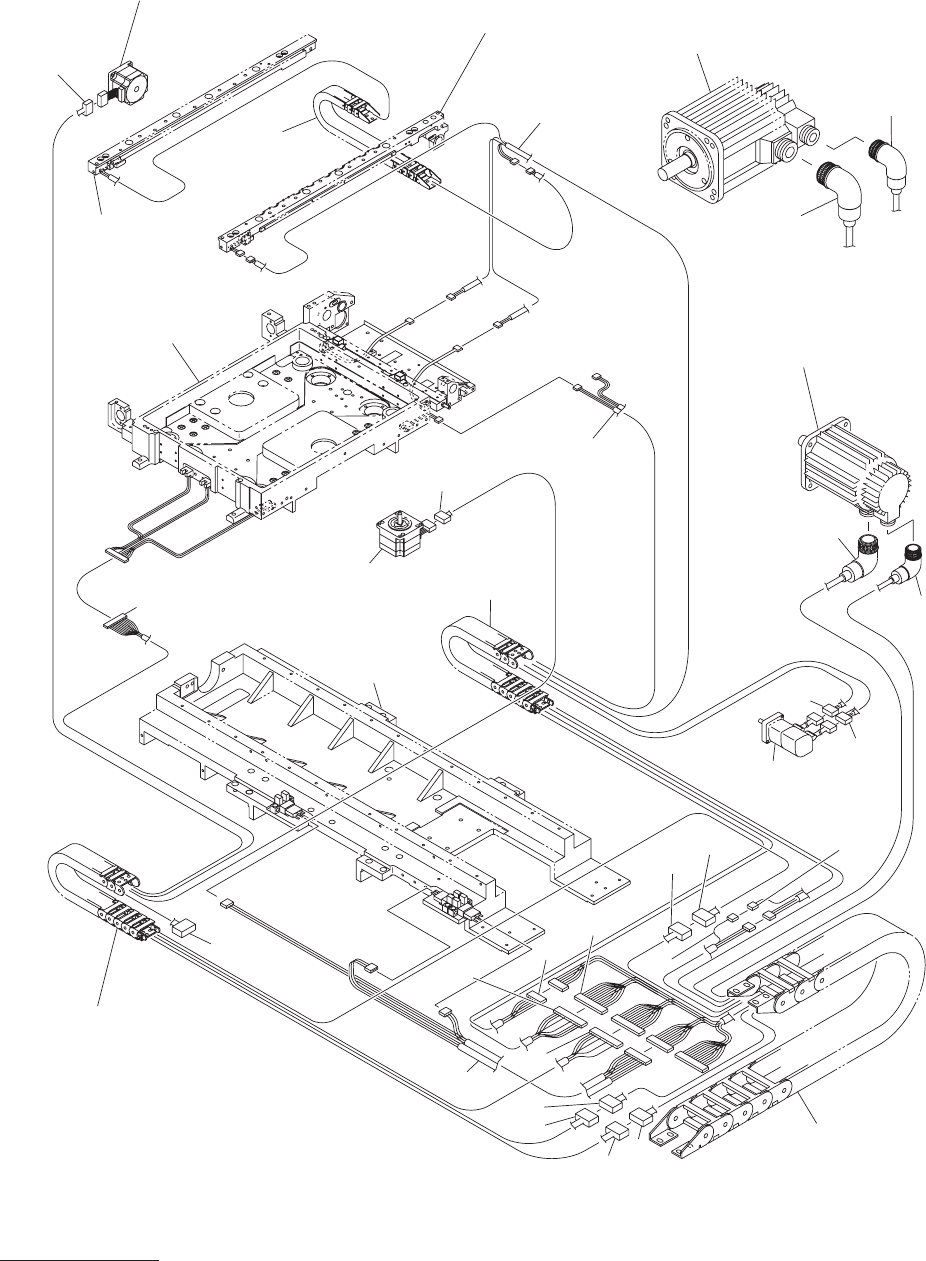

Fig. JE-6
ケーブル配線
Cable Wiring
See Fig.JD-1
Key No.1
See Fig.JD-1
Key No.33
See Fig.JE-3
Key No.209
See Fig.JB-4
Key No.301
See Fig.JE-3
Key No.209
See Fig.JB-4
Key No.316
See Fig.JC-5
Key No.412
See Fig.JE-2
Key No.103
See Fig.JD-6
Key No.504
MPM14(CHW)
See Fig.JC-1
Key No.4
552
563
568
571
555
554
553
565
See Fig.JE-3
Key No.20
6
See Fig.JB-1
Key No.16
MSVM6(X)
MSVM7(Y)
MPM19(BPC)
MSVM8(XYTR)
574
575
565
564
560
563
562
559
553
569
572
See Fig.JD-5
Key No.414
551
554
555
570
569
560
