P-186-003e - 第223页
Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10 0507-002 221 MB-1 1 630 1 19 7302 FRAME 1 809MB-010-001 2 630 1 19 7319 FRAME 1 809MB-010-002 4 630 123 9989 FRAME 1 809MB-010-004 5 630 1 19 71 1 1 FRAME …
MODEL TCM-X110
0306-001
220

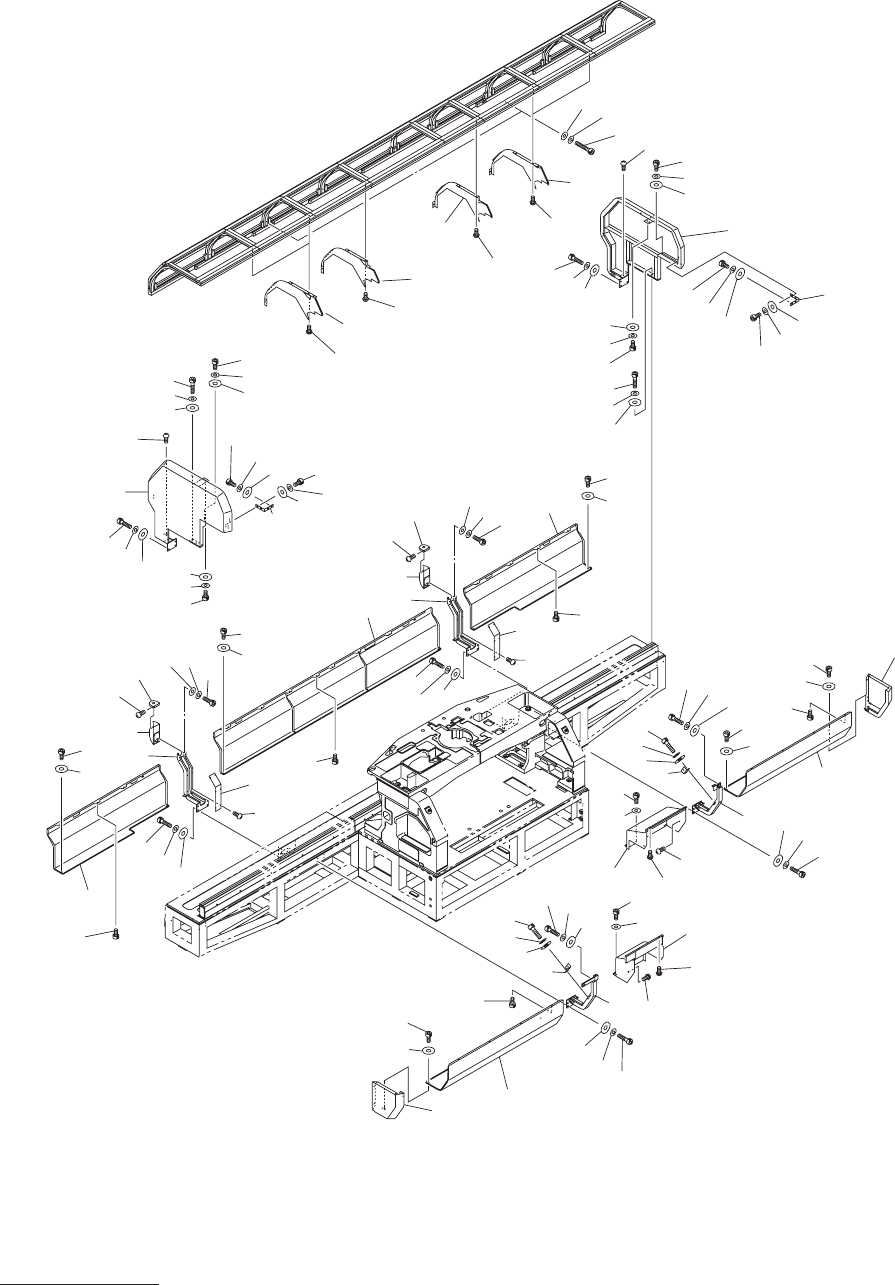

フィーダキャリッジカバー部
FEEDER CARRIAGE COVER SECTION
Fig. MB-1
後面カバー
Rear Cover
49
45
39
18
44
19
44
20
38
49
45
43
21
46
29
30
32
6
7
21
6
7
21
8
38
40
41
42
21
46
21
46
21
21
46
17
21
42
21
46
48
48
45
46
34
45
46
44
27
44
38
5
48
45
46
34
16
12
21
46
42
21
41
40
48
45
46
26
38
4
41
40
13
45
43
49
38
20
8
38
42
40
41
36
44
35
44
46
21
21
46
47
24
46
45
47
46
45
47
40
41
42
40
41
42
45
46
44
43
45
46
2
40
41
42
1
47
45
46
46
45
47
40
41
42
46
24
45
47
44
43
45
46
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0507-002
221
MB-1
1 630 119 7302 FRAME 1 809MB-010-001
2 630 119 7319 FRAME 1 809MB-010-002
4 630 123 9989 FRAME 1 809MB-010-004
5 630 119 7111 FRAME 1 809MB-010-005
6 630 102 4998 FRAME 2 809MB-010-006
7 630 097 0944 FRAME 2 809MB-010-007
8 630 097 1019 COVER 2 809MB-010-008
12 630 119 7357 FRAME 1 809MB-010-012
13 630 119 7364 FRAME 1 809MB-010-013
16 630 103 8209 COVER 1 809MB-010-016
17 630 102 9252 COVER 1 809MB-010-017
18 630 120 7551 PLATE(R) 2 809MB-010-018
19 630 120 7568 PLATE(L) 2 809MB-010-019
20 630 102 5476 BRACKET(STOP) 2 809MB-010-020
21 630 000 8456 BOLT,HEX-SCT 37 809MB-010-021
24 630 119 6985 SUPPORT 2 809MB-010-024
26 630 120 4123 COVER 1 809MB-010-026
27 630 123 9996 COVER 1 809MB-010-027
29 630 097 7455 COVER(R) 1 809MB-010-029
30 630 117 6055 COVER 1 809MB-010-030
32 630 097 7462 COVER(L) 1 809MB-010-032
34 630 119 8637 BRACKET 2 809MB-010-034
35 630 120 7575 PLATE(L) 1 809MB-010-035
36 630 120 7582 PLATE(R) 1 809MB-010-036
38 411 113 9000 SCR TRS 5X8 14 809MB-010-038
39 630 000 7794 BOLT,HEX-SCT 4 809MB-010-039
40 630 000 7893 BOLT,HEX-SCT 26 809MB-010-040
41 411 141 3001 WASHER SPR 6 26 809MB-010-041
42 630 001 0237 WASHER 26 809MB-010-042
43 630 000 7756 BOLT,HEX-SCT 12 809MB-010-043
44 411 113 9109 SCR TRS 5X10 40 809MB-010-044
45 411 141 6705 WASHER SPR 5 32 809MB-010-045
46 630 001 0220 WASHER 37 809MB-010-046
47 630 000 7763 BOLT,HEX-SCT 12 809MB-010-047
48 630 000 7770 BOLT,HEX-SCT 4 809MB-010-048
49 411 141 4107 WASHER V 5X10X1 8 809MB-010-049
MODEL TCM-X110
0306-001
222
フィーダキャリッジカバー部
FEEDER CARRIAGE COVER SECTION

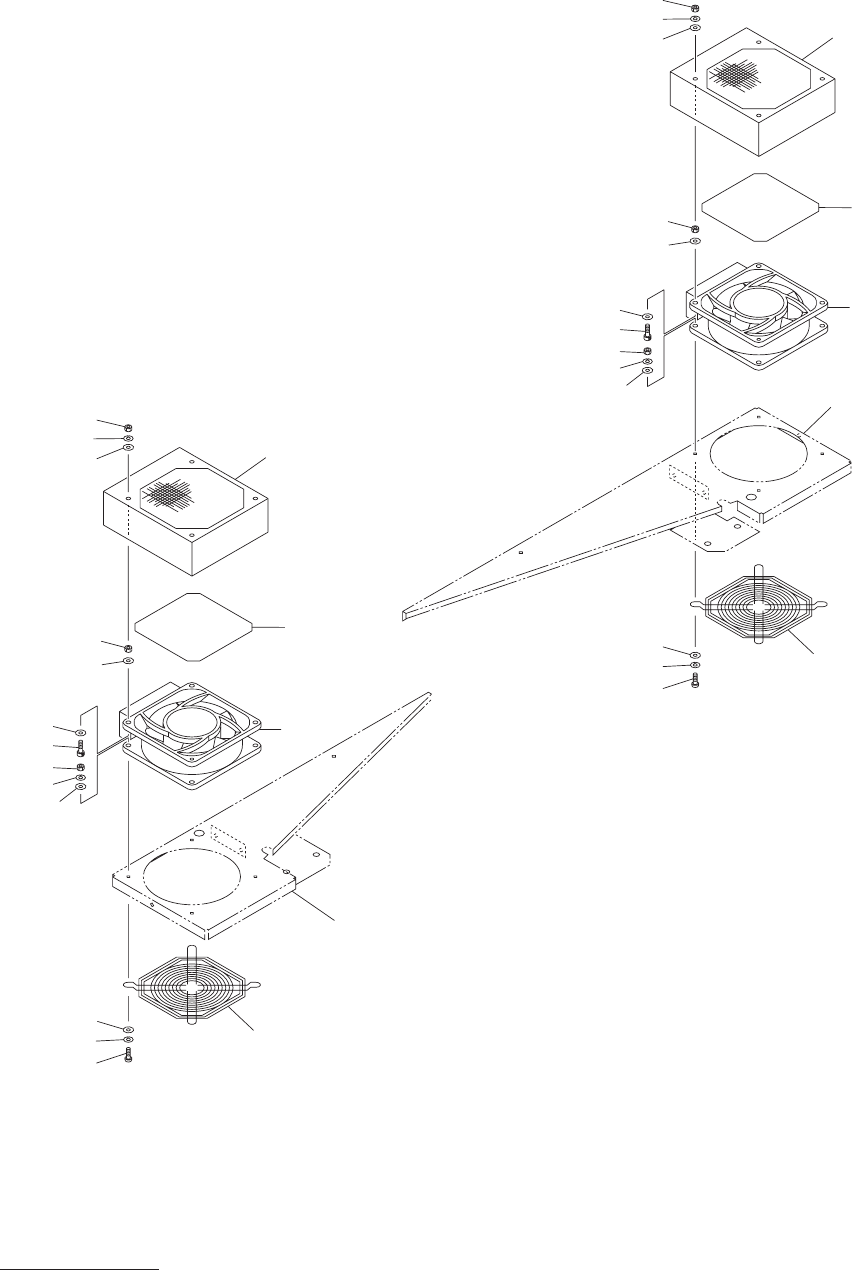

Fig. MB-2
F
軸冷却ファン
F Axis Cooling Fan
See Fig.MB-3
Key No.221
107
11
0
138
108
130
133
132
135
137
136
134
132
132
131
134
133
132
108
130
133
132
107
See Fig.MB-3
Key No.222
132
131
134
133
132
134
132
110
138
135
137
136
