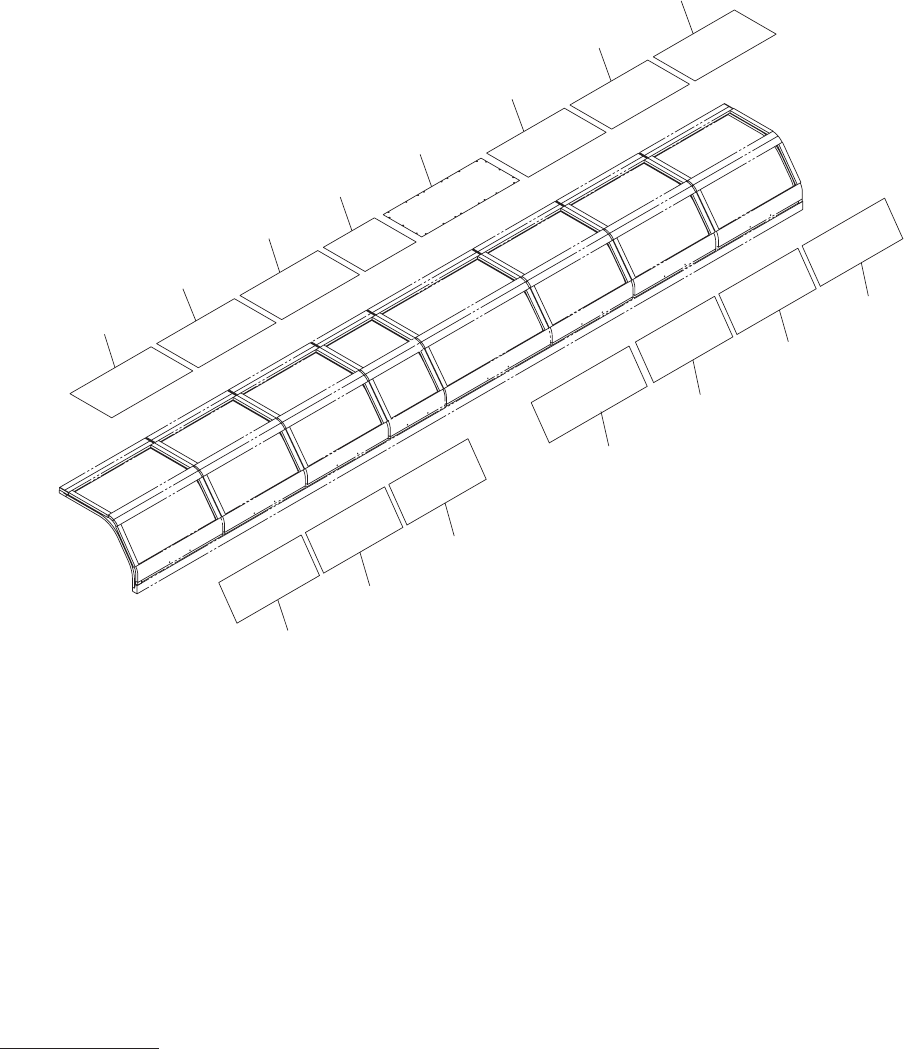

MODEL TCM-X1 10 0306-001 238 フィーダキャリッジカバー Feeder Carriage Cover Fig. MC-5 作業エリア安全扉パネル Work Area Safety Door Panel 401 402 402 403 404 402 402 401 405 406 406 407 406 406 405
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
237
MC-4
301 630 103 4744 SHOCK ABSORBER 16
302 630 098 0837 MECH PARTS(COLLAR) 16
303 630 098 0844 MECH PARTS(BOLT) 16
304 630 098 0851 MECH PARTS(BOLT) 16
305 630 098 0868 MECH PARTS(ST0PPER) 16
323 630 119 1898 MECH PARTS(BRACKET) 1
324 630 119 1904 MECH PARTS(BRACKET) 1
325 630 119 1829 MECH PARTS(BRACKET) 6
326 630 119 1836 MECH PARTS(BRACKET) 6
329 630 106 8534 MECH PARTS(BRACKET) 7
330 630 106 8541 MECH PARTS(BRACKET) 7
331 630 119 1843 MECH PARTS(BRACKET) 1
332 630 119 1850 MECH PARTS(BRACKET) 1
335 630 119 1867 MECH PARTS(BRACKET) 1
336 630 119 1881 MECH PARTS(BRACKET) 1
339 630 106 8572 MECH PARTS(RAIL) 1
366 630 098 1926 MECH PARTS(CAP) 1
381 630 103 4409 NUT 32
390 630 000 7800 BOLT,HEX-SCT 1
392 630 103 4690 MACHINE SCREW 32
393 630 065 8590 MACHINE SCREW 1
394 630 103 4393 MACHINE SCREW 16
396 630 103 4386 BOLT,HEX-SCT(BUTTON HEAD) 16
399 411 141 4404 WASHER V 8X17X1.6 16
MODEL TCM-X110
0306-001
238
フィーダキャリッジカバー
Feeder Carriage Cover
Fig. MC-5
作業エリア安全扉パネル
Work Area Safety Door
Panel
401
402
402
403
404
402
402
401
405
406
406
407
406
406
405
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
239
MC-5
401 630 105 0737 COVER 2
402 630 105 0744 COVER 4
403 630 105 0751 COVER 1
404 630 105 0768 COVER 1
405 630 119 1614 COVER 2
406 630 119 3120 COVER 4
407 630 119 1621 COVER 1
