Key No. P AR T No. P AR T NAME Q’ty REMARKS NOTE MODEL TCM-X1 10 0507-002 255 RE-1 51 630 1 16 8760 RELA Y 1 K10 809RE-010-051 52 630 068 9723 RELA Y 4 K29,K41,K60,K61 809RE-010-052 53 630 049 2064 SOCKET 4 809RE-010-053…
MODEL TCM-X110
0306-001
254
100V
電源部
100V POWER SUPPLY SECTION

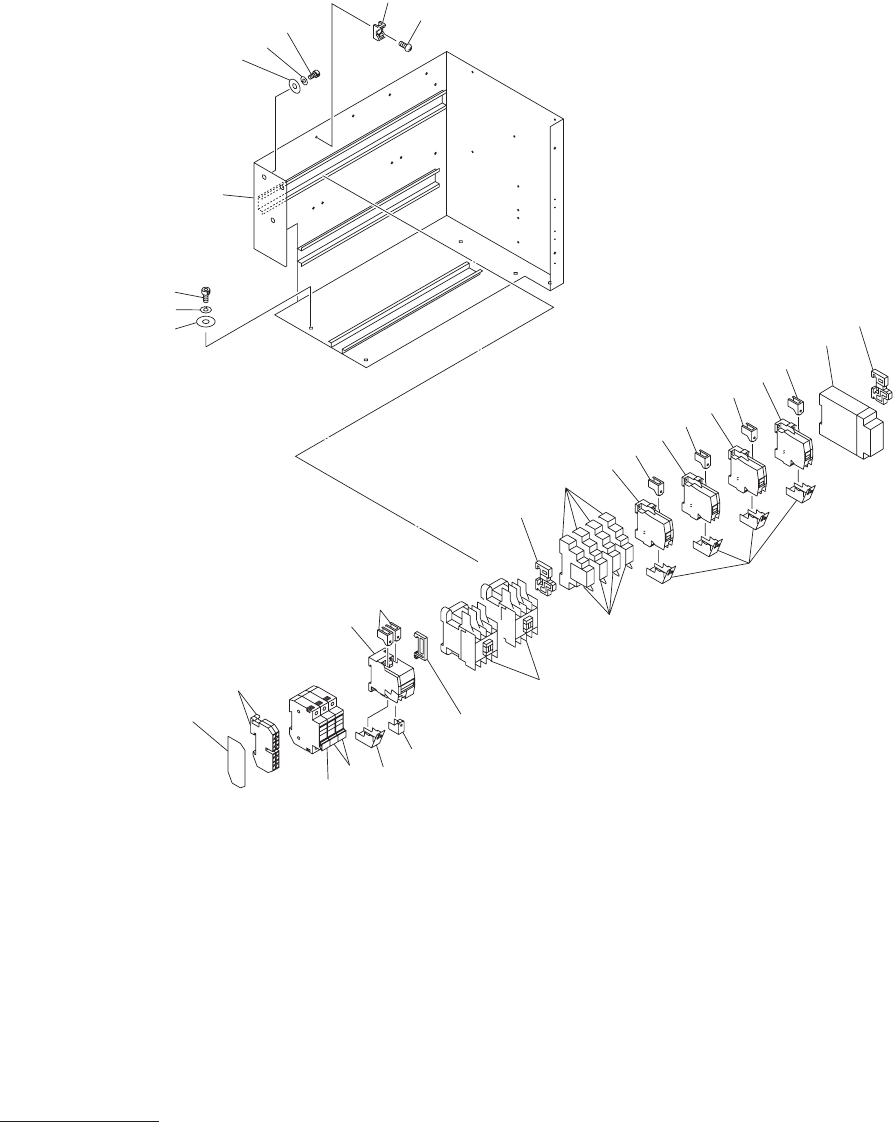

Fig. RE-1 100V
電源１
100V Power Supply 1
70
95
98
97
99
65
96
98
99
64
54
54
53
66
55
66
56
66
51
64
52
63
67
66
66
59
66
67
69
68
58
57
.
62
60
.
61
60
.
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0507-002
255
RE-1
51 630 116 8760 RELAY 1 K10 809RE-010-051
52 630 068 9723 RELAY 4 K29,K41,K60,K61 809RE-010-052
53 630 049 2064 SOCKET 4 809RE-010-053
54 630 099 1765 CIRCUIT PROTECTOR 2 Q110,Q111 809RE-010-054
55 630 099 1765 CIRCUIT PROTECTOR 1 Q112 809RE-010-055
56 630 094 1463 CIRCUIT PROTECTOR 1 Q113 809RE-010-056
57 630 053 8588 EM-CONTACTOR 2 KM3,KM4 809RE-010-057
58 630 100 1357 COMP,CR 2 809RE-010-058
59 630 116 8838 CIRCUIT PROTECTOR 1 Q205 809RE-010-059
60 630 109 1488 FUSE HOLDER 3 809RE-010-060
61 424 005 9408 FUSE 600V 20A 1 F120 809RE-010-061
62 424 005 9408 FUSE 600V 20A 2 F201,F203 809RE-010-062
63 630 000 1273 ACCESSORY,WIRING 1 809RE-010-063
64 630 091 1749 BRACKET,WIRING 2 809RE-010-064
65 630 119 5148 PANEL 1 809RE-010-065
66 630 071 3343 COVER 7 809RE-010-066
67 630 071 3350 COVER 5 809RE-010-067
68 630 127 0937 TERMINAL 2 809RE-010-068
69 630 127 0975 ACCESSORY,WIRING 1 809RE-010-069
70 630 048 3833 MECH PARTS(MOUNTING BASES 6 809RE-010-070
95 411 113 7501 SCR TRS 4X10 6 809RE-010-095
96 630 000 7602 BOLT,HEX-SCT 2 809RE-010-096
97 630 000 7633 BOLT,HEX-SCT 4 809RE-010-097
98 411 141 2905 WASHER SPR 4 6 809RE-010-098
99 630 001 0213 WASHER 6 809RE-010-099
MODEL TCM-X110
0507-002
256
100V
電源部
100V POWER SUPPLY SECTION

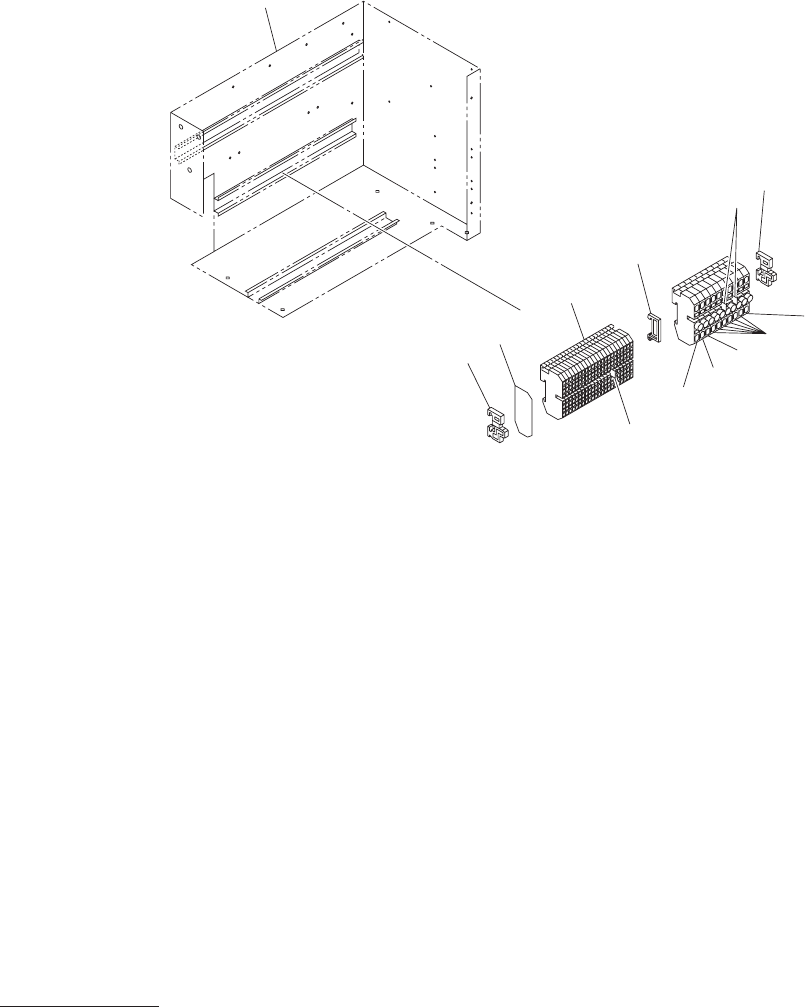

Fig. RE-2 100V
電源２
100V Power Supply 2
158
155
166
154
163
158
156
.
157
.
160
151
.
162
151
.
159
151
.
161
151
.
152
151
.
153
.
167
See Fig.RE-1
Key No.65
