MODEL TCM-X1 10 0306-001 276 機械廻り１ MISCELLANEOUS P ARTS-1 Fig. RL-3 パワートランス T ransformer Power 297 298 299 251 See Fig.L-1 Key No.9
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0507-002
275
RL-2
151 630 119 8330 UNIT,DRIVER 1 APHD13(TR),APHB14(CHW),
APHD19(BPC),#D3390
809RL-010-151
153 630 123 9910 UNIT,DRIVER 1 APMD6(X),#SGDH-30AE-RY414
809RL-010-153
154 630 124 0053 UNIT,DRIVER 1 APMD7(Y),#SGDH-15AE-RY414
809RL-010-154
155 630 123 9941 UNIT,DRIVER 1 APMD8(XYTR),#SGDH-A5AE-RY414
809RL-010-155
156 630 129 0904 PLATE 1 809RL-010-156
157 630 115 3407 PLATE 1 809RL-010-157
158 630 115 4442 BRACKET 1 809RL-010-158
159 630 119 8323 UNIT,DRIVER 2 APMD16(LCVW),APMD22(L2CV),
APMD17(RCVW),APMD26((R2CV),
#D3380 809RL-010-159
160 630 048 3833 MECH PARTS(MOUNTING BASES 24 809RL-010-160
189 411 113 9109 SCR TRS 5X10 24 809RL-010-189
190 411 114 7807 SCR PAN+SW+W 4X10 6 809RL-010-190
191 411 113 2803 SCR PAN 5X8 4 809RL-010-191
192 411 008 2109 WASHER SPR 5 4 809RL-010-192
193 411 088 1702 WASHER V 5X10X1 4 809RL-010-193
194 630 000 7756 BOLT,HEX-SCT 17 809RL-010-194
195 411 141 6705 WASHER SPR 5 17 809RL-010-195
196 630 001 0220 WASHER 17 809RL-010-196
197 411 042 3001 SCR PAN 4X10 12 809RL-010-197
198 411 008 1706 WASHER SPR 4 12 809RL-010-198
199 411 119 2104 WASHER V 4X9X0.8 12 809RL-010-199

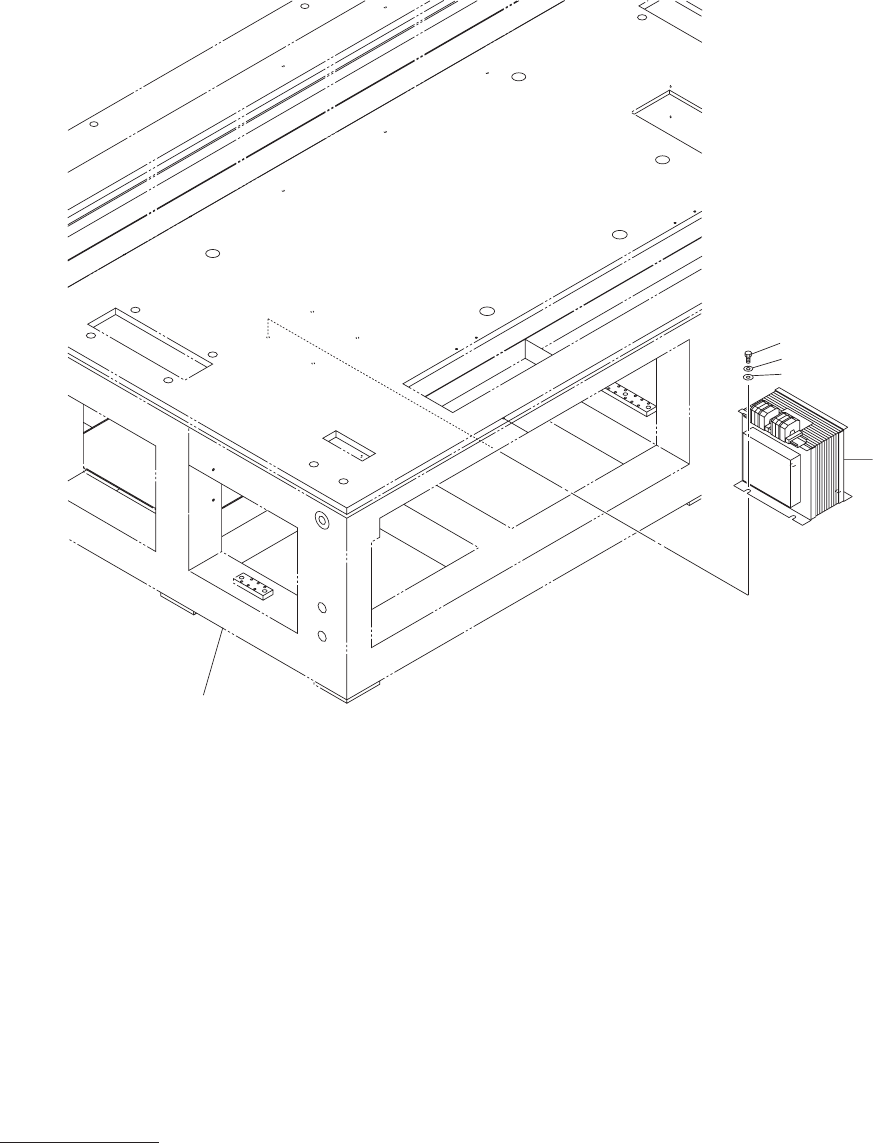

MODEL TCM-X110
0306-001
276
機械廻り１
MISCELLANEOUS PARTS-1
Fig. RL-3
パワートランス
Transformer Power
297
298
299
251
See Fig.L-1
Key No.9
Key No. PART No. PART NAME Q’ty REMARKS
NOTE
MODEL TCM-X110
0306-001
277
RL-3
251 630 086 2539 TRANSFORMER,POWER 1 T1,#ENT1-2K-TS 809RL-010-251
297 411 140 5303 BOLT HEX 6X12 4 809RL-010-297
298 411 008 2505 WASHER SPR 6 4 809RL-010-298
299 411 110 3100 WASHER F 6X11.5X1.6 4 809RL-010-299
