Error ID (6 digits) Recognition Error ID (10 digits) 1. Scope 1. 1 Scope of T roubleshooting The troubleshooting is composed as follows. Fig. 4B1 021 1-004 2- 1 AGS01ETRP 1. Scope

0111-003 2-B AGS01ETRP

Error ID (6 digits)

Recognition Error ID (10 digits)

1. Scope

1.1 Scope of Troubleshooting

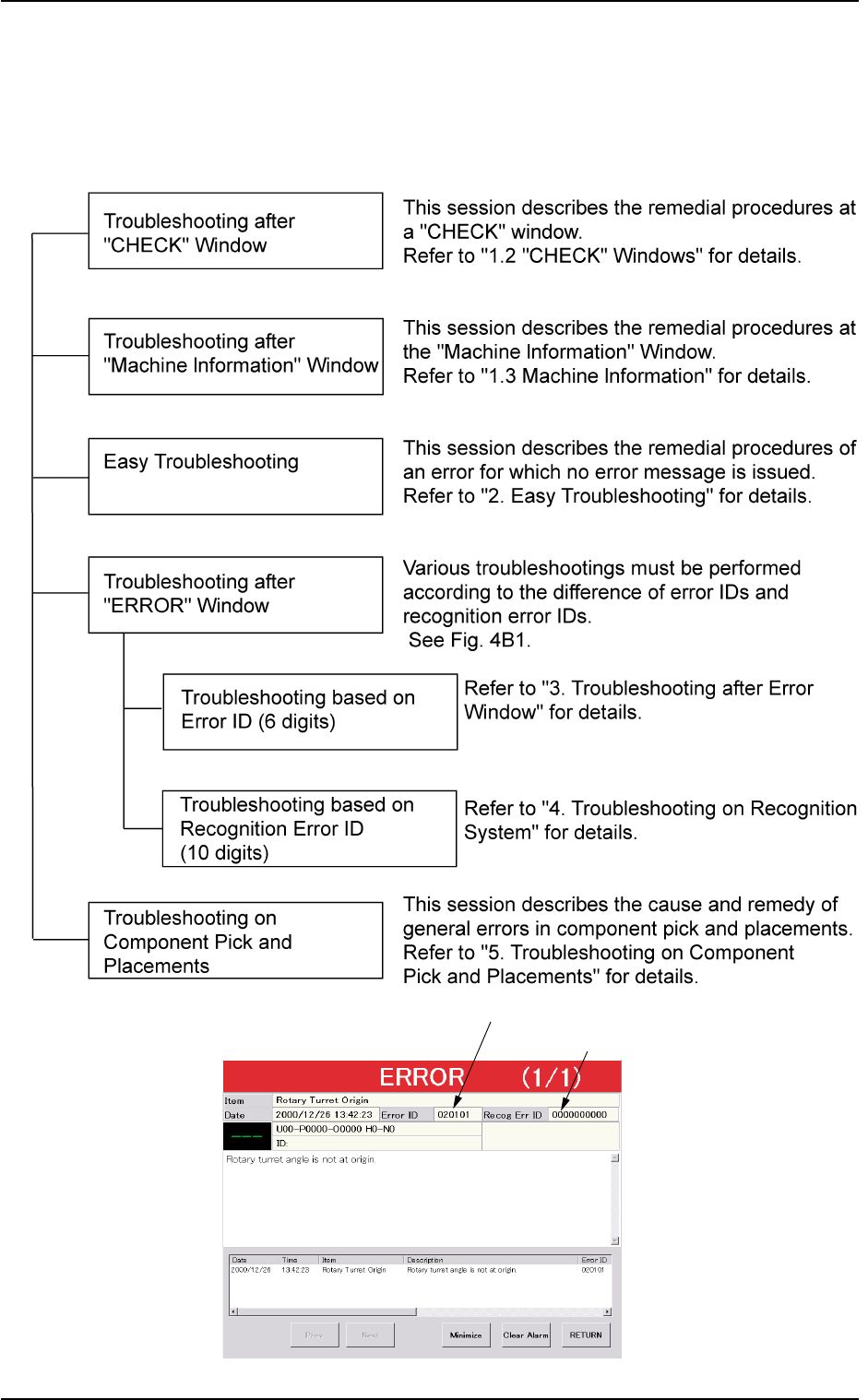

The troubleshooting is composed as follows.

Fig. 4B1

0211-004 2-1

AGS01ETRP

1. Scope

1.2 "CHECK" Windows

1.2.1 "CHECK" Windows

• Window Layout

When the machine is not reset to its normal condition after an operator

makes an error operation or an error occurs in the operation system, a

window like the following opens.

Fig. 4B2 Example of "CHECK" Window

• Window Composition

*1 Check Message

A check message is issued and displayed.

Refer to "1.2.2 List of Check Messages" for details.

*2 Display Field A

Displayed is the scope of the check message.

*3 Display Field B

Displayed are the details of the check message.

0303-005 2-2

AGS01ETRP

1.2 "CHECK" Windows
