(2) V acuum System 0303-004 1-12 AGS01ETRP 1.3 Maintenance Spots Fig. 4A1 1
1.3.3 Inspection, Cleaning, and Lubrication Spots

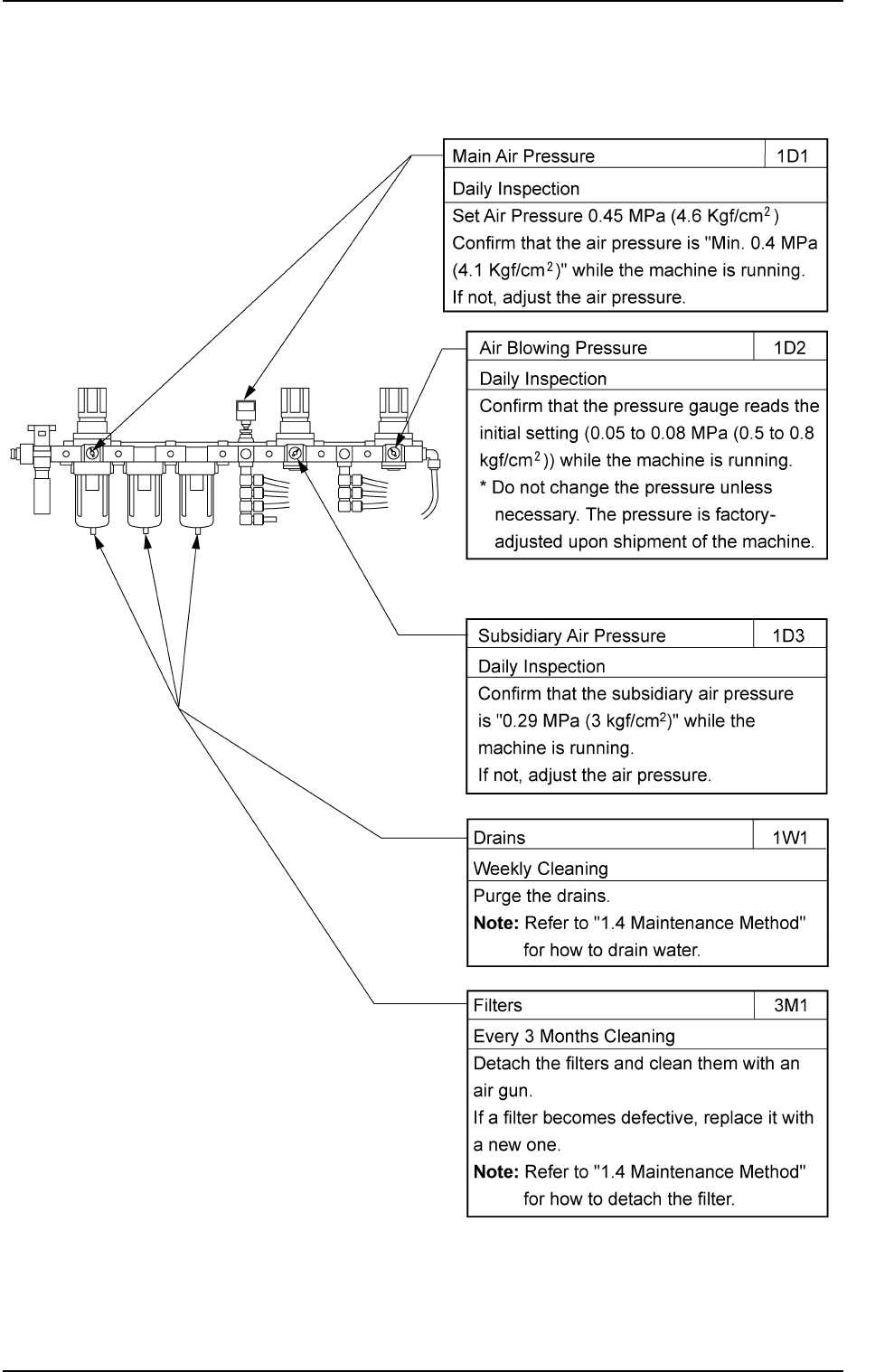

(1) Air Source
1.3 Maintenance Spots
0211-004 1-11 AGS01ETRP
Fig. 4A10

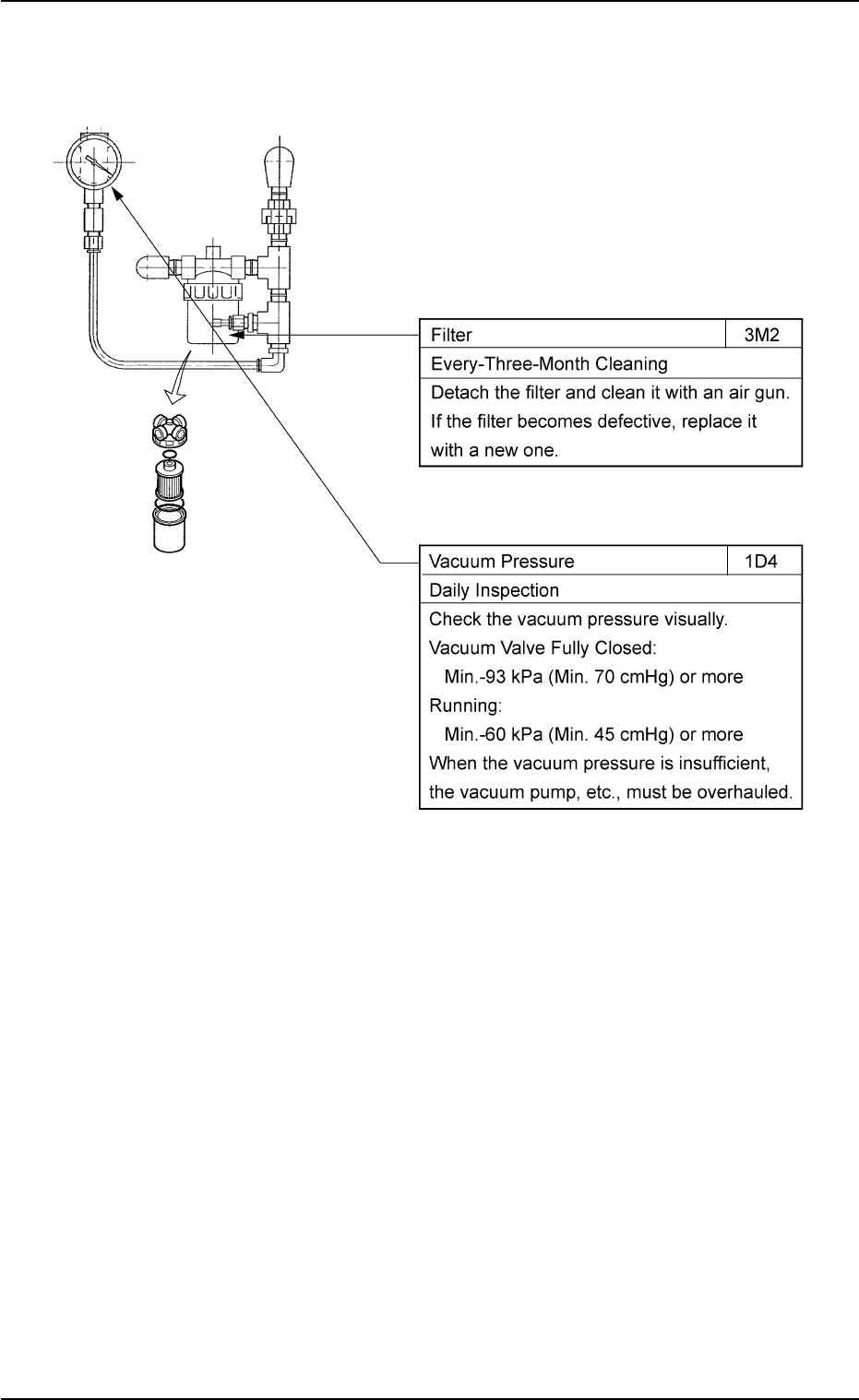

(2) Vacuum System
0303-004 1-12 AGS01ETRP
1.3 Maintenance Spots
Fig. 4A11
0303-005 1-13 AGS01ETRP
1.3 Maintenance Spots
Fig. 4A12
(3) Dust Collector and Waste Tape Box
Waste Tape Box 1D5
Daily Cleaning
Remove the tape chips.
* Tape chips must be removed every 8 hours.
Filter of Dust Collector 1W2
Weekly Cleaning
Detach the air filter and clean it with a vacuum
cleaner or an air gun.
If the filter becomes defective, replace it with a
new one.
