1.3 Maintenance Spots
Fig. 4A12

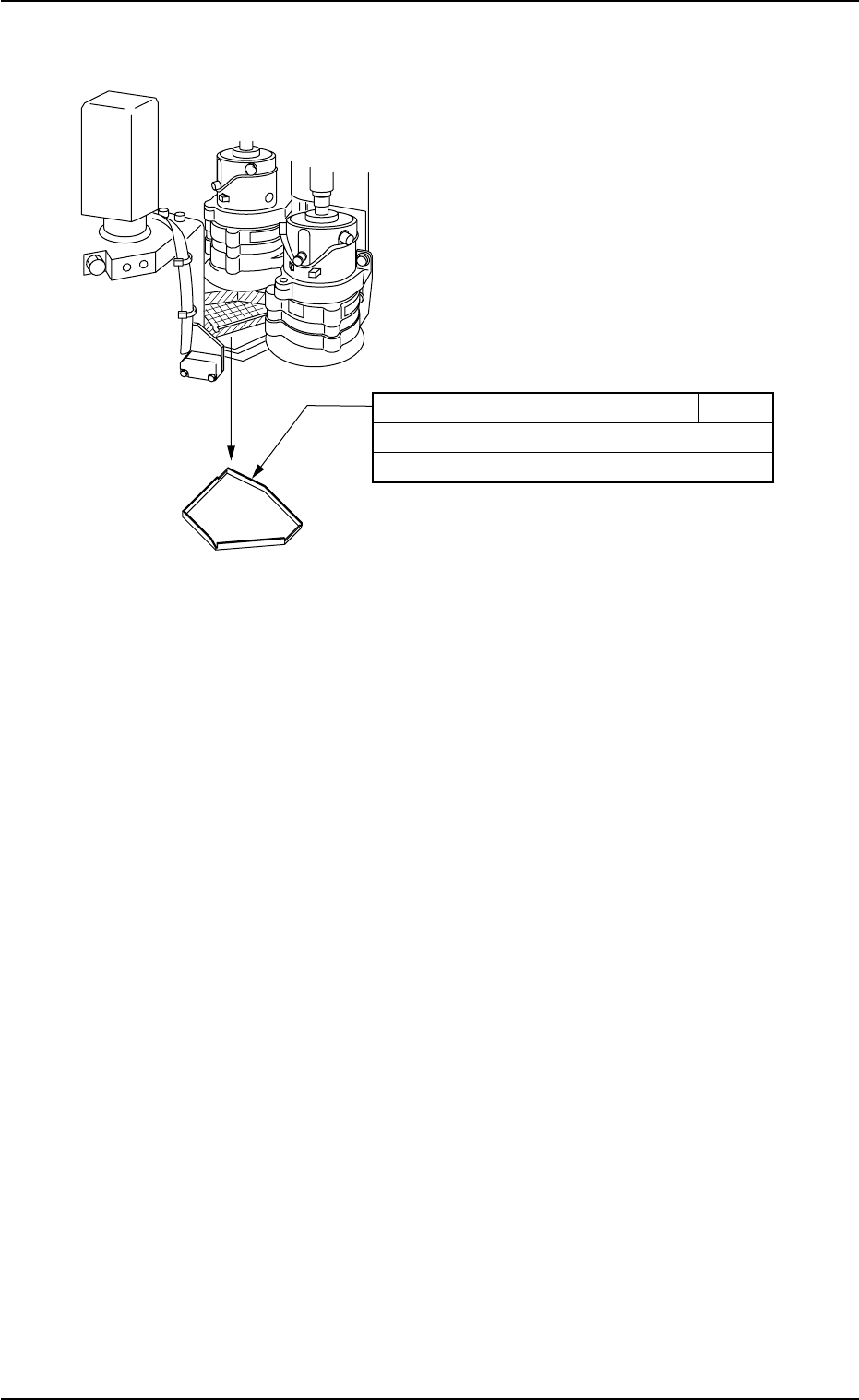

(3) Dust Collector and Waste Tape Box
Waste Tape Box 1D5
Daily Cleaning
Remove the tape chips.
* Tape chips must be removed every 8 hours.

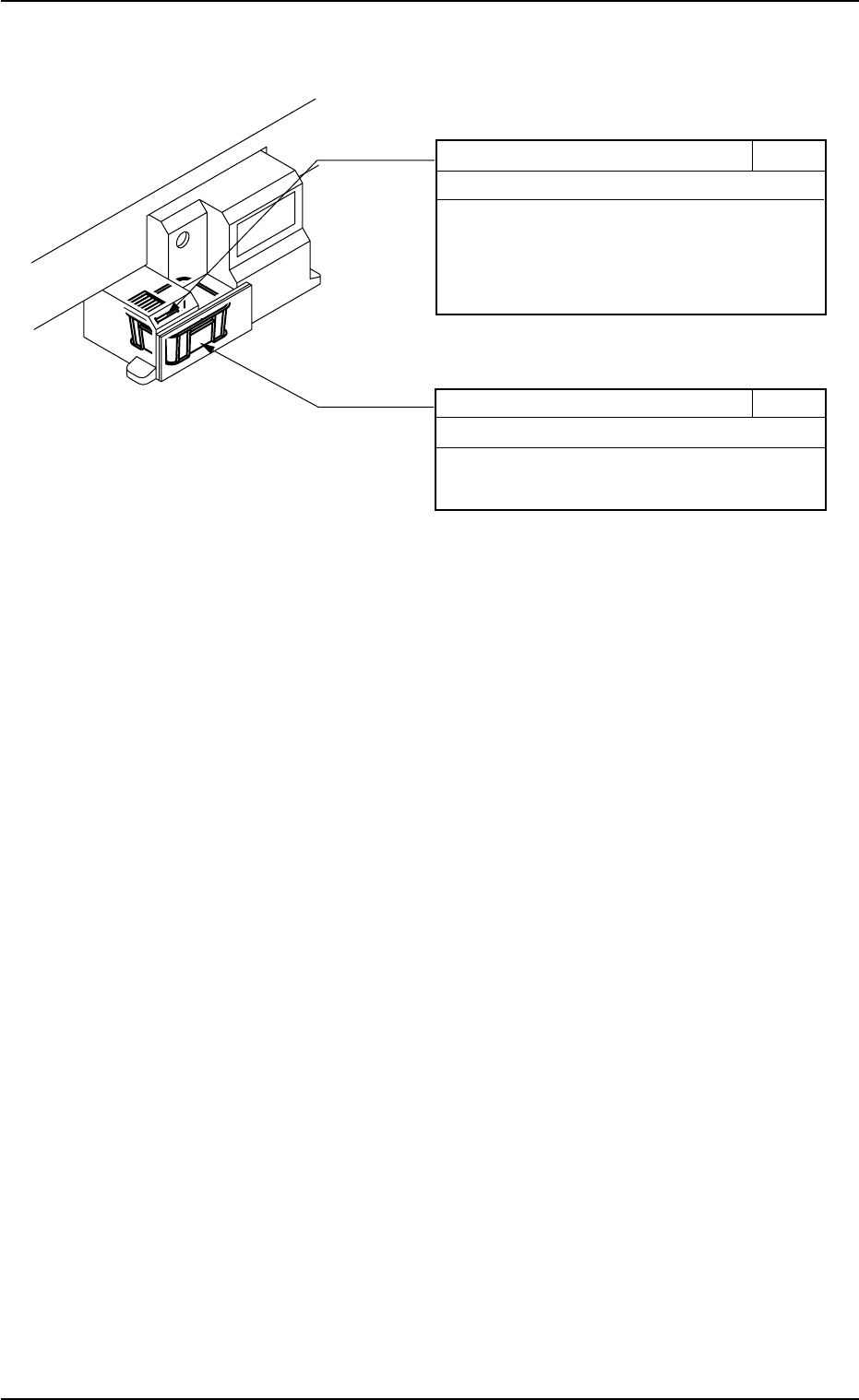

Filter of Dust Collector 1W2
Weekly Cleaning
Detach the air filter and clean it with a vacuum
cleaner or an air gun.
If the filter becomes defective, replace it with a
new one.
(4) Component Recognition Section
(5) Main Section of Machine Intermediate Base/Component Receiving
Box
Fig. 4A14
1.3 Maintenance Spots
0211-004 1-14 AGS01ETRP
Use a suction force (a vacuum cleaner) for cleaning.
Do not blow air with an air gun.
If the component recognition section is dirty or
dusty, incorrect recognition will result.
CAUTION
Fig. 4A13
1.3 Maintenance Spots
0211-004 1-15 AGS01ETRP

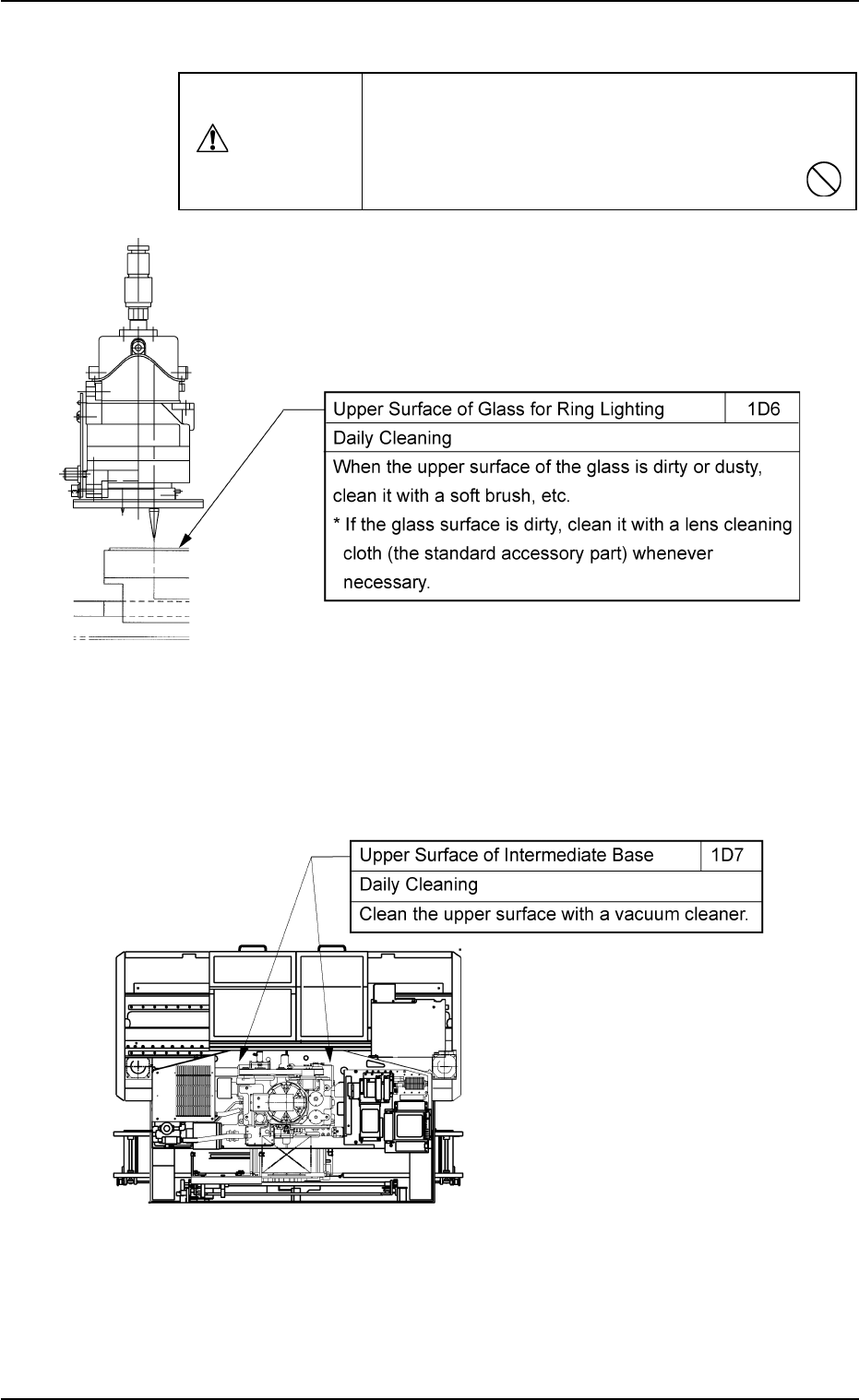

Fig. 4A14-1 Front View of Machine
Component Receiving Box 1D8
Daily Cleaning
Clean with a vacuum cleaner.
