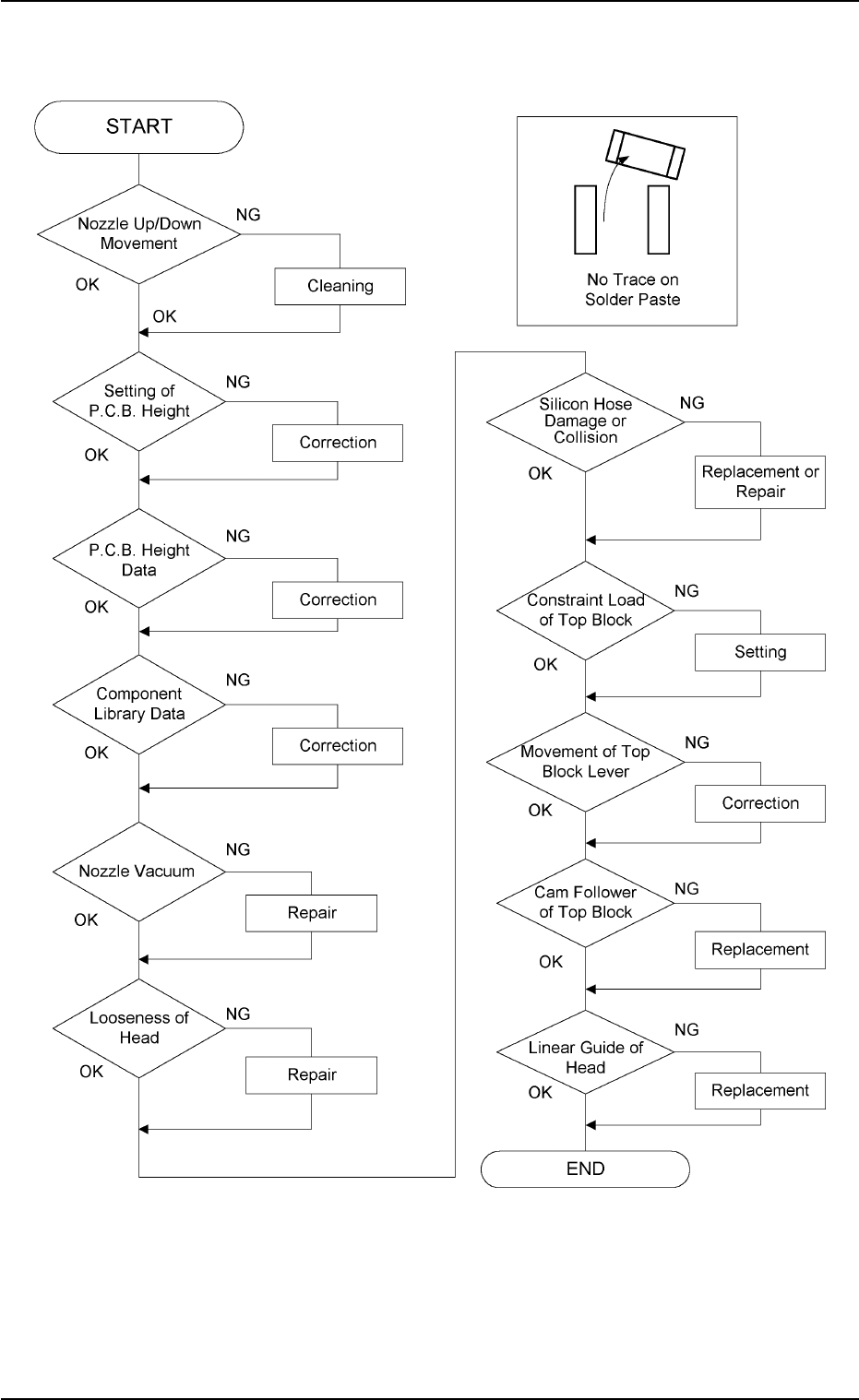

(2) No Component Placement Marks at Specified Positions on P.C.B.

Lands

Fig. 4B40

0307-001 2-218 AGS01ETRP

5.3 Troubleshooting on Placement Errors

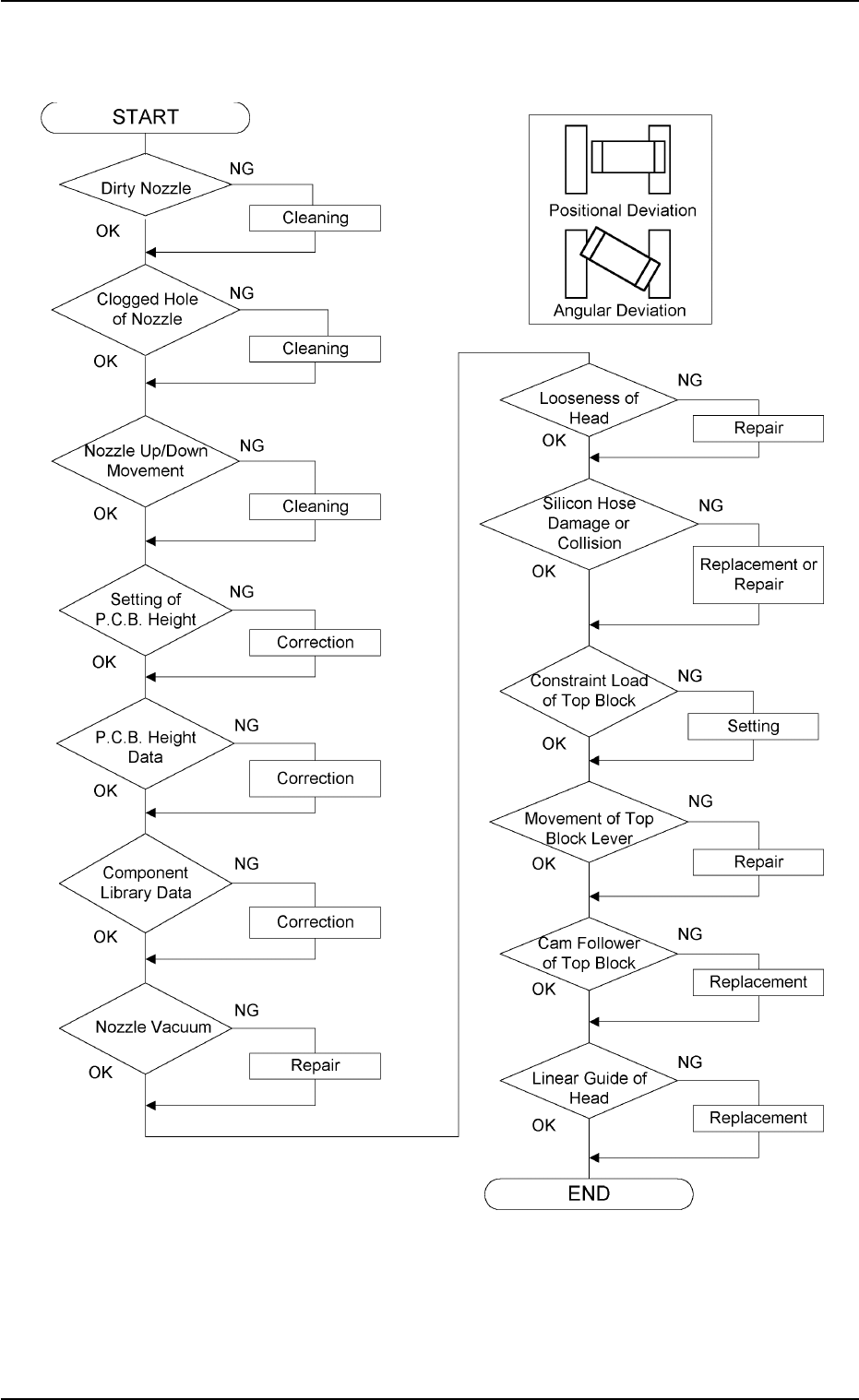

(3) Positional and Angular Deviations of Component Placement

Fig. 4B41

0307-001 2-219

AGS01ETRP

5.3 Troubleshooting on Placement Errors
