Software Version Description, Station Software Version 407.05 07/2008 Edition Installing the MicroTouch screen If a MicroTouch touch screen was selected, the following dialog boxes appear: Figure: MicroTouch installati…
Software Version Description, Station Software Version 407.05 07/2008 Edition
Verification of Entries
Now a listing is displayed with all the entries you have made. Please review your entries once again. If your
entries are correct, choose Continue, and the installation program will copy the required files from the CD to
your computer.

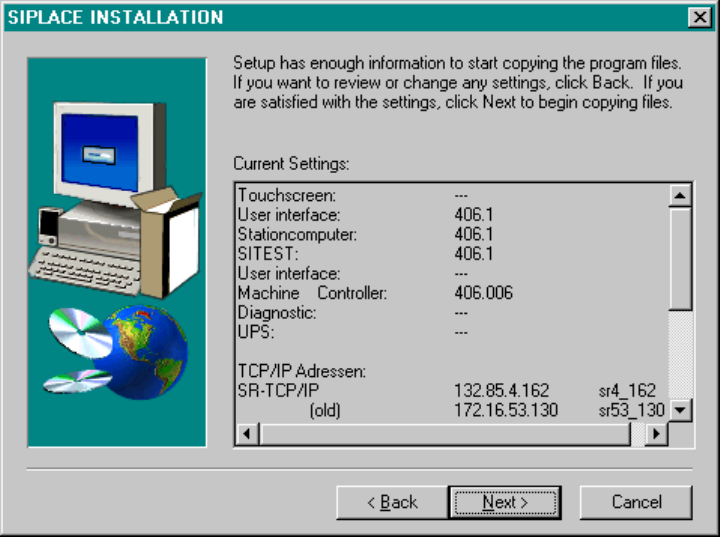

Fig.: Verification of Entries
90 of 104
Software Version Description, Station Software Version 407.05 07/2008 Edition
Installing the MicroTouch screen
If a MicroTouch touch screen was selected, the following dialog boxes appear:

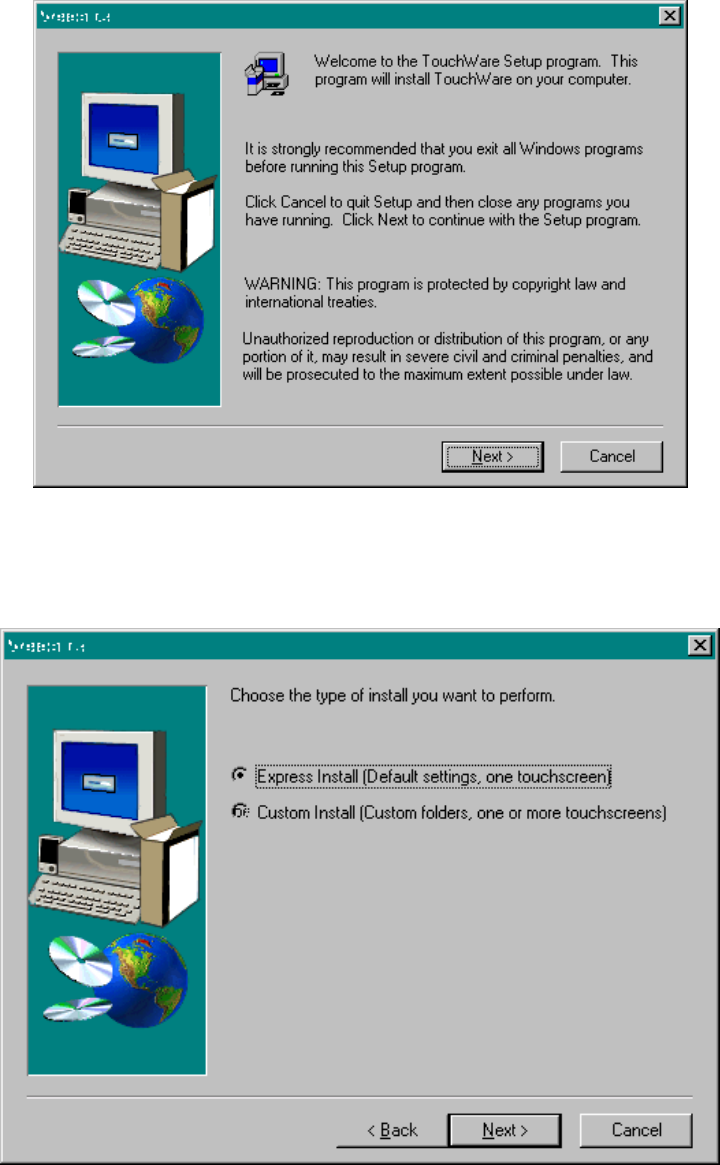

Figure: MicroTouch installation
In the dialog box shown above, select "Next" to start installation.
Figure: Choose installation type
Choose "Express Install" and close the dialog box with "Next".
91 of 104
Software Version Description, Station Software Version 407.05 07/2008 Edition

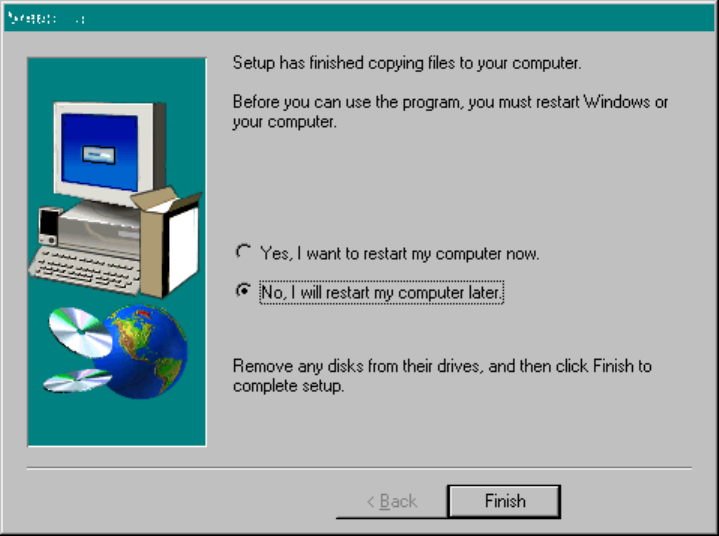

Choose "No". The station is rebooted after SIPLACE has been fully installed. Click "Finish" to complete
installation of the touch screen.
Service Pack
At the end of the installation, Service Pack 6 for NT 4.0 is to be installed on the computer (this step is
dispensed with if the Service Pack was previously installed and no touch screen driver was selected).
92 of 104
