Software Version Description, Station Software Version 407.05 07/2008 Edition
9.4 Machine Controller Program Package
The MC-Installation process in version 407 does not differ from that of version 406. The installation of the
machine controller program package has been integrated into the installation of the SIPLACE station
software, and it is carried out automatically without any verification queries if the package was selected in
the Application selection dialog. However, it is also possible to carry out this installation separately.
9.4.1 Installation Program
The MC-Installation program is called up manually via the Windows Start menu, or automatically from within
the software installation process. The screen displays of the installation are written in English.
The duration of the installation depends on the machine type to be installed. It takes 20 minutes on average
for SIPLACE S20, F
4
, F
5
, and about 10 minutes for SIPLACE S23, F5HM.
9.4.2 Automatic Start of MC-Installation
The MC-Installation program starts automatically if the "Machine controller" option was choosen upon the
selection of the program packages (see page
83). MC-Installation starts in the Silent mode. In the Silent
mode, no user dialogs are displayed that require acknowledgment by the operator. The MC installation
process continues, provided no error has occurred in the installation phase, until it is complete, and the
application is then terminated.
All error messages in the installation phase are displayed.
Exceptions:
In the case of an initial installation, a user dialog is displayed designed to interrogate the stationary conveyor
side of the station.
9.4.3 Manual Start of MC-Installation
The MC installation may be carried out manually by starting the SIPLACE Distributor. In the full dialog mode,
the MC-Installation program starts with the welcoming dialog.
98 of 104
Software Version Description, Station Software Version 407.05 07/2008 Edition

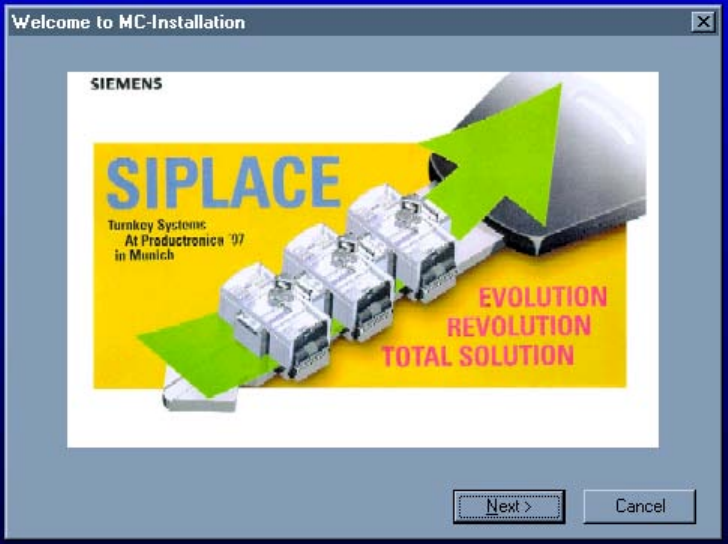

Welcome
Choose Next to start the MC installation.
⇒ The MC-Installation program has already performed important tests relating to its own and that of the
station computer installation. The MC installation may now be started.
99 of 104
Software Version Description, Station Software Version 407.05 07/2008 Edition

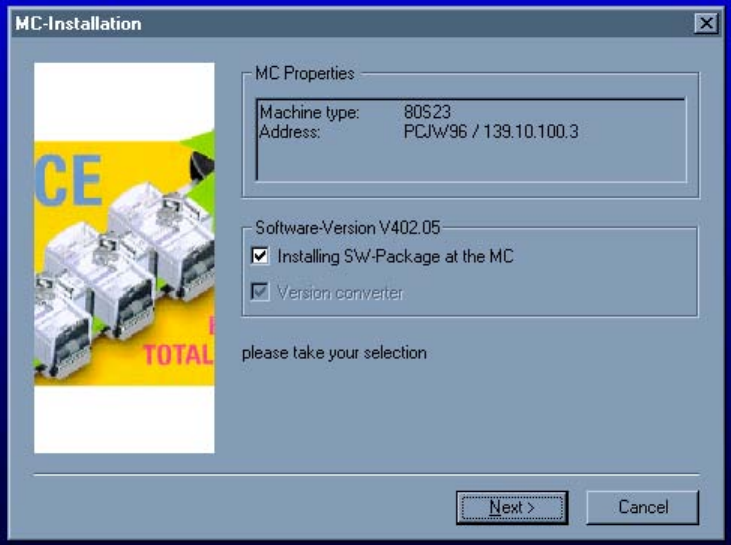

Main Installation
Choose Next to start the MC installation.
⇒ MC-Installation is prepared to carry out the data preparation on the station computer and the machine
controller. In the Silent mode, the welcoming dialog will not be displayed.
⇒ In the Properties window [MC Properties], die machine type to be installed and the computer name along
with the associated IP address are displayed.
⇒ In the software version frame [Software version VXXX.YY], the software version to be installed is
displayed.
(on the meaning of the SW version, see Chapter "Installation of SIPLACE Software")
⇒ In the Installation Menu [Software-Version VXXX.YY], the selection of the installation
steps takes place involving the following menu options:
• Installing SW-Package at the MC (menu option activating the MC installation)
• Version converter (menu option is permanently active; cannot be deactivated)
100 of 104
