5OM-1603 2-7 Sensor and Load Layout 1 102-004 Head Section Layout (General View) Symbol Name Symbol Name Electric Box Inside Head Rotation Section Head U/D Section Nozzle U/D Section Nozzle Selection Section
5OM-1603
2-6
Sensor and Load Layout
1003-003

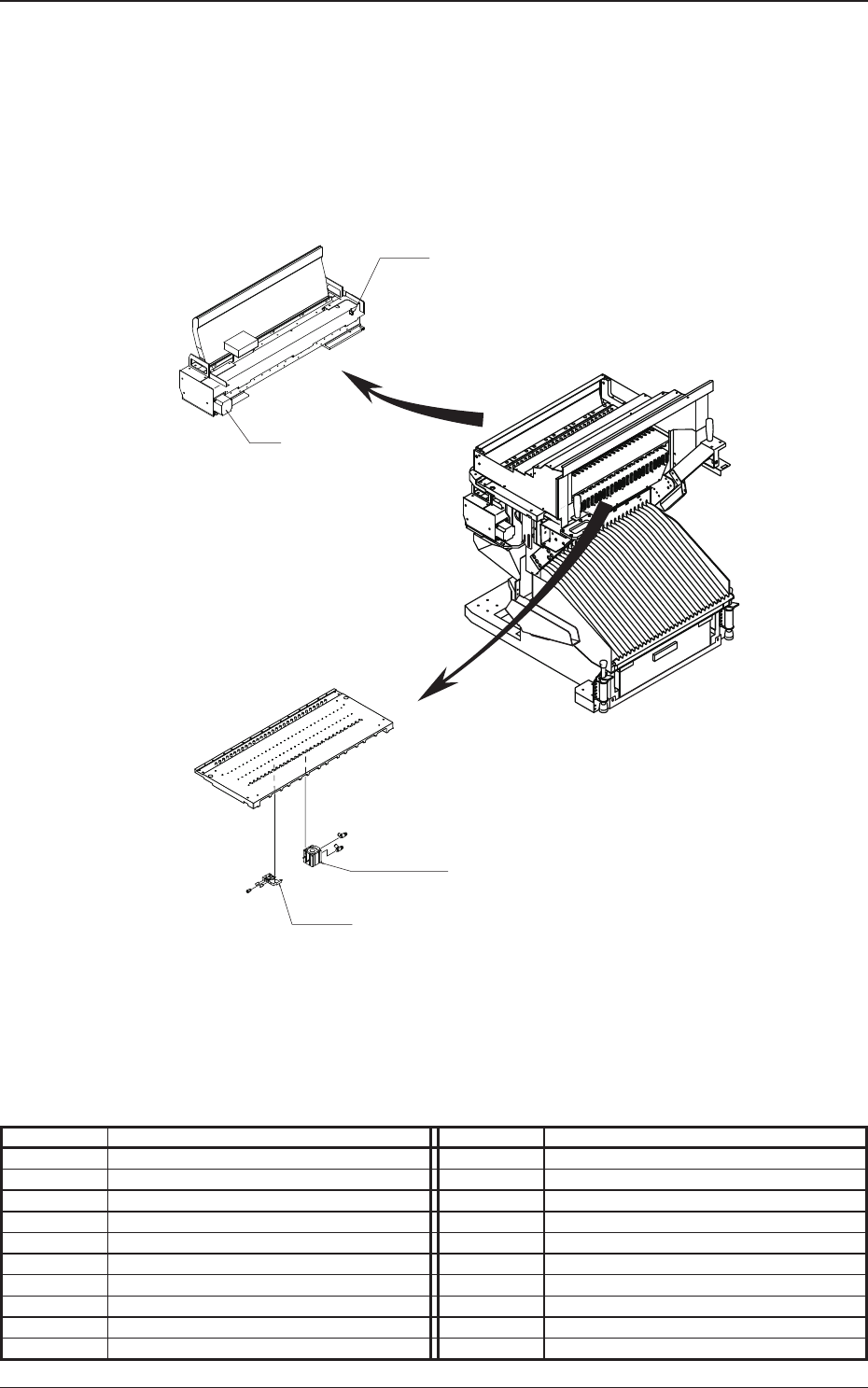

Feeder Cart Layout
Y6913
B6302
M63
B6914,B6910
Cutter
Feeder Base
Symbol Name Symbol Name
M63 Cutter Axis Motor
B6302 Cutter Origin (-)
Y6913 Feeder Clamp
B6914 Feeder Clamp Lower Limit (Clamping)
B6910 Feeder Clamp Upper Limit (Unclamping)
5OM-1603
2-7
Sensor and Load Layout
1102-004
Head Section Layout (General View)
Symbol Name Symbol Name
Electric Box Inside
Head Rotation Section
Head U/D Section
Nozzle U/D Section
Nozzle Selection Section
5OM-1603
2-8
Sensor and Load Layout
1102-003
Head Section Layout (Electric Box Section)
Y0902
Symbol Name Symbol Name
Y0902 Air Blow
