5OM-1603
2-15
Sensor and Load Layout
1102-003

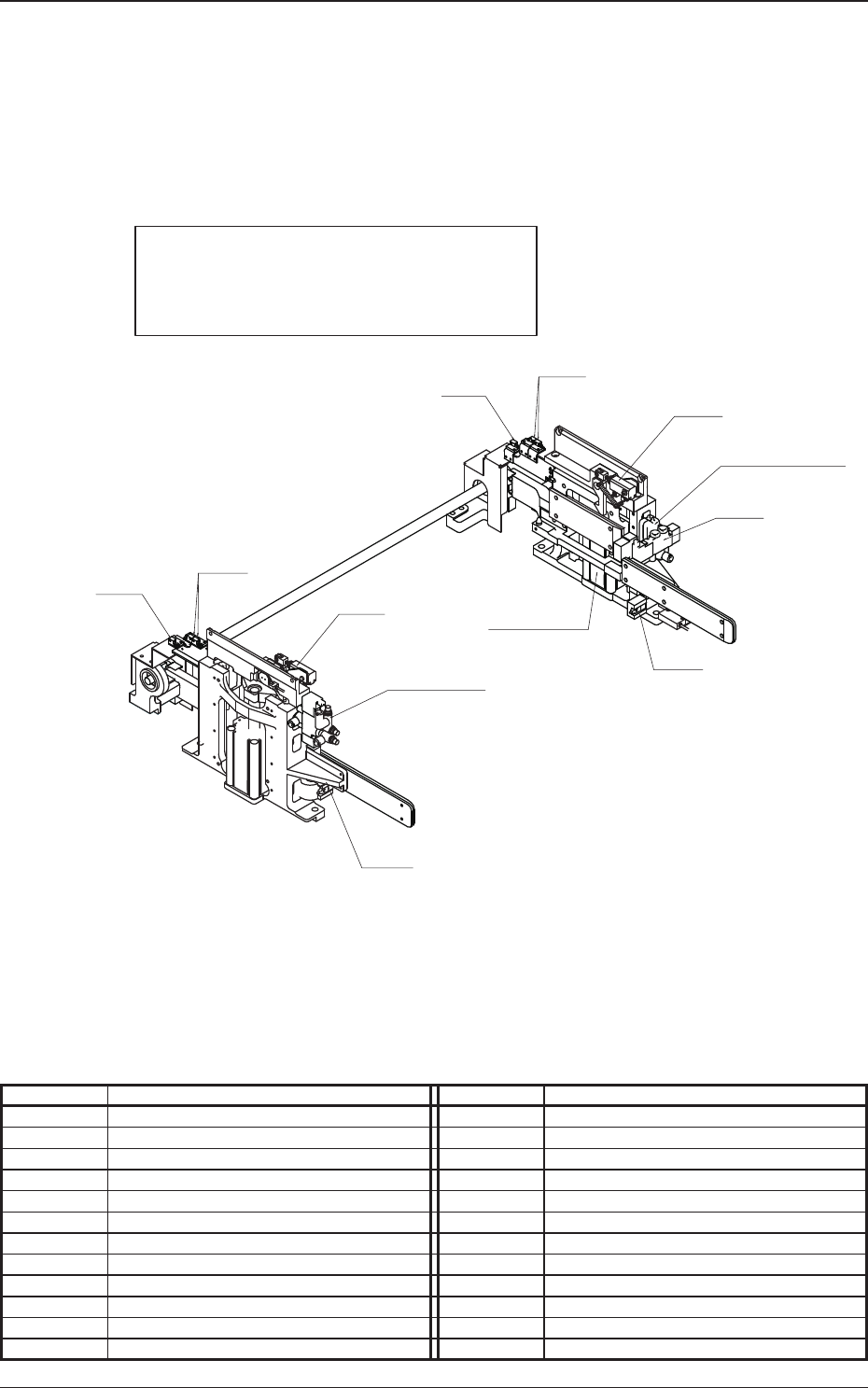

Conveyor Section Layout (Inside)
B16301
B5301
M53
M54
B5401
Y0836,Y0837,Y0839
B5301 Amp
B5401 Amp
Y1436,Y1437,Y1439
B0820 B0920T
M163
Symbol Name Symbol Name
M53 NA-BAL B5301
Backup Base 1 Origin Sensor Limit (+)
M54 NA-BAR B5301 Amp Amplier
M163 NA Chute Width Changeable (3) B5401
Backup Base 2 Origin Sensor Limit (+)
Y0836
Movable 3LZ Clamp Cylinder Valve (A: Descent)
B5401 Amp Amplier
Y0837 Movable 3LZ Clamp Cylinder Valve (B: Ascent) B16301 Movable Chute 3 Origin Sensor
Y0839 PCB Stopper BL B0820
Movable Chute Support Pin Sensor 3 (Light Reception)
Y1436
Movable 3RZ Clamp Cylinder Valve (A: Descent)
B0820T
Movable Chute Support Pin Sensor 3 (Light Emission)
Y1437
Movable 3RZ Clamp Cylinder Valve (B: Ascent)
Y1439 PCB Stopper BR
5OM-1603
2-16
Sensor and Load Layout
1102-003
Component Recognition Camera Layout
E194
E191
E193
E192
B61
Symbol Name Symbol Name
B61 Component Recognition Camera
E191 Component Recognition Ring Lighting
E192 Component Recognition Coaxial Lighting
E193 Standard Mark Lighting A
E194 Standard Mark Lighting B
5OM-1603
2-17
Sensor and Load Layout
1003-003
Locating Section Layout
B0521
B0520
B0515
B0514
B0612
B0912
Y0632,Y0633
Y0932,Y0933
B0614,B0615
B0914,B0915
B0611
B0911
B0613
B0913
B0515,0521 Amp
B0514,0520 Amp
Y0642
Y0942
B0610
B0910
B0521
B0921
B0515
B0915
Upper Stage: Front View
Lower Stage: Rear View
Symbol Name Symbol Name
Y0632 Feeder Base 2 Ascending Y0932 Feeder Base 1 Ascending
Y0633 Feeder Base 2 Descending Y0933 Feeder Base 1 Descending
Y0642
PCB Positioning Unit Drop Prevention Stopper 2
Y0942
PCB Positioning Unit Drop Prevention Stopper 1
B0515 Pick-up Error Detection (Front) B0514 Pick-up Error Detection (Rear)
B0521 Feeder Disengaged Latch Detection (Front) B0520 Feeder Disengaged Latch Detection (Rear)
B0515,0521Amp
Amplier
B0514,0520Amp
Amplier
B0610
Feeder Base 2 Y Direction Positioning Check 1
B0910
Feeder Base 1 Y Direction Positioning Check 1
B0611
Feeder Base 2 Y Direction Positioning Check 2
B0911
Feeder Base 1 Y Direction Positioning Check 2
B0612
Positioning Unit Drop Prevention Lock Check 2 (L)
B0912
Positioning Unit Drop Prevention Lock Check 1 (L)
B0613
Positioning Unit Drop Prevention Lock Check 2 (R)
B0913
Positioning Unit Drop Prevention Lock Check 1 (R)
B0614 Cylinder Upper Limit Detection (Front) B0914 Cylinder Upper Limit Detection (Rear)
B0615 Cylinder Lower Limit Detection (Front) B0915 Cylinder Lower Limit Detection (Rear)
