KGA_YV88Xg_PL - 第13页
8 3 Feeder Floating Detection 50 (After August 2008) Feeder KGA-101 1 Front Back 1 1 29 25 29 18 6 28 24 25 5 1 9 13 10 25 1 26 27 14 25 24 28 12 3 27 26 9 25 8 30 22 25 15 16 30 23 23 21 22 25 20 23 7 17 29 30 23 30 17 …
7
3
Feeder Floating Detection 50 (Before August 2008)
Feeder
KGA-081015
Front
Rear
Non Stop
Feeder Type
9
4
1
3
8
7
5
10
Non Stop
Feeder Type
11
9
4
2
3
8
7
6
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M3901-00X BRACKET SENSOR, 2 1
2 KV7-M3901-10X BRACKET SENSOR, 2 1
3 KV7-M3910-01X BRACKET SENSOR, 1 1
4 KG7-M3906-00X BRACKET 6 2
5 KV7-M3905-20X BRACKET 2, SENSOR 1
6 KV7-M3905-30X BRACKET 2, SENSOR 1
7 KV7-M3907-00X BRACKET 3, SENSOR 1
8 KG9-M3455-30X SENSOR S 1
9 KH5-M3456-30X SENSOR R 1
10 KV7-M3901-20X BRACKET SENSOR, 2 1
11 KV7-M3901-30X BRACKET SENSOR, 2 1
8
3
Feeder Floating Detection 50 (After August 2008)
Feeder
KGA-1011
Front
Back
11
29
25
29
18
6
28
24
25
5
19
13
10
25
1
26
27
14
25
24
28
12
3
27
26
9
25
8
30
22
25
15
16
30
23
23
21
22
25
20
23
7
17
29
30
23
30
17
11
29
25
6
28
24
25
5
19
13
10
25
2
26
27
14
25
24
28
12
4
27
26
9
25
8
22
25
15
16
21
22
25
20
7
18
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M3971-00X BRKT. SENSOR1 F 1
2 KGA-M3971-20X BRKT. SENSOR1 R 1
3 KGA-M3972-00X BRKT. SENSOR2 F 1
4 KGA-M3972-20X BRKT. SENSOR2 R 1
5 KGA-M3973-00X BRKT. SENSOR3 1
6 KGS-M3974-00X PLATE SENSOR 1
7 KGA-M3975-00X BRACKET. RECEIVER 1
8 KGS-M3976-00X COVER. SENSOR 1 1
9 KGS-M3977-00X SQUARE WASHER 1 1
10 KGS-M3978-00X SQUARE WASHER 2 1
11 KGS-M3951-00X PLATE SENSOR 1
12 KGS-M3910-00X BRACKET SENSOR, 1 1
13 KGS-M3906-00X BRACKET 6 2
14 KGS-M3911-00X SQUARE WASHER 2
15 KGA-M397A-00X BRACET SENSOR 4 1
16 KGA-M397B-00X BRACKET RECEIVER 1
17 KGS-M3961-00X SENSOR, LASER ASSY 1
18 KGS-M3961-10X SENSOR, LASER ASSY 1
19 KG2-M3903-10X SEAL, LASER 1
20 KGA-M397C-00X SQUARE WASHER 1 1
21 KGS-M3976-10X COVER, SENSOR 1 1
22 98907-03005 SCREW,BINDING HEAD 4
23 90115-02J005 BOLT HEX. SOCKET HEAD 4
24 91317-03012 BOLT HEX. SOCKET HEAD 4
25 91317-04010 BOLT HEX. SOCKET HEAD 16
26 91317-04012 BOLT HEX. SOCKET HEAD 6
27 92907-04200 WASHER PLAIN 8
28 92907-03200 WASHER PLAIN 4
29 KGS-M3962-00 SENSOR, TRANSMITTER 1
30 KGS-M3963-00 SENSOR, RECEIVER 1
1
4

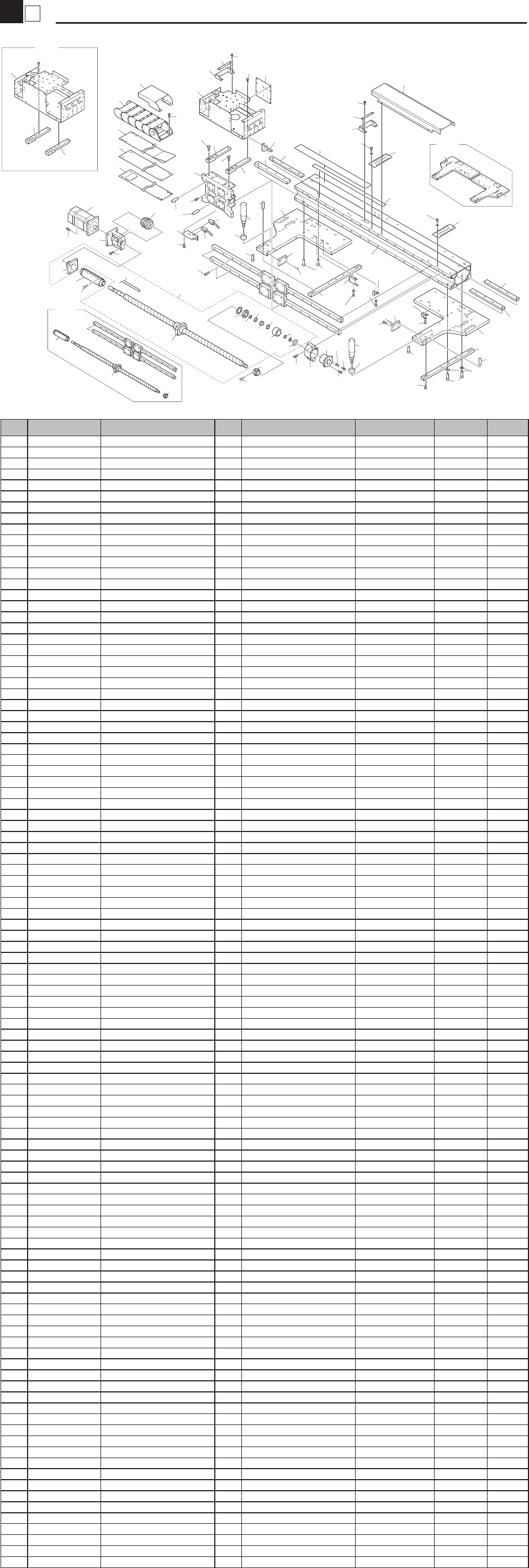

X-axis
Moving-axis
KGA-081015
19
47
35
34
15
66
10
64
4
14
55
53
28
27
11
63
45
37
44
16
17
25
58
60
18
29
22
23
57
5
5
1
68
68
44
45
54
54
13
59
65
9
66
66
9
6
5
32
36
31
24
24
39
38
43
41
69
42
41
12
42
46
29
66
23
57
50
56
48
51
49
66
50
48
49
51
52
40
62
61
67
59
57
21
20
59
53
9
9
7
OLD
OLD
3
2
14
28
18
27
OLD
36
33
8
58
67
7
30
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M2211-02X FRAME X AXIS 1
2 KV7-M2213-03X PLATE A. X AXIS 1
2-1 Delete (2003/1/14) M310034
3 KV7-M2214-003X PLATE B. X AXIS 1
3-1 Delete (2003/1/14) M310034
4 KM0-M2220-00X COUPLING. X-AXIS 1
5 KV7-M2231-00X SPACER R. NUT 3
6 KM0-M2233-00X SPACER R2 NUT 1
6-1 KV7-M2233-00X SPACER R2,NUT 1 (2003/2/11) M320049 OK
7 KV7-M2236-00X PLATE A 1
7-1 KV7-M2236-01X PLATE A 1 (2008/3/27) ME30100 SET
8 KV7-M2237-00X SUB PLATE 1
9 KV7-M2239-00X BRACKET 1 2
9-1 KV7-M2239-01X BRACKET 1 2 (2008/3/27) ME30100 SET
10 KM0-M2241-00X HOLDER,MOTOR X AXIS 1
10-1 KM0-M2241-01X HOLDER,MOTOR X AXIS 1 (2008/4/16) ME30234 OK
11 KV7-M2242-00X HOLDER,BRG X AXIS 1
11-1 KV7-M2242-01X HOLDER,BRG X AXIS 1 (2008/4/16) ME30234 OK
12 KV7-M2645-00X BRG.,ANGULAR 1
12-1 90990-25J005 BEARING 1 (2008/4/16) ME30234 OK
12-2 90990-26J014 BEARING 1 (2008/4/24) ME40191 OK
13 KV7-M2261-00X HOLDER HEAD 1
13-1 KV7-M2261-01X HOLDER HEAD 1 (2002/4/25) M240093 OK
14 KV7-M2271-01X SCREW BALL X AXIS 1 Y1
14-1 KV7-M2271-02X SCREW BALL X AXIS 1 (2002/6/6) M250068 Set
15 90K56-87174X AC SERVO MOTOR 1
15-1 90K56-8717EX AC SERVO MOTOR 1 (2003/4) M340073 OK
16 KV7-M653A-00X SENSOR 1 ASSY 1 L=600
16-1 KGA-M220A-00X SENSOR , ORG(L=600) 1 (2002/11/12) M2X0034 OK
17 KV7-M653E-00X SENSOR 2 ASSY 1 L=600
17-1 KGA-M220B-00X SENSOR , T(L=600) 1 (2002/11/12) M2X0034 OK
18 K47-M2276-S0X X-AXIS GUIDE SET 1
18-1 KV7-M2276-S0X X-AXIS GUIDE SET 1 (2002/6/6) M250068 Set
19 KV7-M2267-00X CABLE,DUCT 1
19-1 KV7-M2267-A0X CABLE,DUCT 1 (2004/3/31) M430131 OK
19-2 KV7-M2267-A1X CABLE,DUCT 1 (2004/7/12) MA70035 OK
20 K94-M220A-00X TAPE X-AXIS 1
21 K94-M220A-10X TAPE X-AXIS 1
22 KV7-M2282-00X DOG. ORG 1
23 KV7-M2283-00X DOG. 2ND LIMIT 2
24 KV7-M226B-00X PLATE 2
25 KV7-M2291-00X BRACKET SENSOR 1
26
27 KGA-M2651-10X DAMPER 14 ASSY. 1
27-1 KGA-M2651-11X DAMPER 14 ASSY. 1 (2002/6/6) M250068 Set
28 KGA-M2651-70X DAMPER 125 ASSY. 1 L=125
28-1 KGA-M2651-71X DAMPER 110 ASSY. 1 L=110 (2002/6/6) M250068 Set
29 KM0-M2251-00X NYLOCK BOLT 16 M8X22L
29-1 90990-01J024 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
29-2 90990-01J179 BOLT,HEX.SOCKET HEAD 16 (2020/1/24) MT10096 OK
30 KM0-M2252-00X STOPPER 1 Z3
31 KV7-M226A-00X COVER CABLE 1
32 KV7-M2268-00X BRACKET 1. TAPE 1
33 KV7-M2269-00X BRACKET 2. TAPE 1
34 KV7-M220A-01X TAPE. X DUCT 1
35 KV7-M220B-00X TAPE 2. X DUCT 1
36 KV7-M2266-00X PLATE NUT 2
37 KV7-M2240-00X SLEEVE BRG. 1
38 KV7-M2243-00X HOUSING BRG. X 1
39 KV7-M2244-00X COVER BRB. HOUSING 1
40 KV7-M2246-00X COIL SPRING M 6
41 KV7-M2647-00X OIL SEAL 2
42 KV7-M2648-00X SPACER 3
42-1 90990-41J100 COLLAR 3 (2008/4/11) ME30019 OK
43 KG2-M9173-00X LOCK NUT 1
44 KV7-M2256-00X GRIP 2
45 KV7-M2257-00X SPACER GRIP 2
46 KV7-M220C-00X TAPE 3. X DUCT 1
47 KV7-M221A-A0X COVER DUCT ASSY 1
48 KV7-M2295-01X BRACKET PIN 2
48-1 Delete 2002/7/19 M270057
49 KV7-M2296-00X BRACKET SCREW 2
49-1 Delete 2002/7/19 M270057
50 KV7-M2297-00X TAPER PIN 4 8X30
50-1 Delete 2002/7/19 M270057
51 KV7-M2298-00X NYLOCK SET SCREW 6
51-1 Delete 2002/7/19 M270057
52 99480-06014 PIN PARALLEL 2
53 KGA-M2649-00X NYLOCK BOLT 24 M2.6X10
53-1 90990-01J023 BOLT,HEX.SOCKET HEAD 24 (2007/10/29) MD00030 OK
54 KV7-M2663-00X NYLOCK BOLT 16 M5X16
54-1 90990-01J030 BOLT,HEX.SOCKET HEAD 16 (2007/10/29) MD00030 OK
55 KV7-M2604-00X SUPPORT UNIT 1
56 KV7-M2253-00X WASHER,SPRING 16
56-1 90990-38J001 WASHER,SPRING 16 (2008/4/15) ME20075 OK
57 91317-03006 BOLT HEX, SOCKET HEAD 10
58 91317-04008 BOLT HEX, SOCKET HEAD 12
59 91317-04010 BOLT HEX, SOCKET HEAD 26
59-1 91317-04010 BOLT HEX.SOCKET HEAD 4 (2002/2/28) M220145 OK
60 KV7-M2251-00X NYLOCK BOLT 30 M4X16
60-1 Delete (2002/2/28) M220145
61 91317-04030 BOLT HEX, SOCKET HEAD 6
62 91317-05014 BOLT HEX, SOCKET HEAD 4
63 91317-05020 BOLT HEX, SOCKET HEAD 4
64 91317-05035 BOLT HEX, SOCKET HEAD 4
65 91317-06012 BOLT HEX, SOCKET HEAD 8
66 91317-06018 BOLT HEX, SOCKET HEAD 26
66-1 91317-06018 BOLT HEX.SOCKET HEAD 8 (2002/7/19) M270057 OK
67 98907-03005 SCREW BINDING HEAD 4
67-1 98902-03006 SCREW BINDING HEAD 4 (2007/7/9) MD60168 OK
68 KV7-M2213-S0X PLATE X-AXIS SET 1 2000/1/21 M010074
68-1 KV7-M2213-S1X PLATE X AXIS SET 1 (2008/4/16) ME30234 OK
69 KV7-M2271-A0X X-Axis B.S. SUB ASSY 1
