2 6 Nozzle Selection(FNC) Nozzle KGA-1 103 1 5 4 8 3 7 34 7 9 23 24 12 1 1 13 18 16 21 14 17 15 20 19 22 27 25 T ype61F T ype62F T ype63F T ype69F T ype65F T ype64F T ype66F 26 Nozzle Holder 8 29 28 32 31 30 33 30 32 31 …
1
6
Nozzle Selection (SF)
Nozzle
KGA-081021
6
5
8
7
9
10
1
3
2
4
11
Type61A Type62A Type63A Type66A
12
Type69A
Type64A Type65A
2
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M7710-A1X NOZZLE 61A ASSY. 2 Type 61A
2 KV7-M7713-00X O-RING 5 SS-015 Reserve4
2-1 90200-02J015 O-RING 5 (2001/11/27) M1X0094 OK
3 KV7-M7720-A1X NOZZLE 62A ASSY. 2 Type 62A
4
KV7-M7730-00X NOZZLE 63A
2
Type 63A
5 KV7-M7740-A0X NOZZLE 64A ASSY. 2 Type 64A
6 KV7-M7741-00X BODY. NOZZLE 64A 1
7 KGB-M7742-00X O-RING 5 KSP0004
7-1 90990-17J013 O-RING 5 (2001/12/6) M1X0134 OK
8
KV7-M7750-A0X NOZZLE 65A ASSY.
2
Type 65A
9 KV7-M7751-00X BODY. NOZZLE 65A 1
10 KGA-M7752-00X O-RING 5 KSP0009
10-1 90990-17J015 O-RING 5 (2001/12/6) M1X0134 OK
11 KV7-M7760-00X NOZZLE 66A 2 Type 66A
12 KV7-M77GX-A0X CIRCLE NOZZLE 6A 2 CIRCLE NOZZLE
12-1 KV7-M7790-A0X NOZZLE 69A ASSY. 2 (2003/4/24) M340108 OK
2
6
Nozzle Selection(FNC)
Nozzle
KGA-1103
1
5
4 8
3
7
34
7
9
23
24
12
11
13 18
16 21
14
17
15 20
19
22
27
25
Type61F Type62F Type63F Type69F
Type65FType64F Type66F
26
Nozzle Holder
8
29
28
32
31
30
33
30
32
31
32
31
30
30
32
31
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M71N1-A0X NOZZLE 61F ASSY. 2
2
3 KV7-M71M6-01X SCREW, NOZZLE 6
4 KV7-M71S2-00X O-RING 5
4-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
5 KGA-M71N2-A0X NOZZLE 62F ASSY. 2
6
7 KV7-M71M6-01X SCREW, NOZZLE 6
8 KV7-M71S2-00X O-RING 5
8-1
90200-02J038 O-RING
5
(2001/11/22)
M1X0060 OK
9 KV7-M71N3-A1X NOZZLE 63F ASSY. 2
10
11 KV7-M71M6-01X SCREW, NOZZLE 6
12 KV7-M71S2-00X O-RING 5
12-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
13 KV7-M71N4-A0X NOZZLE 64F ASSY. 2
14 KV7-M71N4-00X BODY, NOZZLE 4 1
15 KGB-M7742-00X O-RING 5
15-1 90990-17J013 O-RING 5 (2001/12/6) M1X0134 OK
16 KV7-M71S2-00X O-RING 5
16-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
17 92A08-03005 SET SCREW M3X5 3
17-1
92A08-03305 SCREW,SET 3 (2001/9/21) M190079 OK
18 KV7-M71N5-A0X NOZZLE 65F ASSY. 2
19 KV7-M71N5-00X BODY, NOZZLE 5 1
20 KGA-M8752-00X O-RING 5
20-1 90990-17J014 O-RING 5 (2001/12/6) M1X0134 OK
21 KV7-M71S2-00X O-RING 5
21-1 90200-02J038 O-RING 5 (2001/11/22) M1X0060 OK
22 92A08-03005 SET SCREW M3X5 3
22-1
92A08-03305 SCREW,SET 3 (2001/9/21) M190079 OK
23 KV7-M71N6-A0X NOZZLE 66F ASSY. 2
24 KV7-M71N6-B0X NOZZLE 66F SUB ASSY. 1
25 KV7-M71S4-00X O-RING 5
25-1 90200-02J065 O-RING 5 (2001/11/22) M1X0060 OK
26 92A08-03003 SET SCREW M3X3 3
26-1
92A08-03303 SET SCREW M3X3 3 (2001/9/21) M190079 OK
27 KV7-M71M0-A0X NOZZLE HOLDER ASSY. 2
27-1 KV7-M71M0-A1X NOZZLE HOLDER ASSY. 2 (2007/6/14) MD60046 OK
28 KV7-M71M0-00X HOLDER NOZZLE SP 1
29 KV7-M71S4-00X O-RING 5
29-1 90200-02J065 O-RING 5 (2001/11/22) M1X0060 OK
30 KG7-M7137-A0X LEAF SPRING 4
30-1 KGR-M71M3-00X LEAF SPRING 4 (2007/6/14) MD60046 NG
31 KG7-M7169-00X SCREW 4
31-1 90990-08J002 SCREW,PAN HEAD 4 (2007/6/14) MD60046 NG
31-2 90990-08J016 SCREW,PAN HEAD 4 (2007/10/24) MD00080 OK
32 KG7-M7170-00X WASHER 4
32-1 90990-28J002 WASHER 4 (2003/3/28) M330113
32-2 KGS-M714W-03X PLATE,SPRING 4 (2007/6/14) MD60046 NG
33 92A08-03003 SET SCREW M3X3 3
33-1
92A08-03303 SET SCREW M3X3 3 (2001/9/21) M190079 OK
34 KV7-M87GF-A0X CIRCLE NOZZLE 6F 2
34-1 KV7-M71N9-A0X NOZZLE 69F ASSY. 2 (2002/9/10) M280135 OK
1
7

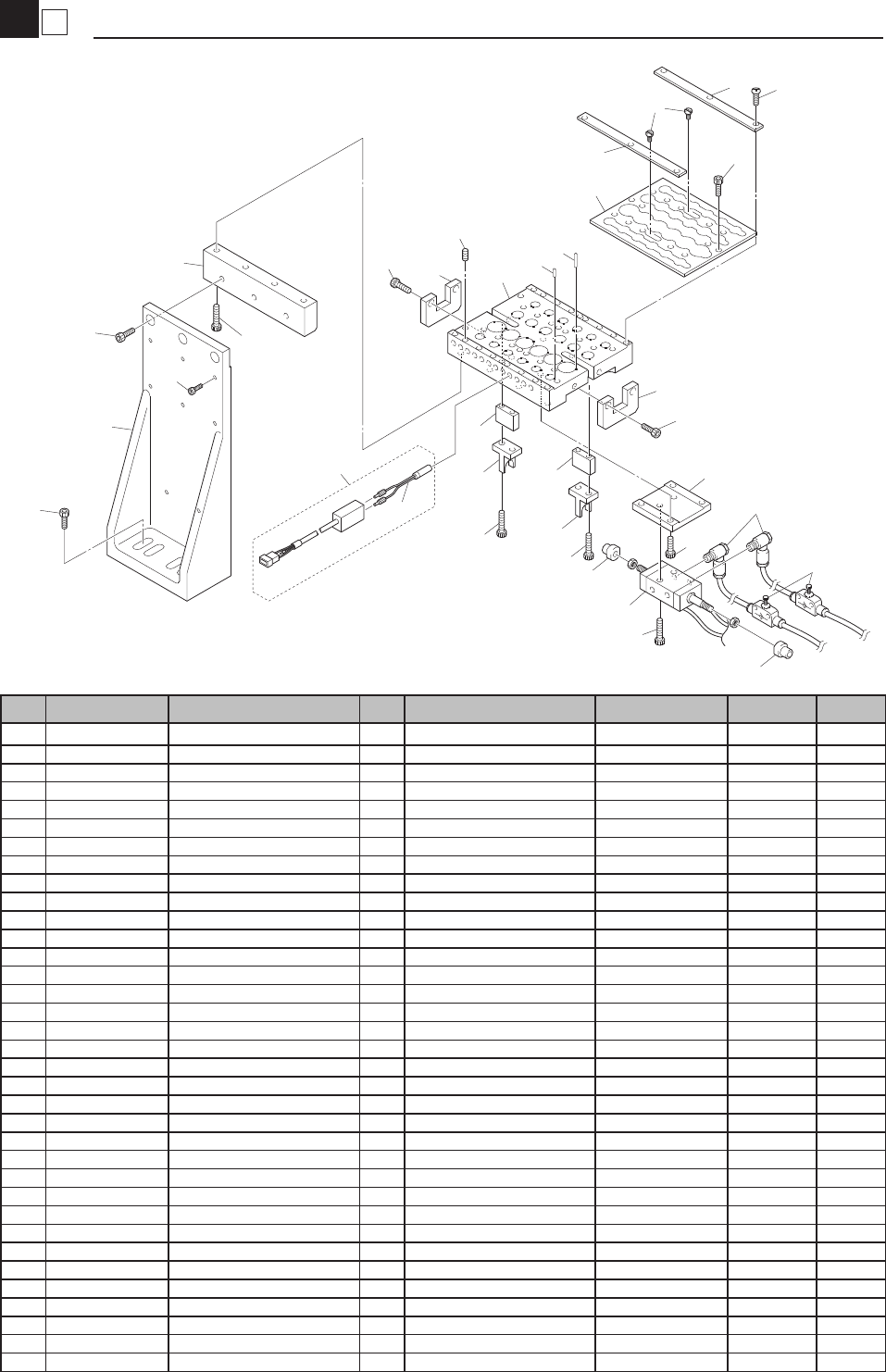

Body ANC (SF)
ANC Station
KGA-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
10
11
12
13
14
15
18
20
19
19
18
18
26
25
22
17
3
16
27
24
23
21
28
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9601-00X HOLDER. ANC 1
2 KV7-M9602-00X PLATE. CLAMP 1
3 KV7-M9603-00X NUT. CLAMP 2
4 KV7-M9604-00X STOPPER. CLAMP 2
5 KV7-M9605-00X SLIDE. CLAMP 2
6 KV7-M9606-00X SLIDE BLOCK 2
7 KV7-M9607-00X PLATE. CYLINDER 1
8 KV7-M9608-00X PIN. SLIDE 2
9 KV7-M9609-00X PLATE. GUIDE 2
10 KV7-M9610-00X BRACKET 1 1
11 KGA-M9611-00X BRACKET ANC. 1
11-1 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) M100003 OK
12 KV7-M9612-00X AIR CYLINDER ASSY. 1
13 KG7-M9608-00X NEEDLE PIN 24
13-1 90990-19J007 NEEDLE PIN 24 (2001/12/25) M1Y0079 OK
14 KM0-M9608-00X NEEDLE PIN 28
14-1 90990-19J004 NEEDLE PIN 28 (2001/12/25) M1Y0079 OK
14-2 90990-19J004 NEEDLE PIN 24 (2004/9/15) MA90050 OK
15 KH5-M655A-A1X SENSOR,1-1 24
16 $SL4-M5 JOINT 2
17 91317-03006 BOLT HEX. SOCKET HEAD 4
18 91317-03008 BOLT HEX. SOCKET HEAD 8
19 91317-03010 BOLT HEX. SOCKET HEAD 4
20 91317-03014 BOLT HEX. SOCKET HEAD 2
21 91317-04008 BOLT HEX. SOCKET HEAD 6
22 91317-04020 BOLT HEX. SOCKET HEAD 4
23 91317-05010 BOLT HEX. SOCKET HEAD 3
24 91317-06020 BOLT HEX. SOCKET HEAD 2
25 98907-03005 SCREW BINDING HEAD 10
26 92A08-03303 SET SCREW M3X3 12
26-1 92A08-03303 SET SCREW M3X3 24 (2001/11/26) M1X0099 OK
26-2 90990-02J005 SET SCREW M3X2 24 (2003/4/9) M340029 OK
26-3 90990-02J007 SET,SCREW 24 (2003/8/28) M380085 OK
27 $SSU4 SPEED CONTROLLER 2
28 KH5-M655A-02X FIBER 1
