1 8 Push-in Conveyor KGA-081021 1 2 9 12 4 5 13 13 16 16 15 6 7 3 10 1 1 Push in L&R Push in A TS 8 14 17 18 18 19 19 20 21 31 32 31 31 22 23 29 30 24 25 33 34 34 28 28 28 28 26 27 27 27 27 No. Part No. Part Name Q&a…
2
7

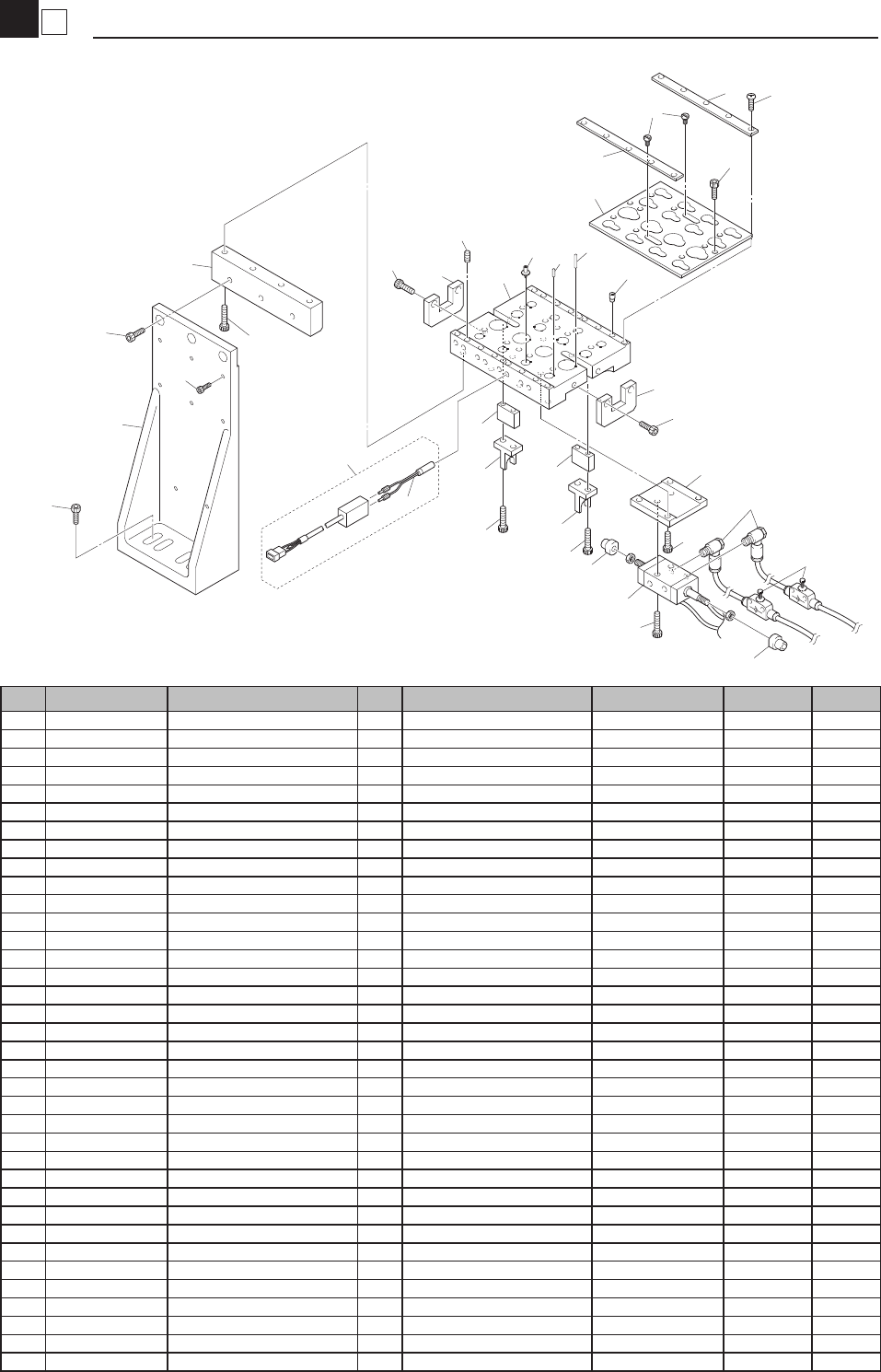

Body ANC (FNC)
ANC Station
KGA-090406
1
2
3
4
4
5
5
6
6
7
8
9
9
12
15
13
14
16
20
22
21
21
20
20
28
27
19
3
10
11
17
24
26
25
23
18
29
30
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9651-00X HOLDER. ANC 1
2 KV7-M9652-00X PLATE. CLAMP 1
3 KV7-M9603-00X NUT. CLAMP 2
4 KV7-M9604-00X STOPPER. CLAMP 2
5 KV7-M9605-00X SLIDE. CLAMP 2
6 KV7-M9606-00X SLIDE BLOCK 2
7 KV7-M9607-00X PLATE. CYLINDER 1
8 KV7-M9608-00X PIN. SLIDE 2
9 KV7-M9654-00X PLATE. GUIDE 2
10 KV7-M9653-00X BRACKET 1 1
11 KGA-M9611-00X BRACKET ANC. 1
11-1 KGA-M8021-00X BRACKET A,SENSOR 1 (2001/10/2) M100003 OK
12 KV7-M9612-00X AIR CYLINDER ASSY. 1
13 KV7-M9655-00X PIN,MARK 4
14 KV7-M7760-00X NOZZLE 66A 2
15 KG7-M9608-00X NEEDLE PIN 16
15-1 90990-19J007 NEEDLE PIN 16 (2001/12/25) M1Y0079 OK
16 KM0-M9608-00X NEEDLE PIN 16
16-1 90990-19J004 NEEDLE PIN 16 (2001/12/25) M1Y0079 OK
17 KH5-M655A-A1X SENSOR,1-1 16
18 $SL4-M5 JOINT 2
19 91317-03006 BOLT HEX. SOCKET HEAD 4
20 91317-03008 BOLT HEX. SOCKET HEAD 8
21 91317-03010 BOLT HEX. SOCKET HEAD 4
22 91317-03014 BOLT HEX. SOCKET HEAD 2
23 91317-04008 BOLT HEX. SOCKET HEAD 6
24 91317-04025 BOLT HEX. SOCKET HEAD 4
25 91317-05010 BOLT HEX. SOCKET HEAD 3
26 91317-06020 BOLT HEX. SOCKET HEAD 2
27 98907-03005 SCREW BINDING HEAD 10
28 92A08-03303 SET SCREW M3X3 12
28-1 92A08-03303 SET SCREW M3X3 24 (2001/11/26) M1X0099 OK
28-2 90990-02J005 SET SCREW M3X2 24 (2003/4/9) M340029 OK
28-3 90990-02J007 SET,SCREW 24 (2003/8/28) M380085 OK
29 $SSU4 SPEED CONTROLLER 2
30 KH5-M655A-02X FIBER 1
1
8
Push-in
Conveyor
KGA-081021
1
2
9
12
4
5
13
13
16
16
15
6
7
3
10
11
Push in L&R Push in ATS
8
14
17
18
18
19
19
20
21
31
32
31
31
22
23
29
30
24
25
33
34
34
28
28
28
28
26
27
27
27
27
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGA-M9221-00X PLATE PUSH IN 1
2 KV7-M9222-00X BRACKET,PUSH IN 1 t=3.2
2-1 KV7-M9222-01X BRACKET,PUSH IN 1 t=2.0 2006/4/14 MC10050 NG
3 KV7-M9223-00X HOLDER CYL. 1
4 KV7-M9224-00X
COLLAR
1 L=6.5
4-1 KV7-M9224-01X COLLAR 1 L=7.5 2006/5/11 MC20101 Set
5 KV7-M9225-00X BRACKET,HOLDER 1 t=3.2
5-1 KV7-M9225-01X BRACKET,HOLDER 1 t=2.0 2006/4/14 MC10050 NG
6 KV7-M9226-00X COLLAR,HOLDER CYL. 1
6-1 90990-41J061
COLLAR 1
(2008/4/17) ME20197
OK
7 KV7-M9227-00X BLOCK,COLLAR 1
7-1 KV7-M9227-01X BLOCK,COLLAR 1 2006/5/11 MC20101 Set
8 90933-03J694 BRG 1 F694ZZ
9 KG7-M9166-00X CYLINDER 1
10 KJ9-M177F-10X Y-KNUCKLE 1
10-1 KJ9-M177F-11X Y-KNUCKLE 1 (2005/11/3) MB00121 OK
11 $SC4-M5A SPEED CONTROLLER 2
12 91317-04006 BOLT HEX. SOCKET HEAD 2
13 91317-04008 BOLT HEX. SOCKET HEAD 2
14 91317-04014 BOLT HEX. SOCKET HEAD 1
15 91317-04016 BOLT HEX. SOCKET HEAD 1
16 92907-04200 WASHER PLAIN 3
17 KV8-M9221-00X PLATE,PUSH IN 1
18 KV8-M9222-00X PLATE,BRACKET 2
19 KV8-M9223-00X PLATE,LINK 2
20 KV8-M9224-00X JOINT,CYLINDER 1
21 KV8-M9225-00X SPACER 1 1
22 KV8-M9226-00X SPACER 2 1
23 KV8-M9227-00X BRACKET,CYLINDER 1
24 KV8-M9228-00X PIN 1 1
25 KV8-M9229-00X PIN 2 1
26 KV8-M922A-00X PIN 3 1
27 KV8-M922B-00X BEARING(WF684ZZ) 4
27-1 90933-03J684 BEARING 4 (2001/7/6) M170026 OK
28 KV8-M922D-00X DRY,MET(80B-0403) 4
29 KV8-M922E-00X CYLINDER NDA10-30 1
30 $SC4-M5A SPEED CONTROLLER 2
31 91317-03008 BOLT HEX.SOCKET HEAD 10
32 91317-03025 BOLT HEX.SOCKET HEAD 2
33 92A08-03004 SET SCREW M3X4 2
33-1 92A08-03304 SET SCREW 2 (2001/9/21) M190079 OK
34 99009-03600 CIRCLIP : 2
34-1 99002-03600 CIRCLIP (E) 2 (2006/2/17) MBY0200 OK
34-2 90440-01J030 CIRCLIP(E) 2 (2008/6/16) ME60086 OK
2
8
Push-up
Conveyor
KGA-091019
6
29,49,50
2
35
30,52,53
31
35
4
37
33
1
5
34
36
45
46
36
40
43
7
7
9
38
42
38
42
3
3
7
7
8
8
7
7
16
21
22
14
21
23
55
13
33
15
17
41
20
12
11
32
44
26
39
27
28
39
19
33
18
10
33
25
24
47
48
OLD
51
51
54
54
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M9201-00X BRACKET, MOTOR 1
2 KV7-M9202-00X STAY, ADJUST 1
3 KV7-M9203-00X SHAFT 1 2
4 KV7-M9205-01X PULLEY 1 1 P22-3GT
5 KV7-M9206-00X WASHER 1
5-1 90990-28J076 WASHER 1 (2007/12/18) MDX0125 OK
6 90K55-523D5U AC SERVO MOTOR 1
7 90933-01J200 BEARING 6 6200ZZ
8 99009-10400 CIRCLIP 2
9 KV7-M9204-00X SHAFT 2 1
10 KV7-M9207-00X FLANGE 1 1
11 KV7-M9208-00X FLANGE 2 1
12 KV7-M9209-01X PULLEY 2 1
13 KV7-M9211-00X HOUSING 1
14 KV7-M9212-00X COLLAR 2 1
14-1 90990-41J060 COLLAR 1 (2008/4/17) ME20197 OK
15 KV7-M9213-00X NUT 1
16 KV7-M9214-00X SCREW 1
17 KV7-M9215-00X JOINT 1
18 KV7-M9217-00X FLANGE 1
19 KV7-M9218-00X SPRING 1
20 KV7-M921C-00X ROLLER 1
21 90933-01J905 BEARING 3 2 6905ZZ
22 99009-42500 CIRCLIP 1
23 99009-25400 CIRCLIP 1
24 KV7-M9219-00X STOPPER 1
25 KV7-M921B-00X BOLT,STOPPER 1
25-1 90990-33J011 BOLT,STOPPER 1 (2008/6/18) ME20019 OK
26 KV7-M920D-00X DOG 1
27 KV7-M920E-00X BRACKET 1
28 KV7-M653A-00X SENSOR,1(L=600) 1
28-1 KGA-M921G-00X SENSOR,ORG 1 (2002/2/28) M220126 OK
29 KGA-M920A-01X PLATE 440 1 W440
KGA-M920A-32X PLATE 250 1
30 KGA-M920C-00X STAY 1 W440,W382
31 KV7-M921A-01X BELT 1 W440,W382,W335
KV7-M921A-31X BELT 1 W250
32 91317-04008 BOLT HEX.SOCKET HEAD 2
33 91317-04010 BOLT HEX.SOCKET HEAD 10
34 91317-04012 BOLT HEX.SOCKET HEAD 1
35 91317-04020 BOLT HEX.SOCKET HEAD 2
35-1 91317-04022 BOLT HEX.SOCKET HEAD 2 (2002/2/1) M220002 OK
36 91317-05012 BOLT HEX.SOCKET HEAD 8
37 91317-05014 BOLT HEX.SOCKET HEAD 4
38 91317-05016 BOLT HEX.SOCKET HEAD 2
39 91317-05020 BOLT HEX.SOCKET HEAD 8
40 91317-06060 BOLT HEX.SOCKET HEAD 1
41 92A08-03006 SET SCREW M3X6 1
41-1 92A08-03306 SCREW,SET 1 (2001/9/21) M190079 OK
42 92907-04200 WASHER PLAIN 2
43 92907-06200 WASHER PLAIN 1
44 92990-04200 WASHER PLAIN 1
45 KGA-M921T-00X BOLT 4
46 95604-10100 NUT U 4
46-1 95602-10100 NUT U 4 (2006/1/10) MBY0154 OK
47 92907-10600 WASHER PLAIN 1 M10 M3X0039
48 KV7-M921D-10X PUSH UP PIN UNIT 9
49 KGA-M920A-11X PLATE 382 1 W382
50 KGA-M920A-21X PLATE 335 1 W335
51 KGA-M920A-31X PLATE 250 1 W250
51-1 KGA-M920A-32X PLATE 250 1 W250 (2001/12/17) M1Y0057 NG
52 KGA-M920C-20X STAY 1 W335
53 KGA-M920C-31X STAY 1 W250
54 KGA-M920C-30X STAY 1
54-1 KGA-M920C-31X STAY 1 (2001/12/17) M1Y0057 NG
55 KV7-M9211-A0X SCREW UNIT 3
