1 9 Multi Camera & Light Assy.(These parts can't be sold) Camera KGA-1012 5 3 7 7 34 33 31 19 27 32 35 45 36 26 1 18 2 8 8 8 4 25 17 30 28 37 20 9 10 16 16 15 1 1 41 42 41 42 38 12 39 40 13 12 13 14 6 6 29 8 5 4…
1
9
Multi Camera & Light Assy.
Camera
KGA-1107
5
1
4
3
4
3
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGA-M73C0-33X C+L FOV35-H267-F-U/D 1 35mm-FNC-Front
KGA-M73C0-34X C+L FOV35-H267-B-U/D 1 35mm-FNC-Rear
KGA-M73C0-35X C+L FOV35-H272-F-U/D 1 35mm-SF-Front
KGA-M73C0-36X C+L FOV35-H272-B-U/D 1 35mm-SF-Rear
KGA-M73C0-43X C+L FOV50-H267-F-U/D 1 50mm-FNC-Front
KGA-M73C0-44X C+L FOV50-H267-B-U/D 1 50mm-FNC-Rear
KGA-M73C0-45X C+L FOV50-H272-F-U/D 1 50mm-SF-Front
KGA-M73C0-46X C+L FOV50-H272-B-U/D 1 50mm-SF-Rear
2 KV7-M652G-00X SENSOR,CYLINDER 1
3 91317-06020 BOLT HEX. SOCKET HEAD 4
4 92907-06200 WASHER, PLAIN 4
5 KGA-M66F0-01X C. CABLE ASSY 1
1
9

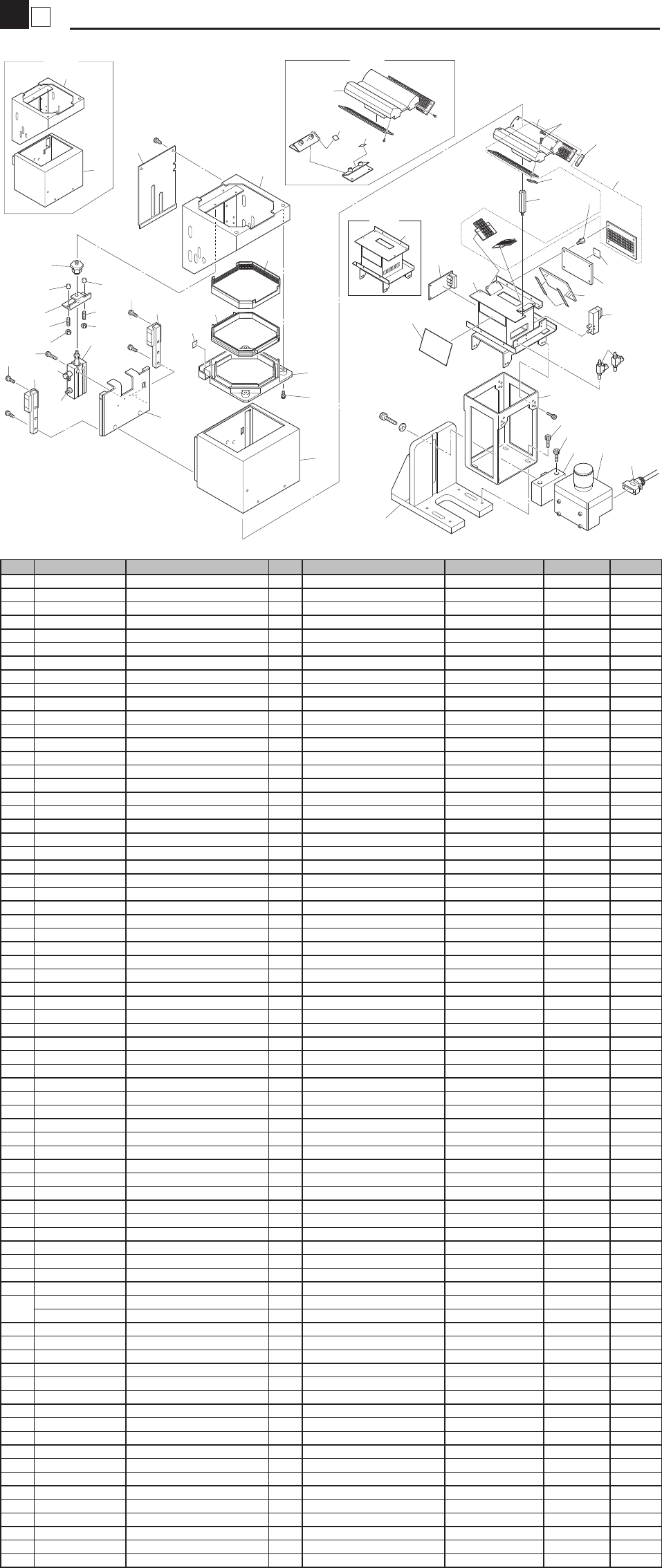

Multi Camera & Light Assy.(These parts can't be sold)
Camera
KGA-1012
5
3
7
7
34
33
31
19
27
3235
45
36
26
1
18
2
8
8
8
4
25
17
30
28
37
20
9
10
16
16
15
11
41
42
41
42
38
12
39
40
13
12
13
14
6
6
29
8
5
47
48
48
46
3
OLD
OLD
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KV7-M7510-00X HARF MIRROR 1
2 KV7-M7534-00X ADHESIVE TAPE 2
3 KV7-M7512-00X DIFFUSER 2 1
3-1 KV7-M7512-01X DIFFUSER 2 1 (2007/5/14) MD40062 Set
4 KV7-M7513-00X DIFFUSER 3 1
5 KGA-M7515-00X CASE 1 1
5-1 KGA-M7515-01X CASE 1 1 (2001/2/9) M120057 OK
5-2 KGA-M7515-02X CASE 1 1 (2001/3/26) M130155 OK
5-3 KGA-M7515-03X CASE 1 1 2006/3/29 MBY0092 NG
6 KGA-M7516-00X CASE 2 1
6-1 KGA-M7516-01X CASE 2 1 2006/3/29 MBY0092 NG
7 KV7-M7517-00X CASE 3 1
7-1 KV7-M7517-01X CASE 3 1 2002/3/4 M1X0136 NG
8 KV8-M7519-00X REFLECTOR 2 3
8-1 Delete (2004/3/1) M420139
9 KV7-M7520-00X CASE 4 1
10 KV8-M7521-01X JOINT 1
11 KV7-M7522-00X CYLINDER ASSY. 1
12 KV8-M7524-00X SLIDE 2
13 KV8-M7536-00X BOLT HEX.SOCK.H.M3L4 8
13-1 91317-03004 BOLT,HEX.SOCKET HEAD 8 (2007/10/29) MD00030 OK
14 KGA-M7525-00X BASE,GUIDE 1
14-1 KGA-M7525-01X BASE,GUIDE 1 (2005/12/21) MBY0092 OK
15 KV7-M7527-00X STOPER 2 1
16 KV8-M7528-02X STOPER 3 2
17 91C00-03215 SPACER 4 M3X15L
17-1 90563-03J150 SPACER BOLT 4 (2002/3/28) M230151 OK
18 KV7-M7538-00X VALVE 1
19 KV8-M7539-04X STAND, LIGHT 1
20 KV7-M7550-00X M.LIGHT SIDE ASSY. 1
20-1 KV7-M7550-01X M.LIGHT SIDE ASSY. 1 2004/1/23 M350137 NG
21 KV7-M7554-00X M.LIGHT MAIN ASSY. 1
21-1 KV7-M7554-01X M.LIGHT MAIN BOARD A 1 (2005/3/1) MB20108 OK
21-2 Delete (2007/6/5) MD50050
22 KV7-M7554-10X M.LIGHT MAIN BOARD A 1
22-1 Delete (2007/6/5) MD50050
23 KV7-M7554-20X M.LIGHT MAIN ASSY. 2
23-1 Delete (2007/6/5) MD50050
24 KV7-M7558-00X M.LIGHT COAX. ASSY 1
24-1 KV7-M7558-01X M.LIGHT COAX. ASSY 1 2004/1/23 M350137 NG
24-2 Delete (2007/6/5) MD50050
25 91C00-03205 SPACER 4 M3X5L
25-1 90563-03J050 SPACER BOLT 4 (2001/9/1) M180147 OK
26 KV8-M7301-01X STAND,CAMERA 1 1
26-1 KV8-M7301-02X STAND,CAMERA 1 1 (2001/4/20) M140127 OK
27 KGA-M66F0-00X C.CABLE ASSY 1
27-1 KGA-M66F0-01X C.CABLE ASSY 1 (2003/5/30) M350125 OK
28 KV7-M7511-00X DIFFUSER 1 1
29 KGA-M7514-00X DIFFUSER 4 1
30 KV7-M7518-00X STAY1 2
30-1 Delete (2001/12/5) M1X0136
31 $TSC0-L SPEED CONTROLLER 2
31-1 $TSC0-L-18W SPEED CONTROLLER 2 (2002/6/21) M260056 OK
32
KV1-M73A0-34X MULTI CAM.SUB ASSY 1 35M
KV1-M73A0-44X MULTI CAM.SUB ASSY 1 50M
33 KV7-M7542-00X AR SHEET 1
34 KV1-M6474-00X LED DRIVER BO.ASSY 1
34-1 KV1-M6474-01X KV1 LED DRIVER ASSY 1 (2002/11/21) M2X0060 OK
34-2 KV1-M6474-02X LED DRIVER BRD,ASSY 1 (2005/7/6) MB70024 OK
34-3 KV1-M6474-03X LED DRIVER BRD,ASSY 1 (2006/2/20) MC20004 OK
34-4 KV1-M6474-04X LED DRIVER BRD,ASSY 1 Use this latest part (2008/5/29) ME50098 OK
35 KV1-M7303-00X HOLDER, CAMERA 1 1
36 91317-05045 BOLT HEX.SOCKET HEAD 2
37 91317-03005 BOLT HEX.SOCKET HEAD 4
38 91317-03012 BOLT HEX.SOCKET HEAD 2
39 UEF4BU JOINT 1
40 BF4BU JOINT 1
41 92A08-05316 SCREW,SET 2
42 95307-05700 NUT HEXAGON 2
45 91317-04005 BOLT HEX.SOCKET HEAD 8
46 KV7-M755S-00X M.LIGHT BOARD SET 1 (2007/6/5) MD50050
47 90166-02J210 SCREW 8 (2007/5/14) MD40062 Set
48 KW7-M7529-00X PLATE,NUT 4 (2007/6/1) MD60001
2
9

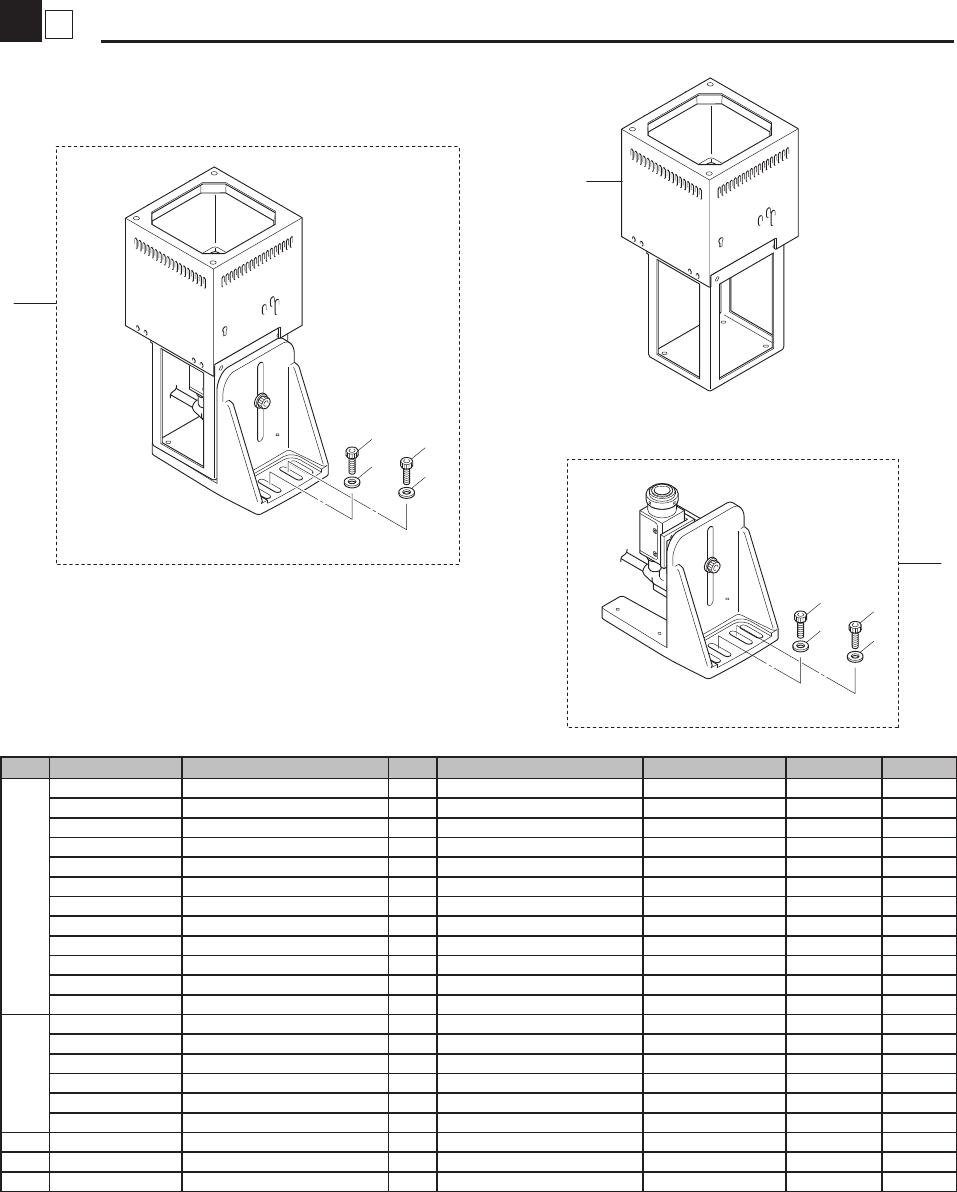

Single Camera & Light (OP)
Camera
KGA-090604
1
4
5
4
5
4
5
4
5
3
2
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGA-M72C0-31X C+L FOV37-F-C 1 37mm-Front-Cascade
KGA-M72C0-32X C+L FOV37-B-C 1 37mm-Rear-Cascade
KGA-M72C0-33X C+L FOV37-F-D 1 37mm-Front-Direct
KGA-M72C0-34X C+L FOV37-B-D 1 37mm-Rear-Direct
KGA-M72C0-41X C+L FOV50-F-C 1 50mm-Front-Cascade
KGA-M72C0-42X C+L FOV50-B-C 1 50mm-Rear-Cascad
KGA-M72C0-43X C+L FOV50-F-D 1 50mm-Front-Direct
KGA-M72C0-44X C+L FOV50-B-D 1 50mm-Rear-Direct
KGA-M72C0-51X C+L FOV60-F-C 1 60mm-Front-Cascade
KGA-M72C0-52X C+L FOV60-B-C 1 60mm-Rear-Cascade
KGA-M72C0-53X C+L FOV60-F-D 1 60mm-Front-Direct
KGA-M72C0-54X C+L FOV60-B-D 1 60mm-Rear-Direct
2
KGA-M72B0-31X CAM.FOV37-F 1 37mm-Front (Can not sell)
KGA-M72B0-32X CAM.FOV37-B 1 37mm-Rear (Can not sell)
KGA-M72B0-41X CAM.FOV50-F 1 50mm-Front (Can not sell)
KGA-M72B0-42X CAM.FOV50-B 1 50mm-Rear (Can not sell)
KGA-M72B0-51X CAM.FOV60-F 1 60mm-Front (Can not sell)
KGA-M72B0-52X CAM.FOV60-B 1 60mm-Rear (Can not sell)
3 KGA-M7400-00X SINGLE LIGHT ASSY 1 (Can not sell)
4 91317-06020 BOLT HEX. SOCKET HEAD 3
5 92907-06200 WASHER, PLAIN 3
Cascade : from Rear Camera Direct : from Vision Board
