OM-1683
1. Scope
In the dual transfer mode (PCB transfer using two transfer lanes), the PCBs
with the size (Direction Y) up to 250 mm, can be produced simultaneously.
The transfer specications do not comply with the SMEMA transfer
standards.

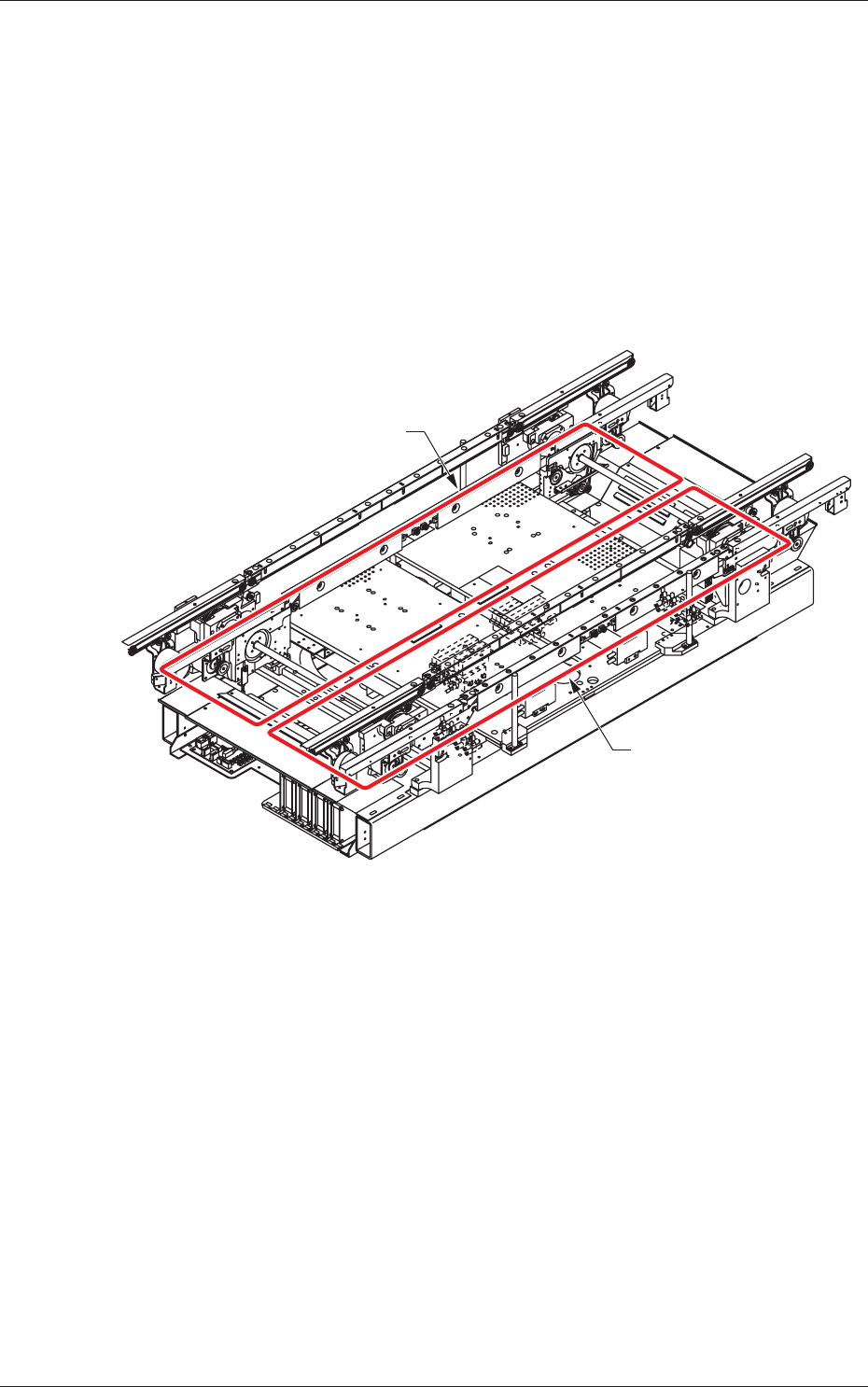

2. Rough View of Machine
Front Side of Machine
Lane A
Lane B
Fig. 1
1103-001
1. Scope
2
OM-1683
3. Automatic Operation
This window enables you to view the current operation status and production
condition such as the production model names (pattern program names), etc.,
and the information on the prospective number of nished PCBs and presumable
deterioration in the operation rate based on pickup errors, etc.
Reference
Refer to "2.1 "Local" Window" in Chapter 1, Volume 2, in the SIGMA-G5 main
machine instruction manual for the information other than for dual transfer.
[1]
[2]

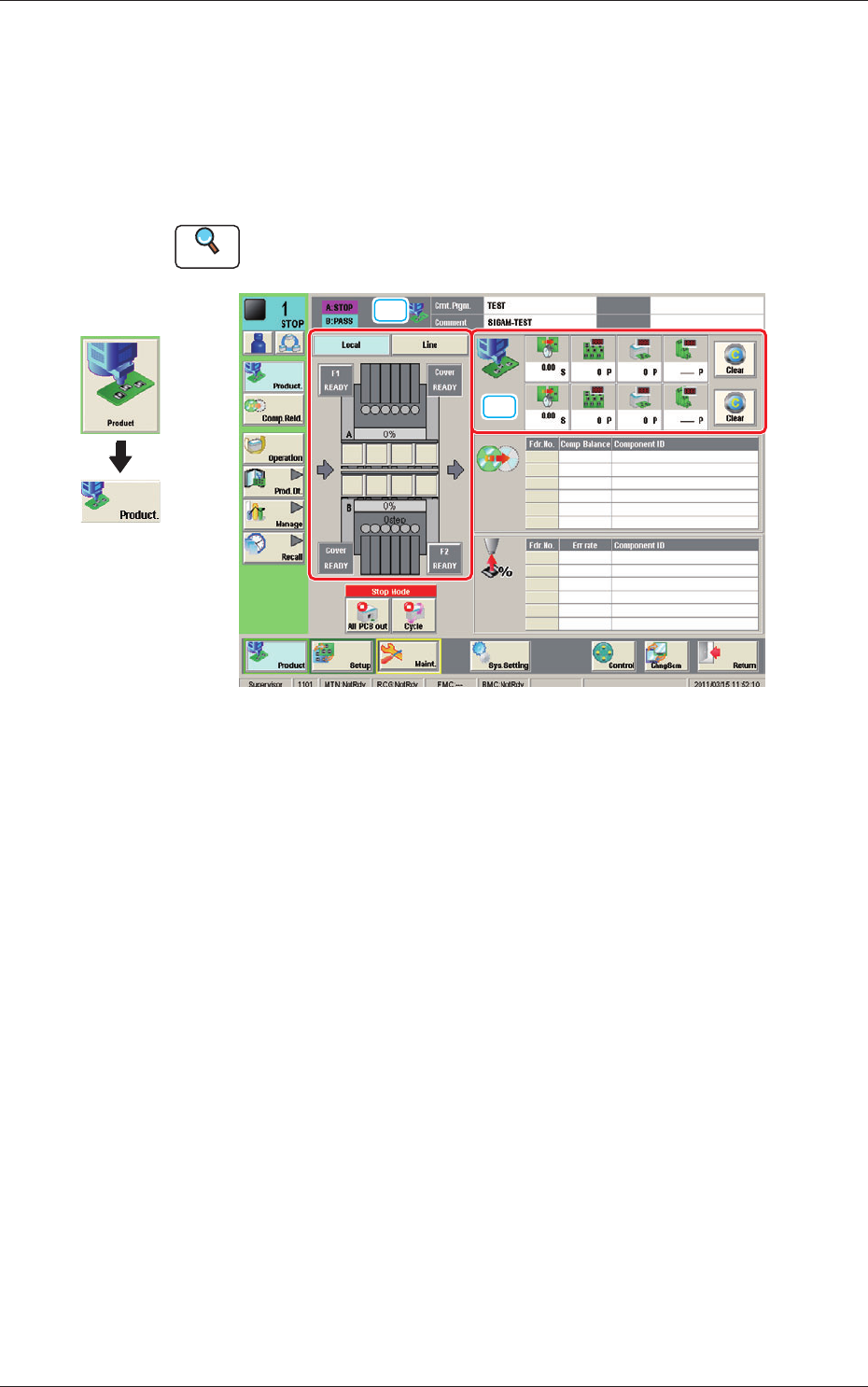

Fig. 2 Automatic Operation
Graphic
Development
1103-001
3. Automatic Operation
3
OM-1683
[1] Graphic Display Area
The graphic image of the PCB transfer and component input sections is displayed in this area.
Fig. 3 Graphic Display Area
Note
The displayed contents will differ depending on selection of the options.
Local/Line Change Buttons
Using these buttons, the graphic display section is changed.
Note
When the line consists of a single unit, the line control change button is
not displayed.
[Local] Button
: When this button is pressed, the graphic image of the single
machine is displayed.
[Line] Button
: When this button is pressed, the graphic image of the line is
displayed.
The line start or line stop after the completed PCB is
discharged from the line, is performed.
Reference
Refer to "3.1 "Line" Window" for the details.
