13.1 Outline of Maintenance
13.1.2.2 Preparation for Lubrication
Prepare for the specied types of grease and lubrication tools.
Specied
Greases
•
DAPHNE EPONEX GREASE No. 1 (IDEMITSU KOSAN)
Note
Before lubrication, wipe off old grease. Otherwise, the effect of grease and oil
will decrease.
Same Types of Lubricants
•
Grease
Types equivalent to DAPHNE EPONEX GREASE No. 1 (IDEMITSU
KOSAN)
Table 2
Grease Names Makers
Alvania Grease No. 1 Showa Shell Sekiyu K.K
Multinoc Grease 1 NIPPON OIL CORPORATION
Jomo Lisonix Grease No. 1 JAPAN ENERGY CORPORATION
Dynamax No. 1 COSMO OIL LUBRICANTS
Lithtan 1 ESSO OIL
MP Grease No. 1 KYGNUS
Gemico MP-1 Tonen General Sekiyu K.K
Multemp PS1 KYODOH YUSHI CO., LTD.
29
OM-1683
1103-001
13.1 Outline of Maintenance
Speciedlubricationtools
(1) Brush
Use a brush whose bristles do not come off if possible.
Notice
Do not use a brush for ball screws and splines.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.
(3)
Hand Grease Gun
Standard : KH-120
Part No. : 228A022
Maker
: Yamada Corporation
Note
Use this gun only for DAPHNE EPONEX GREASE No. 1.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.

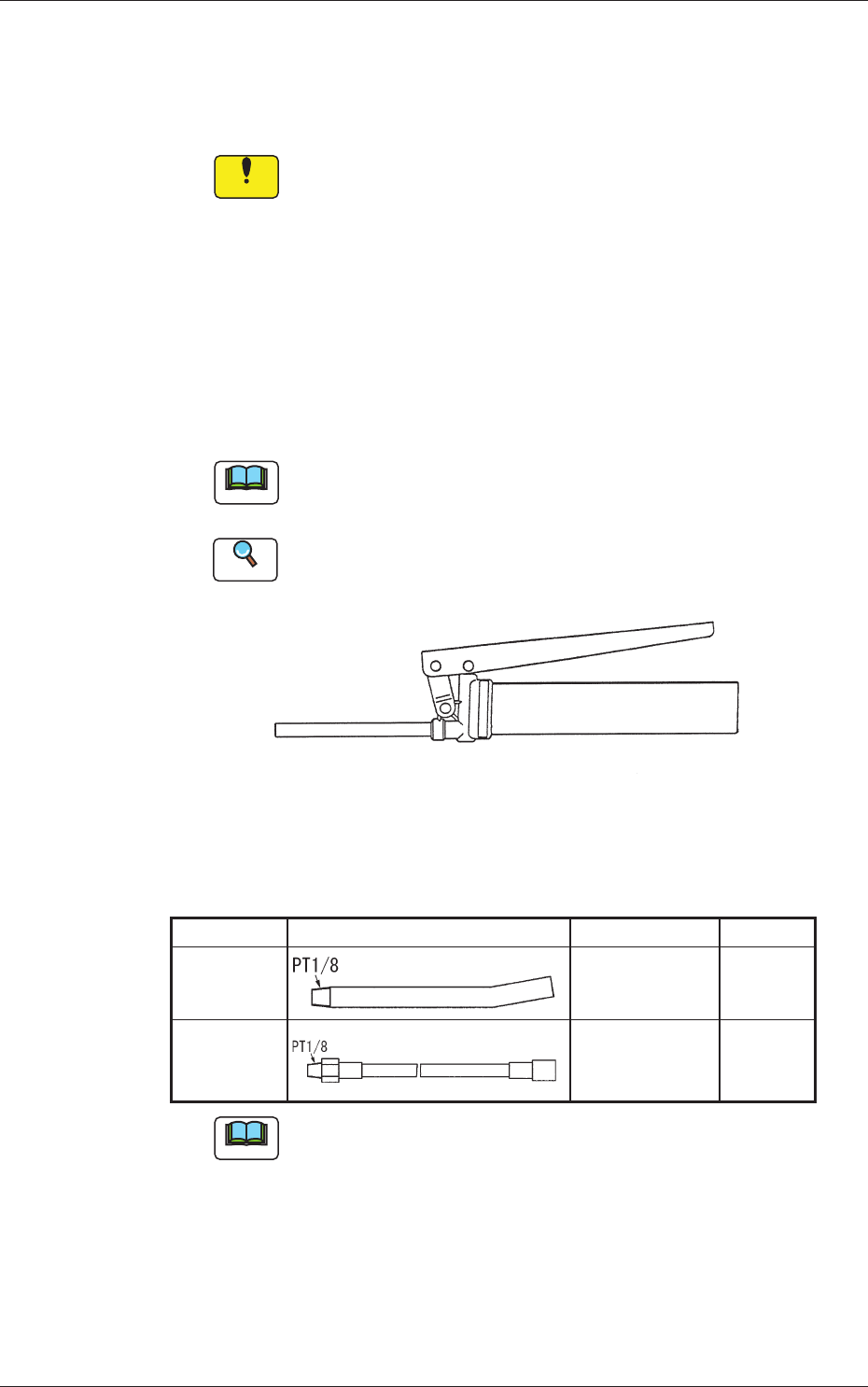

Fig. 27
•
Attachment for Hand Grease Gun KH-120
Table 3
Standard Shape Part No. Remarks
Type H
216M0439 THK
SPK-3C
228A0021
Yamada
Corporation
Note
It is not attached to the machine. Purchase it separately if necessary.
30
OM-1683
1103-001
13.1 Outline of Maintenance
(4) Syringe
Maker : TERUMO
This gun can be used for two types of greases.
Use the syringes and the nozzle properly.
Two Types of Greases
: DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance

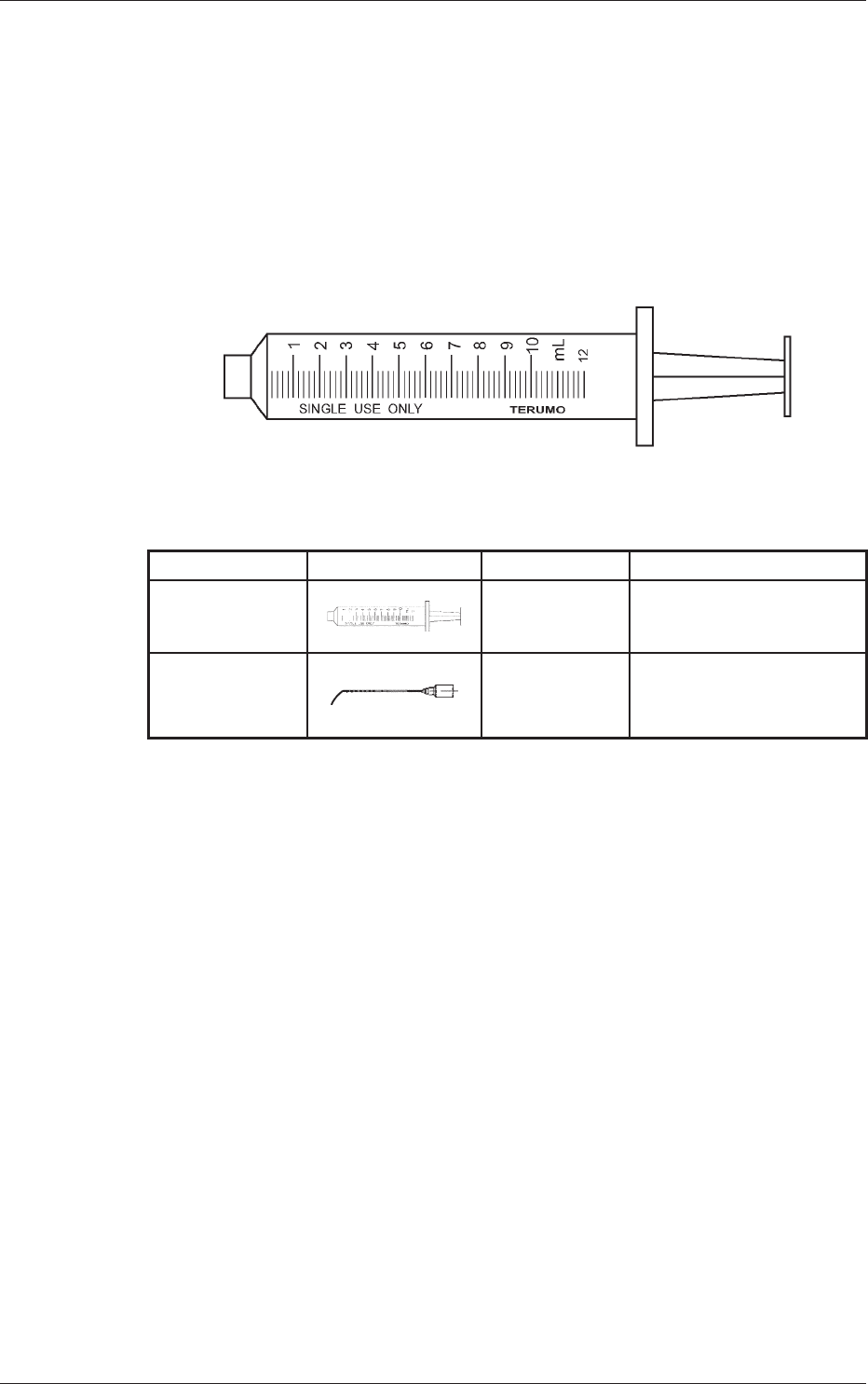

Fig. 28
Table 4
Standard Shape Part No. Remarks
Syringe
228A0171
Maker : TERUMO
10 ml SS-10-LZ
Nozzle No.19
(Color : Brown)
0916D108
Maker : NIPRO
Inside Diameter : f 0.79
Length : 65 mm Flat End
