36 OM-1683 1 103-001 13.3 Maintenance Spots Support Pin Detection Sensors Support Pin Detection Sensors (6 places) Every W eek Cleaning Required T ime: 1 minute Clean the support pin detection sensors with a rag. Fig. 32
35
OM-1683
1103-001
13.3 Maintenance Spots

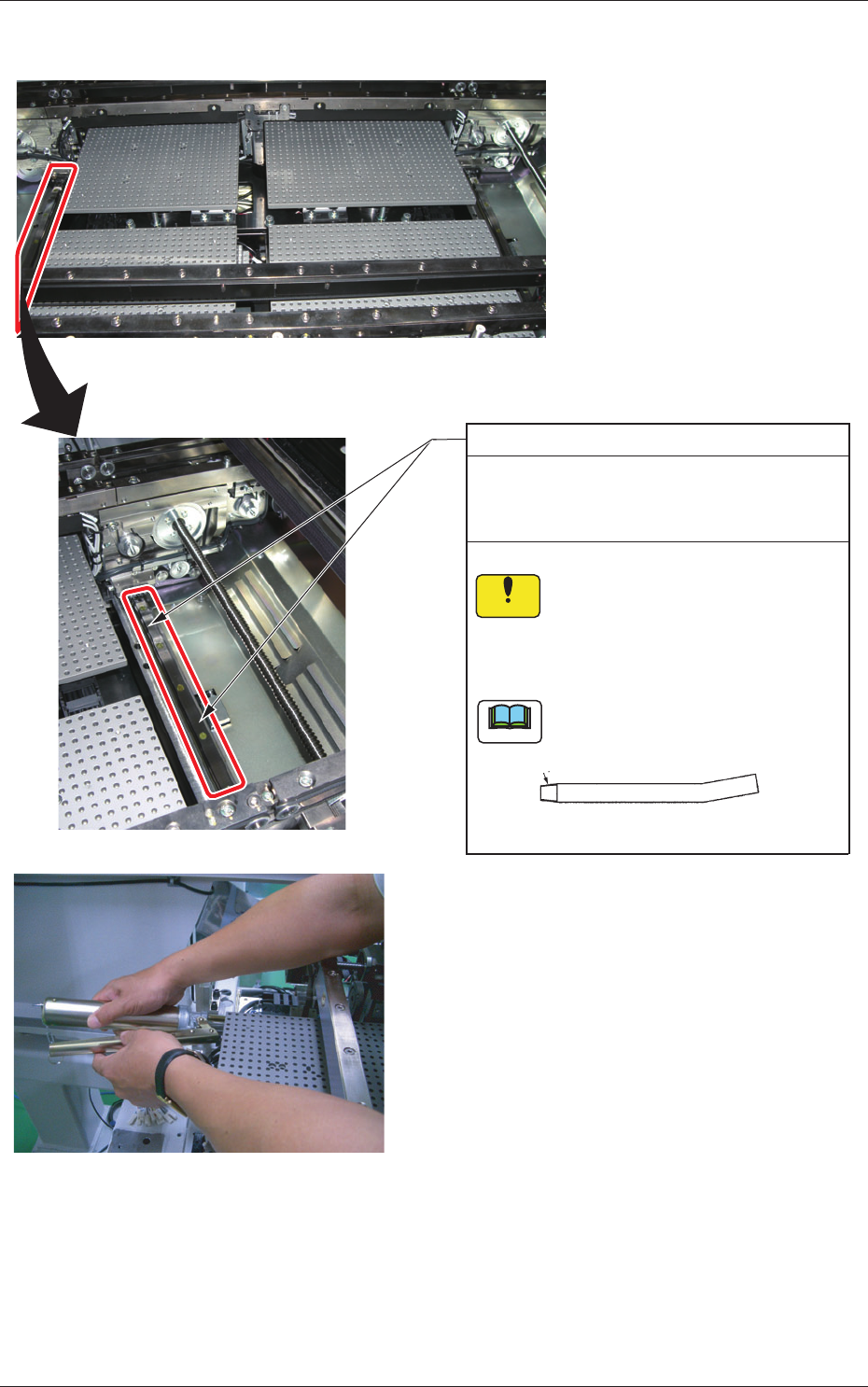

13.3.2.2 Conveyor Section
Type H
PT1/8
Lubrication Work Example
Linear Guides (2 places)
Every 3 Months Cleaning and Lubrication
(DAPHNE EPONEX GREASE No. 1)
Required Time: 5 minutes
Wipe off old grease with an oiled rag.
Take ample care not to leave any
waste threads after cleaning.
Use type H nozzle.
Notice
Note
Attach the H-type attachments to a hand grease
gun and supply new grease to the grease nipples
with the hand grease gun.
Fig. 31
36
OM-1683
1103-001
13.3 Maintenance Spots

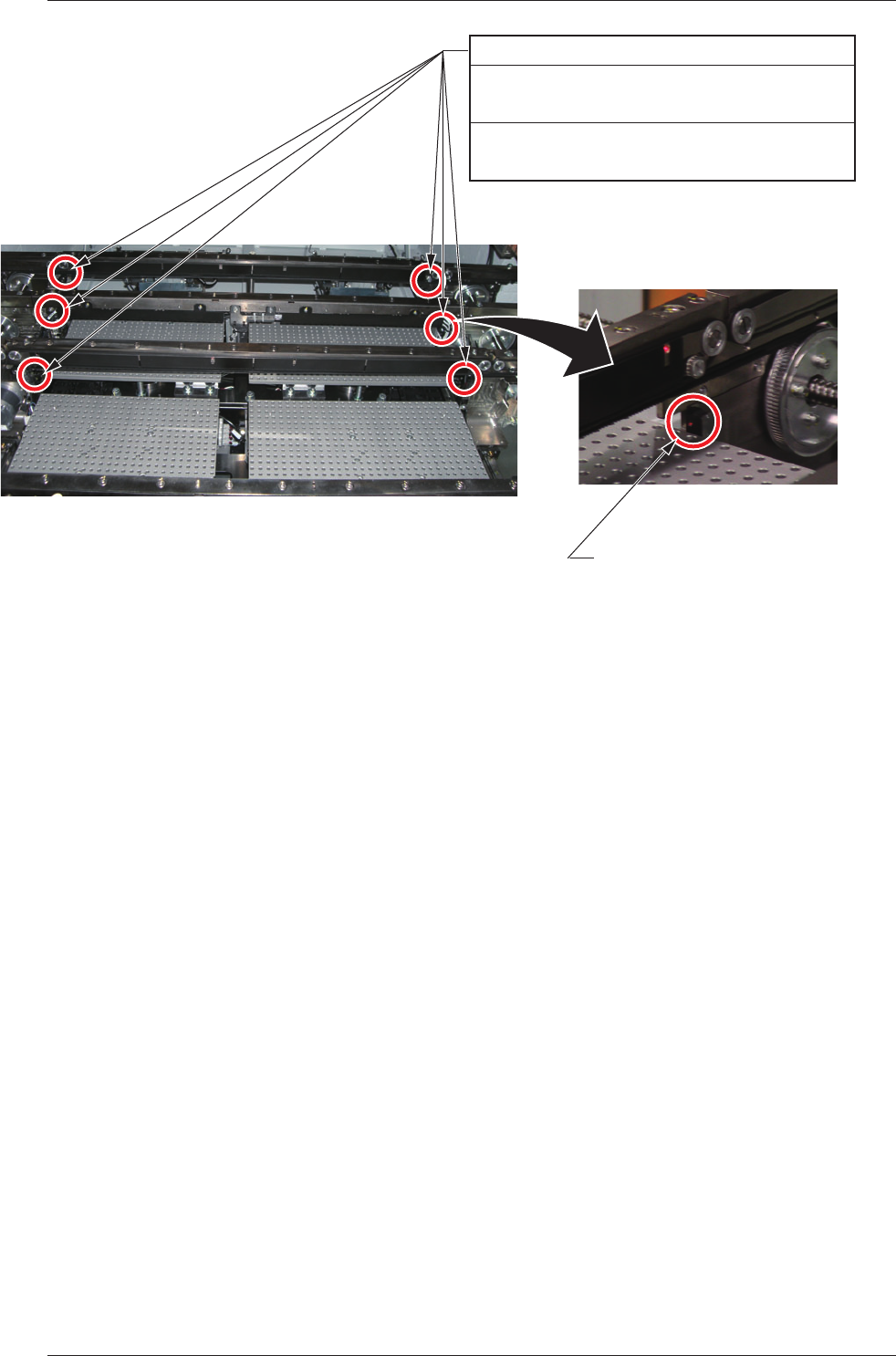

Support Pin Detection Sensors
Support Pin Detection Sensors (6 places)
Every Week Cleaning
Required Time: 1 minute
Clean the support pin detection sensors with
a rag.
Fig. 32
37
OM-1683
1103-001
13.3 Maintenance Spots
PCB Detection Sensor Mirror
At the time of Dual Transfer (Arrangement Image Diagram)
PCB Detection
Sensor Mirror
PCB Detection Sensors
PCB Detection Sensors
PCB Detection Sensor Fiber
P
CB
Detection Sensor Fiber
PCB Detection Sensors (6 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
PCB Detection
Sensor
Fiber (4 places)
PCB Detection Sensor Mirror
(4 places)
PCB Detection Sensor Mirror
P
CB
Detection Sensor Fiber
PCB Detection Sensors
PCB Detection Sensors
Fig. 33
