37
OM-1683
1103-001

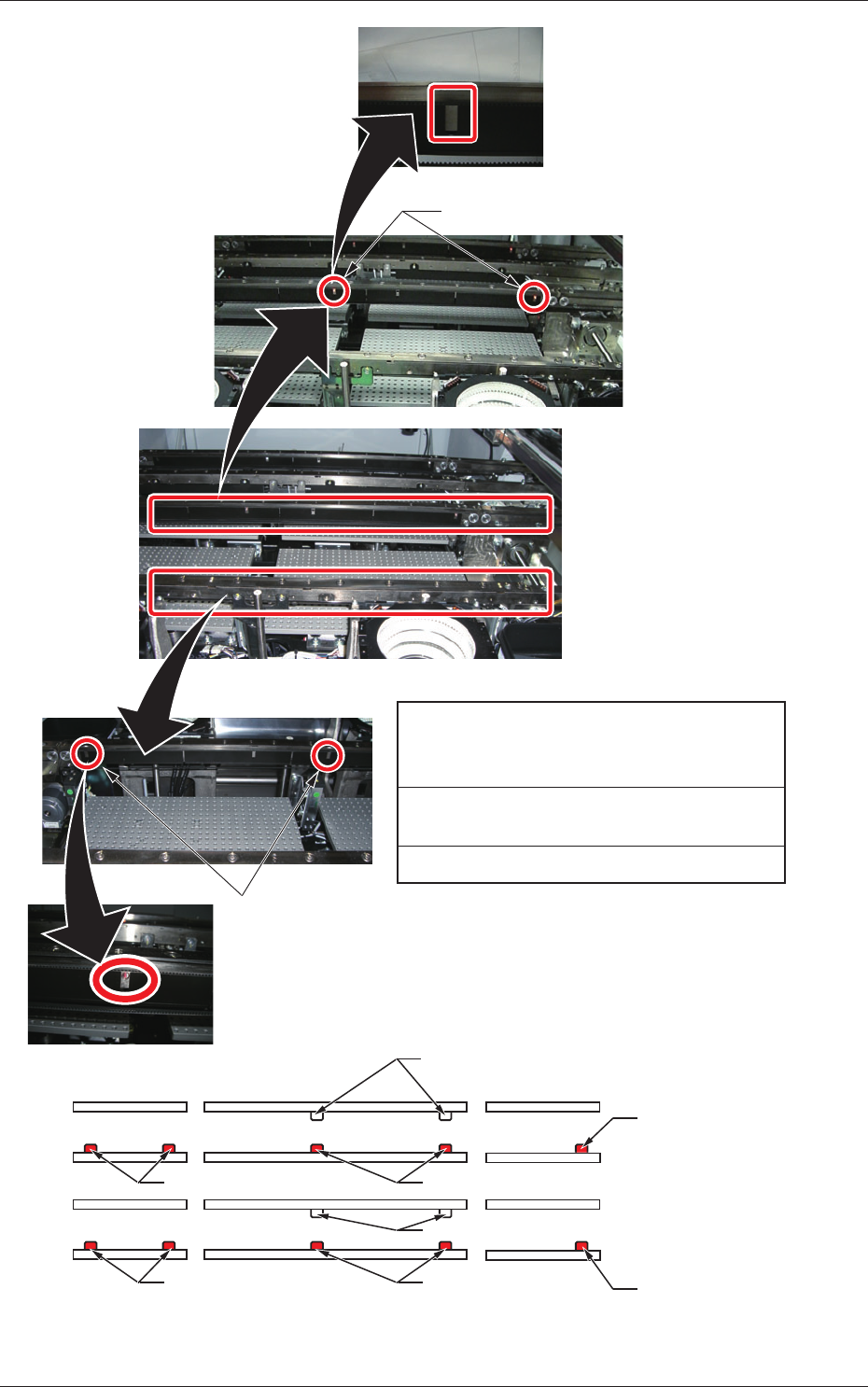

13.3 Maintenance Spots
PCB Detection Sensor Mirror
At the time of Dual Transfer (Arrangement Image Diagram)
PCB Detection
Sensor Mirror
PCB Detection Sensors
PCB Detection Sensors
PCB Detection Sensor Fiber
P
CB
Detection Sensor Fiber
PCB Detection Sensors (6 places)
Every Week Cleaning
Required Time: 2 minutes
Clean the PCB detection sensors with a rag.
PCB Detection
Sensor
Fiber (4 places)
PCB Detection Sensor Mirror
(4 places)
PCB Detection Sensor Mirror
P
CB
Detection Sensor Fiber
PCB Detection Sensors
PCB Detection Sensors
Fig. 33
38
OM-1683
1103-001
14. List of Important Servicing Parts
14. List of Important Servicing Parts
Listed below are the parts for which maintenance work is required in several
years. The list below is provided for your reference.
Note
Since replacement work of important service parts requires highly
sophisticated technique, consult our service personnel for details.
Table 9
Block
Name
Product Name Part No. Part Name Q'ty
Recommended
# of years
Note(a)
Exploded
Illustration
Remarks
Conveyor
Section
Transfer Pulley 223Q0663 PULLEY,TIMING 24 5
Transfer Pulley 223Q0755 PULLEY,FLAT,TIMING 4 5
Transfer Pulley 223M0059 PULLEY,FLAT 16 5
Transfer Belt 223L0383 PULLEY,TIMING 4 3
Transfer Belt 223L0384 PULLEY,TIMING 8 3
39
OM-1683
1103-001-(02300)
15. Pneumatic and Electrical Diagrams
15. Pneumatic and Electrical Diagrams
15.1 Pneumatic and Mounting Diagrams
Conveyor (Pneumatic Diagram)
From Main Body
PCB Stopper AL
PCB Stopper AR
4
2
8
8
5
Fixed
14
13
13
11
12
16
10
15
9
7
14
3
1
Movable Chute 1Z Clamp L
Movable Chute 2Z Clamp L
Movable Chute 3Z Clamp L
Fixed Chute Z Clamp L
Movable Chute 1Z Clamp R
Movable Chute 2Z Clamp R
Movable Chute 3Z Clamp R
Fixed Chute Z Clamp R
7
PCB Stopper BL
PCB Stopper BR
No. Name Q’ty No. Name Q’ty No. Name Q’ty No. Name Q’ty
1 Tube
φ
3.2 1 11 Speed Controller 8
2 Tube
φ
6 1 12 Speed Controller 8
3 Half Nipple 1 13 Movable Chute 2 Unit 1
4 Union Y 1 14 Movable Chute 3 Unit 1
5 Solenoid Valve 1 15 PCB Stopper BL 1
6 Solenoid Valve 1 16 PCB Stopper BR 1
7 Fixed Chute Unit 1
8 Movable Chute 1 Unit 1
9 PCB Stopper AL 1
10 PCB Stopper AR 1
