43 OM-1683 Conveyor Section Layout (Inside : A-Lane) Symbol Name Symbol Name M53 NA-BAL B5301 Backup Base 1 Origin Sensor Limit (+) M54 NA-BAR B5301 Amp Amplier Y0834 Movable 1,2LZClamp Cylinder V alve (A: Descent) B540…

100%1 / 83
42
OM-1683

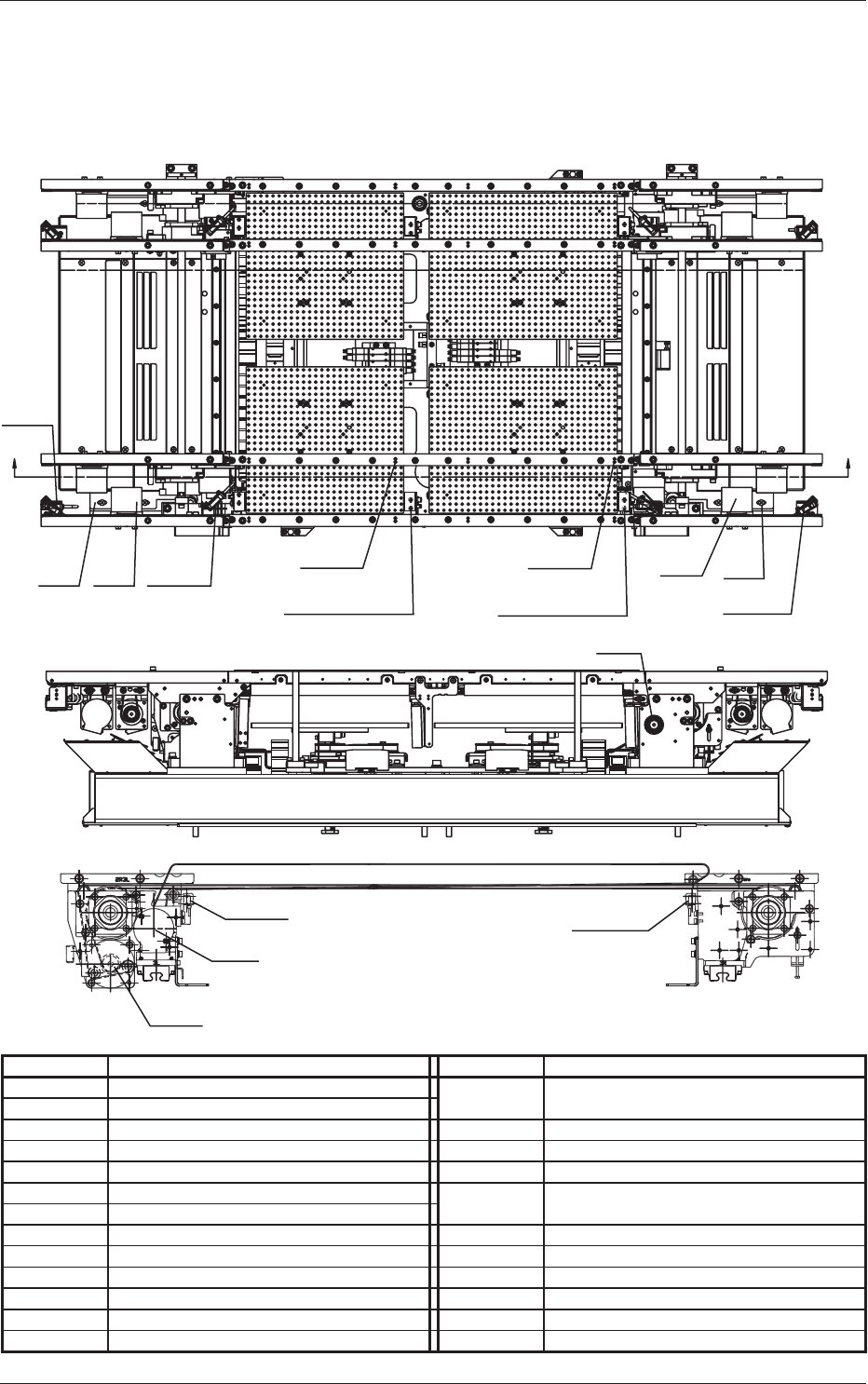

Conveyor Section Layout (Outside : B-Lane)
Symbol Name Symbol Name
M45 NL-LB1 B4501 Lane B Deceleration Sensor (L Flow),
M46 NL-LB2 STOP Sensor (R Flow)
M47 NA-LB1 B4502 Lane B Stop Sensor Mounting Section 1
M48 NA-LB2 B4701 Lane B Stop Sensor Mounting Section 1
M51 NR-LB1 B4801 Lane B Stop Sensor Mounting Section 2
M52 NR-LB2 B5101 Lane B Stop Sensor (L Flow),
M163 NA Chute Width Changeable (3) Deceleration Sensor (R Flow)
B1414 PCB Stopper AL Upper Sensor
B1415 PCB Stopper AL Origin Sensor
B1416 PCB Stopper AR Upper Sensor
B1417 PCB Stopper AR Origin Sensor
B0820
Movable Chute Backup Pin Sensor 3 (Light Reception)
B0820T
Movable Chute Backup Pin Sensor 3 (Light Emission)
1103-001
15.2 Sensor and Load Layout
M163
B0820
$6
M48
VIEW“C”
M47
CC
B4502
M45
M46
B4701
B1414,1415
B4801
B5101
M52 M51
B1416,1417
B4501
43
OM-1683

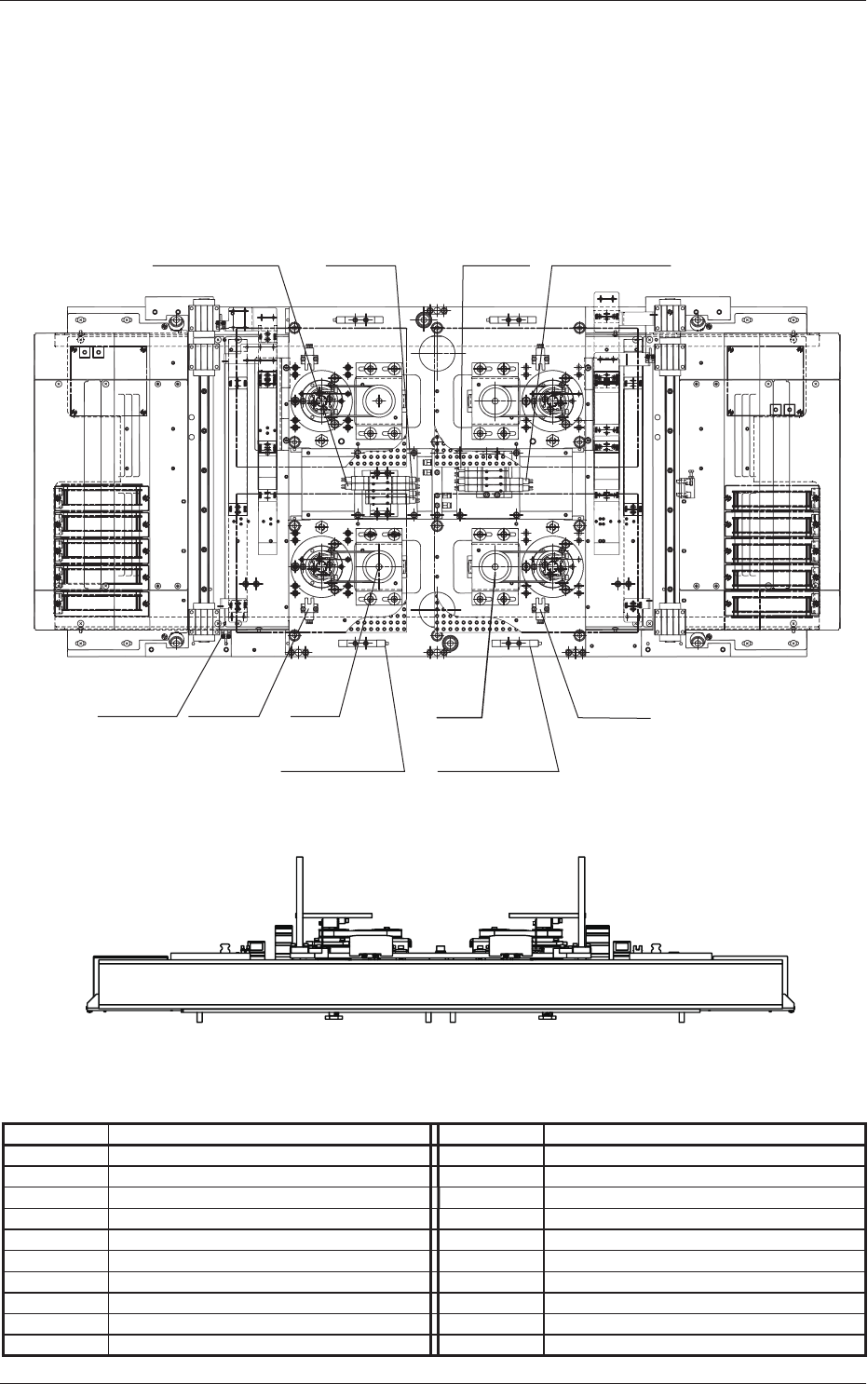

Conveyor Section Layout (Inside : A-Lane)
Symbol Name Symbol Name
M53 NA-BAL B5301 Backup Base 1 Origin Sensor Limit (+)
M54 NA-BAR B5301 Amp Amplier
Y0834
Movable 1,2LZClamp Cylinder Valve (A: Descent)
B5401 Backup Base 2 Origin Sensor Limit (+)
Y0835
Movable 1,2LZ Clamp Cylinder Valve (B: Ascent)
B5401 Amp Amplier
Y0838 PCB Stopper AL B16101 Movable Chute 1 Origin Sensor
Y1434
Movable 1,2RZ Clamp Cylinder Valve (A: Descent)
B16201 Movable Chute 2 Origin Sensor
Y1435
Movable 1,2RZ Clamp Cylinder Valve (B: Ascent)
Y1438 PCB Stopper AR
1103-001
15.2 Sensor and Load Layout
B5301 Amp
B5401 Amp
B5301 M53
B16101
B16201
M54
B5401
Y0834,0835
Y0838 Y1438 Y1434,1435
44
OM-1683

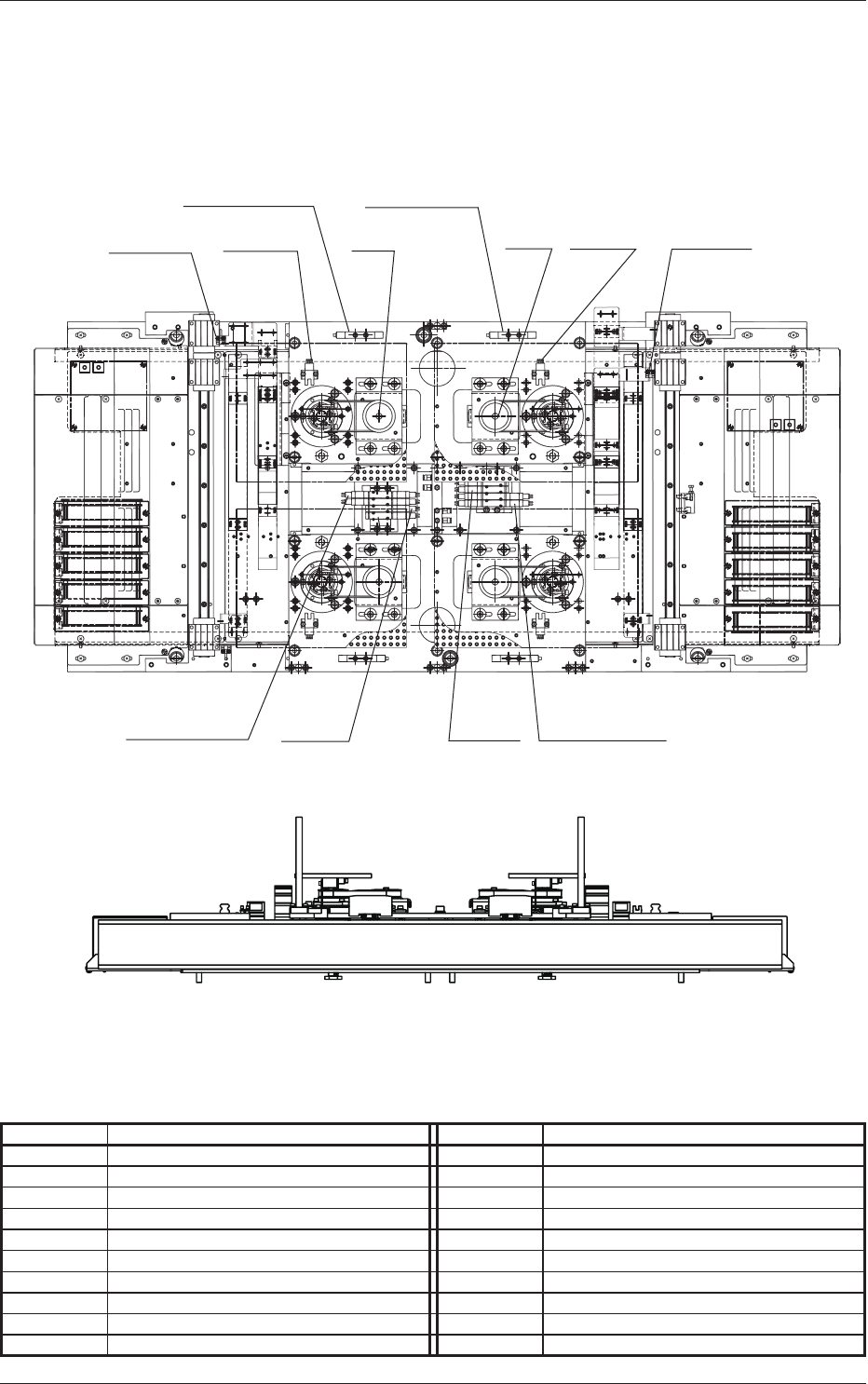

Conveyor Section Layout (Inside : B-Lane)
Symbol Name Symbol Name
M55 NA-BBL B5501 Backup Base 1 Origin Sensor Limit (+)
M56 NA-BBR B5501 Amp Amplier
Y0836
Movable 3LZClamp Cylinder Valve (A: Descent)
B5601 Backup Base 2 Origin Sensor Limit (+)
Y0837
Movable 3LZ Clamp Cylinder Valve (B: Ascent)
B5601 Amp Amplier
Y0839 PCB Stopper BL B16301 Movable Chute 3 Origin Sensor
Y1436
Movable 3RZ Clamp Cylinder Valve (A: Descent)
Y1437
Movable 3RZ Clamp Cylinder Valve (B: Ascent)
Y1439 PCB Stopper BR
1103-001
15.2 Sensor and Load Layout
Y0836,0837
Y1436,1437
Y0839
Y1439
B5501 Amp
B5601 Amp
B5601
M56
M55
B16301
B5501
