KGJ_YVPXg_PL
P AR TS LIST YVP-Xg KGJ-0805(PL) Solder P aste Printer
Contents
6 Camera Section
Mask Camera .......................................................6-1
PCB Camera ........................................................6-2
Inspection Camera (Op.) ......................................6-3
7 Conveyor Unit Section
Main Stopper ........................................................7-1
Exit Stopper ..........................................................7-2
Board Stopper ......................................................7-3
Edge Clamp ..........................................................7-4
Matrix Plate ...........................................................7-5
Option (PCB Support)...........................................7-6
Option (PCB Push) ...............................................7-7
Option (PCB Vacuum) ..........................................7-8
Conveyor 1 ...........................................................7-9
Conveyor 2 .........................................................7-10
8 Buffer Conveyor (Op.) Section
Buffer Conveyor 1 (Op.) .......................................8-1
Buffer Conveyor 2 (Op.) .......................................8-2
9 Controller Section
Main Box ...............................................................9-1
10 Exterior, etc. Section
Exterior,etc ..........................................................10-1
Key Board ...........................................................10-2
Temp. Con. Spare Assy ......................................10-3
1 Base Section
Base .....................................................................1-1
2 Cover Section
Top Cover .............................................................2-1
Door Cover ...........................................................2-2
3 Moving-axis Section
SZ-axis. ................................................................3-1
SY-axis:Base. .......................................................3-2
SY-axis:MASK Clamp. ..........................................3-3
SY-axis:Cover Frame. ..........................................3-4
X/Y-axis. ...............................................................3-5
R-axis. ..................................................................3-6
Z PU Table 1. ........................................................3-7
Z PU Table 2. ........................................................3-8
4 Head Section
SQG. Head. ..........................................................4-1
Head Change Unit ................................................4-2
SQG Head Unit (Change Head). ..........................4-3
Pressure Module (Enclosed Head).......................4-4
Transfer Head (Enclosed Head). ..........................4-5
SQG. Assy Sel. (Urethane SQG.) ........................4-6
SQG. Assy Sel. (Metal SQG.). .............................4-7
5 Cleaner Section
Cleaner Base .......................................................5-1
Cleaner Head 1 ...................................................5-2
Cleaner Head 2. ..................................................5-3
Blower Unit, etc.(Before October 2008) ...............5-4
Blower Unit, etc.(After November 2008) ...............5-5
1
1

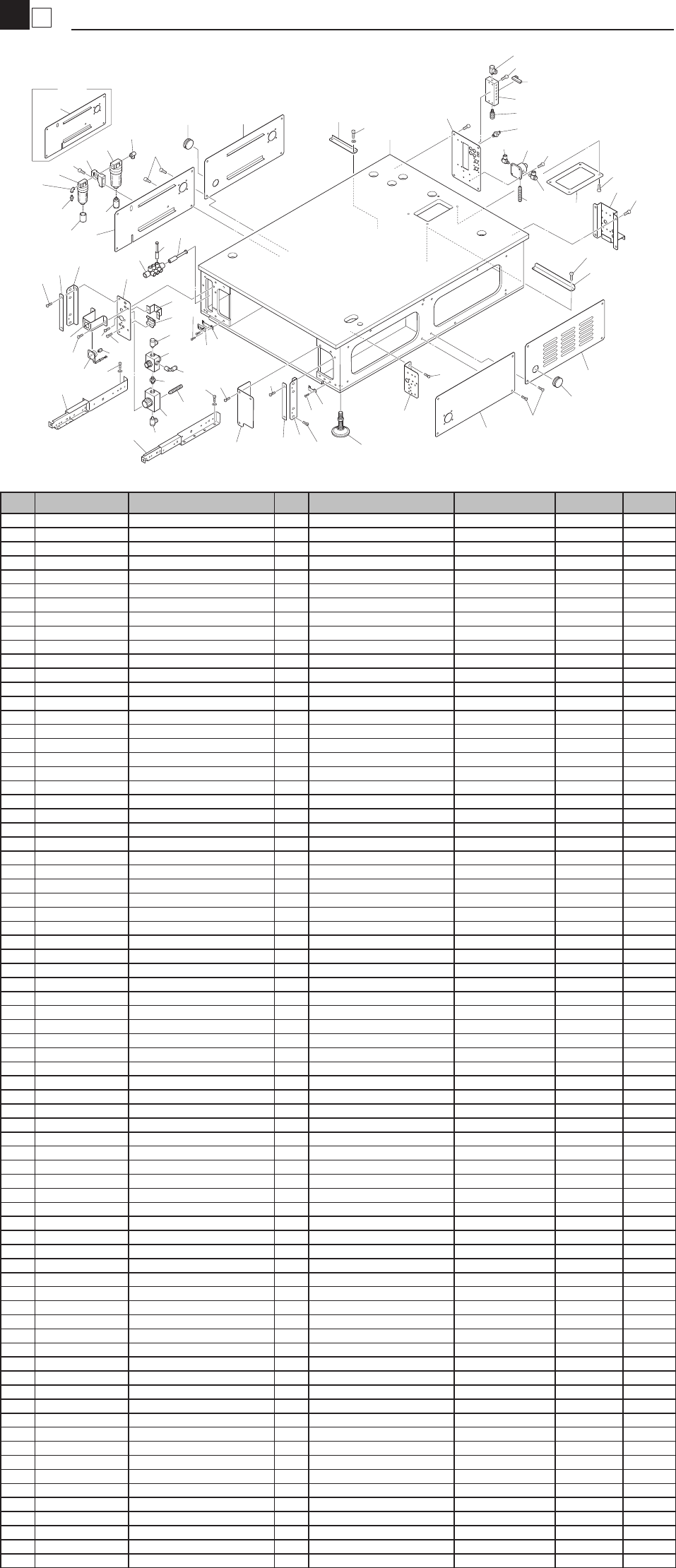

Base
Base
KGJ-081022
11
15
9
8
3
42
2
1
10
12
12
40
19
13
20
5
19
45
20
43
6
48
27
54
28
44
26
25
24
16
56
21
29
54
61
32
18
23
42
36
34
38
55
31
30
59
41
49
51
52
49
17
7
4
22
50
37
33
53
39
14
62
60
58
57
38
48
48
43
43
40
48
47
35
46
65
OLD
10
64
63
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M1101-03X BASE 1
2 KGA-M1180-00X LEVELING BOLT ASSY 4
3 KGJ-M1111-00X PLATE, BRAKER 1
4 KGJ-M1112-00X BRKT.1, POW. SUP. 1
5 KGJ-M1137-01X BRACKET, E/L 1
6 KGJ-M1138-00X COVER,E/L 1
6-1 KGJ-M1138-01X COVER,E/L 1 (2003/9/19) M390074 OK
7 KW3-M1118-00X COVER, MOTOR 1
8 KGJ-M1119-00X BASE PALTE SIDE 1 1
8-1 KGJ-M1119-01X BASE PLATE SIDE 1 1 (2007/6/1) MD50083 OK
9 KGJ-M1120-00X BASE PLATE SIDE 2 1
10 KGJ-M1121-00X BASE PALTE SIDE 3 1
10-1 KGJ-M1121-01X BASE PLATE SIDE 3 1 (2005/3/1) M420114 NG
11 KGJ-M1122-00X BASE PLATE SIDE 4 1
11-1 KGJ-M1122-01X BASE PLATE SIDE 4 1 (2007/6/1) MD50083 OK
12 KGA-M1391-00X PLUG(50) 2
13 KGA-M4126-00X GUIDE RAIL L ASSY 1
13-1 KGA-M4126-01X GUIDE RAIL L ASSY 1 (2003/3/6) M200012 NG
14 KGA-M4127-00X GUIDE RAIL R ASSY 1
14-1 KGA-M4127-01X GUIDE RAIL R ASSY 1 (2003/3/6) M200012 NG
15 KGJ-M1124-00X PLATE,VALVE 1
15-1 KGJ-M1124-01X PLATE,VALVE 1 (2004/5/7) M410097 OK
16 KGJ-M1125-00X PLATE, REG. 1
17 KGJ-M1126-00X BRKT., GAUGE 1
18 KW3-M1127-00X BRKT., SPEED C. 1
19 KGJ-M1128-00X BRKT., HINGE 4
20 KGJ-M1129-00X PLATE, HINGE 4
21 KW3-M1131-00X BRKT., REG. 1
22 KW3-M1134-01X BRKT. 1
23 K44-M1354-00X MG. CATCH (TL-152-2) 2
24 KG7-M8512-00X JOINT 1
24-1 90990-42J006 JOINT 1 (2008/6/17) ME30112 OK
25 KG7-M8513-00X JOINT 1
25-1 90990-42J008 JOINT 1 (2008/6/17) ME30112 OK
26 KG7-M8501-00X AIR FILTER 1
27 KG7-M8502-00X MIST FILTER 1
28 KG7-M8503-00X MODULE ADAPTER 1
29 KG7-M8504-00X REGULATOR (R300-03) 1
30 KG7-M8596-00X PRESSURE GAUGE 1 with joint
31 KH5-M8501-00X EXHAUST VALVE 1
32 KH5-M8531-00X FITTING 1 1
33 KM0-M8582-00X VALVE 1 040M12AJ1-7
34 KV7-M1125-00X PLATE CLAMP 3
35 KV8-M9212-00X VALVE 1
36 KV7-M1370-00X BRACKET MAGNET 2
37 $UK8 JOINT 4
38 $KM-23 MUFFLER 2
39 $KM-11 MUFFLER 1
40 90990-12J004 SCREW BIN.HEAD W/W 20
41 91312-04008 BOLT HEX.SOCKET HEAD 5
42 91312-05010 BOLT HEX.SOCKET HEAD 8
43 91312-05012 BOLT HEX.SOCKET HEAD 17
44 91312-06020 BOLT HEX.SOCKET HEAD 1
45 91317-03010 BOLT HEX. SOCKET HEAD 8
46 91317-03030 BOLT HEX. SOCKET HEAD 12
47 91317-04006 BOLT HEX.SOCKET HEAD 16
48 91317-05010 BOLT HEX. SOCKET HEAD 15
49 91317-04010 BOLT HEX. SOCKET HEAD 8
50 91317-06010 BOLT HEX. SOCKET HEAD 2
51 97602-03308 SCREW,PAN HEAD W/W 10
52 90990-11J003 SCREW,PAN HEAD W/W 2
53 $SL8-01 JOINT 1
54 $SL12-03 JOINT 2
55 $SL10-03 JOINT 1
56 $UEDW10-8 JOINT 1
57 $UP10 JOINT 1
58 $UP8 JOINT 3
59 $TSH4-M5M JOINT 1
59-1 Delete (2006/9/18) MC90053
60 $SL4-01 JOINT 1
61 $SL8-02 JOINT 2
62 $SL4-01 JOINT 1
63 KG7-M8502-40X MIST FILTER ELEMENT 1
64 KG7-M8501-40X AIR FILTER ELEMENT 1
65 KG2-M8582-40X VALVE 1 spare
