KGJ_YVPXg_PL - 第19页

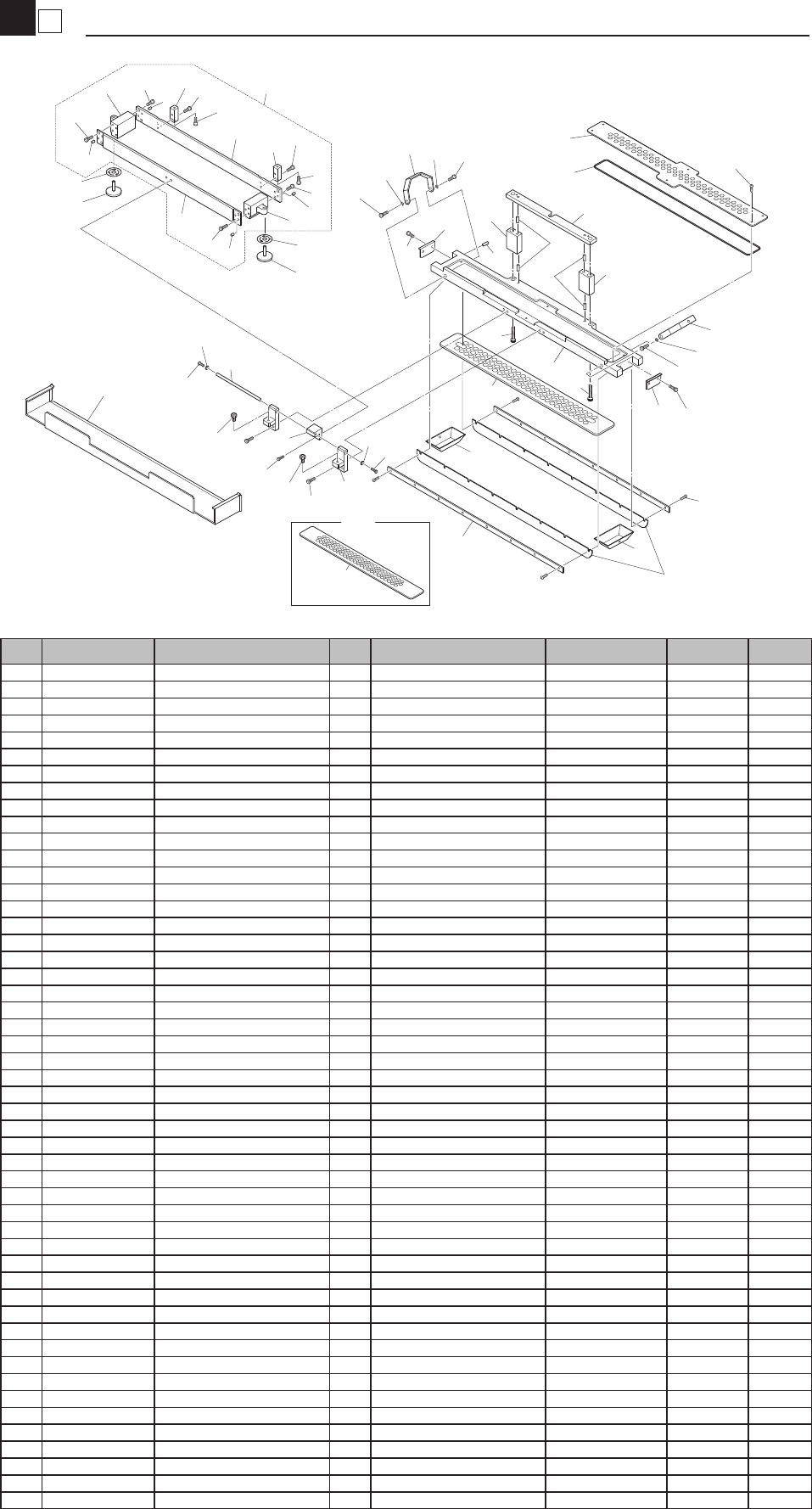

6 4 SQG.Assy Sel.(Urethane SQG.) Head KGJ-081023 SQG. 185 ASSY 1 URETHANE SQG. SELECTION URETHANE SQG. 250 ASSY 21 SQG. 350 ASSY 41 SQG. 400 ASSY 51 URETHANE SQG. 300 ASSY 31 7 6 5 2 7 13 12 15 12 15 14 14 10 10 1 1 1 1 …
5
4
Transfer head(Enclosed Head)
Head
KGJ-081023
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGJ-M7251-00X METAL WIPER 330 2
2
KGJ-M7252-00X SKI 2
3
KGJ-M7253-A0X PLATE 1 ,CARRIER 1
4
KGJ-M7253-B0X PLATE 2, CARRIER 1
5
KGJ-M7253-C0X HOLDER, THUMB SCREW
1
6
KGJ-M7253-D0X HOLDER, SCREW(LEFT) 1
7
KGJ-M7253-E0X HOLDER, BOLT 2
8 91314-03006 BOLT HEX.SOCKET HEAD 2
8-1 91312-03006 BOLT HEX.SOCKET HEAD 2 (2006/1/16) MBY0158 OK
9 91314-03008
BOLT HEX.SOCKET HEAD
4
9-1 91312-03008 BOLT HEX.SOCKET HEAD 4 (2006/1/16) MBY0158 OK
10 91314-03010 BOLT HEX.SOCKET HEAD 8
10-1 91312-03010 BOLT HEX.SOCKET HEAD 8 (2006/1/16) MBY0158 OK
11
99480-03008 PIN, PARALLEL 8
12
KGJ-M7254-00X HOLDER, HINGE PIN 2
13
KGJ-M7255-00X HINGE PIN 1
14
KGJ-M7256-00X HOLDER, CARRIER 1
15
KGJ-M7257-00X SKI RETAINER 2
16
KGJ-M7258-00X CLAMP BRACKET 2
17
KGJ-M7259-00X THUMB SCREW, RIGHT 1
18
KGJ-M7260-00X THUMB SCREW, LEFT 1
19
KGJ-M7261-00X TRANSFER HEAD 330 1
20
KGJ-M7262-00X RETAINER 330, WIPER 2
21
KGJ-M7263-00X GRID 330, TOP 1
22 KGJ-M7264-00X GRID 330,BOTTOM 1
22-1 KGJ-M7264-01X GRID 330,BOTTOM 1 2002/9/6 M280056 NG
23 KGJ-M7265-00X O-RING 330 1
23-1 90990-17J051 O-RING 1 (2007/11/21) MD00121 OK
24
KGJ-M7266-00X PLATE, TRANSFER 2
25 KGJ-M7267-00X TRANSFER,INDEXING 1
25-1 KGJ-M7267-01X TRANSFER,INDEXING 1 2003/3/20 M2Y0075 NG
26 KGJ-M7268-00X STOPPER,BOLT 2
26-1 90990-33J026 BOLT,STOPPER 2 (2008/6/18) ME20019 OK
27 KGJ-M7269-00X SPACE COLLER 4
27-1
90990-41J107 COLLAR 4 (2008/4/11) ME30019 OK
28
KGJ-M7270-00X PASTE COVER 1
29
KGJ-M7271-00X ARROW SEAL, RIGHT 1
30
KGJ-M7272-00X ARROW SEAL, LEFT 1
31
91317-03006 BOLT HEX. SOCKET HEAD 4
32
91317-03008 BOLT HEX. SOCKET HEAD 8
33
91317-03016 BOLT HEX. SOCKET HEAD 4
34
91317-06040 BOLT HEX. SOCKET HEAD 2
35
98980-03006 SCREW, BINDING HEAD 6
36
98980-03008 SCREW, BINDING HEAD 16
37 92A08-03003 SET SCREW M3X3 2
37-1 92A08-03303 SET SCREW M3X3 2 (2002/3/12) M230058 OK
38
99480-06012 PIN, PARALLEL 4
39
99480-03008 PIN, PARALLEL 2
40 KGJ-M7253-00X CARRIER ASSY 1
41 92907-03200 WASHER PLAIN 2
1
2
15
15
16
16
27
27
27
2
12
31
31
33
32
32
17
29
19
18
6
30
28
14
41
26
26
13
32
32
32
24
24
34
34
36
38
38
39
25
21
35
23
22
20
10
10
7
7
8
9
9
9
4
3
11
11
11
5
11
9
8
41
32
40
22
OLD
6
4
SQG.Assy Sel.(Urethane SQG.)
Head
KGJ-081023
SQG. 185 ASSY
1
URETHANE SQG. SELECTION
URETHANE SQG. 250 ASSY
21
SQG. 350 ASSY
41
SQG. 400 ASSY
51
URETHANE SQG. 300 ASSY
31
7
6
5
2
7
13
12
15
12
15
14
14
10
10
11
11
8
9
4
3
27
26
25
22
27
13
28
13
28
29
29
10
10
11
11
8
9
24
23
10
27
26
25
32
27
13
28
13
28
29
29
10
11
11
8
9
34
33
27
26
25
42
27
13
28
13
28
29
29
10
10
11
11
8
9
44
43
27
26
25
52
27
13
13
28
13
28
29
29
10
10
11
11
8
9
54
53
350Ass’y OLD185Ass’y OLD
42
43
55
55
400Ass’y OLD
52
53
55
55
2
53
56
56
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M710A-00X SQG. 185 ASSY 2
2 KGJ-M710A-A0X HOLDER 1,SQG.185 1
2-1 KGJ-M710A-A1X URETHANE HOLDER 1,18 1 (2003/9/12) M390042 NG
3 KGJ-M710A-B0X HOLDER 2,SQG.185 1
3-1 KGJ-M710A-B1X URETHANE HOLDER 2,18 1 (2003/9/12) M390042 OK
4 KGJ-M710A-E0X SQUEEGEE, 185 1
5 KGJ-M710A-G0X PLATE, SQG. 1 1
6 KGJ-M710A-H0X PLATE, SQG. 2 1
7 KGJ-M7168-00X PLATE, SQG. 3 2
8 KGJ-M710B-C0X SPACER PIPE 2
9 KGJ-M710B-D0X KNOB 1 2
9-1 KGJ-M710B-D1X KNOB 1 2 (2006/5/19) MC50016 OK
10 KW3-M7129-00X KONB 2 2
10-1 KGJ-M7178-00X KNOB 2 2 (2003/9/12) M390042
10-2 KGJ-M7178-01X KNOB 2 2 (2005/11/22) MBX0125 OK
10-3 KGJ-M7178-02X KNOB 2 2 (2006/5/19) MC50016 OK
11 KGJ-M7179-00X MAGNET 1 2
12 91317-03016 BOLT HEX. SOCKET HEAD 4
13 91317-04018 BOLT HEX. SOCKET HEAD 4
14 92A08-03306 SCREW, SET 2
15 92907-03600 WASHER PLAIN 4
21 KGJ-M71B0-00X URETHANE SQG. 250 ASSY 2
22 KGJ-M71B1-00X URETHANE HOLDER 1, 25 1
23 KGJ-M71B2-00X URETHANE HOLDER 2, 25 1
24 KGJ-M71B3-00X URETHANE SQG. , 250 1
25 KGJ-M710B-E1X PLATE, SQG. 1 1
26 KGJ-M710B-F1X PLATE, SQG. 2 1
27 KGJ-M7177-00X PLATE, SQG. 3 2
28 92907-04600 WASHER PLAIN 4
29 92A08-03305 SCREW, SET 2
31 KGJ-M71C0-00X URETHANE SQG. 300 ASSY 2
32 KGJ-M71C1-00X URETHANE HOLDER 1, 30 1
33 KGJ-M71C2-00X URETHANE HOLDER 2, 30 1
34 KGJ-M71C3-00X URETHANE SQG. , 300 1
41 KGJ-M710B-00X SQG. 350 ASSY 2
42 KGJ-M710B-A0X HOLDER 1,SQG.350 1
42-1 KGJ-M710B-A1X URETHANE HOLDER 1,35 1 (2003/9/8) M390032 NG
43 KGJ-M710B-B0X HOLDER 2,SQG.350 1
43-1 KGJ-M710B-B1X URETHANE HOLDER 2,35 1 2003/11/10 M390032 NG
44 KW3-M7126-00X SQUEEGEE, M 1
51 KGJ-M710C-00X SQG. 400 ASSY 2
52 KGJ-M710C-A1X URETHANE HOLDER 1,40 1
52-1 KGJ-M710C-A1X URETHANE HOLDER 1,40 1 (2003/9/8) M390040 NG
53 KGJ-M710C-B0X HOLDER 2,SQG.400 1
53-1 KGJ-M710C-B1X URETHANE HOLDER 2,40 1 2004/1/14 M390040 NG
54 KGJ-M710C-E0X SQUEEGEE, 400 1
55 KW3-M7128-00X PLATE,SQG. 2
55-1 Delete (2003/6/26) M390040
56 KGJ-M710A-F0X PLATE,SQG.185 2
56-1 Delete (2003/9/4) M310005
57 99480-04008 PIN,PARALLEL:4X8 2
57-1 Delete (2003/1/21) M310092
7
4
SQG.Assy Sel.(Metal SQG.)
Head
KGJ-1102
METAL SQG. 185 ASSY
1
METAL SQG. SELECTION
METAL SQG. 250 ASSY
21
METAL SQG. 350 ASSY
51
METAL SQG. 400 ASSY
61
METAL SQG. 300 ASSY
41
8
7
6
2
8
15
13
16
13
16
14
14
11
11
12
12
9
10
4
5
3
28
27
26
22
28
15
15
29
15
29
30
30
11
11
12
12
9
10
24
25
23
28
27
26
42
28
15
15
29
15
29
30
30
11
11
12
12
9
10
44
45
43
28
27
26
52
28
15
15
29
15
29
30
30
11
11
12
12
9
10
54
55
53
52
53
28
27
26
62
28
15
15
29
15
29
30
30
11
11
12
12
9
10
64
65
63
METAL SQG.
350Ass’y OLD
Fig.1 , Fig.2 Fig.3 , Fig.4
350Ass’y OLD185Ass’y OLD
52
53
66
66
400Ass’y OLD
62
63
66
66
2
68
67
67
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M7160-00X METAL SQG. 185 ASSY 2
2 KGJ-M7161-00X METAL HOLDER 1,185 1
2-1 KGJ-M7161-01X METAL HOLDER 1,185 1 2004/3/10 M380095 NG
3 KGJ-M7162-00X METAL HOLDER 2,185 1
3-1 KGJ-M7162-01X METAL HOLDER 2,185 1 (2002/10/9) M200022 OK
3-2 KGJ-M7162-02X METAL HOLDER 2,185 1 (2003/9/4) M380095 OK
4 KGJ-M7163-00X METAL SQG.,185 1 (2002/9/26)
4-1 KGJ-M7163-01X METAL SQG.,185 1 (2003/12/23) M3Y0011 OK
4-2 KGJ-M7163-02X METAL SQG.,185 1 (2004/3/5) M430028 OK
5 KGJ-M7164-00X EDGE PROTECTOR, 185 1
5-1 KGJ-M7164-01X EDGE PROTECTOR, 185 1 (2008/12/19) ME00008 OK
6 KGJ-M7166-00X PLATE, SQG. 1 1
7 KGJ-M7167-00X PLATE, SQG. 2 1
8 KGJ-M7168-00X PLATE, SQG. 3 2
9 KGJ-M710B-C0X SPACER PIPE 2
10 KGJ-M710B-D0X KNOB 1 2
10-1 KGJ-M710B-D1X KNOB 1 2 (2006/5/19) MC50016 OK
11 KW3-M7129-00X KONB 2 2
11-1 KGJ-M7178-00X KNOB 2 2 (2003/9/4) M380095
11-2 KGJ-M7178-01X KNOB 2 2 (2005/11/22) MBX0125 OK
11-3 KGJ-M7178-02X KNOB 2 2 (2006/5/19) MC50016 OK
12 KGJ-M7179-00X MAGNET 1 2
13 91317-03016 BOLT HEX. SOCKET HEAD 4
14 92A08-03304 SET SCREW 2
15 91317-04018 BOLT HEX. SOCKET HEAD 4
16 92907-03600 WASHER PLAIN 4
21 KGJ-M7190-00X METAL SQG. 250 ASSY 2
22 KGJ-M7191-00X METAL HOLDER 1, 250 1
23 KGJ-M7192-00X METAL HOLDER 2, 250 1
24 KGJ-M7193-00X METAL SQG.,250 1
24-1 KGJ-M7193-01X METAL SQG.,250 1 (2006/10/16) MC90101 OK
25 KGJ-M7194-00X EDGE PROTECTOR, 250 1
25-1 KGY-M71AB-00X TRIM, 250 1 (2008/12/19) ME00008 OK
26 KGJ-M7175-00X PLATE, SQG. 1 1
27 KGJ-M7176-00X PLATE, SQG. 2 1
28 KGJ-M7177-00X PLATE, SQG.3 2
29 92907-04600 WASHER PLAIN 4
30 92A08-03306 SCREW, SET 2
41 KGJ-M71A0-00X METAL SQG. 300 ASSY 2
42 KGJ-M71A1-00X METAL HOLDER 1, 300 1
43 KGJ-M71A2-00X METAL HOLDER 2, 300 1
44 KGJ-M71A3-00X METAL SQG. , 300 1
45 KGJ-M71A4-00X EDGE PROTECTOR, 300 1
45-1 KGY-M71BB-00X TRIM, 300 1 (2008/12/19) ME00008 OK
51 KGJ-M7170-00X METAL SQG. 350 ASSY 2
52 KGJ-M7171-00X METAL HOLDER 1,350 1 Fig.1
52-1 KGJ-M7171-01X METAL HOLDER 1,350 1 Fig.3 (2003/6/26) M360117 NG
52-2 KGJ-M7171-02X METAL HOLDER 1,350 1 (2007/7/18) MD70080 NG
53 KGJ-M7172-00X METAL HOLDER 2,350 1
53-1 KGJ-M7172-01X METAL HOLDER 2,350 1 (2002/10/9) M200022 OK
53-2 KGJ-M7172-02X METAL HOLDER 2,350 1 Fig.2 (2003/6/26) M360117 NG
53-3 KGJ-M7172-03X METAL HOLDER 2,350 1 Fig.4 (2003/7/16) M370071 OK
53-4 KGJ-M7172-04X METAL HOLDER 2,350 1 (2007/7/18) MD70080 NG
54 KGJ-M7173-00X METAL SQG.,350 1
54-1 KGJ-M7173-01X METAL SQG.,350 1 (2003/12/23) M3Y0011 OK
54-2 KGJ-M7173-02X METAL SQG.,350 1 (2004/3/5) M430028 OK
54-3 KGJ-M7173-03X METAL SQG.,350 1 (2006/10/16) MC90101 OK
55 KGJ-M7174-00X EDGE PROTECTOR, 350 1
55-1 KGY-M71CB-00X TRIM, 350 1 (2008/12/19) ME00008 OK
61 KGJ-M7180-00X METAL SQG. 400 ASSY 2
62 KGJ-M7181-00X METAL HOLDER 1,400 1
62-1 KGJ-M7181-01X METAL HOLDER 1,400 1 (2003/6/26) M360122 NG
63 KGJ-M7182-00X METAL HOLDER 2,400 1
63-1 KGJ-M7182-01X METAL HOLDER 2,400 1 (2002/10/9) M200022 OK
63-2 KGJ-M7182-02X METAL HOLDER 2,400 1 (2003/6/26) M360122 NG
63-3 KGJ-M7182-03X METAL HOLDRE 2,400 1 (2003/7/16) M370071 OK
64 KGJ-M7183-00X METAL SQG.,400 1
64-1 KGJ-M7183-01X METAL SQG.,400 1 (2003/12/23) M3Y0011 OK
64-2 KGJ-M7183-02X METAL SQG.,400 1 (2004/3/5) M430028 OK
64-3 KGJ-M7183-03X METAL SQG.,400 1 (2006/10/16) MC90101 OK
65 KGJ-M7184-00X EDGE PROTECTOR, 400 1
65-1 KGY-M71DB-00X TRIM, 400 1 (2008/12/19) ME00008 OK
66 KW3-M7128-00X PLATE,SQG. 2
66-1 Delete (2003/6/26) M390040
67 KGJ-M7165-00X PLATE,METAL 185 2
67-1 150 Delete (2003/9/4) M310005
68 99480-04008 PIN,PARALLEL:4X8 2
68-1 Delete (2003/1/21) M290064
