KGJ_YVPXg_PL - 第20页

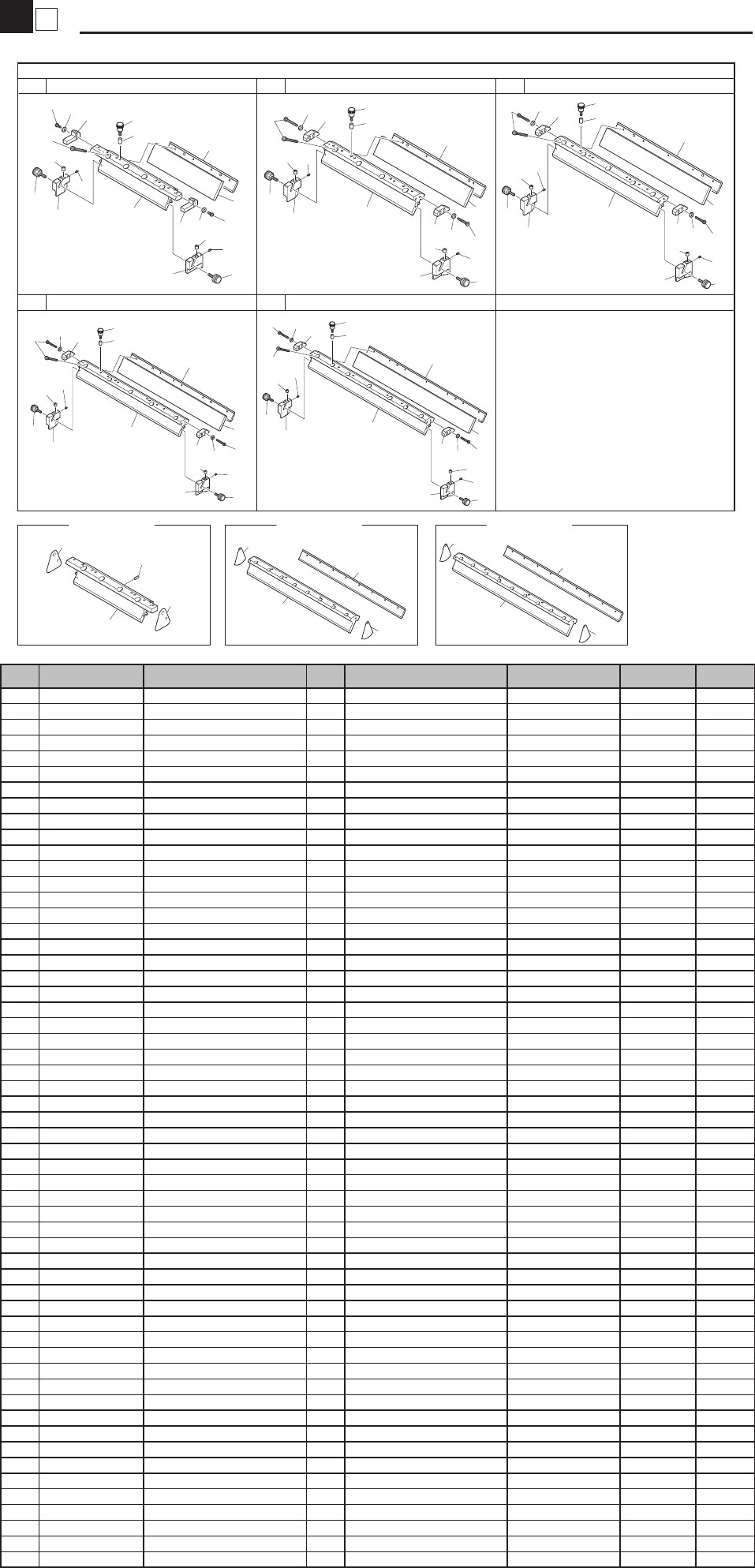

7 4 SQG.Assy Sel.(Metal SQG.) Head KGJ-1 102 MET AL SQG. 185 ASSY 1 MET AL SQG. SELECTION MET AL SQG. 250 ASSY 21 MET AL SQG. 350 ASSY 51 MET AL SQG. 400 ASSY 61 MET AL SQG. 300 ASSY 41 8 7 6 2 8 15 13 16 13 16 14 14 1 1…
6
4
SQG.Assy Sel.(Urethane SQG.)
Head
KGJ-081023
SQG. 185 ASSY
1
URETHANE SQG. SELECTION
URETHANE SQG. 250 ASSY
21
SQG. 350 ASSY
41
SQG. 400 ASSY
51
URETHANE SQG. 300 ASSY
31
7
6
5
2
7
13
12
15
12
15
14
14
10
10
11
11
8
9
4
3
27
26
25
22
27
13
28
13
28
29
29
10
10
11
11
8
9
24
23
10
27
26
25
32
27
13
28
13
28
29
29
10
11
11
8
9
34
33
27
26
25
42
27
13
28
13
28
29
29
10
10
11
11
8
9
44
43
27
26
25
52
27
13
13
28
13
28
29
29
10
10
11
11
8
9
54
53
350Ass’y OLD185Ass’y OLD
42
43
55
55
400Ass’y OLD
52
53
55
55
2
53
56
56
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M710A-00X SQG. 185 ASSY 2
2 KGJ-M710A-A0X HOLDER 1,SQG.185 1
2-1 KGJ-M710A-A1X URETHANE HOLDER 1,18 1 (2003/9/12) M390042 NG
3 KGJ-M710A-B0X HOLDER 2,SQG.185 1
3-1 KGJ-M710A-B1X URETHANE HOLDER 2,18 1 (2003/9/12) M390042 OK
4 KGJ-M710A-E0X SQUEEGEE, 185 1
5 KGJ-M710A-G0X PLATE, SQG. 1 1
6 KGJ-M710A-H0X PLATE, SQG. 2 1
7 KGJ-M7168-00X PLATE, SQG. 3 2
8 KGJ-M710B-C0X SPACER PIPE 2
9 KGJ-M710B-D0X KNOB 1 2
9-1 KGJ-M710B-D1X KNOB 1 2 (2006/5/19) MC50016 OK
10 KW3-M7129-00X KONB 2 2
10-1 KGJ-M7178-00X KNOB 2 2 (2003/9/12) M390042
10-2 KGJ-M7178-01X KNOB 2 2 (2005/11/22) MBX0125 OK
10-3 KGJ-M7178-02X KNOB 2 2 (2006/5/19) MC50016 OK
11 KGJ-M7179-00X MAGNET 1 2
12 91317-03016 BOLT HEX. SOCKET HEAD 4
13 91317-04018 BOLT HEX. SOCKET HEAD 4
14 92A08-03306 SCREW, SET 2
15 92907-03600 WASHER PLAIN 4
21 KGJ-M71B0-00X URETHANE SQG. 250 ASSY 2
22 KGJ-M71B1-00X URETHANE HOLDER 1, 25 1
23 KGJ-M71B2-00X URETHANE HOLDER 2, 25 1
24 KGJ-M71B3-00X URETHANE SQG. , 250 1
25 KGJ-M710B-E1X PLATE, SQG. 1 1
26 KGJ-M710B-F1X PLATE, SQG. 2 1
27 KGJ-M7177-00X PLATE, SQG. 3 2
28 92907-04600 WASHER PLAIN 4
29 92A08-03305 SCREW, SET 2
31 KGJ-M71C0-00X URETHANE SQG. 300 ASSY 2
32 KGJ-M71C1-00X URETHANE HOLDER 1, 30 1
33 KGJ-M71C2-00X URETHANE HOLDER 2, 30 1
34 KGJ-M71C3-00X URETHANE SQG. , 300 1
41 KGJ-M710B-00X SQG. 350 ASSY 2
42 KGJ-M710B-A0X HOLDER 1,SQG.350 1
42-1 KGJ-M710B-A1X URETHANE HOLDER 1,35 1 (2003/9/8) M390032 NG
43 KGJ-M710B-B0X HOLDER 2,SQG.350 1
43-1 KGJ-M710B-B1X URETHANE HOLDER 2,35 1 2003/11/10 M390032 NG
44 KW3-M7126-00X SQUEEGEE, M 1
51 KGJ-M710C-00X SQG. 400 ASSY 2
52 KGJ-M710C-A1X URETHANE HOLDER 1,40 1
52-1 KGJ-M710C-A1X URETHANE HOLDER 1,40 1 (2003/9/8) M390040 NG
53 KGJ-M710C-B0X HOLDER 2,SQG.400 1
53-1 KGJ-M710C-B1X URETHANE HOLDER 2,40 1 2004/1/14 M390040 NG
54 KGJ-M710C-E0X SQUEEGEE, 400 1
55 KW3-M7128-00X PLATE,SQG. 2
55-1 Delete (2003/6/26) M390040
56 KGJ-M710A-F0X PLATE,SQG.185 2
56-1 Delete (2003/9/4) M310005
57 99480-04008 PIN,PARALLEL:4X8 2
57-1 Delete (2003/1/21) M310092

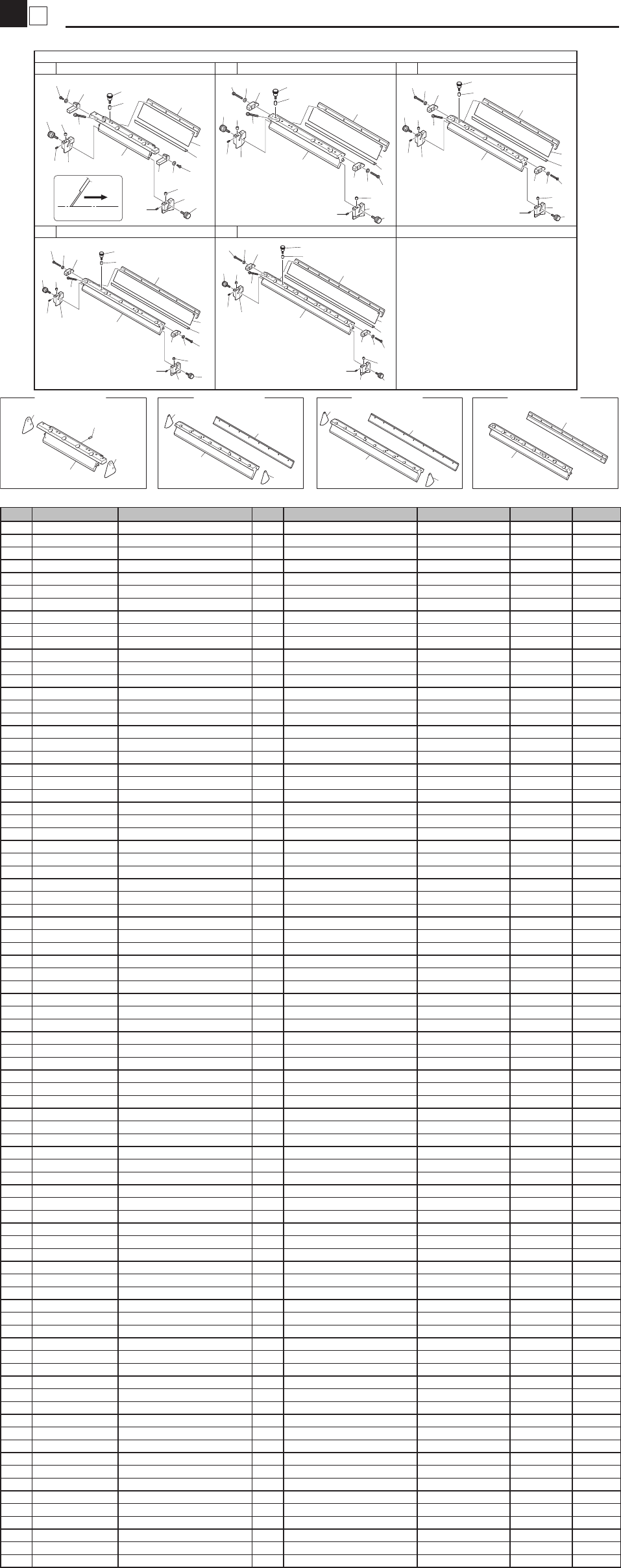

7
4
SQG.Assy Sel.(Metal SQG.)
Head
KGJ-1102
METAL SQG. 185 ASSY
1
METAL SQG. SELECTION
METAL SQG. 250 ASSY
21
METAL SQG. 350 ASSY
51
METAL SQG. 400 ASSY
61
METAL SQG. 300 ASSY
41
8
7
6
2
8
15
13
16
13
16
14
14
11
11
12
12
9
10
4
5
3
28
27
26
22
28
15
15
29
15
29
30
30
11
11
12
12
9
10
24
25
23
28
27
26
42
28
15
15
29
15
29
30
30
11
11
12
12
9
10
44
45
43
28
27
26
52
28
15
15
29
15
29
30
30
11
11
12
12
9
10
54
55
53
52
53
28
27
26
62
28
15
15
29
15
29
30
30
11
11
12
12
9
10
64
65
63
METAL SQG.
350Ass’y OLD
Fig.1 , Fig.2 Fig.3 , Fig.4
350Ass’y OLD185Ass’y OLD
52
53
66
66
400Ass’y OLD
62
63
66
66
2
68
67
67
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M7160-00X METAL SQG. 185 ASSY 2
2 KGJ-M7161-00X METAL HOLDER 1,185 1
2-1 KGJ-M7161-01X METAL HOLDER 1,185 1 2004/3/10 M380095 NG
3 KGJ-M7162-00X METAL HOLDER 2,185 1
3-1 KGJ-M7162-01X METAL HOLDER 2,185 1 (2002/10/9) M200022 OK
3-2 KGJ-M7162-02X METAL HOLDER 2,185 1 (2003/9/4) M380095 OK
4 KGJ-M7163-00X METAL SQG.,185 1 (2002/9/26)
4-1 KGJ-M7163-01X METAL SQG.,185 1 (2003/12/23) M3Y0011 OK
4-2 KGJ-M7163-02X METAL SQG.,185 1 (2004/3/5) M430028 OK
5 KGJ-M7164-00X EDGE PROTECTOR, 185 1
5-1 KGJ-M7164-01X EDGE PROTECTOR, 185 1 (2008/12/19) ME00008 OK
6 KGJ-M7166-00X PLATE, SQG. 1 1
7 KGJ-M7167-00X PLATE, SQG. 2 1
8 KGJ-M7168-00X PLATE, SQG. 3 2
9 KGJ-M710B-C0X SPACER PIPE 2
10 KGJ-M710B-D0X KNOB 1 2
10-1 KGJ-M710B-D1X KNOB 1 2 (2006/5/19) MC50016 OK
11 KW3-M7129-00X KONB 2 2
11-1 KGJ-M7178-00X KNOB 2 2 (2003/9/4) M380095
11-2 KGJ-M7178-01X KNOB 2 2 (2005/11/22) MBX0125 OK
11-3 KGJ-M7178-02X KNOB 2 2 (2006/5/19) MC50016 OK
12 KGJ-M7179-00X MAGNET 1 2
13 91317-03016 BOLT HEX. SOCKET HEAD 4
14 92A08-03304 SET SCREW 2
15 91317-04018 BOLT HEX. SOCKET HEAD 4
16 92907-03600 WASHER PLAIN 4
21 KGJ-M7190-00X METAL SQG. 250 ASSY 2
22 KGJ-M7191-00X METAL HOLDER 1, 250 1
23 KGJ-M7192-00X METAL HOLDER 2, 250 1
24 KGJ-M7193-00X METAL SQG.,250 1
24-1 KGJ-M7193-01X METAL SQG.,250 1 (2006/10/16) MC90101 OK
25 KGJ-M7194-00X EDGE PROTECTOR, 250 1
25-1 KGY-M71AB-00X TRIM, 250 1 (2008/12/19) ME00008 OK
26 KGJ-M7175-00X PLATE, SQG. 1 1
27 KGJ-M7176-00X PLATE, SQG. 2 1
28 KGJ-M7177-00X PLATE, SQG.3 2
29 92907-04600 WASHER PLAIN 4
30 92A08-03306 SCREW, SET 2
41 KGJ-M71A0-00X METAL SQG. 300 ASSY 2
42 KGJ-M71A1-00X METAL HOLDER 1, 300 1
43 KGJ-M71A2-00X METAL HOLDER 2, 300 1
44 KGJ-M71A3-00X METAL SQG. , 300 1
45 KGJ-M71A4-00X EDGE PROTECTOR, 300 1
45-1 KGY-M71BB-00X TRIM, 300 1 (2008/12/19) ME00008 OK
51 KGJ-M7170-00X METAL SQG. 350 ASSY 2
52 KGJ-M7171-00X METAL HOLDER 1,350 1 Fig.1
52-1 KGJ-M7171-01X METAL HOLDER 1,350 1 Fig.3 (2003/6/26) M360117 NG
52-2 KGJ-M7171-02X METAL HOLDER 1,350 1 (2007/7/18) MD70080 NG
53 KGJ-M7172-00X METAL HOLDER 2,350 1
53-1 KGJ-M7172-01X METAL HOLDER 2,350 1 (2002/10/9) M200022 OK
53-2 KGJ-M7172-02X METAL HOLDER 2,350 1 Fig.2 (2003/6/26) M360117 NG
53-3 KGJ-M7172-03X METAL HOLDER 2,350 1 Fig.4 (2003/7/16) M370071 OK
53-4 KGJ-M7172-04X METAL HOLDER 2,350 1 (2007/7/18) MD70080 NG
54 KGJ-M7173-00X METAL SQG.,350 1
54-1 KGJ-M7173-01X METAL SQG.,350 1 (2003/12/23) M3Y0011 OK
54-2 KGJ-M7173-02X METAL SQG.,350 1 (2004/3/5) M430028 OK
54-3 KGJ-M7173-03X METAL SQG.,350 1 (2006/10/16) MC90101 OK
55 KGJ-M7174-00X EDGE PROTECTOR, 350 1
55-1 KGY-M71CB-00X TRIM, 350 1 (2008/12/19) ME00008 OK
61 KGJ-M7180-00X METAL SQG. 400 ASSY 2
62 KGJ-M7181-00X METAL HOLDER 1,400 1
62-1 KGJ-M7181-01X METAL HOLDER 1,400 1 (2003/6/26) M360122 NG
63 KGJ-M7182-00X METAL HOLDER 2,400 1
63-1 KGJ-M7182-01X METAL HOLDER 2,400 1 (2002/10/9) M200022 OK
63-2 KGJ-M7182-02X METAL HOLDER 2,400 1 (2003/6/26) M360122 NG
63-3 KGJ-M7182-03X METAL HOLDRE 2,400 1 (2003/7/16) M370071 OK
64 KGJ-M7183-00X METAL SQG.,400 1
64-1 KGJ-M7183-01X METAL SQG.,400 1 (2003/12/23) M3Y0011 OK
64-2 KGJ-M7183-02X METAL SQG.,400 1 (2004/3/5) M430028 OK
64-3 KGJ-M7183-03X METAL SQG.,400 1 (2006/10/16) MC90101 OK
65 KGJ-M7184-00X EDGE PROTECTOR, 400 1
65-1 KGY-M71DB-00X TRIM, 400 1 (2008/12/19) ME00008 OK
66 KW3-M7128-00X PLATE,SQG. 2
66-1 Delete (2003/6/26) M390040
67 KGJ-M7165-00X PLATE,METAL 185 2
67-1 150 Delete (2003/9/4) M310005
68 99480-04008 PIN,PARALLEL:4X8 2
68-1 Delete (2003/1/21) M290064

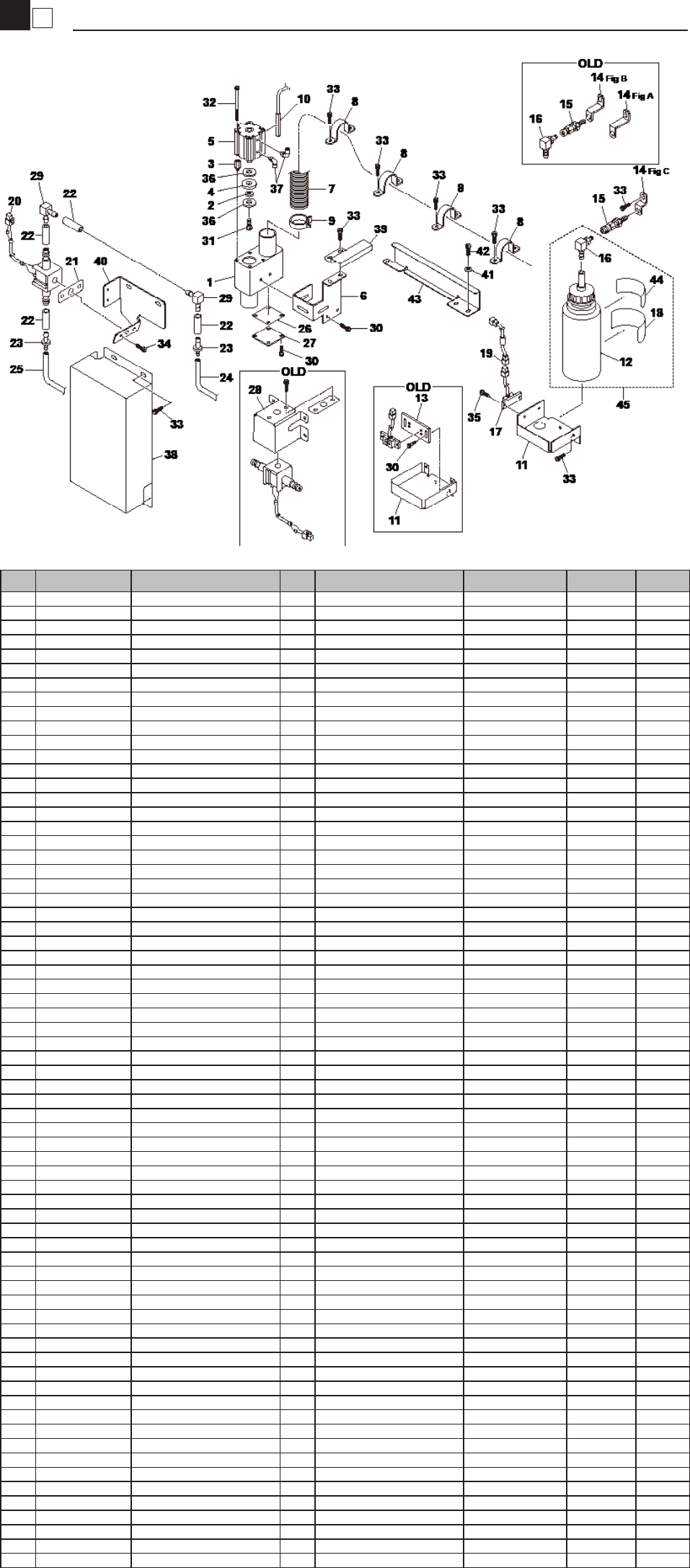

1
5
Cleaner Base
Cleaner
KGJ-101222
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGJ-M3750-00X BODY, VALVE 1
2 KGJ-M3751-00X WASHER 1
2-1 90990-28J021 WASHER,PLAIN 1 (2007/12/7) MDX0084 OK
3
90563-24J370 SPACER BOLT 4
4 KGJ-M3753-00X SPACER,VALVE 4
4-1 90990-28J022 WASHER,PLAIN 1 (2007/12/7) MDX0084 OK
5
KGJ-M3754-00X CYL, VALVE 1
6
KGJ-M3755-00X BRKT, VALVE 1
7 KGJ-M3756-00X TUBE,VACUUM 1
7-1 KGJ-M3756-01X TUBE,VACUUM 1 (2003/11/11) M3X0019 Set 1
7-2 KGJ-M3756-02X TUBE,VACUUM 1 (2006/12/12) MCX0074 OK
8 KGJ-M3757-00X BRKT,TUBE 4 H=45mm (2001/12/27)
8-1 KGJ-M3757-01X BRKT,TUBE 4 H=42mm (2003/11/11) M3X0019 Set 1
9
KW3-M3690-00X TUBE, BAND 2
10
KU0-M653A-10X SENSOR, 1 ASSY 1
11 KGJ-M3761-00X BRKT,BOTTLE 1
11-1 KGJ-M3761-01X BRKT,BOTTLE 1 (2004/2/19) M420114 NG
12
KGJ-M3762-00X BOTTLE 1
13 KGJ-M3763-00X BRKT,SENSOR 1
13-1 KGJ-M3763-01X BRKT,SENSOR 1 (2002/3/28) M230141 OK
13-2 Delete (2005/1/10) MB10016
14 KGJ-M3764-00X BRKT,JOINT 1 Fig A
14-1 KGJ-M3764-01X BRKT,JOINT 1 Fig B (2003/9/1) M390002 Set 2
14-2 KGJ-M3764-02X BRKT,JOINT 1 (2004/5/27) MA50047 NG
15 KGJ-M3765-00X JOINT,F 1
15-1 KGJ-M3765-01X JOINT,F 1 (2003/9/1) M390002 Set 2
15-2 90990-42J012 JOINT 1 (2008/6/17) ME30112 OK
16 KGJ-M3766-00X JOINT,M 1
16-1 KGJ-M3766-01X JOINT,M 1 (2003/9/1) M390002 Set 2
16-2 90990-42J013 JOINT 1 (2008/6/17) ME30112 OK
17
KW3-M653H-00X SENSOR, 7-1 ASSY 1
18 90K41-000260 LABEL,CAUTION 2
18-1 90K41-000390 LABEL,ALERT 2 (2004/7/16) MA70069
19
KW3-M653J-00X CHANGE, PN ASSY 1
20
KGJ-M3771-A0X PUMP 1
21
KGJ-M3772-00X BRKT, PUMP 1
22
KGJ-M3774-10X TUBE, PUMP 4
23
KGJ-M3775-00X JOINT, PUMP 1 2
23-1 90990-42J014 JOINT 2 (2008/6/17) ME30112 OK
24 KGJ-M3776-10X TUBE,BOTTLE 1
24-1 KGJ-M3776-11X TUBE,BOTTLE 1 (2004/5/7) M410097 OK
25 KGJ-M3776-20X TUBE,CLEANER 1
25-1 KGJ-M3776-21X TUBE,CLEANER 1 (2004/5/7) M410097 OK
26
KGJ-M3778-00X GASKET, VALVE 1
27
KGJ-M3779-00X COVER, VALVE 1
28 KGJ-M3780-00X COVER,PUMP 1
28-1 Delete (2004/5/7) M410097
29
KGJ-M3781-00X JOINT, PUMP 2 2
29-1 90990-42J015 JOINT 2 (2008/6/17) ME30112 OK
30
91317-04006 BOLT HEX. SOCKET HEAD 8
31
91317-08025 BOLT HEX. SOCKET HEAD 1
32
91317-04040 BOLT HEX. SOCKET HEAD 4
33
91317-05012 BOLT HEX. SOCKET HEAD 17
34
91317-03005 BOLT HEX. SOCKET HEAD 2
35 98904-04008 SCREW BINDING HEAD 2
35-1 98902-04008 SCREW BINDING HEAD 2 (2006/1/9) MBY0166 OK
35-2 Delete (2007/6/26) MD50129
36 KU5-M3419-00X WASHER 2
36-1 Delete (2006/5/24) MC50032
37
$TL4-01 JOINT 2
38 KGJ-M3782-00X COVER,PUMP 1 (2004/5/7) M410097
39 KGJ-M3784-00X COVER,TUBE 1 (2004/5/7) M410097
40 KGJ-M3783-00X BRACKET,COVER 1 (2004/5/7) M410097
41 92907-06200 WASHER PLAIN 2 (2004/1/15) M410067
42 91317-06016 BOLT HEX.SOCKET HEAD 2 (2004/1/15) M410067
43 KGJ-M3758-00X GUIDE,TUBE VACUUM 1 (2004/1/15) M410067
44 90K41-000410 LABEL,ALERT 2 (2004/7/16) MA70069
45 KGJ-M3762-A0X BOTLLE ASSY 1
