KGJ_YVPXg_PL - 第26页
1 6 Mask Camera Camera KGJ-081023 6 1 12 2 10 8 1 1 4 2 13 16 5 3 7 14 9 15 No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati. 1 KGJ-M76A0-00X MASK LIGHT ASSY 1 2 90250-04J12 PIN P ARALLEL 2 4X1…
5
5
Blower Unit, etc (After November 2008)
Cleaner
KGJ-0812
19
4
42
3
8
7
5
2
9
12
10
11
33
44
13
44
44
44
44
35
16
17
43
43
32
44
29
30
41
1
21
23
39
40
31
43
34
43
45
20
18
25,27
22
22
24
24
28
26
6
37
36
15
14
38

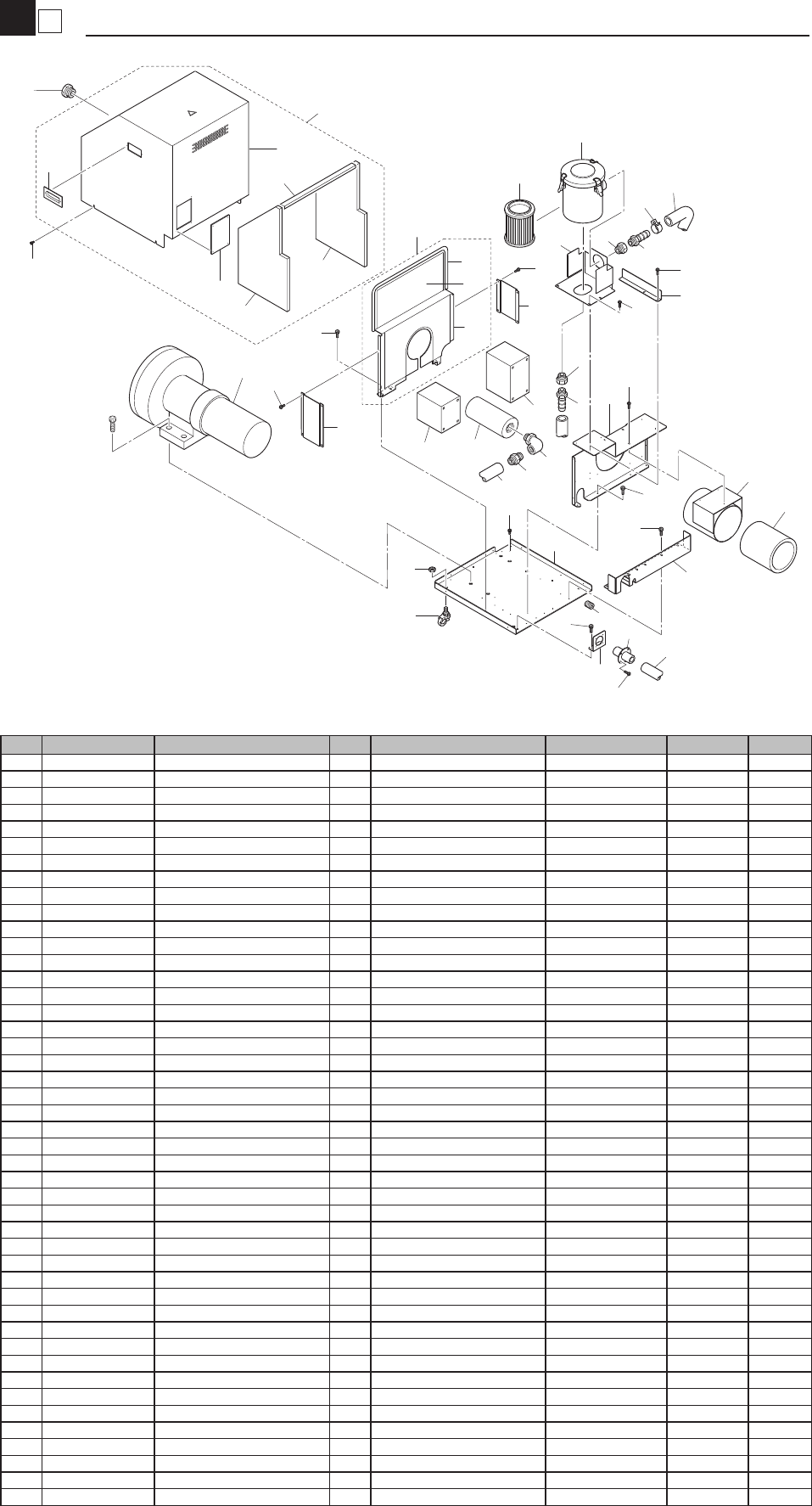

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M3701-020 BASE 1
2 KGJ-M3702-A1 COVER ASSY 1
3 KGJ-M3702-02 COVER 1
4 KHU-M3702-B1 PULL 2
5 KGJ-M3702-B1 ABSORPTION 1 1
6 KGJ-M3702-C1 ABSORPTION 2 1
7 KGJ-M3702-D1
ABSORPTION 3
1
8 KGJ-M371A-00 COVER C 1
9 KGJ-M3704-A1 SHILDE COVER ASSY 1
10 KGJ-M3704-01 SHILDE COVER 1
11 KGJ-M3704-B1 ABSORPTION 4 1
12 KGJ-M3705-02 GASKET 1
13 KGJ-M3730-00 COVER,FILTER 1
14 KGJ-M3731-00 BRACKET,FILTER 1
15 KGJ-M3709-03 BRACKET,COVER 1
16 KGJ-M3710-01 DUCT 1
17 KGJ-M3711-01 ABSORPTION 5 1
18 KGJ-M3712-00 BRACKET,PIPE A 1
19 90990-42J011 JOINT 1
20 KW3-M3704-00 PIPE 1
21 90990-42J029 JOINT: ELBOWS, 90 1-1/ 3
22 90990-42J028 JOINT: BUSHINGS 2X1-1 2
23 90990-42J027 JOINT: NIPPLES 1-1/2 2
24 KW3-M3717-01 JOINT: 1-1/2X38 3
25 KW3-M3685-20 TUBE, VACUUM 1
26 KGJ-M3756-10 TUBE, VACUUM 1
27 KGJ-M3756-30 TUBE, VACUUM 1 For CE
28 KW3-M3690-00 TUBE, BAND 6
29 KW3-M3721-00 CASTER 4
30 KW3-M3725-00 NUT, HEX. M12X1.75 4
31 KGJ-M3756-40 TUBE, VACUUM 1
32 KGJ-M371D-00 COVER D 1
33 KGJ-M3733-00 COVER 1 1
34 KGJ-M3734-00 COVER 2 1
35 KGJ-M641R-01 BLOWER MOTOR 1
36 KW3-M641T-01 FILTER 1
37 KW3-M642T-01 FILTER ELEMENT 2 Spare
38 KW3-M641U-00 SILENCER 1
39 KGJ-M641X-00 INVERTOR 1
40 KGJ-M537A-60 NOIZE FILTER 1 For CE
41 90115-12J030 BOLT HEX. SOCKET HEAD 4
42 90990-12J004 SCREW, BIN. HEAD W/W 6
43 91317-05008 BOLT HEX. SOCKET HEAD 18
44 91317-04008 BOLT HEX. SOCKET HEAD 21
45 $NJ-23 UNIVERSAL BUSH 3
1
6
Mask Camera
Camera
KGJ-081023
6
1
12
2
10
8
11
4
2
13
16
5
3
7
14
9
15

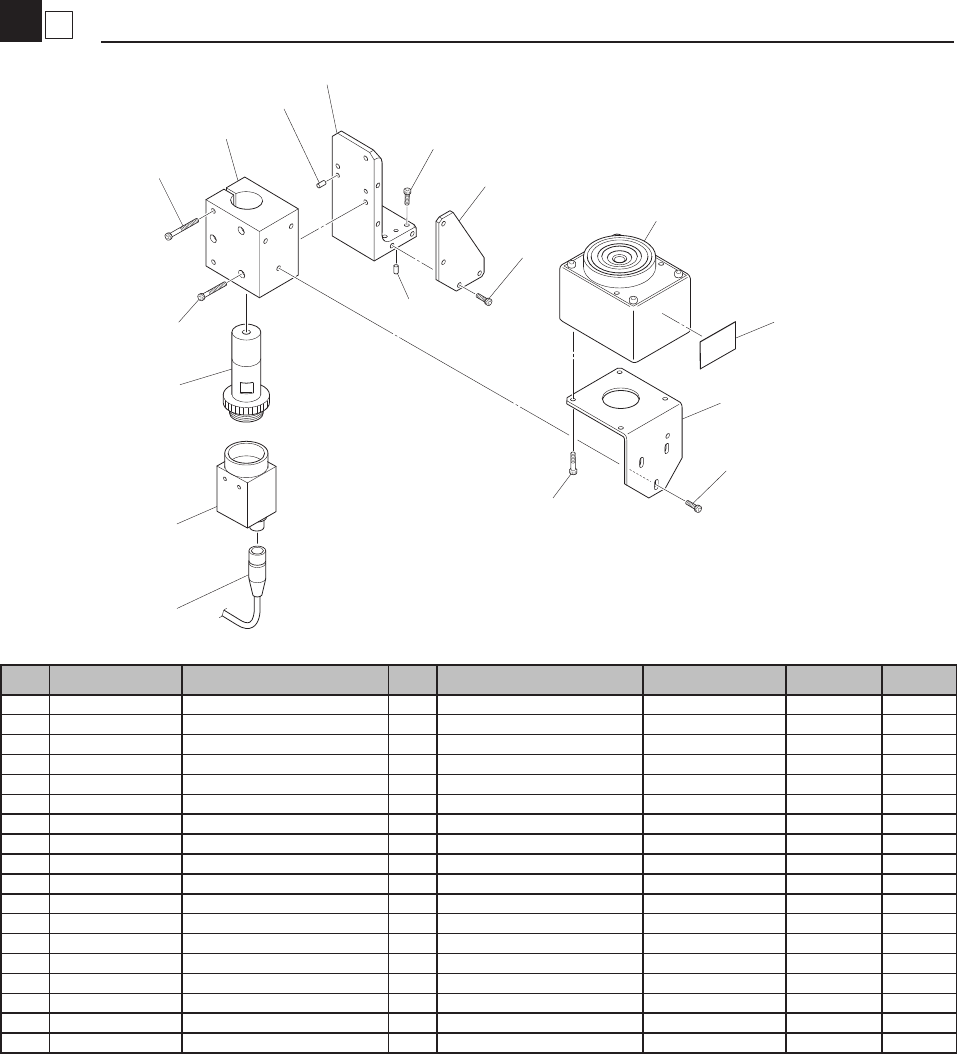

No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGJ-M76A0-00X MASK LIGHT ASSY 1
2 90250-04J12 PIN PARALLEL 2 4X12
2-1 90250-04J12 PIN PARALLEL 4 4X12 (2002/3/1) M230001 OK
2-2 99480-04012 PIN,PARALLEL 4 (2005/12/12) MBY0041 OK
3
91317-03008 BOLT HEX. SOCKET HEAD 4
4
91317-04006 BOLT HEX. SOCKET HEAD 8
5
91317-04010 BOLT HEX. SOCKET HEAD 3
6
91317-04020 BOLT HEX. SOCKET HEAD 3
7
91317-04025 BOLT HEX. SOCKET HEAD 2
8
91317-06020 BOLT HEX. SOCKET HEAD 4
9
KGA-M7210-01X CCD CAMERA 1
10
KGJ-M7611-00X BRACKET, CAMERA 1
11
KGJ-M7612-00X PLATE, CAMERA 2
12
KGJ-M7614-00X HOLDER, CAMERA 1
13
KGJ-M7619-00X HOLDER, LIGHT 1
14
KV7-M7211-00X LENS 095 1
15
KV7-M66F2-00X C, CABLE ASSY: 6M 1
16
KM8-M7607-00X SEAL 1
2
6
PCB Camera
Camera
KGJ-081023
4
5
3
9
1
2
7
8
11
6
10
1
2
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M7811-00X HOLDER,CAMERA 1
1-1 KGJ-M7811-01X HOLDER,CAMERA 1 (2002/2/20) M220107 NG
1-2 KGJ-M7811-02X HOLDER,CAMERA 1 2004/5/28 M300116 NG
2 KGJ-M7812-00X BRACKET,LIGHT 1
2-1 KGJ-M7812-01X BRACKET,LIGHT 1 2004/5/28 M300116 NG
3
KV7-M7600-00X FIDUCIAL LIGHT ASSY. 1
4
KGA-M7210-01X CCD CAMERA 1
5
KV7-M7211-00X LENS 095 1
6
91317-04010 BOLT HEX. SOCKET HEAD 4
7
91317-04020 BOLT HEX. SOCKET HEAD 2
8
91317-03006 BOLT HEX. SOCKET HEAD 4
9
91317-05050 BOLT HEX. SOCKET HEAD 4
10 92907-04600 WASHER PLAIN 4
11 92907-03600 WASHER PLAIN 4
