KGJ_YVPXg_PL - 第29页
19 Fig C 42 38 20 49 28 49 52 31 7 36 39 9 50 16 15 41 4 51 51 18 18 22 22 27 48 14 45 37 35 37 13 3 2 32 33 46 53 1 1 12 43 26 5 44 29 25 30 56 34 23 41 6 47 40 24 17 1 42 21 49 54 8 36 39 10 50 19 Fig A 19 Fig B 18 55 …
3
6
Inspection Camera(Op.)
Camera
KGJ-081023
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGJ-M72A0-20X SINGLE CAM. SUB ASSY 1
2 KGJ-M7915-00X BRACKET,CAMERA 1
2-1 KGJ-M7915-01X BRACKET,CAMERA 1 (2002/7/11) M270040 OK
2-2 KGJ-M7915-10X BRACKET,CAMERA 1 (2003/2/5) M310123 OK
2-3 KGJ-M7915-11X BRACKET,CAMERA 1 (2007/4/17) MD40061 NG
3
KGJ-M7916-00X STAY, CAMERA 1
4
91317-05020 BOLT HEX. SOCKET HEAD 4
5
91317-06018 BOLT HEX. SOCKET HEAD 2
6
91317-05030 BOLT HEX. SOCKET HEAD 2
7
KGJ-M79B0-00X INSP. LIGHT ASSY 1
8 KGJ-M7914-00X BRKT,LIGHT 1
8-1 KGJ-M7914-01X BRKT,LIGHT 1 (2002/6/10) M260011 OK
8-2 KGJ-M7914-10X BRKT.LIGHT 1 (2003/2/5) M310123 OK
9
91317-05014 BOLT HEX. SOCKET HEAD 4
5
1
8
3
9
4
6
7
2
2
OLD
19 Fig C
42
38
20
49
28
49
52
31
7
36
39
9
50
16
15
41
4
51
51
18
18
22
22
27
48
14
45
37
35
37
13
3
2
32
33
46
53
11
12
43
26
5
44
29
25
30
56
34
23
41
6
47
40
24
17
1
42
21
49
54
8
36
39
10
50
19 Fig A
19 Fig B
18
55 Fig D
OLD
R>L
OLD
L>R
55 Fig E
L>R
A flow direction shows the left from the right. (R>L)
1
7
Main Stopper
Conveyor Unit
KGJ-081023
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KGJ-M9161-01X BLOCK, STOPPER 1
2 KGJ-M9162-00X MAIN PLATE 1
2-1 KGJ-M9162-01X MAIN PLATE 1 2003/3/6 M310101 NG
3 KGJ-M9163-00X SHAFT,BRG. 1
3-1 KGJ-M9163-01X SHAFT,BRG. 1 (2004/4/21) M440041 OK
4
KGJ-M9165-00X STAY, SENSOR 1
5 KGJ-M9166-00X SPACER,BLOCK 1
5-1 KGJ-M9166-01X SPACER,BLOCK 1 (2003/1/27) M310101 OK
6 KGJ-M9167-01X PLATE,GUIDE 1
6-1 KGJ-M9167-02X PLATE,GUIDE 1 2002/10/25 M290075 NG
7
KGJ-M9168-00X PULLEY1 1
8
KGJ-M9169-00X PULLEY2 1
9
KGJ-M9170-00X SHAFT, PULLEY1 1
10
KGJ-M9171-00X SHAFT, PULLEY2 1
11
KGJ-M9172-00X DAMPER 2
12
KGJ-M9173-00X COLLAR, DAMPER 4
13 KGJ-M9174-00X WASHER,BRG. 1
13-1 90990-28J025 WASHER,PLAIN 1 (2007/12/7) MDX0084 OK
14 KGJ-M9175-00X COLLAR,SENSOR 1
14-1 KGJ-M9175-01X COLLAR,SENSOR 2 (2003/1/27) M310101 OK
14-2 90990-41J018 COLLAR 2 (2008/4/15) ME20075 OK
15
KGJ-M9176-00X BELT1 1
16
KGJ-M9177-00X BELT2 1
17
KGJ-M9180-00X PLATE, STOPPER 1
18 KGJ-M9181-00X PLATE2,STOPPER 1
18-1 KGJ-M9181-01X PLATE 2,STOPPER 1 2003/3/6 M310101 NG
19 KGJ-M9182-00X PLATE3,STOPPER 1 R>L Fig A
19-1 KGJ-M9182-01X PLATE 3(R),STOPPER 1 R>L Fig B 2003/3/6 M310101 NG
19-2 KGJ-M9182-02X PLATE 3(R),STOPPER 1 R>L Fig C 2004/8/4 M410111 NG
20
KGJ-M9183-00X PLATE1, PULLEY 1
21
KGJ-M9184-00X PLATE2, PULLEY 1
22 KGJ-M9185-00X WASHER 2
22-1 90990-28J026 WASHER,PLAIN 2 (2007/12/7) MDX0084 OK
23 KGJ-M9186-00X PLATE,BELT 1
23-1 KGJ-M9186-01X PLATE,BELT 1 2002/10/25 M290075 NG
24
KGJ-M9187-00X CAP, CYL. 1
25 KGJ-M9188-01X HOLDER,CYL. 1
26
KGJ-M9189-00X GUIDE 1
27
KW3-M653G-00X SENSOR, 6-1 ASSY 1
28
KW3-M9123-00X PLATE 2, MOTOR 1
29
KW3-M9165-00X HINGEE PIN 1
30
KW3-M9167-A0X CYLINDER ASSY 1
31
KGB-M7139-00X PULLEY, MOTOR 1
32 KV7-M9226-00X COLLAR,HOLDER CYL. 1
32-1 90990-41J061 COLLAR 1 (2008/4/17) ME20197 OK
33 KV7-M9227-00X BLOCK,COLLAR 1
33-1 KV7-M9227-01X BLOCK,COLLAR 1 2006/5/20 MC20101 NG
33-2 KGJ-M9227-00X BLOCK,COLLAR 1 (2006/4/25) MC40099 OK
34
$SC4-M5A SPEED CONTROLLER 2
35
KGJ-M9139-00X SHIM, t0.1 * t0.1
36 90933-01J900 BEARING 3
37 90933-03J694 BEARING 2
38 90K55-4W4791 AC SERVO MOTOR 1
38-1 90K55-4W479P AC SERVO MOTOR 1 (2002/3/12) M230056 OK
39
99009-22700 CIRCLIP : 2
40
91317-03006 BOLT HEX. SOCKET HEAD 4
41 91317-03005 BOLT HEX.SOCKET HEAD 2
41-1 90125-03J005 BOLT BUTTON HEAD 2 (2004/1/29) M410111 OK
41-2 92017-03005 BOLT,BUTTON HEAD 2 (2008/8/29) ME70216 OK
42 91317-03010 BOLT HEX. SOCKET HEAD 6
43 91317-03012 BOLT HEX. SOCKET HEAD 4
44 91317-04008 BOLT HEX. SOCKET HEAD 4
45 91317-04016 BOLT HEX.SOCKET HEAD 1
45-1 91317-04014 BOLT HEX.SOCKET HEAD 1 (2004/4/21) M440041 OK
46 91317-04018 BOLT HEX. SOCKET HEAD 1
47 91317-04020 BOLT HEX. SOCKET HEAD 2
48 91317-04025 BOLT HEX.SOCKET HEAD 2
48-1 98780-03025 SCREW,FLAT HEAD (+) 2 (2003/1/27) M310101 OK
49 91317-05012 BOLT HEX. SOCKET HEAD 5
50 91317-05035 BOLT HEX. SOCKET HEAD 2
51 92A08-03303 SET SCREW, M3X3 2
52 92A08-04304 SET SCREW, M4X4 2
53 92907-04600 WASHER PLAIN 1
54 92907-05200 WASHER PLAIN 5
55 KGJ-M9182-10X PLATE 3(L),STOPPER 1 L>R Fig D
55-1 KGJ-M9182-11X PLATE 3(L),STOPPER 1 L>R Fig E 2004/8/4 M410111 NG
56 KW3-M653F-02X SENSOR, 5-1 ASSY. 1
2
7

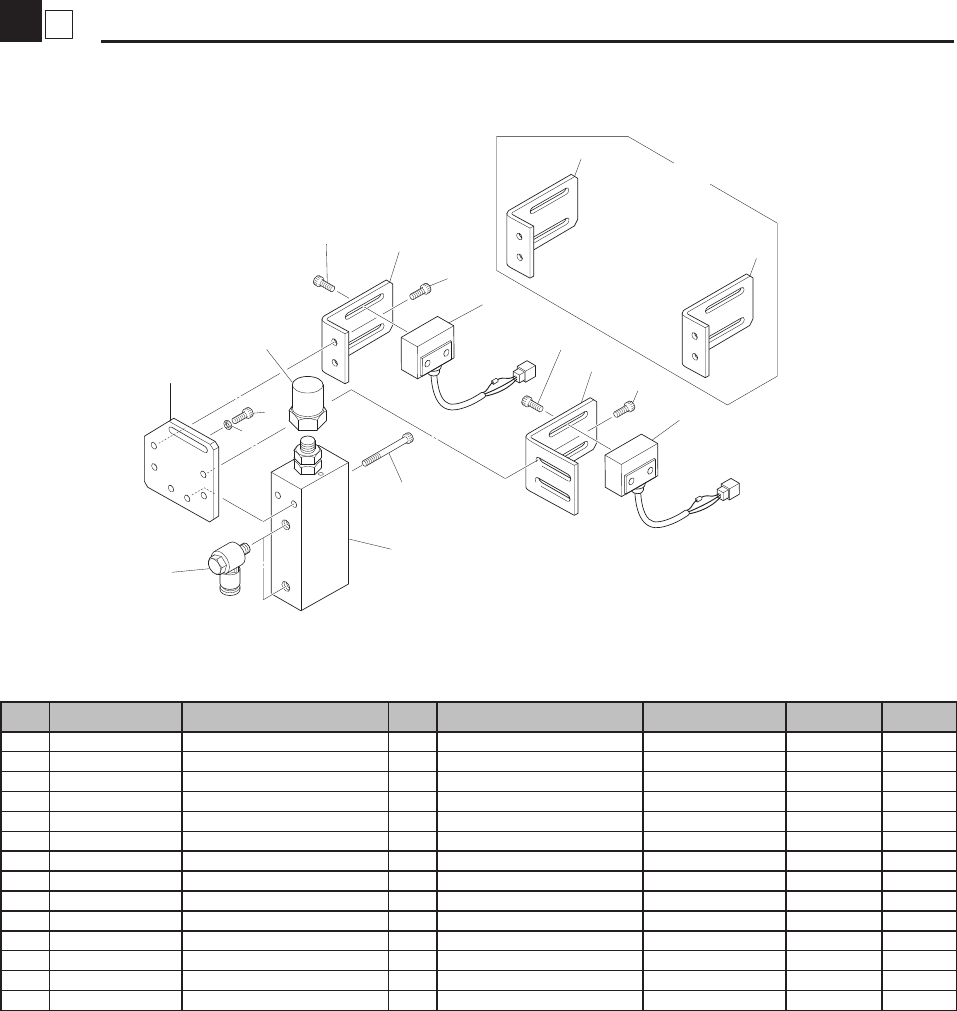

Exit Stopper
Conveyor Unit
KGJ-081023
1
8
4
7
7
6
6
2
5
5
10
11
3
9
12
2
2
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KW3-M9271-01X PLATE, EXIT STOPPER 1
2 KW3-M9272-01X BRKT., SENSOR 2
2-1 KW3-M9272-01X BRKT., SENSOR 1 (2003/12/11) M3Y0036 OK
3 KV7-M9283-00X CYL., YMDA16X35 1
4 KV7-M9282-00X STOPPER,SUB 1
4-1 KGJ-M9275-00X STOPPER,SUB 1 2006/12/26 MCY0091 OK
5 KM0-M655F-10X SENSOR 1-3(L=1150) 2
6 91317-03005 BOLT HEX. SOCKET HEAD 4
7 91317-03014 BOLT HEX. SOCKET HEAD 4
8 91317-04008 BOLT HEX. SOCKET HEAD 2
9 $SLH4-M5 JOINT 2
10 91317-04040 BOLT HEX. SOCKET HEAD 2
11 KW3-M9272-10X BRKT., SENSOR 1 (2003/12/11) M3Y0036
12 92907-04600 WASHER PLAIN 2
