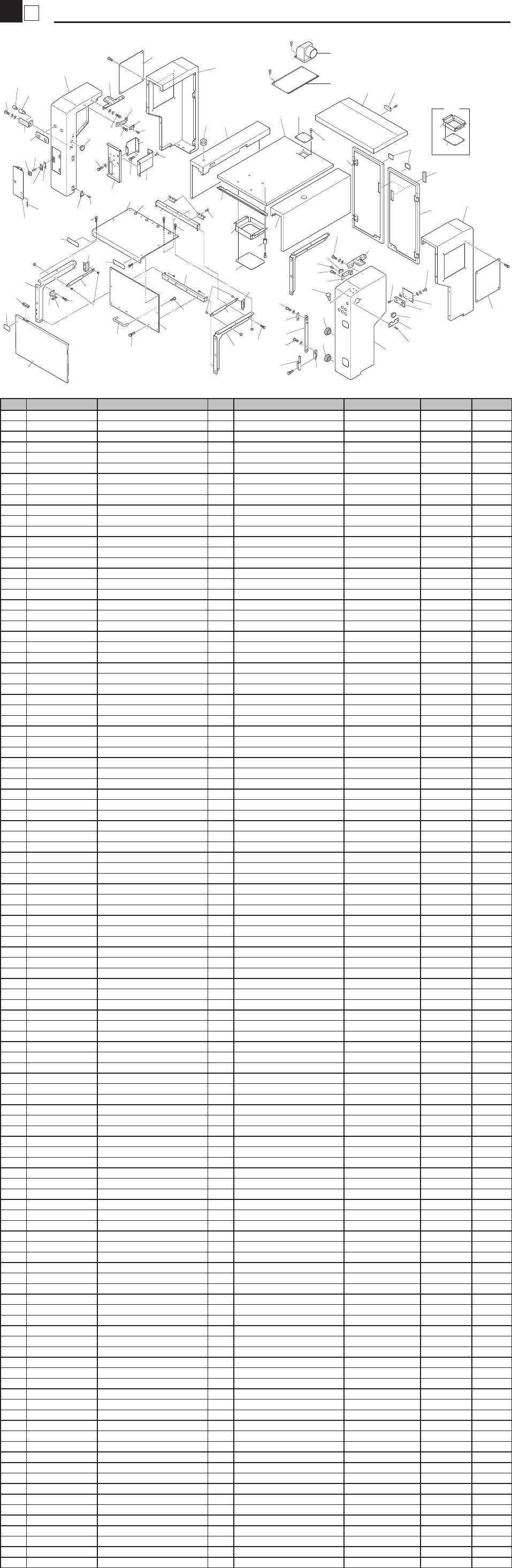

KGJ_YVPXg_PL - 第5页
2 2 Base Cover Cover KGJ-081022 6 21 28 43 13 16 15 5 12 47 19 30 31 32 20 29 14 3 17 36 8 34 37 38 48 38 33 35 39 27 40 44 41 45 26 39 35 2 1 6 21 12 42 10 23 8 11 19 18 20 3 17 14 9 23 7 4 16 15 43 13 5 22 22 22 22 22 …
1
2
Top Cover
Cover
KGJ-1105
33
30
19
27
28
16
35
29
67
68
46
70
77
66
69
25
20
24
22
21
23
31
32
39
42
40
72
80
61
85
86
78
73
41
63
45
58
53
62
38
65
9
8
6
5
18
1
10
18
18
11
13
12
50
50
7
3
4
75
83
71
74
64
73
79
76
84
28
16
26
18
16
17
14
15
34
36
43
2
79
60
82
54
54
48
58
58
81
57
52
49
53
55
56
59
51
44
52
47
50
65
37
75
76
OLD
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M1301-02X COVER 1 1
2 KGA-M1356-00X PLATE 1, JOINT 1
3 KGJ-M1361-00X BRACKET, MAGNET 1
4 KV5-M1130-00X CATCH MG. 1
5 KGA-M1318-00X COVER 18 1
6 KGA-M1392-00X PLUG(30) 1
7 KGA-M1394-00X PLUG(5) 4
8 KL3-M1381-02X PLATE 1 KEY BOARD 1
9 KL3-M1382-01X PLATE 2 KEY BOARD 1
10 KW3-M1338-00X PLATE HINGE 1 6
11 KGJ-M1339-00X ANGLE HINGE 1 5
12 KG2-M1372-00X PIECE B HINGE 12
13 K46-M1373-00X SHAFT HINGE 12
14 98704-04008 SCREW,FLAT HEAD (+) 2
14-1 98702-04008 SCREW,FLAT HEAD (+) 2 (2006/1/13) MBY0160 OK
15 98903-04006 SCREW BINDING HEAD 4
15-1 98502-04006 SCREW PAN HEAD 4 (2006/2/17) MBY0200 OK
15-2 98902-04006 SCREW BINDING HEAD 4 (2007/7/19) MD70057 OK
16 98907-03006 SCREW, BINDING HEAD 6
17 90159-04J01 SCREW,W/WASHER 4
17-1 90990-12J001 SCREW BIN.HEAD W/W 4 (2002/9/11) M290029 OK
18 91314-04010 BOLT HEX.SOCKET HEAD 10
18-1 91312-04010 BOLT HEX.SOCKET HEAD 10 (2006/1/16) MBY0158 OK
19 KGJ-M1302-01X COVER 2 1
19-1 KGJ-M1302-02X COVER 2 1 (2004/2/19) M420109 OK
18 91314-04010 BOLT HEX. SOCKET HEAD 10
19 KGJ-M1302-01X COVER 2 1
20 KGJ-M1348-01X DOOR 2, COVER 1 1
21 KGJ-M1350-00X SPACER, MINI LATCH 1
22 KGJ-M1351-00X PLATE,MINI LATCH 1 2-M4
22-1 KGJ-M1351-01X PLATE,MINI LATCH 1 2-φ5x7 (2004/1/22) M410098 NG
23 KGJ-M1355-00X PANEL, S/W 1
24 KW3-M1349-00X MINI LATCH 1
25 KW3-M1346-00X SHAFT,HINGE R 2
25-1 Delete (2003/3/25) M330092
26 KGA-M1357-00X PLATE 2, JOINT 1
27 KGJ-M1361-00X BRACKET, MAGNET 1
28 KV5-M1130-00X CATCH MG. 5
29 KGA-M1392-00X PLUG(30) 1
30 K93-M1386-00X CYLINDER NSA16X15N-1 1
31 KH1-M1332-00X BRACKET CYLINDER 1
32 K16-90103-00X BOLT: TP-M4X8 4
32-1 90990-46J006 BOLT,THIN HEAD 4 (2008/6/16) ME50123 OK
33 $TSH4-M5 JOINT 1
34 98903-04006 SCREW, BINDING HEAD 2
35 90159-04J01 SCREW,W/WASHER 2
36 91314-04010 BOLT HEX. SOCKET HEAD 2
37 KGJ-M13D6-00X SEAL 1(YVP-Xg) 1
37-1 KGJ-M13D6-01X SEAL 1(YVP-XG) 1 (2003/10/24) M300086 OK
37-2 KGJ-M13D6-02X SEAL 1(YVP-XG) 1 (2004/6/30) MA60120 OK
38 KGJ-M1303-00X COVER 3 1
39 KGJ-M1304-00X COVER 4 1
40 KGJ-M1306-00X COVER 6 1
41 KGJ-M1307-00X COVER 7 1
42 KGJ-M1308-00X COVER 8 1
43 KGJ-M1309-00X COVER 9-1 1
44 KGJ-M130A-00X COVER 9-2 1
45 KGJ-M1335-00X BRACKET 1,COVER 9 1
45-1 KGJ-M1335-01X BRACKET 1,COVER 9 1 (2006/3/8) MC30016 OK
46 KGJ-M1336-00X BRACKET 2,COVER 9 1
46-1 KGJ-M1336-01X BRACKET 2,COVER 9 1 (2006/3/8) MC30016 OK
47 KGJ-M1334-00X BRACKET 3,COVER 9 1
47-1 KGJ-M1334-01X BRACKET 3,COVER 9 1 (2006/3/8) MC30016 OK
48 KGJ-M1337-00X BRACKET 4, COVER 9 1
49 K46-M1374-10X HINGE 2 2
50 K93-M1392-00X SPACER (TM-180-303) 4
51 KH2-M1324-00X GRIP 1
51-1 KH2-M1324-01X GRIP 1 (2008/10/15) ME00034 OK
52 KM0-M1331-01X BRACKET GAS DAMPER 2
53 KL3-M1348-10X GAS SPRING 2
54 KM0-M1346-00X SHOULDER,BOLT 4
54-1 90990-31J006 BOLT,SHOULDER 4 (2008/6/24) ME10118 OK
55 KL0-M1373-01X BRACKET 1 SCHMEASAL 1
56 KL0-M1374-00X PLATE 1 SCHMESAL 1
57 KW7-M13D7-00X SEAL 2(YAMAHA) 1
57-1 KW7-M13D7-01X SEAL 2(YAMAHA) 1 (2004/6/30) MA60120 OK
58 91317-04008 BOLT HEX. SOCKET HEAD 4
59 91317-04010 BOLT HEX. SOCKET HEAD 6
60 91317-05014 BOLT HEX. SOCKET HEAD 2
61 KGJ-M1310-00X COVER 10 1
62 KGJ-M1311-00X COVER 11 1
63 KGJ-M1312-00X COVER 12 1
64 KGJ-M1316-01X COVER 16 1
65 KGJ-M1317-00X COVER 17 2
66 KGJ-M1322-01X COVER 22 1
67 KGJ-M1342-00X
ANGLE, FD DRIVE 1
68 KG7-M1342-01X BRACKET, F/D 1
69 91317-06012 BOLT HEX. SOCKET HEAD 2
70 90159-04J01 SCREW, W/WASHER 2
71 KGJ-M130C-00X COVER 29 1
72 KW3-M1343-00X COVER, AIR DUCT 1
73 90K41-000190 WARNING SEAL(1) 6
73-1 90K41-000360 LABEL,ALERT 6 (2004/7/16) MA70069 OK
74 90563-04J200 SPACER BOLT 4
75 KGJ-M130D-00X STAY,LIGHT COVER 1
75-1 KGJ-M130D-01X STAY,LIGHT COVER 1 2004/6/9 M3X0067 NG
76 KGJ-M130F-00X COVER,LIGHT 1
76-1 KGJ-M130F-01X COVER,LIGHT 1 2004/6/9 M3X0067 NG
77 KV7-M1350-00X CAP, PATLIGHT 1
78 K44-M1354-00X MG. CATCH (TL-152-2) 2
79 KV7-M1372-00X HANDLE 1 3
80 90159-04J01 SCREW, W/WASHER 100
81 K16-90101-08X BOLT:TP-M4X8 9
81-1 90990-46J002 BOLT,THIN HEAD 9 (2008/6/3) ME30136 OK
82 K16-90101-12X BOLT:TP-M4X12 9
82-1 90990-46J004 BOLT,THIN HEAD 9 (2008/6/3) ME30136 OK
83 98907-04006 SCREW, BINDING HEAD 14
84 91317-05010 BOLT HEX. SOCKET HEAD 2
85 KW3-M9502-00X AIR DUCT, TEMP CON. 1
86 KGJ-M9503-00X AIR COVER, TEMP CON. 1
2
2
Base Cover
Cover
KGJ-081022
6
21
28
43
13
16
15
5
12
47
19
30
31
32
20
29
14
3
17
36
8
34
37
38
48
38
33
35
39
27
40
44
41
45
26
39
35
2
1
6
21
12
42
10
23
8
11
19
18
20
3
17
14
9
23
7
4
16
15
43
13
5
22
22
22
22
22
22
24
23
21
24
22
46
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1
KW3-M1338-00X PLATE HINGE 1
6
2 KGJ-M1339-00X ANGLE HINGE 1 5
3 KV5-M1130-00X CATCH MG. 5
4 KGJ-M1305-A1X COVER 5 1
4-1 KGJ-M1305-A2X COVER 5 1 (2003/8/29) M380080 OK
5 KGJ-M1305-B0X NUT PLATE 4
6
KGJ-M1305-C0X COVER 5-1 2
7 KGJ-M1305-D0X COVER 5-2 1
8 KGJ-M1305-E0X COVER 5-3 2
9 KGJ-M1305-F0X BRACKET 1,COVER 5 1
9-1 KGJ-M1305-F1X BRACKET 1,COVER 5 1 (2002/3/14) M230064 OK
10 KGJ-M1305-G0X BRACKETR 2, COVER 5 1
11 KGJ-M1305-H1X BRACKET 3, COVER 5 1
12 KGJ-M1305-J0X HINGE 4
13 KGJ-M1305-K0X HANDLE 2
14 KGJ-M1305-L0X BRACKET, SENSOR 2
15 KGJ-M1305-M0X BRACKET, DOG 2
16
KGF-M1333-00X NUT PLATE
4
17
KGJ-M1305-N0X BRACKET, MAGNET
2
18
KGJ-M1305-P1X BRACKET, HINGE
2
19 KGJ-M1305-R0X STAY 2
20 KGJ-M1305-S0X STAY, BRACKET 2
21 K16-90101-08X BOLT: TP-M4X8 12
22 90990-12J003 SCREW BIN.HEAD W/W 12
23 91312-04008 BOLT HEX.SOCKET HEAD 35
24 91312-03006 BOLT HEX.SOCKET HEAD 6
25
26 KGJ-M1313-00X COVER 13 1
27 KGJ-M1314-00X COVER 14 1
27-1 KGJ-M1314-01X COVER 14 1 (2004/5/7) M410097 OK
28 KGJ-M1315-A1X COVER 15 1
28-1 KGJ-M1315-A2X COVER 15 1 (2003/8/29) M380080 OK
29 KGJ-M1315-F1X BRACKET 1, COVER 15 1
30 KGJ-M1315-G0X BRACKETR 2, COVER 15 1
31 KGJ-M1315-H0X BRACKETR 3, COVER 15 1
32 KGJ-M1315-P0X BRACKET, HINGE 1
33 KGJ-M1318-00X COVER 18 1
34 KGJ-M1319-00X COVER 19 1
35 KGJ-M1325-00X PLATE, COVER 2
36 KW3-M1326-01X ANGLE 1, COVER 1 1
37
KW3-M1328-01X ANGLE, COVER 2
1
38 KW3-M1325-01X PLATE, COVER 2
39 KW3-M1330-01X BRACKET, COVER 3 4 2
40 KGJ-M1344-00X BRACKET 1, COVER 1
41 KGJ-M1345-00X BRACKET 2, COVER 1
42 KGJ-M1341-00X BRACKET, REAR COVER 1
43 90K41-000190 WARNING SEAL(1) 6
43-1 90K41-000360 LABEL,ALERT 6 (2004/7/16) MA70069 OK
44 90K41-000230 WARNING SEAL(2) 5
44-1 90K41-000350 LABEL,ALERT 5 (2004/7/16) MA70069 OK
45 K46-M641U-00X PARTS,1-13 6
45-1 90K41-000712 LABEL ALERT 6 (2007/9/11) MD80071 OK
46 K44-M1354-00X MG. CATCH (TL-152-2) 2
47 KGJ-M1315-D0X COVER 15-2 1
48 KV7-M1372-00X HANDLE 1 1
38
36
37
15
4
3
3
2
35
33
34
60
65
59
44
61
5
66
42
43
23
72
45
53
24
24
25
46
47
58
27
67
69
66
67
54
16
12
64
11
10
31
30
40
76
73
13
14
70
29
25
26
32
6
6
8
7
10
9
17
19
18
18
20
21
22
25
63
39
23
45
53
50
28
47
46
25
67
62
62
70
1
66
A
75
75
65
53
51
48
58
55
55
77
48
50
50
55
63
50
49
74
71
68
78
53
49
53
52
48
62
62
56
OLD
1
3
SZ-axis
Moving-axis
KGJ-081022
No. Part No. Part Name Q'ty Remarks Date of change Revised No. Compati.
1 KGJ-M2201-00X PLATE,HEAD BASE 1
1-1 KGJ-M2201-01X PLATE,HEAD BASE 1 (2002/2/13) M220063 OK
1-2 KGJ-M2201-02X PLATE,HEAD BASE 1 (2005/1/17) MB10062 NG
2 KGJ-M2202-00X PLATE, SZ AXIS 1
3 KGJ-M2203-00X STAY, PLATE SZ 2
4 KGJ-M2204-00X PLATE L 1
5 KGJ-M2205-00X PLATE R 1
6 KGJ-M2207-00X HOLDER NUT, SZ 1
6-1 KGJ-M2207-01X HOLDER NUT,SZ 1 (2005/1/17) MB10062 NG
6-2 KGJ-M2207-02X HOLDER NUT,SZ 1 (2005/10/14) MB90158 OK
7 KW3-M2208-00X SUPPORT UNIT 1
8 KGJ-M2209-00X BALL SCREW, SZ AXIS 1
9 KG7-M9111-01X PULLEY 1 1
10 KW3-M2211-00X BELT, SZ 1
11 KW3-M2212-00X PULLY, SZ MOTOR 1
12 KGJ-M2213-00X BRACKET, SZ MOTOR 1
13 KW3-M2214-00X GUIDE, SZ AXIS 1
14 KW3-M2215-00X GUIDE, SZ 1 THK SSR15W-L
14-1 KGJ-M2215-00X GUIDE,SZ 1 THK SHS-15LV (2005/1/17) MB10062 NG
15 KGJ-M2216-00X COVER, SZ BELT 1
15-1 Delete (2005/9/20) MB90097
16 KGJ-M2217-00X HOLDER BRG, SZ 1
17 KGJ-M2219-00X HOUSING A, SPG 1 1
18 KGJ-M2220-00X HOLDER, SPRING 1 2
19 KW3-M2221-00X SPRING 1 1
20 KGJ-M2222-00X HOUSING B, SPG 1 1
21 KGJ-M2223-00X STOPPER,SZ 1 Ø4.5
21-1 KGJ-M2223-01X STOPPER, SZ 1 Ø5.5 (2002/2/1) M220072 NG
22 KGJ-M2224-00X DAMPER 1 1
23 KGJ-M2225-00X STOPPER, SPG 2 2
24 KGJ-M2226-00X DAMPER 2 2
25 KGJ-M2227-00X COLLAR 1,DAMPER 8
25-1 90990-41J014 COLLAR 8 (2008/4/15) ME20075 OK
26 KGJ-M3133-00X COLLAR, DAMPER 4
27 KGJ-M2230-00X HOUSING 1, SPG 2 1
28 KGJ-M2232-00X HOUSING 2, SPG 2 1
29 KGJ-M2234-00X DAMPER 3 1
30 KGJ-M2235-00X BRACKET, SENSOR 1
31 KW3-M2236-00X DOG, ORG Z 1
32 KGJ-M2237-00X DAMPER 4 1
33 KGJ-M2238-00X DUCT, CABLE 1
33-1 Delete 2003.10.29 M300105
34 KGJ-M2239-00X STAY, DUCT 1
34-1 KGJ-M2239-01X STAY, DUCT 1 2003.10.29 M300105 NG
35 KGJ-M2240-00X COVER, DUCT 1
35-1 Delete 2003.10.29 M300105
36 KGJ-M2242-00X STAY 1, COVER 1
37 KGJ-M2243-00X STAY 2, COVER 1
38 KGJ-M2244-00X COVER 1
39 KGJ-M2245-00X PLATE TOP, SZ 1
40 KW3-M653A-10X SENSOR, 1-1 ASSY 1
41 KW3-M2665-00X STRIPPER BOLT 1
41-1 90990-31J013 BOLT,SHOULDER 1 (2008/6/24) ME10118 OK
42 KV7-M2256-00X GRIP 2
43 KV7-M2257-00X SPACER, GRIP 2
44 KH7-M8582-00X VALVE 1
45 KW3-M2227-00X ADJUST BOLT 2
46 KGJ-M2258-00X ADJUSTER, SPG 2 2
47 KW3-M2259-00X SPG 2 2
48 91317-08030 BOLT HEX. SOCKET HEAD 10
49 91317-04012 BOLT HEX. SOCKET HEAD 23
50 91317-04016 BOLT HEX. SOCKET HEAD 22
51 92A08-04306 SET SCREW M4X6 2
52 92A08-04304 SET SCREW M4X4 1
53 91317-05020 BOLT HEX.SOCKET HEAD 10
53-1 91317-05020 BOLT HEX.SOCKET HEAD 14 (2004/1/9) M410022 OK
53-2 91317-05020 BOLT HEX.SOCKET HEAD 16 (2005/1/17) MB10062 OK
54 91317-04014 BOLT HEX. SOCKET HEAD 4
55 91317-04010 BOLT HEX. SOCKET HEAD 6
56 91317-05012 BOLT HEX. SOCKET HEAD 4
57 91317-05018 BOLT HEX.SOCKET HEAD 4
57-1 Delete (2004/1/9) M410022
58 91317-05025 BOLT HEX.SOCKET HEAD 7
58-1 91317-05025 BOLT HEX.SOCKET HEAD 4 (2005/1/17) MB10062 OK
59 91317-03030 BOLT HEX. SOCKET HEAD 2
60 $SL6-01 JOINT 1
61 $KM-11 MUFFLER 1
62 98907-04006 SCREW BINDING HEAD 7
63 91317-04022 BOLT HEX. SOCKET HEAD 4
64 90K55-523784 AC SERVO MOTOR 1
65 99480-06020 PIN, PARALLEL 2
66 90563-04J50X SPACER 1
66-1 Delete (2005/9/20) MB90097 OK
67 99480-04012 PIN, PARALLEL 8
68 90563-04J500 SPACER 1
69 91317-04025 BOLT HEX. SOCKET HEAD 4
70 KGJ-M2206-00X STOPPER PLATE 1 2005.01.17 MB10062
71 91317-06014 BOLT HEX.SOCKET HEAD 16
72 92907-05200 WASHER PLAIN 4
73 92907-04200 WASHER PLAIN 3
74 92017-05030 BOLT,BUTTON HEAD 3 (2005/1/17) MB10062
75 95302-06600 NUT HEXAGON 4
76 98902-03008 SCREW BINDING HEAD 2
77 98902-04008 SCREW BINDING HEAD 3
78 91317-04020 BOLT HEX.SOCKET HEAD 5
