3-5
AJK-MLT-ID
2. Pattern Program
2.1 Description of Pattern Program
2.1.1 Placement Feeder Location Data
The "Tray" and "Tray Step" tabs in each "Feeder Base #" tab can be used to
set the placement feeder location data for the multi-layer tray feeder.

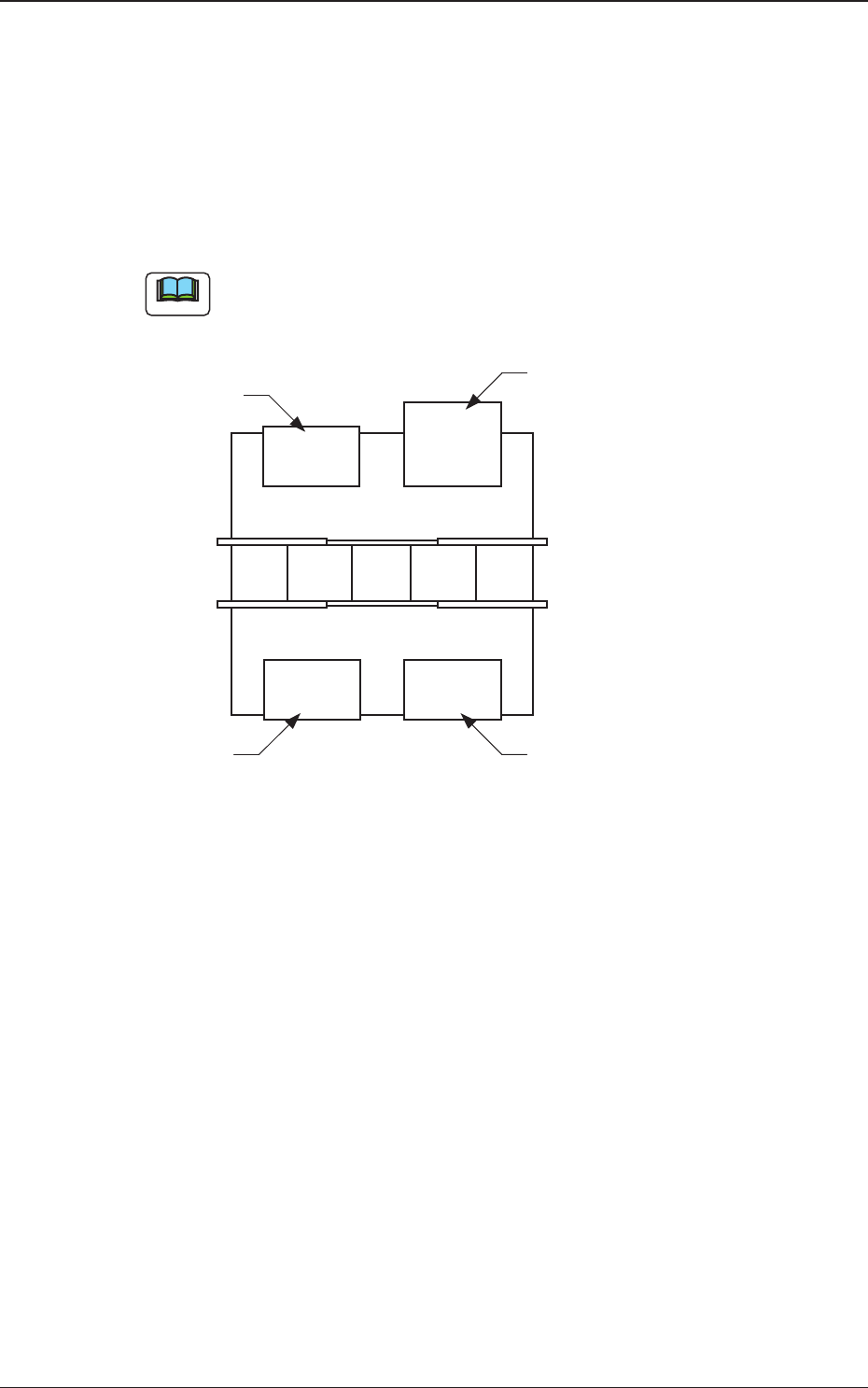

Note
The following shows the positional relation between the feeder bases.
Front Side of Machine
Rear Side of Machine
Feeder Base #1
Feeder Base #2
Feeder Base #3
(Multi-Layer Tray Feeder)
Feeder Base #4
Fig. C4
2. Pattern Program
0706-002
3-6
AJK-MLT-ID
(C02) Tray Data

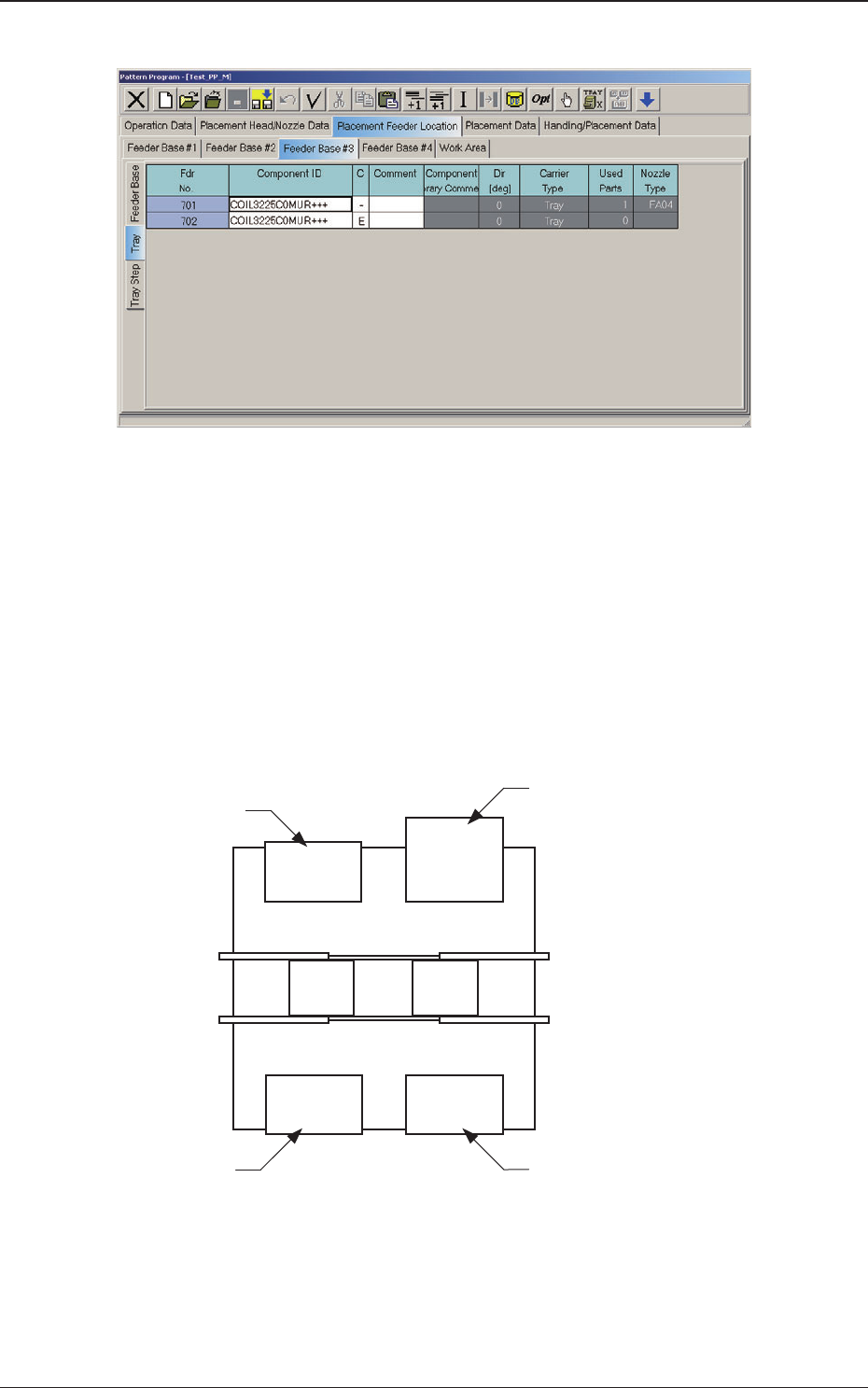

Fig. C4-1 "Tray" Edit Window
(C02_01) Fdr No.
Shown are the feeder Nos. in the placement feeder location data.
When the multi-layer tray feeder is connected, the feeder Nos. (Fdr
Nos.) become as follows.
Multi-Layer Tray
Feeder #1 :
501 to 599
Multi-Layer Tray Feeder #2 :
601 to 699
Multi-Layer Tray Feeder #3 :
701 to 799
Multi-Layer Tray Feeder #4 :
801 to 899
101 to 150 701 to 799
201 to 250 401 to 450
Front Side of Machine
Rear Side of Machine
Feeder Base #1
Feeder Base #2
Feeder Base #3
(Multi-Layer Tray Feeder)
Feeder Base #4
Fig. C5 Multi-Layer Tray Feeder #3 Connected
2.1 Description of Pattern Program
0804-003
3-7
AJK-MLT-ID
(C02_02) Component ID
Set component IDs in the text boxes.
(C02_03) C
Set
control commands in the text boxes.
Notice
If a control command other than the following ones is used, the step
becomes invalid.
- (hyphen) :
This command handles the steps as those for the
placement feeder location data.
E :
This command shows the end of the placement feeder
location data.
The step where "E" is set is valid.
S :
This command invalidates the steps specied as
placement feeder location data.
X :
This command invalidates the steps specied as
placement feeder location data and shows the end of the
data.
(C02_05) Component Library
Comment
Displayed are the comments entered in the component library data.
(C02_06) Dir [deg],
Carrier Type
Displayed is the data specied in the component library data.
(C02_07) Used Parts
Displayed is the number of components to be used for one unit PCB.
2.1 Description of Pattern Program
