4-3
AJK-MLT-ID
Speciedlubricationtools
(1) Brush
Use a brush whose bristles do not come off if possible.
(2) Vinyl Gloves
Use a pair of vinyl gloves to apply grease or oil by hand.

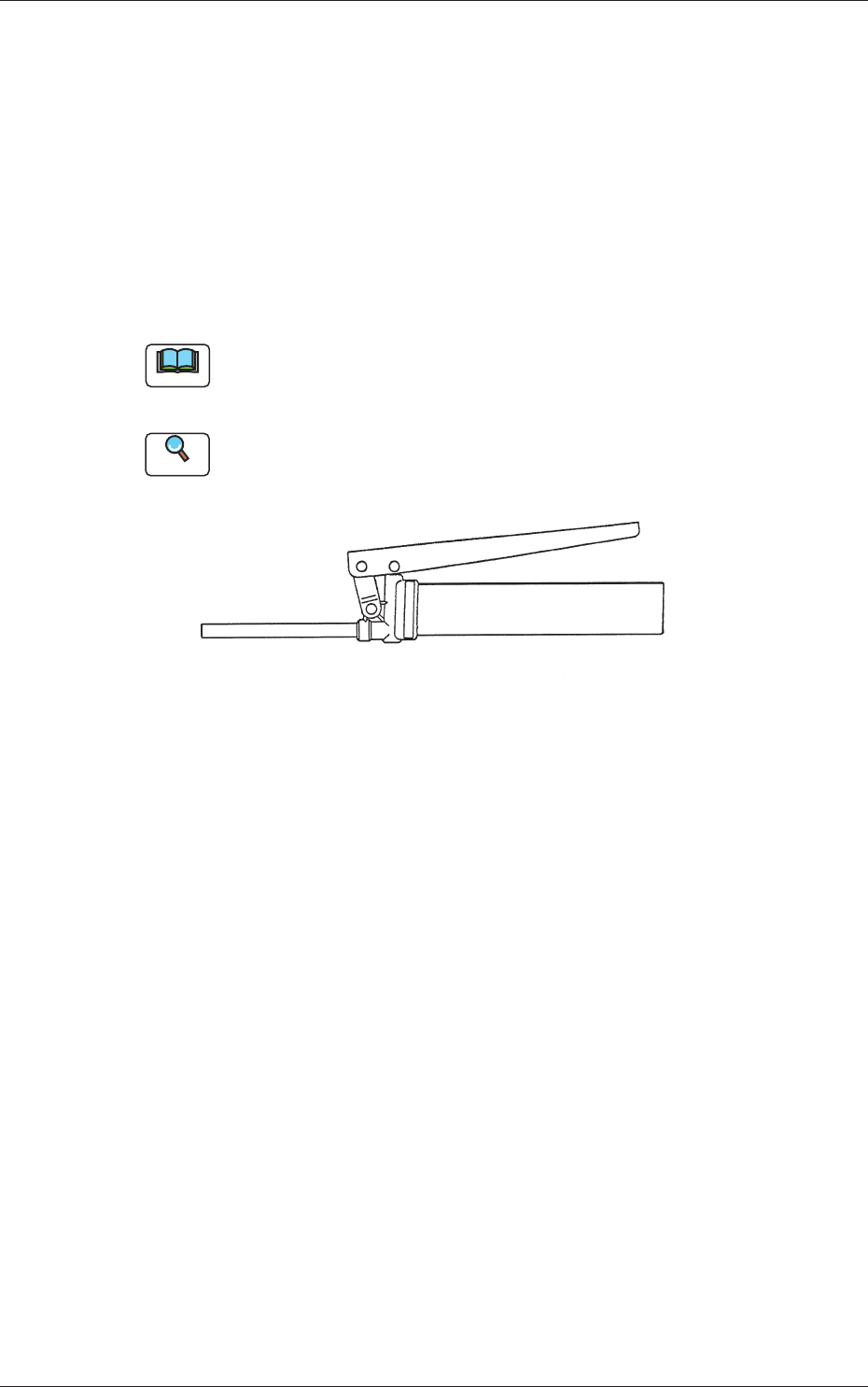

(3) Hand Grease Gun
Standard :
KH-120
Part No. : 630 062 2577
Maker : Yamada Yuki
.OTE
(a) Use this gun only for DAPHNE EPONEX GREASE No. 1.
(b) Please purchase a hand grease gun or attachments whenever
necessary.
Reference
Refer to the attached instruction manuals for the hand grease gun for the
usage.
Fig. D1
1.2 Preparation for Maintenance
0706-002
4-4
AJK-MLT-ID

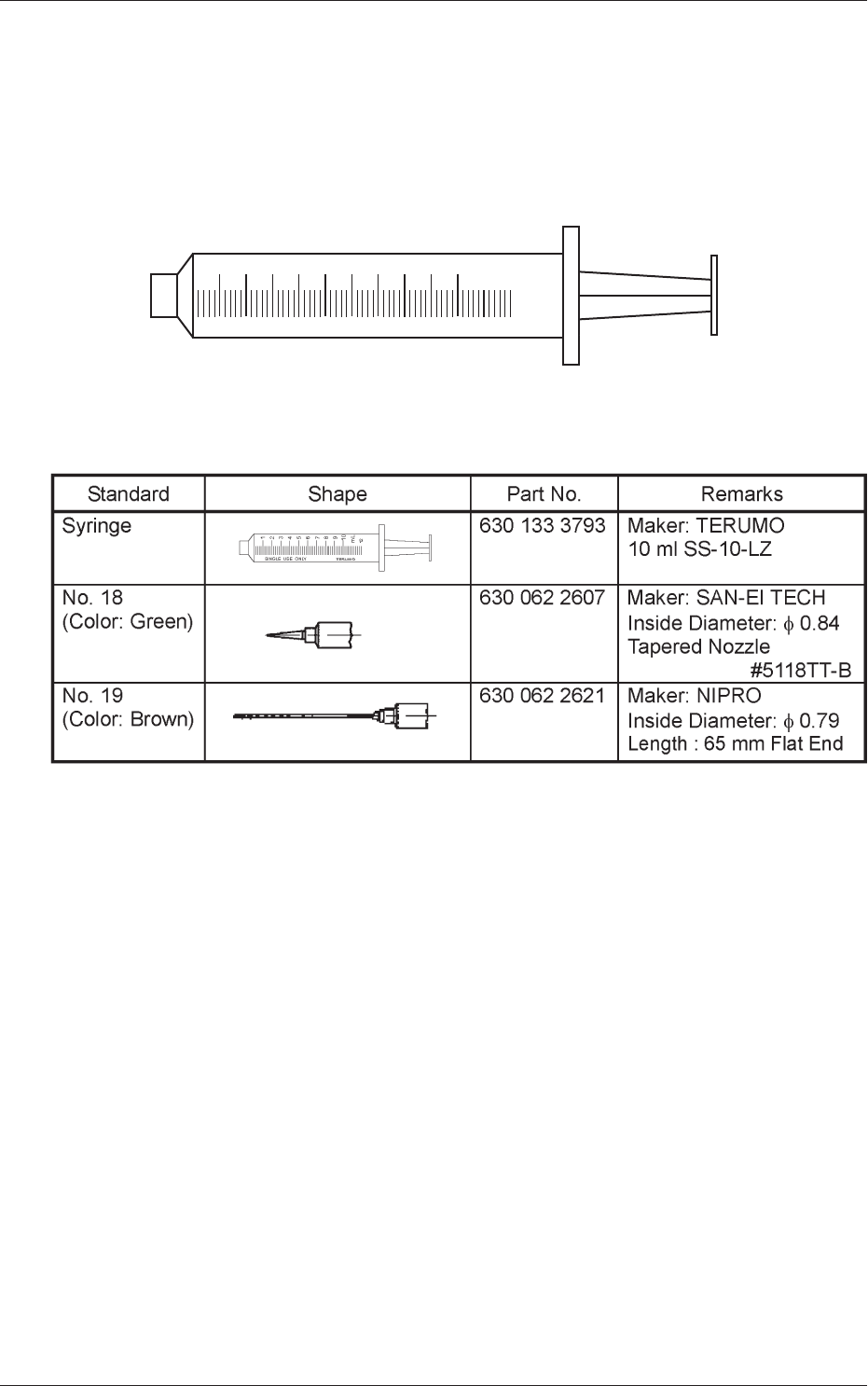

(4) Syringe
This syringe can be used for two kinds of greases.
Use the syringes and the nozzles properly.
Two Kinds of Greases :
DAPHNE EPONEX GREASE No. 1
MOLYNOC GREASE AP1
Appearance
1
2
3
4
5
6
7
8
9
10
12
mL
SINGLE USE ONLY
4%25-/
Fig. D1-1
Table D3
0706-002
1.2 Preparation for Maintenance
4-5
AJK-MLT-ID
1.3 Periodic Maintenance Items
0706-002
1.3 Periodic Maintenance Items
The items (inspection, cleaning, lubrication, etc.) that require periodic
maintenance are classied and described based on each individual devices.
Reference
Refer to "2. Maintenance Check List" for the maintenance based on
frequency of use.
Notice
The * marks represent that the items require maintenance only for
therst
time.
Follow the
-marked maintenance cycle for the subsequent use.
Table D4
Unit Name
Inspection, Cleaning,
and Lubrication Spots
Work
Cycle of Maintenance
Daily Weekly Monthly
Every 3
month
Every 6
month
Yearly
3.3.1
Pallet
Pallet Inspection
and
Cleaning
Rail Inspection
Upper Surface Inspection
3.3.2
Elevator Shaft
Ball Screw Lubrication
Linear Guide Lubrication
Belt Inspection
3.3.3
Traverse
Pallet Receiver Inspection
Linear Guide Lubrication
Pallet Chuck Lubrication
3.3.4
Magazine Base
Cylinder Connection
Section
Lubrication
Magazine Rail Lubrication
3.3.
5
Magazine
Rack Shutter Fulcrum
Section
Lubrication
