5-17
AJK-MLT-ID
3.7 ModicationforBABlockLayout(FP-G200R,200L)
G-S014-01(L), 02(R)
BABA
Detach
G-S014-01
-A63
(Cutter A).
Detach
G-S014-02
-A53
(Cutter B).
v Multi-layer Tray Feeder on Block 1 v Multi-layer Tray Feeder on Block 2
0706-002
3.PartsLocationModicationforBABlockLayout(FP-G200R,200L)G-S014-01(L),02(R)
5-18
AJK-MLT-ID
0706-002
3. Parts Location Modication for BC Block Layout (FP-G200R, 200L) G-S014-03(L), 04(R)

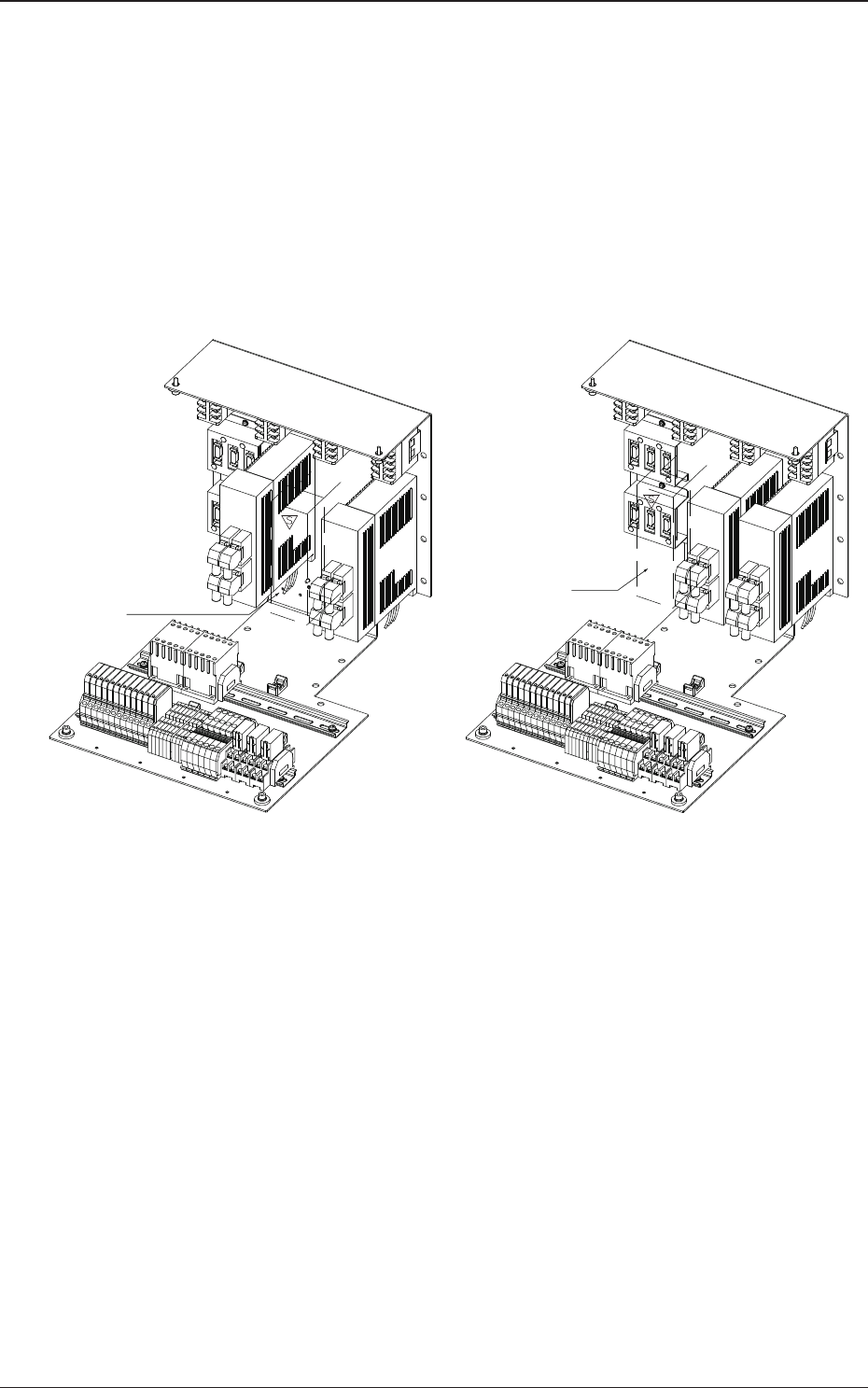

3.8 Modication for BC Block Layout (FP-G200R, 200L)
G-S014-03(L), 04(R)
BCBC
Detach
G-S014-03
-A63
(Cutter C).
Detach
G-S014-04
-A53
(Cutter D).
v Multi-layer Tray Feeder on Block 3 v Multi-layer Tray Feeder on Block 4
5-19
AJK-MLT-ID
0706-002
4. Electrical Circuit Diagrams
4. Electrical Circuit Diagrams

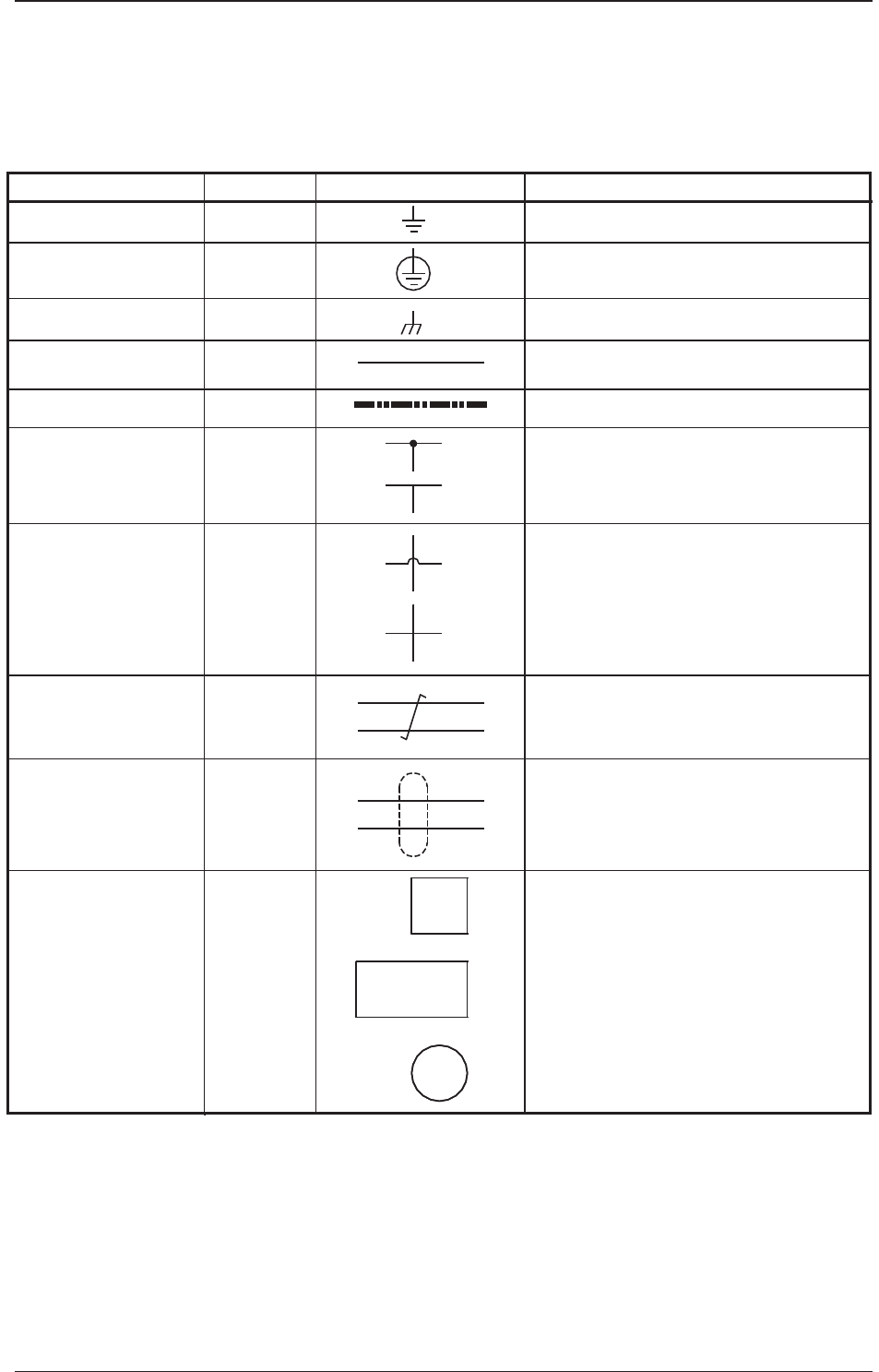

4.1 Electrical and Electronic Symbols
(a)
(b)
(c)
W
Name
Symbols
Graphical Symbols Remarks
Grounding (General)
Protective Ground
Connection (Chassis)
Cable
"W" is used only for signal wires in block
diagrams.
Optical Fiber Cable
Connection
No Connection
Twisted Pair Signal wires are twisted.
Shielded WiresShielding
Equipment or Device
The cables are not connected electrically.
The cables are connected electrically.
