Accessories Connecting the Tapes Tape Splice Tool for SMD Tape Connections User Manual SIPLACE S-Feeder 103 6.1.6.3 Checking the Join: Examples of Incorrect Connections Component pocket is cut open Gap betwee n the tape …
Accessories
Tape Splice Tool for SMD Tape Connections Connecting the Tapes
102 User Manual SIPLACE S-Feeder

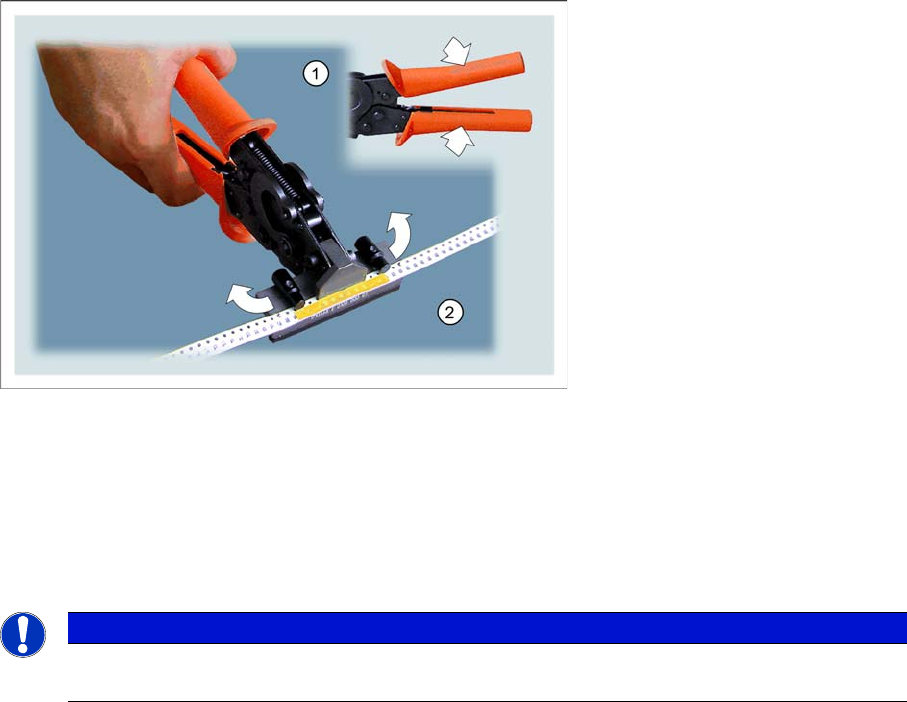

►Press the tape splice tool together until the gripper head opens. (1)
►Press the swivelling latches on the left and right towards the back. (2)
You can now take the spliced tape out of the tape splice tool.
►Check the quality of the join.
Tapes with perforations on both sides
►Insert a splicing plate onto the two middle pins of the open tape splice tool, with the raised "spikes"
showing upwards.
►Take the tape which has been spliced on one side and place its splice point in the middle of the
splicing plate.
Make sure that all 4 pins engage in the tape perforations.
►Turn the swivelling latches on the left and right to the front, to fix the tape into place in this position.
►Press the tape splice tool together until the gripper head opens.
►Turn the swivelling latches on the left and right towards the back.
You can now take the spliced tape out of the tape splice tool.
►Check the quality of the join.
NOTICE
When using tapes with perforations on both sides, proceed as described above. Afterwards,
join the tape at the second perforation with another splicing plate.
Accessories
Connecting the Tapes Tape Splice Tool for SMD Tape Connections
User Manual SIPLACE S-Feeder 103

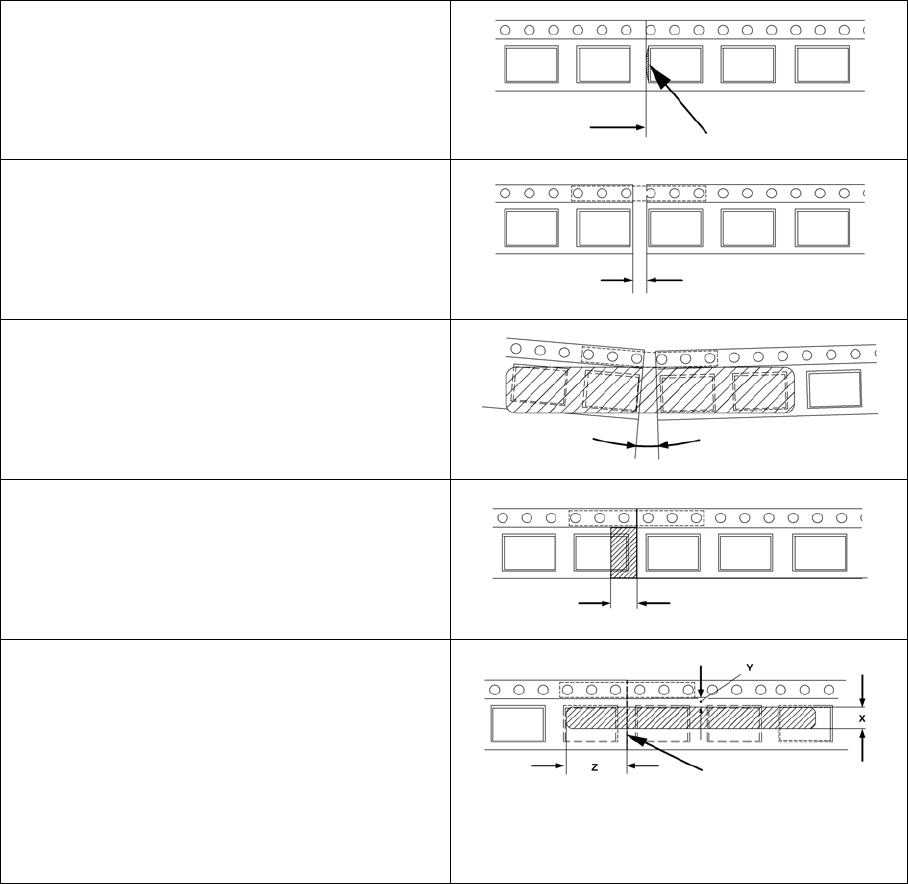

6.1.6.3 Checking the Join: Examples of Incorrect Connections
Component pocket is cut open
Gap between the tape ends is too large
Tape is folded at the splice point
Cover tape overlap is missing
Adhesive strip is not positioned correctly
X: Adhesive strip is too narrow
Y: Distance to perforation is too large
Z: Adhesive strip is not positioned in the middle
Accessories
Tape Splice Tool for SMD Tape Connections Accessories for the Accessories
104 User Manual SIPLACE S-Feeder

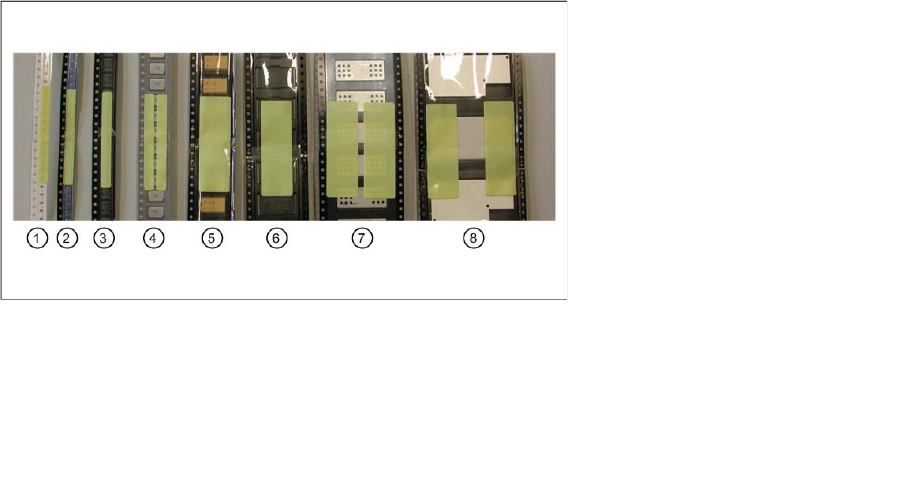

6.1.6.4 Examples of Correct Splice Connections
6.1.7 Accessories for the Accessories
For optimum tape splicing, you can order the following items:
▪
SIPLACE Operator Kit
,
Item No. 00349303-xx
The Operator Kit contains 1 leather case, 1 pair SMD tweezers, 1 small slotted screwdriver, 1 small
Phillips screwdriver, 1 pair scissors and 1 brush.
▪
Shuck holder for tape connector
,
Item No. 00362492-xx
▪ Holder for tape splice tool, Item No. 00362493-xx
▪
Splice trolly
, Item No. 003066234-xx
The documentation for correct splicing of tapes is also available as a poster or spiral bound job guide:
▪Job Poster "
Splicing tapes
", Item No. 00192460-xx
▪ Job Guide "
Feeders
", Item No. 00191256-xx
Legend:
1 8 mm paper tape 5 24 mm blister tape
2 8 mm blister tape 6 32 mm blister tape
3 12 mm blister tape 7 44 mm blister tape
4 16 mm blister tape 8 56 mm blister tape
