General
Technical Data Tape Feeder Modules
12 User Manual SIPLACE S-Feeder
3x8 mm S for 01005 CO
Machine: D1, D2, D4
Station software: From version 604.01
Line computer UNIX soft-
ware:
Not supported
SIPLACE Pro: From version 5.0
General
Tape Feeder Modules Technical Data
User Manual SIPLACE S-Feeder 13

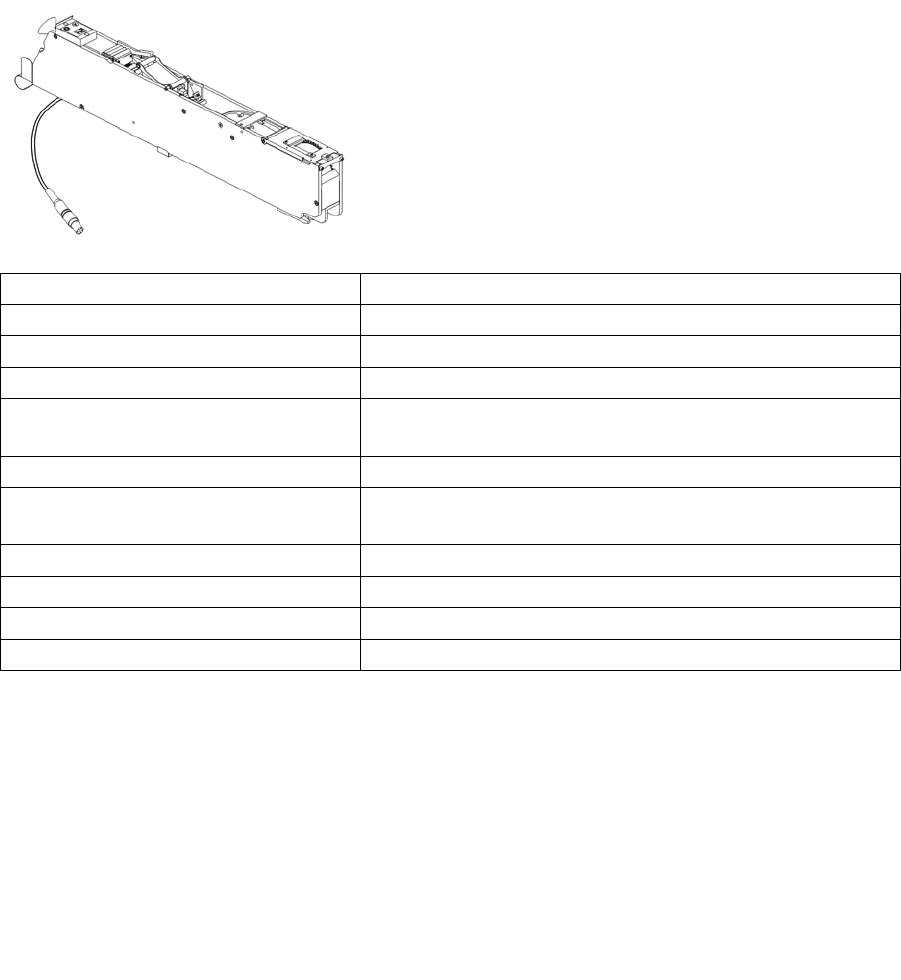

1.3.1.2 12/16 mm S
Operating the feeder
For processing components in 12 and 16 mm tapes.
Item number: 00141092-xx
Feeder width: 30.3 mm
Component spectrum: Components in 12 or 16 mm tapes
Max. component height: 14 mm (PSA kit available as option)
No. of occupied locations on changeo-
ver table:
1
Tape reels: 178 – 483 mm diameter (7" - 19")
Step size conveyor: 4 - 16 mm (from firmware V1.6 to 24 mm) - can be set in 4
mm stages
Tape material: Paper and blister tapes
Pickup positions: Back position: CO ≤ 3 mm
Middle position: CO >3 mm and ≤ 7 mm
Front position: CO >7 mm and ≤ 11 mm
Feeder time (cycle time): 60 ms +/- 5 ms (at 8 mm step size)
Changeover time: ≤ 15 seconds
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 402.03
From version 501
From version 601
From version 9.02
Line computer UNIX soft-
ware:
From version 402.xx
SIPLACE Pro: From version 1.0
General
Technical Data Tape Feeder Modules
14 User Manual SIPLACE S-Feeder
1.3.1.3 24/32 mm S
Operating the feeder
For processing components in 24 and 32 mm tapes.
Item number: 00141093-xx
Feeder width: 42.4 mm
Component spectrum: Components in 24 or 32 mm tapes
Max. component height: 14 mm
No. of occupied locations on changeo-
ver table:
1.5
Tape reels: 178 – 483 mm diameter (7" - 19")
Step size conveyor: 4 - 16 mm (from firmware V1.6 to 24 mm) - can be set in 4
mm stages
Tape material: Blister tapes
Pickup positions: 1
Feeder time (cycle time): 60 ms +/- 5 ms (at 8 mm step size)
Changeover time: ≤ 15 seconds
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 402.03
From version 501
From version 601
From version 9.02
Line computer UNIX soft-
ware:
From version 402.xx
SIPLACE Pro: From version 1.0
