General
Tape Feeder Modules Technical Data
User Manual SIPLACE S-Feeder 15

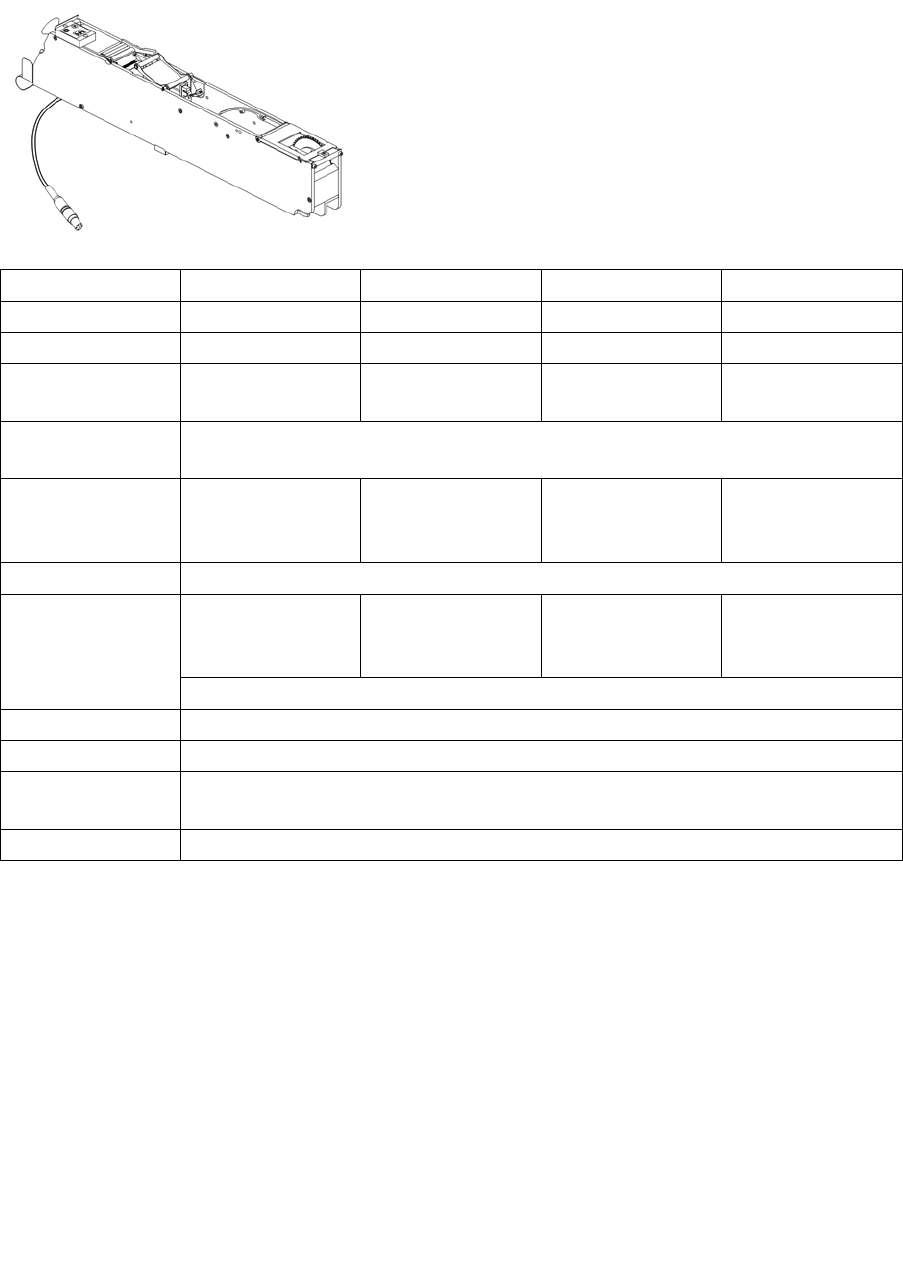

1.3.1.4 44, 56, 72 and 88 mm S
Operating the feeder
For processing components in 44, 56, 72 and 88 mm tapes.
44 mm S 56 mm S 72 mm S 88 mm S
Item number: 00141094-xx 00141095-xx 00141097-xx 00141070-xx
Feeder width: 54.3 mm 66.2 mm 82.6 mm 98.6 mm
Component spec-
trum:
Components in
44 mm tapes
Components in
56 mm tapes
Components in
72 mm tapes
Components in
88 mm tapes
Max. component
height:
14 mm
No. of occupied lo-
cations on
changeover table:
2 2.5 3 3.5
Tape reels: 178 – 483 mm diameter (7" - 19")
Step size convey-
or:
4 – 44 mm
(from firmware
V1.6 to 52 mm)
4 – 56 mm
(from firmware
V1.6 to 68 mm)
4 – 56 mm
(from firmware
V1.6 to 80 mm)
4 - 56 mm
(from firmware
V1.6 to 96 mm)
All can be set in 4 mm steps
Tape material: Blister tapes
Pickup positions: 1
Feeder time
(cycle time):
60 ms +/- 5 ms (at 8 mm step size)
Changeover time: ≤ 15 seconds
44 mm S
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 402.03
From version 501
From version 601
From version 9.02
Line computer UNIX soft-
ware:
From version 402.xx
SIPLACE Pro: From version 1.0
Track type: 64
Changeover table software: From version 3.05
General
Technical Data Tape Feeder Modules
16 User Manual SIPLACE S-Feeder
56 mm S
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 403.13
From version 501
From version 601
From version 10.01
Line computer UNIX soft-
ware:
From version 402.xx
SIPLACE Pro: From version 1.0
72 mm S
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 402.03
From version 501
From version 601
From version 9.02
Line computer UNIX soft-
ware:
From version 403.01
SIPLACE Pro: From version 1.3
88 mm S
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 407.01
From version 502.01
From version 501
From version 601
Line computer UNIX soft-
ware:
From version 502.01
SIPLACE Pro: From version 1.3
General
Tape Feeder Modules Technical Data
User Manual SIPLACE S-Feeder 17
1.3.1.5 24/32, 44 and 56 mm S DP
Operating the feeder
For processing high components in 24/32, 44 and 56 mm
tapes.
The S DP tape feeders are in principle designed like the
appropriate S feeders. The main differences are a higher
tape feed through for high components, modified dimensions
for the operating unit and a modified I/O card.
24/32 mm S DP 44 mm S DP 56 mm S DP
Item number: 00141193-xx 00141194-xx 00141195-xx
Feeder width: 42.4 mm 54.3 mm 66.2 mm
Component spectrum: Components in 24/
32 mm tapes
Components in 44 mm
tapes
Components in 56 mm
tapes
Max. component height: 24 mm
No. of occupied locations
on
changeover table:
1.5 2 2.5
Tape reels: 178 – 483 mm diameter (7" - 19")
Step size conveyor: 4 - 32 mm
(from firmware V1.6 to
40 mm)
4 – 44 mm
(from firmware V1.6 to
52 mm)
4 – 56 mm
(from firmware V1.6 to
68 mm)
All can be set in 4 mm steps
Maximum tape height To max. 25 mm *
Tape material: Blister tapes
Pickup positions: 1
Feeder time (cycle time): 60 ms +/- 5 ms (at 8 mm step size)
Changeover time: ≤ 15 seconds
* Observe the specifications in the descriptions of the individual placement machines
Machine: All machines in the SIPLACE family (except X4i)
Station software: From version 402.03
From version 501
From version 601
Line computer UNIX soft-
ware:
From version 402.03
SIPLACE Pro: From version 1.0
